This module supports -200°C to +1350°C measurements in 0.25-degree increments, and also provides internal temperature reading. It works with any K-type thermocouple and requires only 3 digital I/O pins for SPI communication. With 3.3–5V power supply compatibility, it is ideal for industrial, DIY, and embedded electronics projects.
-9%
MAX31855 K-type thermocouple module
Available:In Stock
- Product SKU: KG1265
₹ 816
₹ 899
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
MAX31855 K-type Thermocouple Module

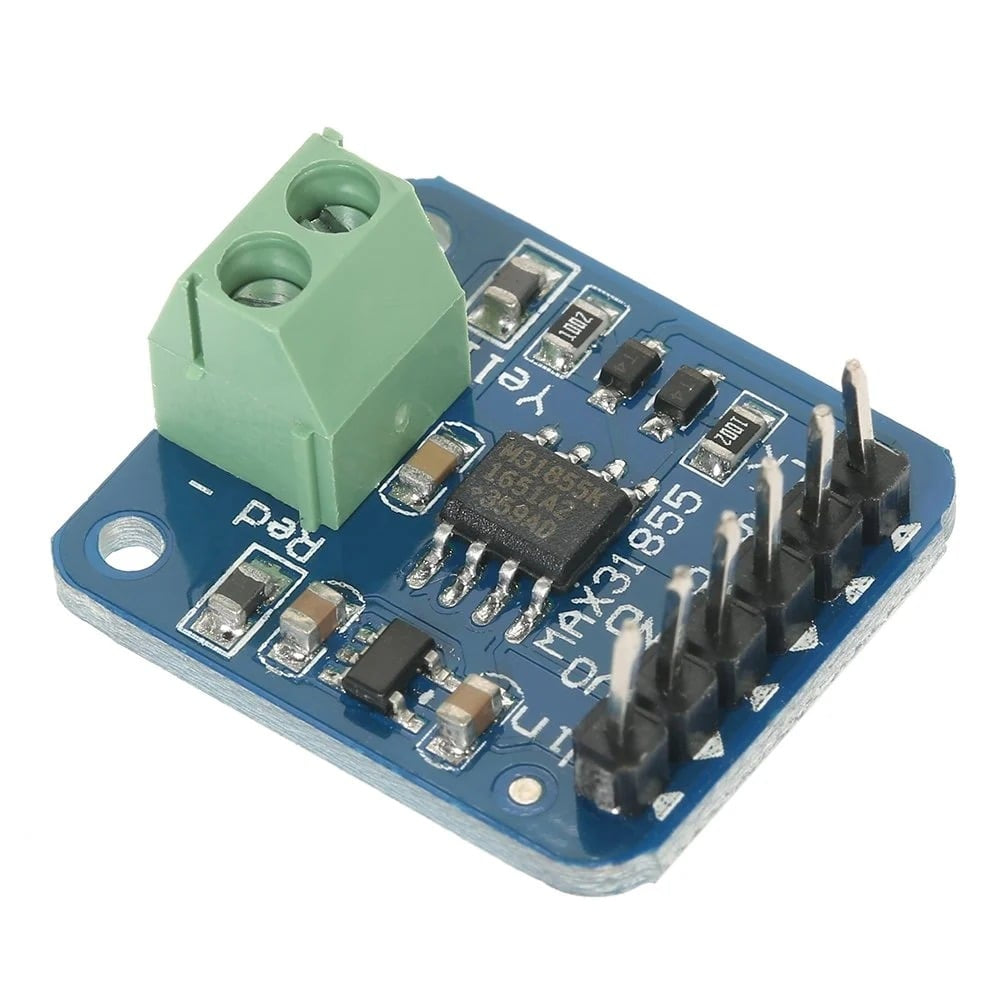

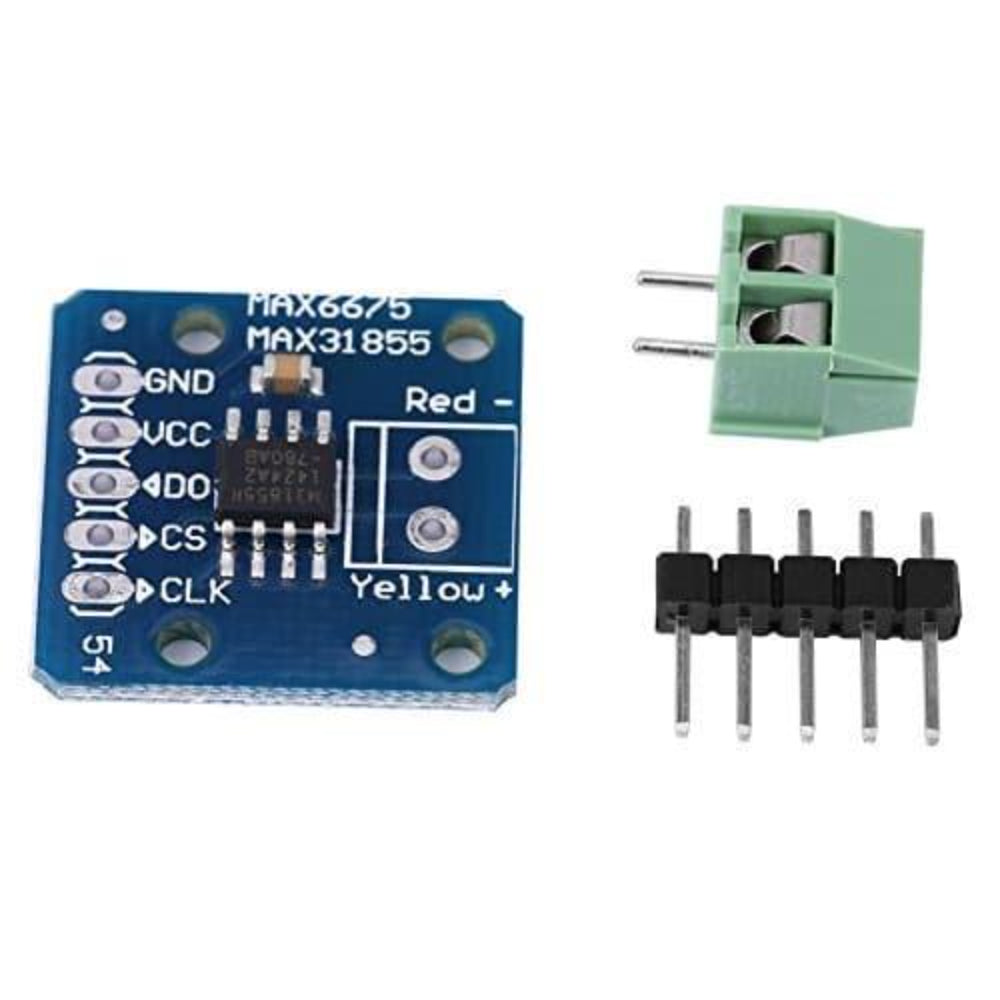

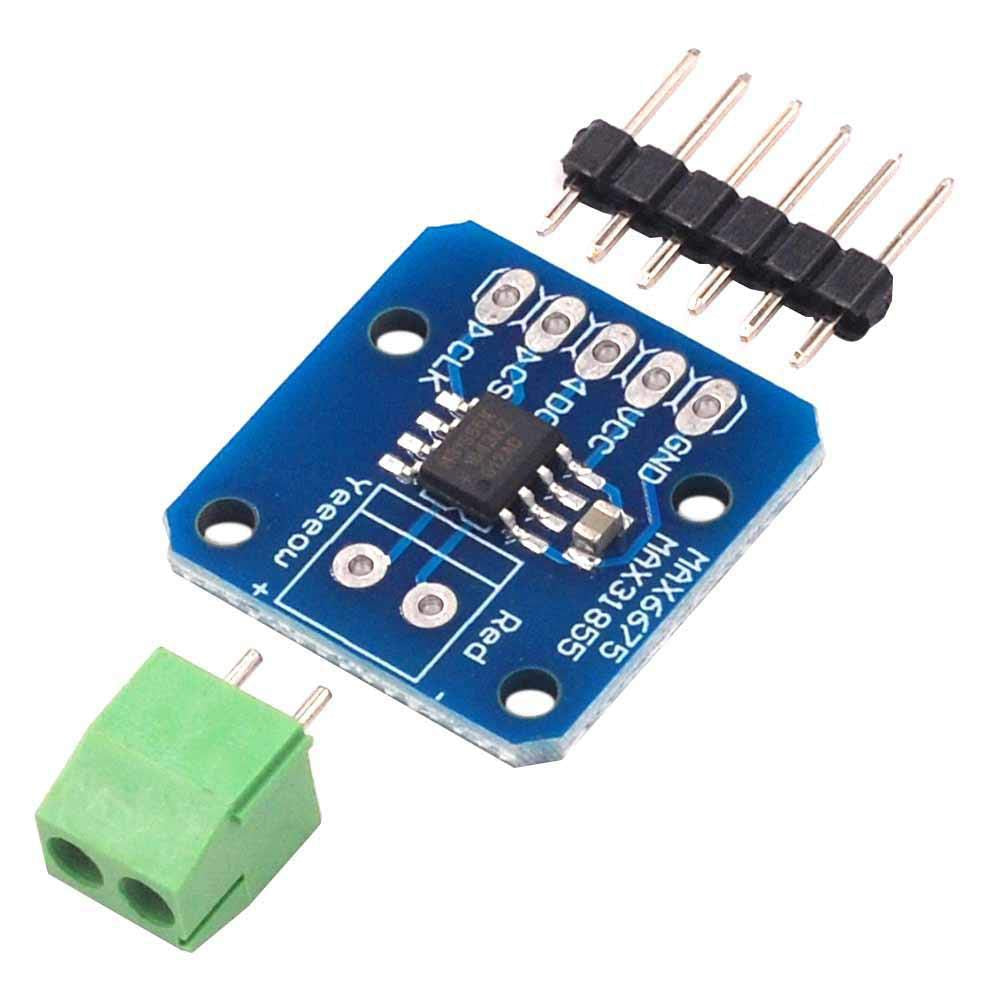

The MAX31855 K-type Thermocouple Module is designed for precise temperature measurement using a K-type thermocouple. It includes a cold-compensation reference, 3.3V regulator with bypass capacitors, and level shifting circuitry, allowing easy interfacing with any microcontroller, even those without analog inputs. The module comes with a 2-pin terminal block for the thermocouple and a pin header for easy breadboard or perfboard integration.This module supports -200°C to +1350°C measurements in 0.25-degree increments, and also provides internal temperature reading. It works with any K-type thermocouple and requires only 3 digital I/O pins for SPI communication. With 3.3–5V power supply compatibility, it is ideal for industrial, DIY, and embedded electronics projects.
Features
- Compatible with K-type thermocouples only
- Temperature range: -200°C to +1350°C
- Accuracy: ±2°C to ±6°C (depends on thermocouple)
- Internal temperature reading included
- Power supply: 3.3 to 5V
- SPI interface, requires 3 digital I/O pins
- Pin header for breadboard or perfboard integration
- 2-pin terminal block for thermocouple connection
Technical Details
- Item Type: Sensor Module
- Model Type: Thermocouple Sensor Module
- Rated Voltage: 3.3 to 5 V
- Accuracy: 0.25°C temperature resolution
- Interface: SPI
- Measuring Temperature: -200 to 1350°C
- Resolution: 14-bit
- Dimensions: 20 × 20 × 3.2 mm
- Weight: 3 g
Package Includes
- 1 × MAX31855 K-type Thermocouple Module
