MAX603CSA/ESA Low Dropout Voltage Regulator IC in SOIC-8 SMD 8-pin package for adjustable output up to 500mA in embedded and portable applications-1

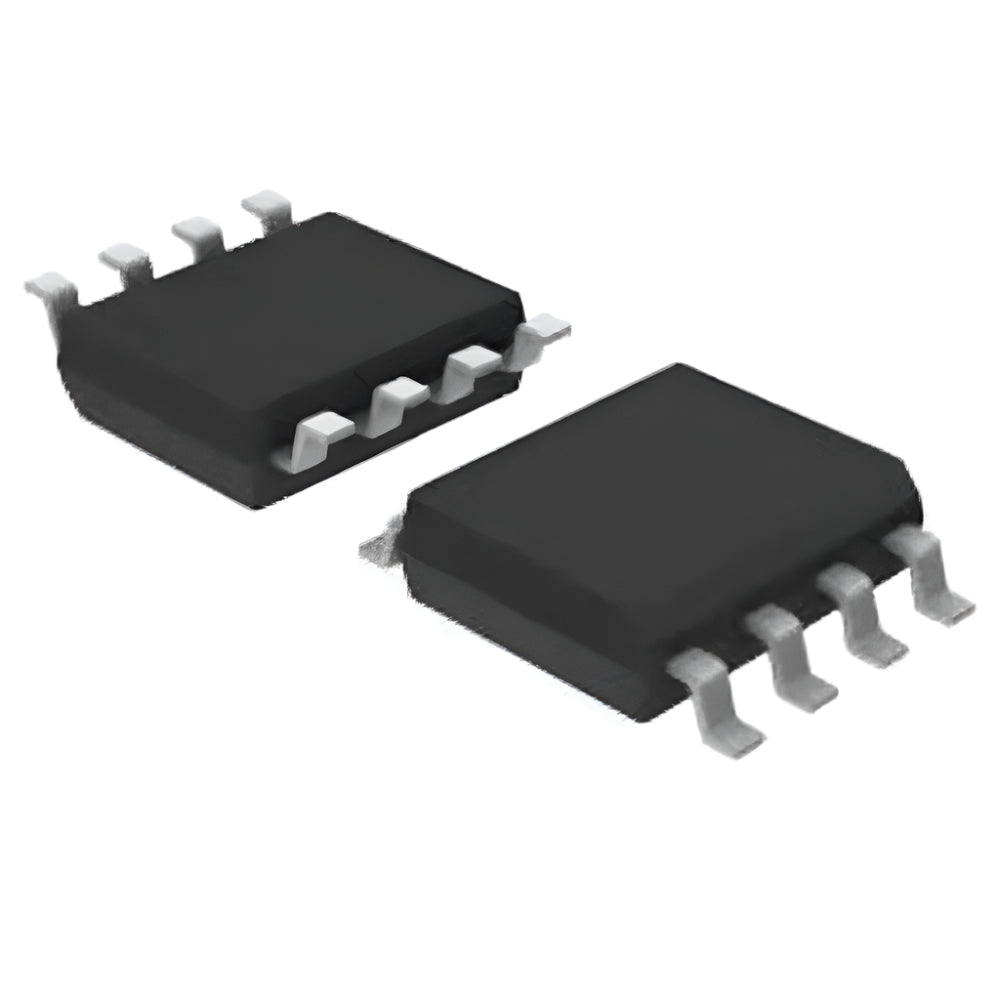

MAX603CSA/ESA SMD SOIC-8 8-Pin Low Dropout Voltage Regulator IC

Available:In Stock

Product SKU: INTEG356

Wishlist

₹ 149 ~~₹ 299~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Adjustable output: 1.25V–11V
Input: 2.7V–11.5V
Dropout: 320mV
Max current: 500mA
Low quiescent current
SOIC-8 SMD package

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

36 G - 157 D

Specification

Description

MAX603CSA/ESA SMD SOIC-8 8-Pin Low Dropout Voltage Regulator IC

The MAX603CSA/ESA is a high-efficiency, low dropout (LDO) voltage regulator IC designed for applications requiring stable and precise output voltage with minimal power loss. Packaged in a compact SOIC-8 SMD 8-pin form, it is ideal for use in portable, battery-operated, and embedded systems.

NOTE: Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

Output Type: Adjustable
Input Voltage Range: 2.7V to 11.5V
Output Voltage Range: 1.25V to 11V
Maximum Output Current: 500 mA
Dropout Voltage (Typical @ Load): 320 mV
Polarity: Positive Output
Number of Outputs: 1
IC Mounting Type: Surface Mount
Package / Case: SOIC
Pin Count: 8
Operating Temperature Range: -40°C to +85°C
Moisture Sensitivity Level (MSL): MSL 1 – Unlimited
SVHC Status: No SVHC (as of 27-Jun-2024)

Features

Low dropout linear voltage regulator
Adjustable output voltage: 1.25V to 11V
Input voltage range: 2.7V to 11.5V
Typical dropout voltage: 320mV at 500mA
Maximum output current: 500mA
Positive output polarity
Thermal shutdown and current limit protection
Low quiescent current for efficient operation
SOIC-8 surface-mount package
Wide operating temperature range: -40°C to +85°C

Applications

Battery-powered devices: Efficient regulation for handheld and portable electronics.

Embedded systems: Stable power for microcontrollers and logic circuits.

Consumer electronics: Used in audio/video equipment, routers, and digital gadgets.

Communication devices: Powers RF modules, transceivers, and signal processors.
