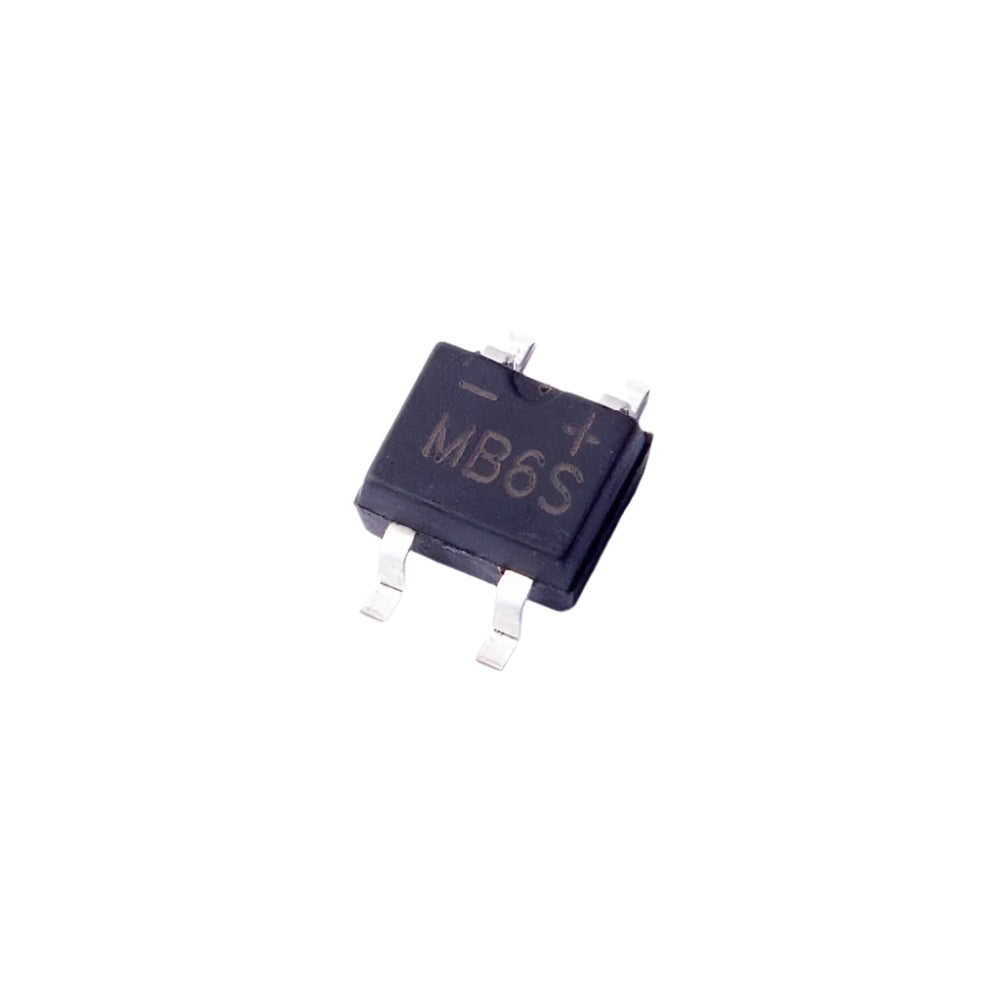

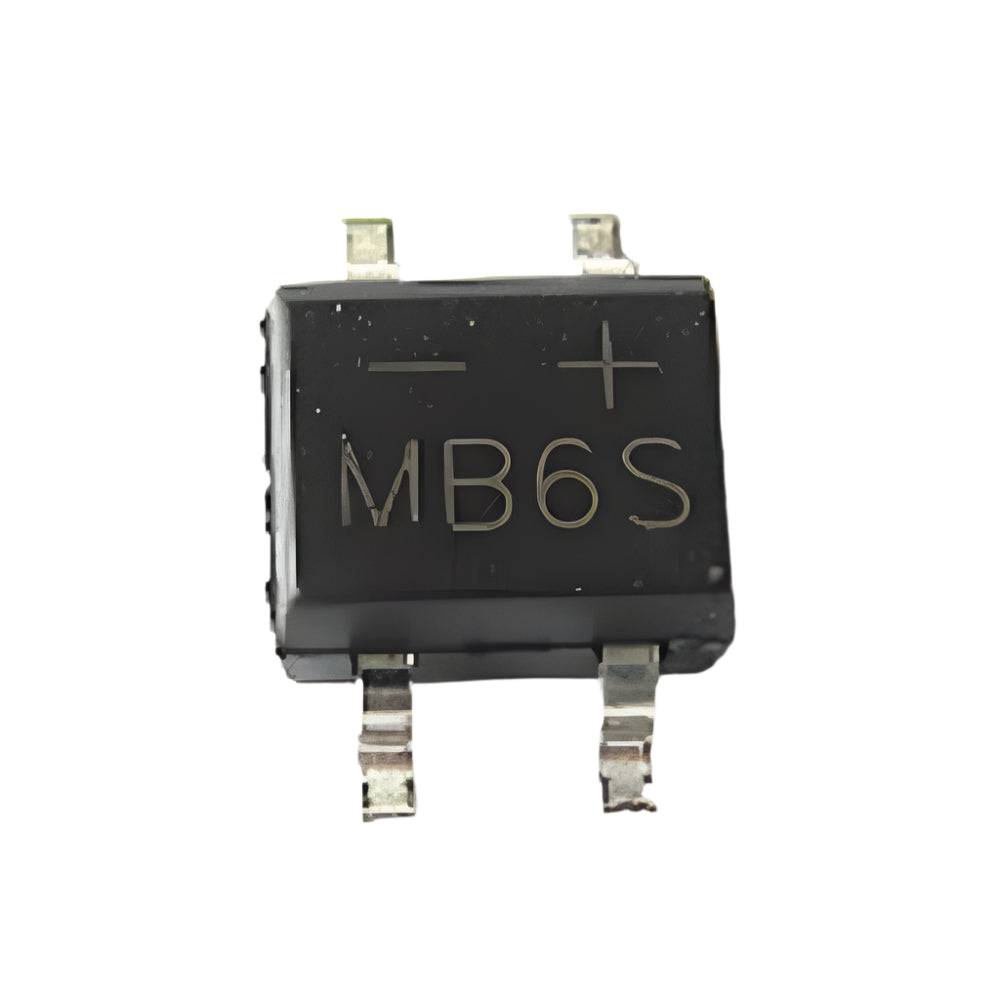

MB6S 0.5A 600V bridge rectifier in ultra-thin SMD package-2

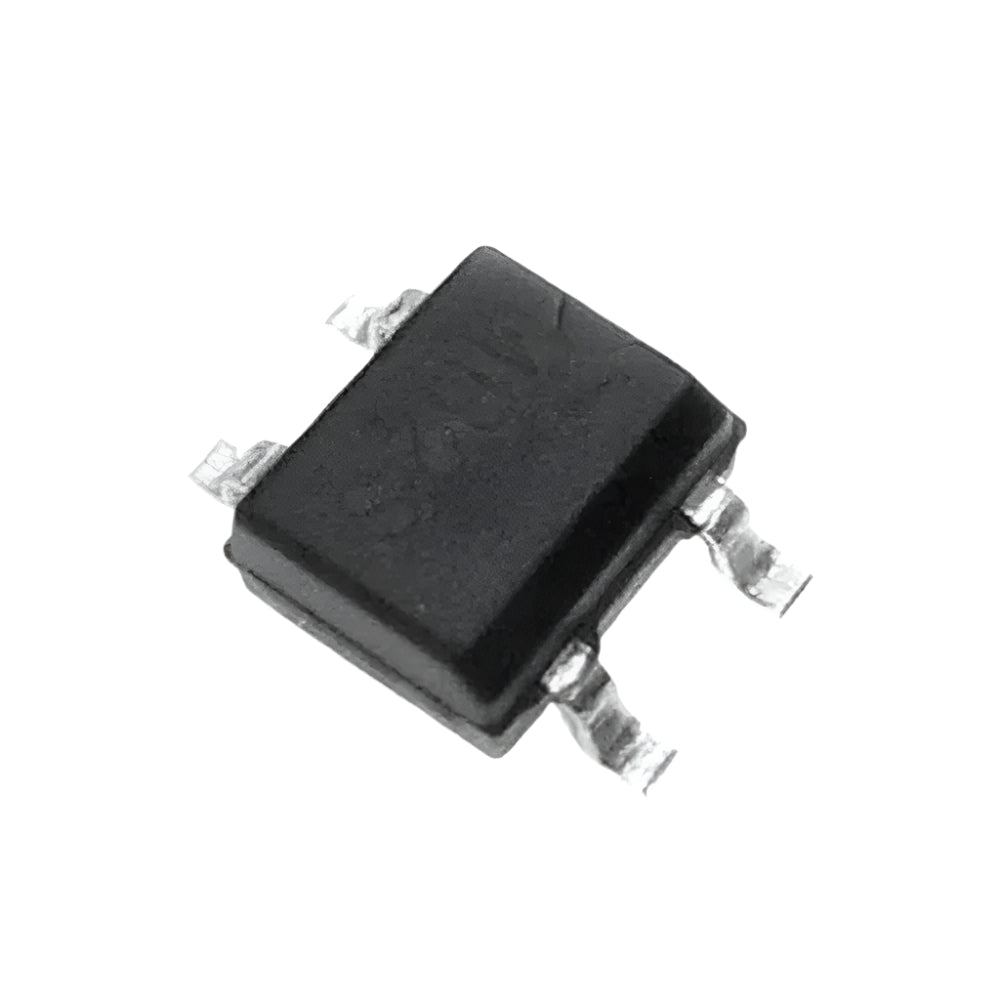

MB6S 0.5A 600V bridge rectifier in ultra-thin SMD package-1
MB6S 0.5A 600V bridge rectifier in ultra-thin SMD package-2
MB6S 0.5A 600V bridge rectifier in ultra-thin SMD package-2
MB6S 0.5A 600V bridge rectifier in ultra-thin SMD package-1
MB6S 0.5A 600V bridge rectifier in ultra-thin SMD package-2

MB6S Ultra-Thin Bridge Rectifier – 0.5A 600V, Compact SMD Package

Available:In Stock
  • Product SKU: INTEG321
Wishlist
₹ 4 ₹ 9
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 0.5A, 600V bridge rectifier
  • Ultra-thin compact SMD package
  • 35A peak surge overload
  • Low leakage and forward voltage drop
  • Ideal for AC to DC conversion
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36H-169E

Secure

Specification

Description

MB6S Ultra-Thin Bridge Rectifier – 0.5A 600V, Compact SMD Package

MB6S Ultra-The MB family of bridge rectifiers is a 0.5 A rectifier family that achieves high surge current absorption within a very small footprint. Within its small 35 mm2 form factor, the MB family shines in its surge capability. In order to absorb high surge currents, the design supports a 35 A IFSM rating and a 5.0 A2Sec I2T rating. Devices in the family are also rated to breakdown voltages of up to 1000 V. These features make the MB family ideal for small power supplies that need a little extra surge capability. For higher IFAV current ratings, lower profile packaging, or lower VF values, explore the Fairchild MDB family of bridge rectifiers. For improved VF and efficiency values in the MB package or even higher surge capability, ask about Fairchild’s pending MBxSV family.

Technical Details

  • Model: MB6S
  • Device Type: Bridge Rectifier
  • Maximum Average Forward Current: 0.5A
  • Peak Reverse Voltage (VR): 600V
  • Surge Overload Current: 35A peak
  • Reverse Recovery Time: Fast switching
  • Mounting Type: Surface Mount (SMD)
  • Package Type: Ultra-Thin MB6S Package
  • Operating Temperature Range: -55°C to +150°C
  • Low Forward Voltage Drop: Improves efficiency
  • Low Leakage Current: Reliable for long-term use

Features

  • Low-Leakage
  • Surge Overload Rating: 35 A Peak
  • Ideal for Printed Circuit Board

Applications

Power Adapters – Converts AC to DC for stable power output

LED Drivers – Regulates voltage in LED lighting systems

Battery Chargers – Provides efficient rectification for charging circuits

Home Appliances – Used in small electronics and power modules.

Physical Attributes

  • Dimensions: ~4.6mm x 3.7mm x 1.8 mm(L x W x H)
  • Weight: ~0.05g

Package Includes

  • 1 x MB6S Ultra-Thin Bridge Rectifier – 0.5A 600V, Compact SMD Package
