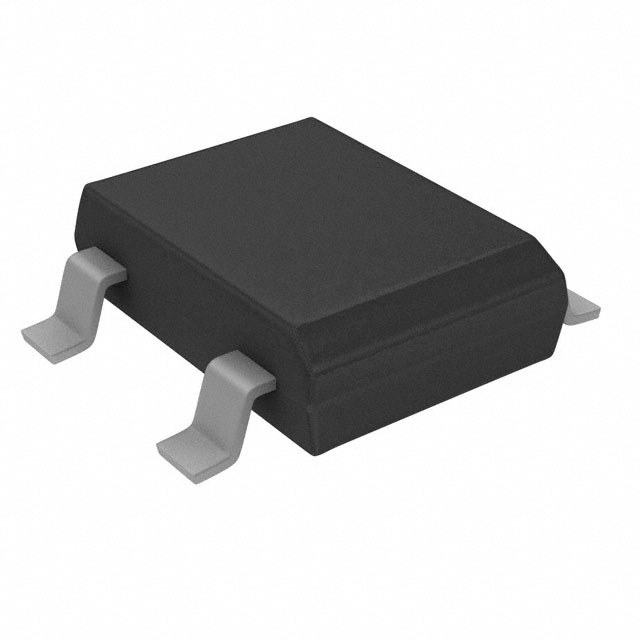

MB8F Compact Rectifier Bridge – 600V 1.5A, Robust Large Chip Design
The MB8F Bridge Rectifier is a compact and durable surface-mount rectifier designed for efficient AC to DC conversion in power applications. With a rating of 600V and 1.5A, it offers reliable performance for medium-load circuits.Technical Details
- Model: MB8F
- Device Type: Bridge Rectifier
- Maximum Repetitive Peak Reverse Voltage (VRRM): 600V
- Maximum RMS Voltage: 420V
- DC Blocking Voltage: 600V
- Average Forward Current (IO): 1.5A
- Peak Forward Surge Current (IFSM): 50A
- Forward Voltage Drop (VF): 1.0V max @ 1.5A
- Reverse Leakage Current: ≤5μA @ 25°C
- Operating Temperature Range: -55°C to +150°C
- Mounting Type: Surface Mount (SMD)
- Package Type: MB8F (4-pin compact body)
Features
- Compact SMD design for space-saving PCB layouts
- Large chip construction for enhanced heat dissipation
- High surge current capability up to 50A
- Low forward voltage drop for efficient power conversion
- UL 94V-0 flame-retardant plastic housing
- Reliable AC to DC rectification for medium-load circuits
Applications
AC to DC Power Conversion – Used in adapters, chargers, and power suppliesLED Drivers – Ensures consistent DC output for LED lighting systems
Home Appliances – Powers internal circuits in compact electronic devices
Battery Chargers – Rectifies AC input for efficient battery charging.
Physical Attributes
- Dimensions: ~4.6mm x 3.7mm x 1.8 mm(L x W x H)
- Weight: ~0.05g
Package Includes
- 1 x MB8F Compact Rectifier Bridge – 600V 1.5A, Robust Large Chip Design
