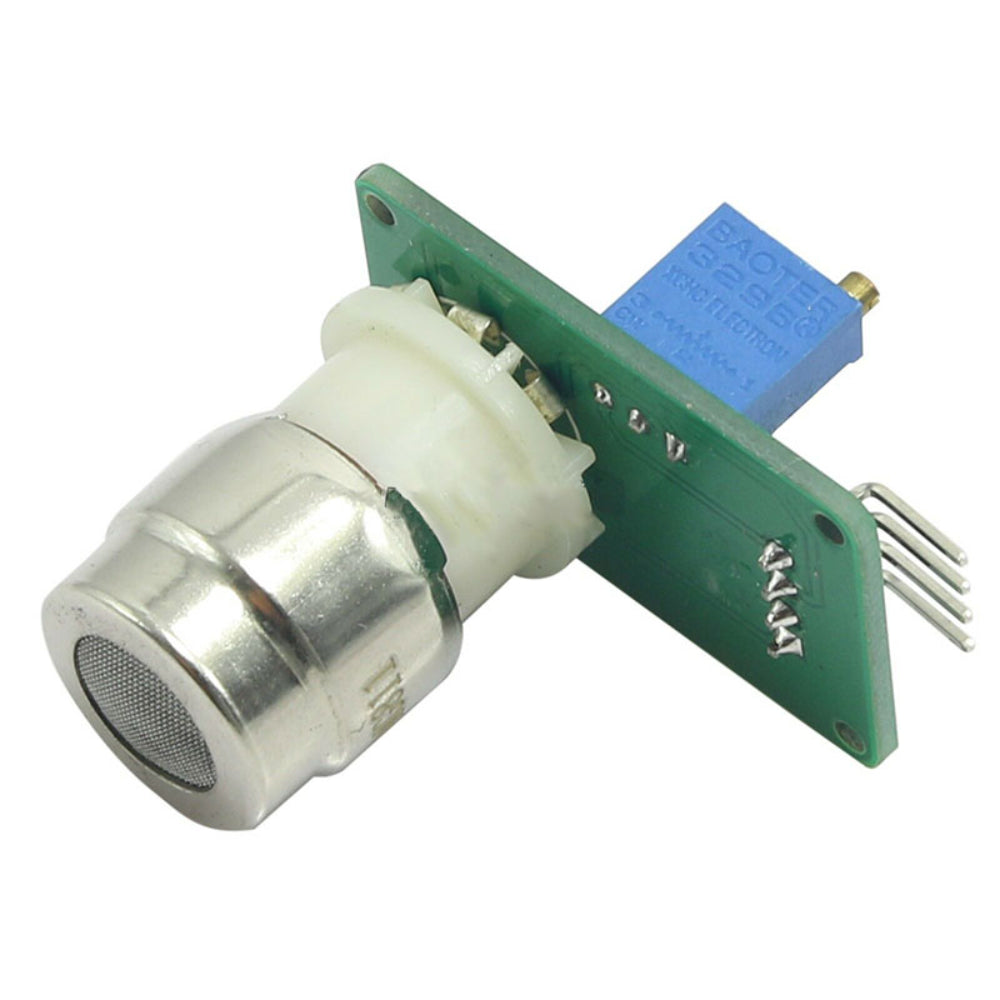

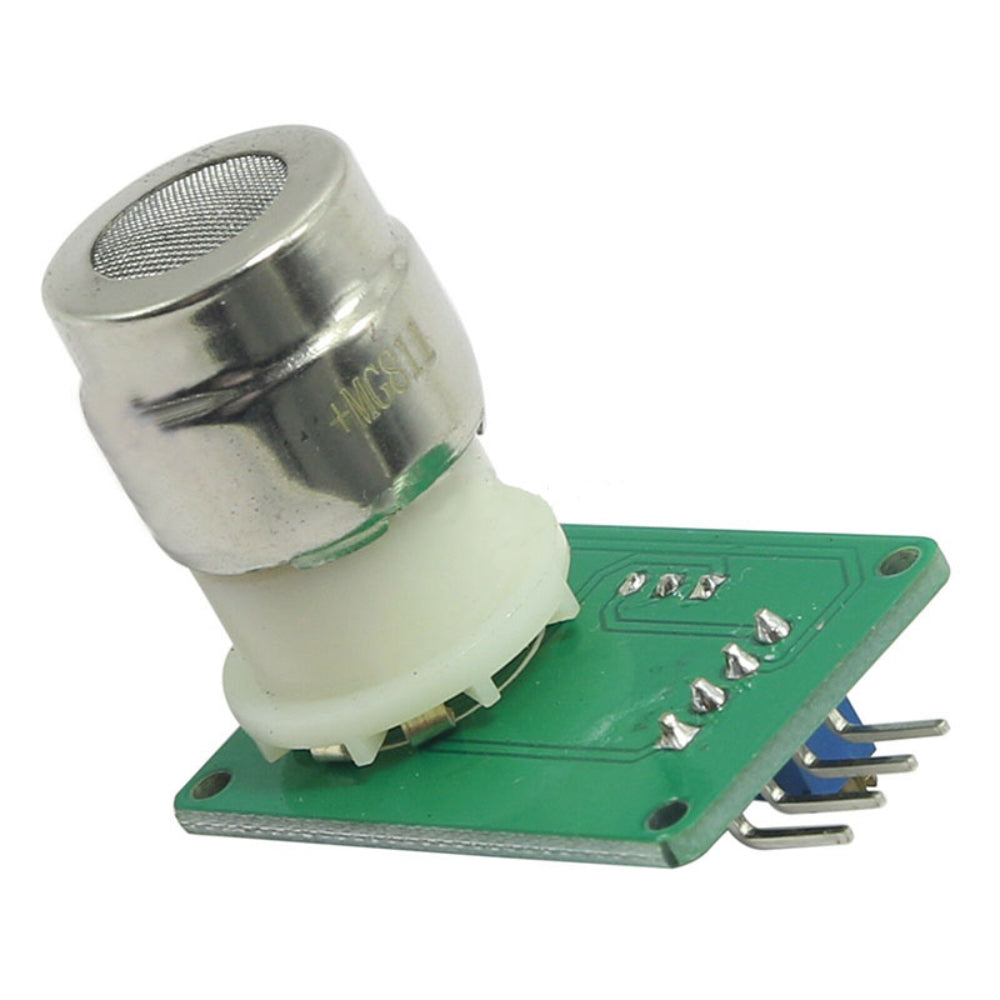

MG811 CO2 Carbon Dioxide Gas Sensor Module
![MG811 CO2 Carbon Dioxide Gas Sensor Module]()
![MG811 CO2 Carbon Dioxide Gas Sensor Module]()
![MG811 CO2 Carbon Dioxide Gas Sensor Module]()
![MG811 CO2 Carbon Dioxide Gas Sensor Module]()
![MG811 CO2 Carbon Dioxide Gas Sensor Module]()
![MG811 CO2 Carbon Dioxide Gas Sensor Module]()
The MG-811 module integrates the MG-811 metal oxide gas sensor along with an onboard heating and signal conditioning circuit. It offers high sensitivity to CO₂ while being less sensitive to alcohol and carbon monoxide. As the CO₂ concentration increases, the analog output voltage decreases.
The module also features a TTL digital output with an adjustable threshold using the onboard potentiometer. When the set CO₂ level is reached, the indicator LED turns ON and the digital output goes HIGH. This sensor is widely used in air quality monitoring, greenhouses, medical devices, and environmental control systems.
-16%
MG811 CO2 Carbon Dioxide Gas Sensor Module
Available:In Stock
- Product SKU: KG1330
₹ 2,498
₹ 2,999
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
MG-811 Carbon Dioxide (CO₂) Gas Sensor Module
The MG-811 Carbon Dioxide Sensor Module is designed for accurate detection of carbon dioxide (CO₂) concentration with a wide sensing range and stable performance. This sensor works on the principle of infrared (IR) absorption, where CO₂ molecules absorb specific wavelengths of infrared radiation, enabling reliable gas concentration measurement.The MG-811 module integrates the MG-811 metal oxide gas sensor along with an onboard heating and signal conditioning circuit. It offers high sensitivity to CO₂ while being less sensitive to alcohol and carbon monoxide. As the CO₂ concentration increases, the analog output voltage decreases.
The module also features a TTL digital output with an adjustable threshold using the onboard potentiometer. When the set CO₂ level is reached, the indicator LED turns ON and the digital output goes HIGH. This sensor is widely used in air quality monitoring, greenhouses, medical devices, and environmental control systems.
Features
- Wide CO₂ detection range up to 10,000 ppm
- High sensitivity and stable performance
- Metal Oxide Sensor (MOS) based CO₂ detection
- Built-in heater and signal output circuit
- Analog output voltage decreases as CO₂ concentration increases
- Digital TTL output with adjustable threshold
- Indicator LED for digital output status
- Simple drive circuit
- Compatible with Arduino and Raspberry Pi (ADC required)

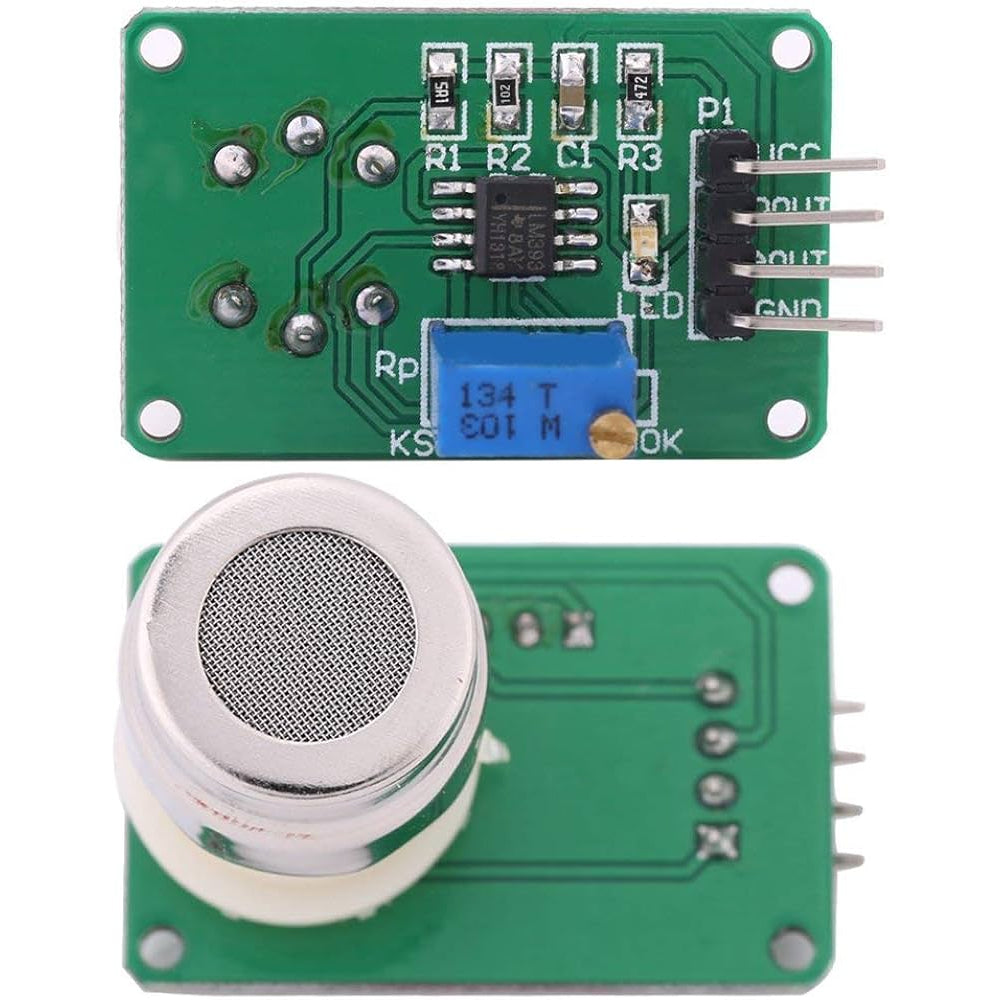

Pinout
- VCC: 6 V DC power supply (recommended via 4 × AA battery holder)
- AOUT: Analog output (voltage decreases as CO₂ concentration increases)
- DOUT: Digital output (goes HIGH when threshold is reached)
- GND: Ground (0 V)
Technical Details
- Item Type: CO₂ Sensor
- Model No.: MG-811
- Sensor Type: Metal Oxide Sensor (MOS)
- Detection Gas: Carbon Dioxide (CO₂)
- Detection Range: 0 – 10,000 ppm
- Operating Voltage: 6 V DC
- Analog Output Range: 0–2 V or 0–4 V (default: 0–2 V)
- Digital Output: TTL level
Applications
- Indoor air quality monitoring
- Greenhouse and horticulture control systems
- Medical and healthcare monitoring equipment
- Environmental monitoring systems
- Industrial and process control applications
Connection Diagram with Arduino and LCD Display:
Physical Attributes
- Length: 32 mm
- Width: 22 mm
- Height: 29 mm
- Weight: 10 g
- Compact PCB-mounted CO₂ sensor module
Package Includes
- 1 × MG-811 Carbon Dioxide (CO₂) Gas Sensor Module
