Digital DC Mini Voltmeter 0.36 inch - 2 Wire Module - 4.5V to 30V
![Mini 0.36]()
![Mini 0.36]()
![mini digital volt meter]()
![mini voltmeter]()
![Mini 0.36]()
![Mini 0.36]()
![mini digital volt meter]()
![mini voltmeter]()
This mini digital volt meter doesn’t need external drive working power, it can work with measuring voltage, and the working voltage’s range is 4.5-30V. To reach the best measurement accuracy, this voltmeter will automatically move the decimal point’s position according to the different measuring voltages. When it measures the voltage below 10V, it will display two places after the decimal point. When it measures the voltage above 10V, it will display one place after the decimal point.
This voltmeter can be used to measure the storage battery’s voltage in motorcycles and cars and also can grasp the storage battery’s status. It also can be used to measure other voltages. 30V is the voltmeter’s maximum operating limited voltage, please leave enough margin when working, to avoid the voltmeter’s permanent damage because of an electrical spark, power supply ripple, or other too-high abrupt change of voltage.

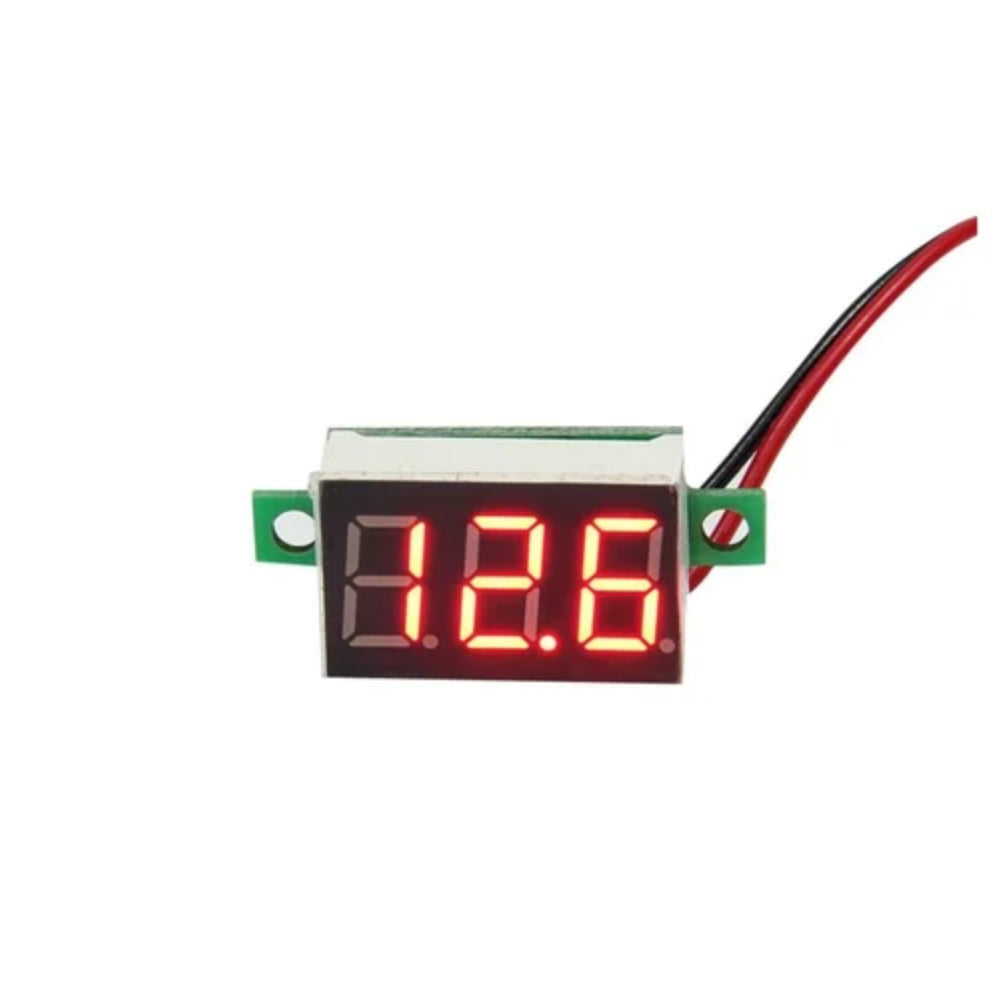

A very bright and decent LED Display is ready to measure the DC voltages in the range of 4.5V to 30V.
Power Supply: The voltmeter is likely self-powered and draws a minimal amount of current from the circuit being measured. It may have a power consumption specification, but that would depend on the specific model.
Display Type: LED or LCD display is common for such miniature voltmeters. The 0.36-inch size suggests a compact digital display.
Operating Temperature: This information may not be explicitly stated, but electronic components generally have an operational temperature range. It's advisable to operate the mini digital volt meter within this range for optimal performance.
Connection: The two-wire module indicates a simple connection setup. Typically, one wire is connected to the positive terminal, and the other to the negative terminal of the power source being measured.
Installation: These modules are often designed for easy installation on a panel or enclosure. They might have mounting holes for screws or other fasteners.
-53%
Digital DC Mini Voltmeter 0.36 inch - 2 Wire Module - 4.5V to 30V
Available:In Stock
- Product SKU: KG309
₹ 69
₹ 149
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
This is a tiny and compact mini digital volt meter with an LED Display. The DC 4.5-30V 2-wire LED Display Digital Voltage Voltmeter Panel requires only a few minutes of configuration and is as simple as directly connecting wires to the source you want to measure and seeing the LED blink!!!!Here is some information about Digital DC Mini Voltmeter 0.36 inch - 2 Wire Module
The red wire is connected to the positive pole, the black wire is connected to the negative pole. No need to worry even if there is any connection mismatch of the wires, the electric circuit won’t be a boom because it features reverse polarity protection.This mini digital volt meter doesn’t need external drive working power, it can work with measuring voltage, and the working voltage’s range is 4.5-30V. To reach the best measurement accuracy, this voltmeter will automatically move the decimal point’s position according to the different measuring voltages. When it measures the voltage below 10V, it will display two places after the decimal point. When it measures the voltage above 10V, it will display one place after the decimal point.
This voltmeter can be used to measure the storage battery’s voltage in motorcycles and cars and also can grasp the storage battery’s status. It also can be used to measure other voltages. 30V is the voltmeter’s maximum operating limited voltage, please leave enough margin when working, to avoid the voltmeter’s permanent damage because of an electrical spark, power supply ripple, or other too-high abrupt change of voltage.
A very bright and decent LED Display is ready to measure the DC voltages in the range of 4.5V to 30V.
key Features
Accuracy: The accuracy of the mini digital volt meter is not explicitly provided in the description, but typical digital voltmeters in this category often have an accuracy of around ±0.1V.Power Supply: The voltmeter is likely self-powered and draws a minimal amount of current from the circuit being measured. It may have a power consumption specification, but that would depend on the specific model.
Display Type: LED or LCD display is common for such miniature voltmeters. The 0.36-inch size suggests a compact digital display.
Operating Temperature: This information may not be explicitly stated, but electronic components generally have an operational temperature range. It's advisable to operate the mini digital volt meter within this range for optimal performance.
Connection: The two-wire module indicates a simple connection setup. Typically, one wire is connected to the positive terminal, and the other to the negative terminal of the power source being measured.
Installation: These modules are often designed for easy installation on a panel or enclosure. They might have mounting holes for screws or other fasteners.
Technical Details of mini digital volt meter
- Type: Digital DC Voltmeter
- Display Size: 0.36 inch
- Number of Wires: 2 (two-wire module)
- Voltage Range: 4.5V to 30V DC
- Current Consumption: 15 mA
- Accuracy: 0.1 V
- Refresh Speed: Approx 200mS/time
- Display Color: Red
Physical Attributes of mini digital volt meter

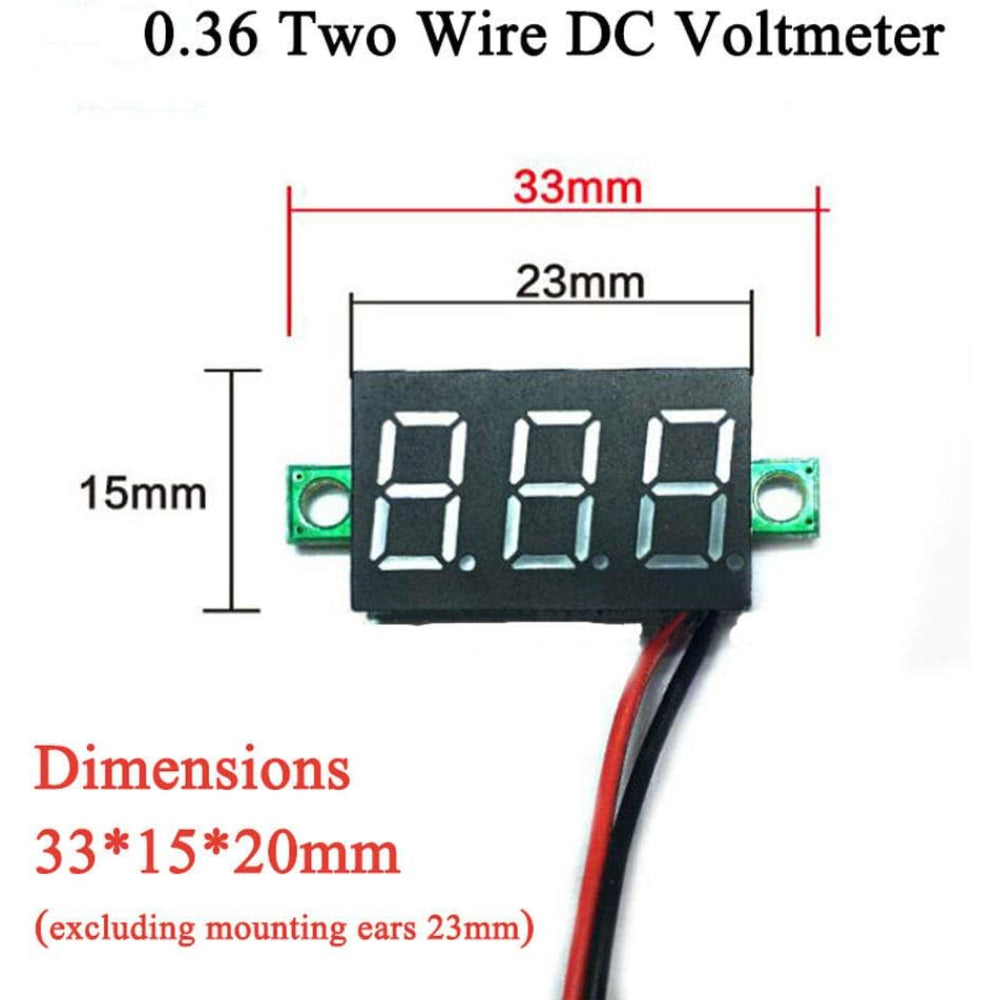

- Length × Width × Height(mm) : 33 × 23 × 15
- Weight (gm): 3
Additional Details
- Very small and lightweight mini digital volt meter module.
- LED display.
- Best operates in the working voltage range of 5V to 24V
- 100% Brand new and high quality.
Package Includes
- 1 x mini digital volt meter 0.36 inch - 2 Wire Module - 4.5V to 30V
