Mini SD Card MP3 Sound Module For PIC Arduino WTV020-SD
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

Mini SD Card MP3 Sound Module For PIC Arduino WTV020-SD

Available:In Stock
  • Product SKU: KG013
Wishlist
₹ 199.50 ₹ 261.45
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 999

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   11E-127

  • Order within
Secure

Specification

Description

SD Card MP3 Sound Module WTV020 sd arduino is a popular voice module designed for projects that require audio playback capabilities. It is commonly used in applications such as interactive toys, voice-guided systems, talking products, and more.

Here are some key features and functionalities of the Mini SD Card MP3 Sound Module:

Audio Playback: The module supports audio playback from a microSD card, making it easy to store and access audio files for your project. It can handle WAV audio files with sample rates of 6kHz to 32kHz and 16-bit resolution.

16 Storage Banks: The module has 16 separate storage banks, allowing you to store different audio files in each bank. You can access and trigger specific audio files by selecting the corresponding bank and track number.

Control Interface: The Mini SD Card MP3 Sound Module can be controlled using a microcontroller or other digital control devices. It uses a simple serial communication protocol to play, pause, stop, and change the volume of the audio output.

External Amplification: The module provides a line-level audio output, which requires external amplification to drive speakers or headphones. You'll need to connect an external audio amplifier to get sound from the module.

Low Power Consumption: The WTV020-SD-16P is designed to be power-efficient, making it suitable for battery-operated projects.

Easy Integration: The module's compact size and straightforward control interface make it easy to integrate into various electronic projects. To use the WTV020-SD-16P, you will need to connect it to a power supply, a microcontroller (or any digital control device), and an external audio amplifier. Once connected, you can trigger specific audio files from the microSD card using serial commands sent from the microcontroller.

NOTE: Specific connections and control commands might vary based on your project and the requirements of your microcontroller. Always refer to the datasheet or user manual provided by the manufacturer for detailed instructions and specifications.

Applications:

Voice Prompt System: In industrial or commercial settings, use the module to provide voice prompts for various processes. For instance, in a manufacturing plant, it can guide workers through different steps of production.

Home Automation: Integrate the module into your home automation system to provide auditory notifications or voice feedback for actions like turning on/off lights, locking doors, or adjusting thermostats.

Smart Toys: Incorporate the module into toys to enhance their interactivity and engagement. Toys can provide audio responses, stories, or sound effects based on user interactions.

Pin-outs

  • 1. – (0V)
  • 2. +(VCC 3.0~5.5V)
  • 3. TTL-TXD
  • 4. TTL-RXD
  • 5. -(0V)
  • 6. +(VCC 3.0~5.5V)
  • 7. RS232-RX
  • 8. RS232-TX

Physical Attributes

  • Length * Width * Height  (mm) : 20 * 17.8 * 2.5 mm
  • Weight (gm): 4

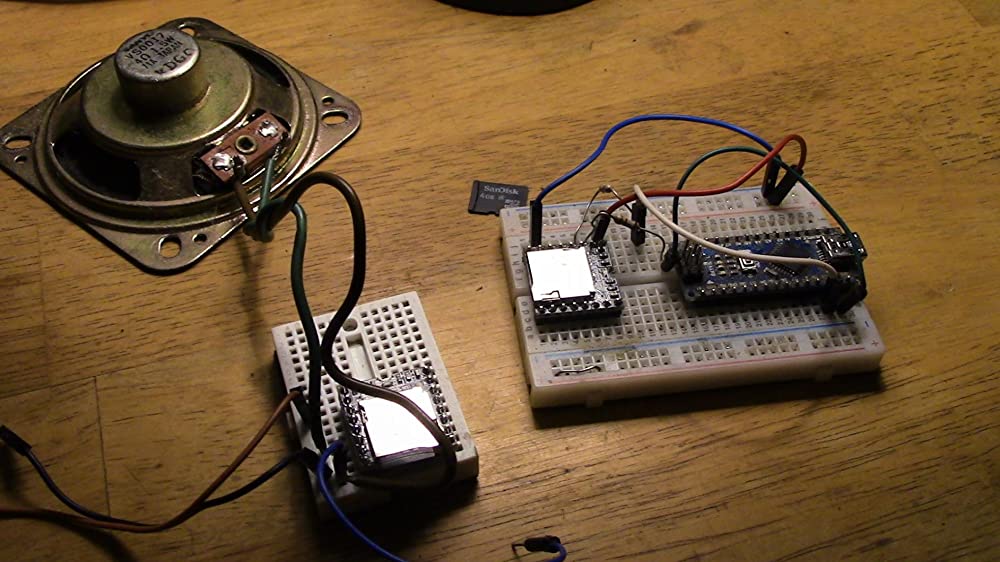

Integration with Arduino

Mini SD Card MP3 Sound Module



    Product Video

    Documentation

    Package Includes

    • 1 x Mini SD Card MP3 Sound Module For PIC Arduino WTV020-SD
