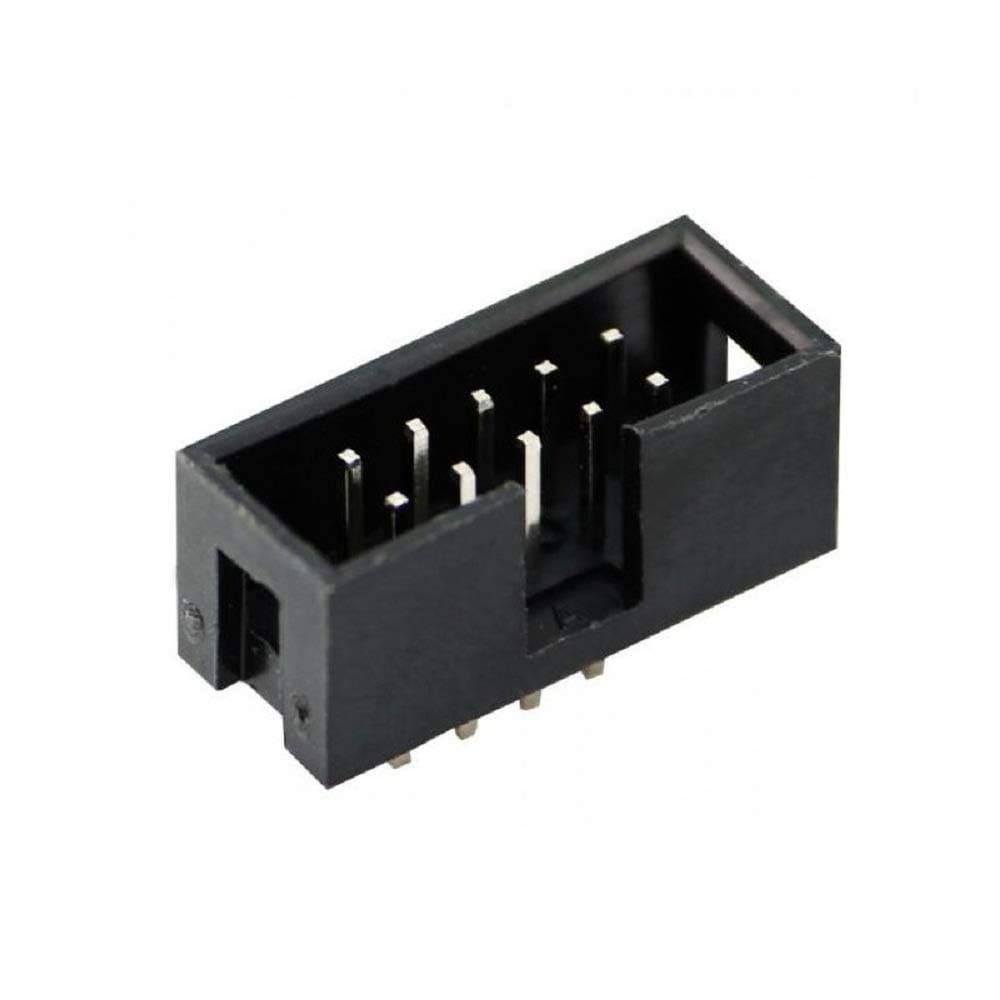

MMDC3 10P straight 2.0 mm Pitch JTAG ISP interface Header Connector Simple Horn Socket Box
![MMDC3 10P straight 2.0 mm Pitch JTAG ISP interface Header Connector Simple Horn Socket Box]()
![MMDC3 10P straight 2.0 mm Pitch JTAG ISP interface Header Connector Simple Horn Socket Box]()
![MMDC3 10P straight 2.0 mm Pitch JTAG ISP interface Header Connector Simple Horn Socket Box]()
![MMDC3 10P straight 2.0 mm Pitch JTAG ISP interface Header Connector Simple Horn Socket Box]()
Straight Orientation: With a straight orientation, this connector is suitable for applications where space-saving and direct connection to the PCB (Printed Circuit Board) are essential.
2.0 mm Pitch: The 2.0 mm pitch between pins ensures reliable connectivity and compatibility with standard PCB layouts.
JTAG ISP Interface: Specifically designed for JTAG and ISP interfaces, this connector enables efficient debugging, testing, and programming of electronic devices.
Durable Construction: Built with high-quality materials, the MMDC3 connector offers durability and long-term performance in demanding environments.
Easy Installation: The connector's simple horn socket box design facilitates easy installation on PCBs, reducing assembly time and effort.
Usage in PCBs: Designed for integration into printed circuit boards (PCBs) to provide a standardized connection point for JTAG and ISP interfaces.
-27%
MMDC3 10P straight 2.0 mm Pitch JTAG ISP interface Header Connector Simple Horn Socket Box
Available:In Stock
- Product SKU: BASE026
₹ 29
₹ 40
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
The MMDC3 10P straight 2.0 mm Pitch JTAG ISP interface Header Connector is a versatile and reliable connector designed for JTAG (Joint Test Action Group) and ISP (In-System Programming) applications in electronic devices. Its compact design, precise pin spacing, and robust construction make it an ideal choice for various electronics projects requiring reliable data transfer and programming capabilities.
Features:
10-pin Configuration: The connector features a 10-pin configuration, allowing for multiple data and control signals to be transferred simultaneously.Straight Orientation: With a straight orientation, this connector is suitable for applications where space-saving and direct connection to the PCB (Printed Circuit Board) are essential.
2.0 mm Pitch: The 2.0 mm pitch between pins ensures reliable connectivity and compatibility with standard PCB layouts.
JTAG ISP Interface: Specifically designed for JTAG and ISP interfaces, this connector enables efficient debugging, testing, and programming of electronic devices.
Durable Construction: Built with high-quality materials, the MMDC3 connector offers durability and long-term performance in demanding environments.
Easy Installation: The connector's simple horn socket box design facilitates easy installation on PCBs, reducing assembly time and effort.
Applications:
Suitable for use in applications where JTAG and ISP interfaces are utilized, such as in embedded systems, microcontroller programming, and debugging scenarios.Usage in PCBs: Designed for integration into printed circuit boards (PCBs) to provide a standardized connection point for JTAG and ISP interfaces.
Technical Details
- Pitch: 2.0 mm / 0.079 inch
- Body Orientation: Straight
- Row Type: Double Row
- Connector Type: IDC
- Insulator Material: PA46
- Plating: Gold flash
- Current Rating: 3 Ampere
- Dielectric Withstanding: AC 500V
- Insulator Resistance: 5000 megohm minimum
- Operating Temperature: -40 degrees Celsius to +105 degrees Celsius
- Applicable Wire Gauge: UL2651#28, 1.0mm wire diameter
- Properties: Fire / Flame Retardant
Package Includes
- 1 x MMDC3 10P straight 2.0 mm Pitch JTAG ISP interface Header Connector Simple Horn Socket Box
