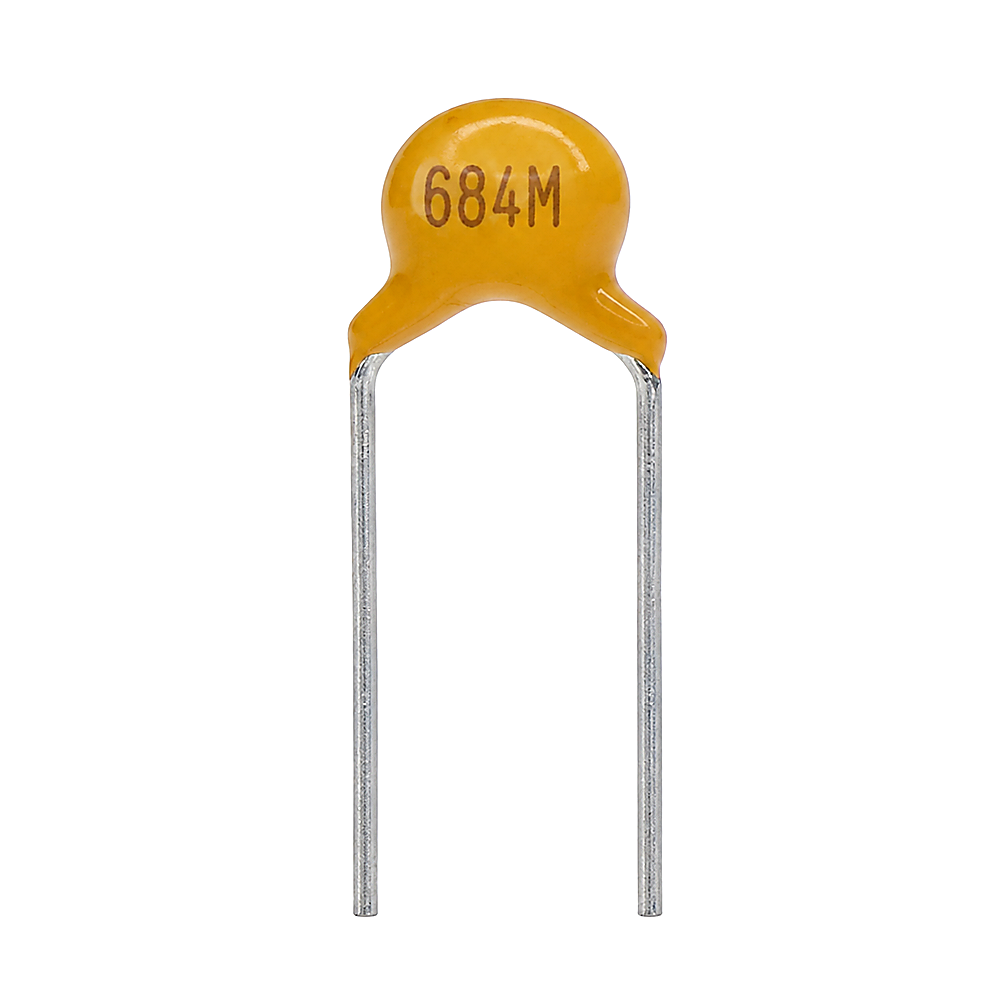

CAPAC349 capacitor front view

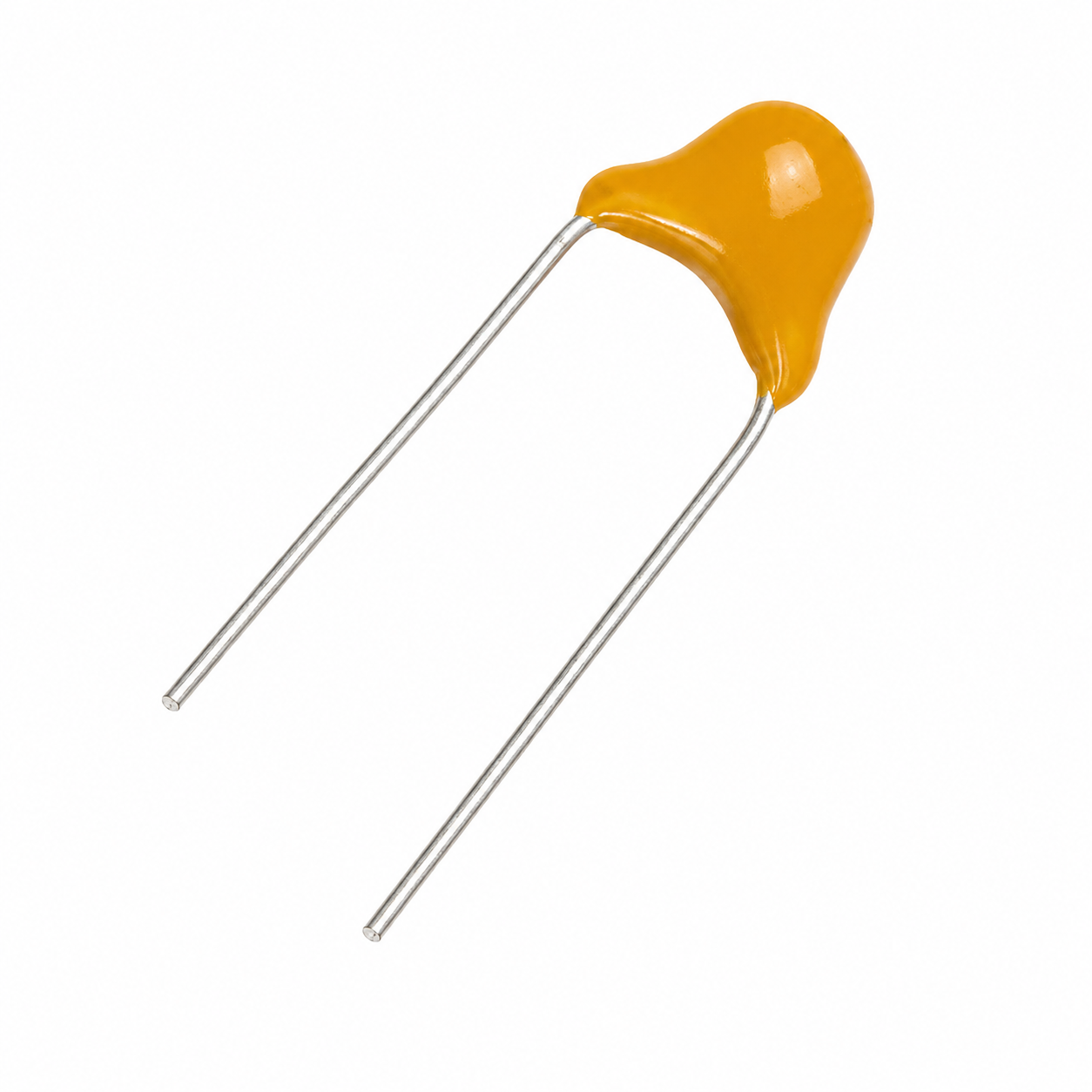

CAPAC349 capacitor back view
CAPAC349 Monolithic 684M 50V ±20% Capacitor 5.08mm Pin Pitch Radial Lead
CAPAC349 capacitor front view
CAPAC349 capacitor back view

Monolithic 684M 50V ±20% Capacitor 5.08mm Pin Pitch Radial Lead

Available:In Stock
  • Product SKU: CAPAC349
Wishlist
₹ 6 ₹ 9
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 0.68µF capacitance value
  • Rated for 50V operation
  • ±20% capacitance tolerance
  • 5.08mm radial lead pitch
  • Compact monolithic ceramic design
  • Suitable for electronic circuits
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

🏠 Warehouse Details:
23 F - 144 P
Secure

Specification

Description

Monolithic 684M 50V ±20% Capacitor 5.08mm Pin Pitch Radial Lead

The 684M Monolithic Ceramic Capacitor is a useful medium-value capacitor for decoupling, filtering, bypassing, and signal smoothing applications. The capacitor code 684M represents 680nF, also written as 0.68µF, with ±20% tolerance.

Rated for 50V, this non-polar ceramic capacitor is suitable for low-voltage electronic circuits, embedded boards, power supply sections, and general PCB designs. Its radial lead format and 5.08mm pin pitch support simple through-hole installation.

Technical Details

  • Product Type: Monolithic Ceramic Capacitor
  • Capacitor Code: 684M
  • Capacitance: 680nF
  • Equivalent Value: 0.68µF / 680000pF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Pin Pitch: 5.08mm
  • Lead Type: Radial Lead
  • Mounting Type: Through-Hole
  • Polarity: Non-Polar

Features

  • 0.68µF capacitance value
  • 50V rated operation
  • ±20% tolerance code
  • Good for bypass circuits
  • Compact monolithic design
  • Non-polar capacitor type
  • 5.08mm radial lead pitch

Applications

  • Power line bypassing
  • Noise filtering circuits
  • DC smoothing sections
  • Embedded circuit boards
  • Control electronics
  • Sensor modules
  • PCB assembly and repair

Physical Attributes

  • Body Type: Monolithic Ceramic
  • Lead Style: Radial Lead
  • Pin Pitch: 5.08mm
  • Mounting Type: Through-Hole Mounting

Package Includes

  • 1 x Monolithic 684M 50V ±20% Capacitor 5.08mm Pin Pitch Radial Lead
