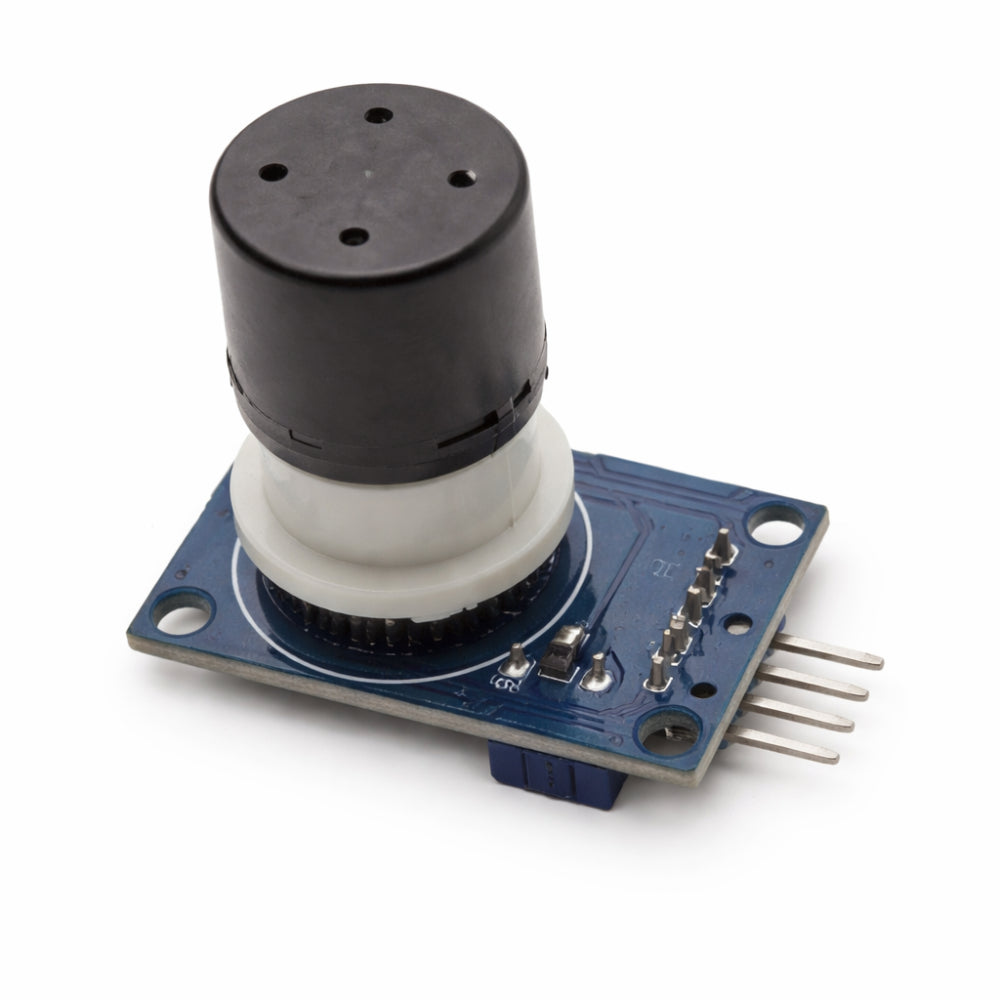

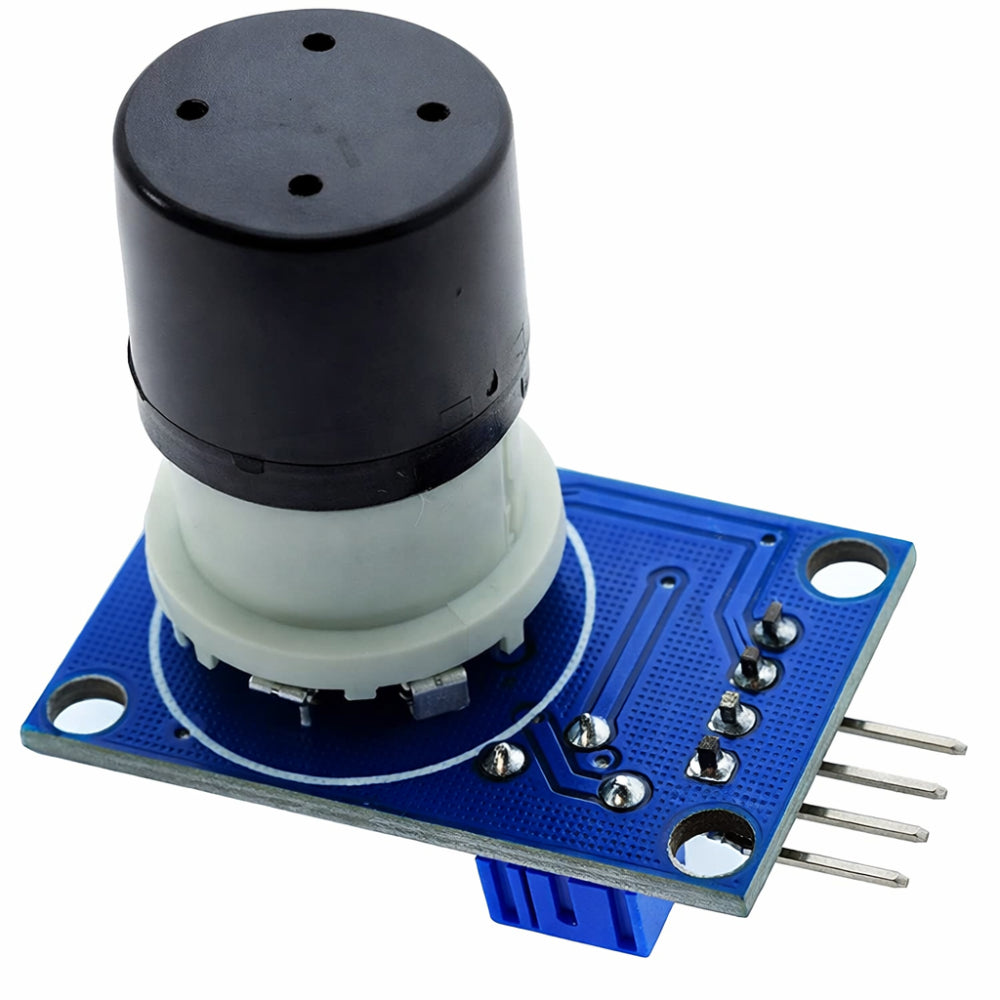

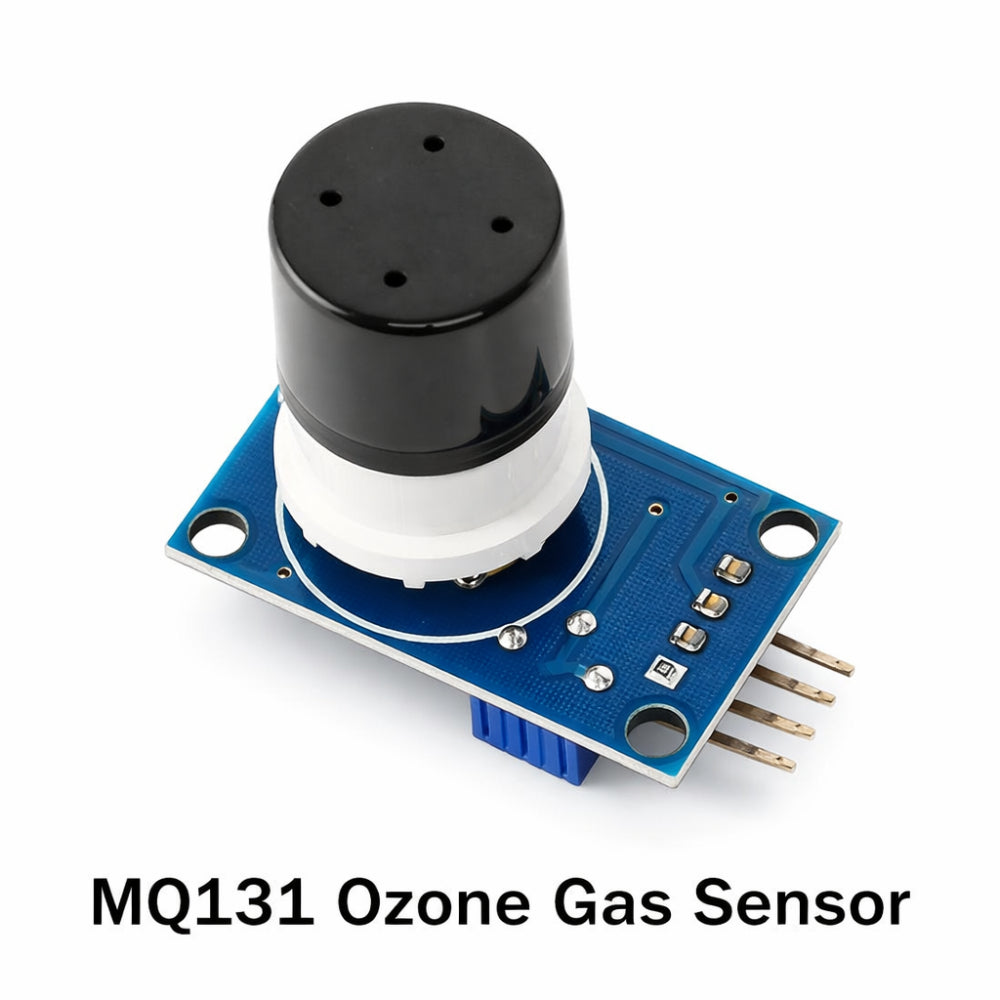

MQ-131 Ozone (O₃) Gas Detector Sensor Module

The MQ-131 Ozone Gas Sensor Module uses an SnO₂-based sensing material that exhibits low conductivity in clean air. When ozone (O₃) gas is present, the sensor’s conductivity increases as the gas concentration rises. Using a simple external electronic circuit, this conductivity change is converted into a corresponding output signal proportional to the ozone concentration.

The MQ-131 sensor offers high sensitivity to ozone (O₃) and is also responsive to gases such as Cl₂ and NO₂. With reliable stability, fast response, and dual signal output, it is suitable for environmental monitoring and microcontroller-based sensing projects.

Features

  • High sensitivity to ozone (O₃) gas
  • Detection concentration range: 10 PPB to 2 PPM (O₃)
  • Dual output: Analog signal and TTL-level digital output
  • TTL output active LOW (signal LED turns ON when output is LOW)
  • Analog output voltage increases with gas concentration
  • Fast response characteristics
  • Signal indicator LED for output status
  • Plug-in probe design for easy testing
  • Mounting holes for fixed installation
  • Long life with reliable and stable performance

Technical Details

  • Item Type: Gas Sensor
  • Model: MQ-131
  • Sensing Material: SnOâ‚‚
  • Target Gas: Ozone (O₃)
  • Additional Sensitivity: Clâ‚‚, NOâ‚‚
  • Detection Range: 10 PPB – 2 PPM (O₃)
  • Output Type: Analog and Digital (TTL)
  • Digital Output Logic: Active LOW

Physical Attributes

  • Width: 22 mm
  • Height: 29 mm
  • Weight: 9g
  • Compact PCB-mounted sensor module

Applications

  • Ozone (O₃) gas detection systems
  • Environmental air quality monitoring
  • Industrial safety and pollution monitoring
  • Arduino and microcontroller-based gas sensing projects
  • Research and laboratory applications

Package Includes

  • 1 × MQ-131 Ozone Gas Detector Sensor Module
