Nano Board R3 With CH340 Chip Without Micro USB Cable (Soldered)
- Product SKU: KG034
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
- Order within
DescriptionArduino Nano V3.0 Card is 100% compatible with the Nano card and fully compatible with Windows, Mac, and Linux operating systems. It is based on the famous Arduino platform and does all the functions of Uno but with a smaller footprint. The Nano can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected as the highest voltage source.
The Nano Board R3 with CH340 chip without USB Cable is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good. This Nano equips a low-cost USB-Serial Chip that makes it less in price than Nano with FTDI USB-Serial Chip used on older versions of Arduino Nano.
TheCH340 chip Nano Arduino Kit is a small, complete, and breadboard-friendly board based on the ATmega328 (Nano R3). It has more or less the same functionality as the Uno but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. The size of Nano V3.0 with CH340 Chip is only 43 mm x 18 mm; it comes with 6 PWM I/O from a total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed, and 32kB of flash memory.
Feature:ATmega328P Microcontroller: The microcontroller is the brain of the board. It has Flash memory for storing your code, SRAM for data storage, and EEPROM for non-volatile data storage.
CH340 USB-to-Serial Converter: The CH340 chip enables the board to communicate with a computer over USB. It converts the serial communication used by the microcontroller into USB communication that the computer understands.
Compact Size: The Nano form factor is smaller than the Arduino Uno, making it suitable for projects where space is limited.
Digital and Analog I/O Pins: The board provides a set of digital and analog pins that can be used for various input and output tasks, similar to other Arduino boards.
PWM Outputs: Some pins can be configured as PWM (Pulse Width Modulation) outputs, which are useful for tasks like controlling the brightness of LEDs or motor speed.
Integrated Voltage Regulator: The board includes a voltage regulator that can provide a stable 5V supply to the microcontroller and other components.
I/O Headers: These headers allow you to connect various sensors, actuators, and external components to the board.
Reset Button: The reset button restarts the microcontroller and is used for initiating programming and resetting the code execution.
LED Indicators: The board often includes LEDs that can be controlled by your code. For instance, there might be a built-in LED on digital pin 13 that can be turned on and off.
Applications:Lighting Control: Use the board to control LED strips, light effects, and animations. This is often seen in decorative lighting projects and artistic installations.
Home Automation: The board can be part of a larger home automation system, allowing you to control lights, appliances, and other devices remotely.
Gaming: For hobbyists interested in creating their own game consoles or controllers, the Nano board can be used to handle button inputs, display graphics on screens, and more.
- CH340 chip might not work directly with some PC/Laptop, you will need some ch340 drivers.
- This board comes with an OLD BOOTLOADER buy it accordingly
- Microcontroller: ATmega328
- Operating Voltage (VDC): 5
- Input Voltage (V): 7 to 12
- Digital I/O Pins: 14
- Analog I/O Pins: 8
- DC Current per I/O Pin (mA): 40
- Flash Memory: 32 KB
- SRAM: 2
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- PCB Size ( Length × Width ) mm: 43 x 18
- Weight (gm): 6
- 1 pair of TTL level serial transceiver ports RX / TX
- Using Atmel Atmega328P-AU MCU
- There is a bootloader installed in it
- Support USB download and Power
- Support for external 5V ~ 12V DC power supply
- It Supports power supply by a 9V battery
- Support ISP download
- Automatic reset during program download.
- Power OK blue LED on the bottom.
- Green (TX), red (RX), and orange (L) LED.
- +5V to AREF jumper.
- Auto-sensing/switching power input.
- Small mini-B USB for programming and serial monitor.
- ICSP header for direct program download.
- Standard 0.1” spacing DIP (breadboard friendly).
- Manual reset switch.
- 1 x Nano Board R3 With CH340 Chip Without Micro USB Cable (Soldered)

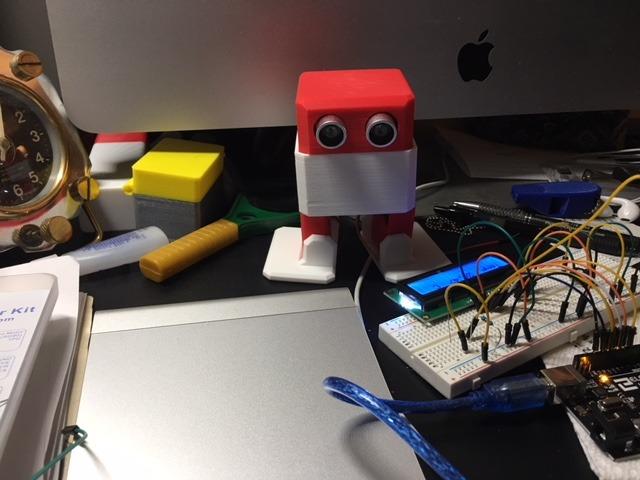

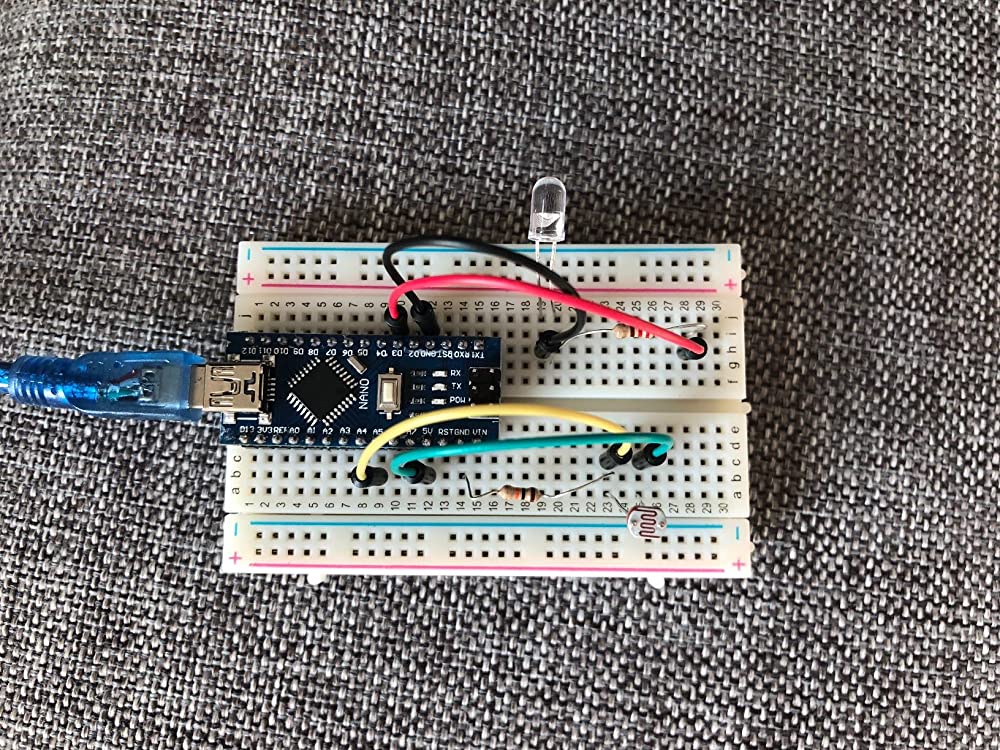

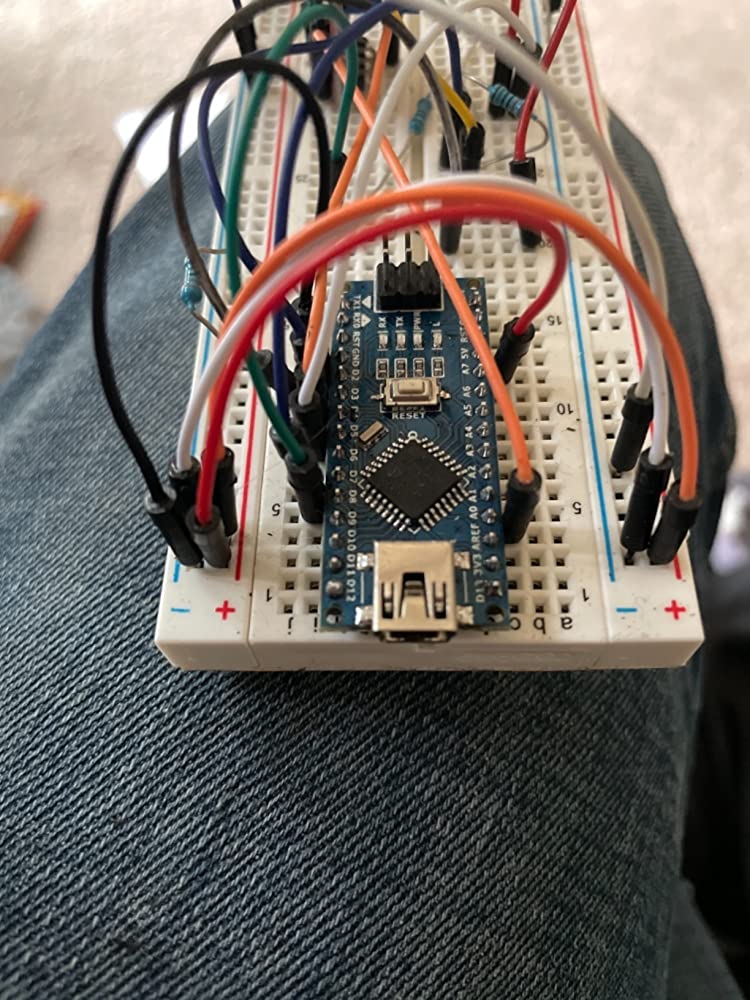

Works perfectly. I built OttoDIY the robot with it, works great.I plan to buy this product again for other projects.
I was thinking whether I should get the genuine Nano board or get a knock-off for my first ever Arduino project, but I am glad I finally went with this one. I even fried the board in the first 15 minutes by enabling HIGH on an input pin and smoke came out of this little thing. I thought I had to order a new one, but when I looked at the back, I saw that one of the capacitors near the USB port was fried, so I just shorted the pins with my soldering iron, and bam, the board came back online fully functional!!! It's totally worth the money, and I am so glad I didn't pay the hefty price for the original board. Next step for me is to either get some PCB or the Terminal IO Shield.
Great little arduino nano clone 😀 works just as well as the official nano
You might want to try this for your next Arduino project. It has most of the functionality of an Uno board in a fraction of the size.
It was good.
I have purchased 7 uno's and one mega! But this nano is 1/3 the size and just as useful as a uno!
Very handy Arduino for quick project.
This is the cheapest option for just one of these that I could find. I purchased this to replace an old nano that had broken on my DIY CNC lasercutter. I was able to lead all the hex files I needed onto it using x-loader and had it up in running in 5 minutes.

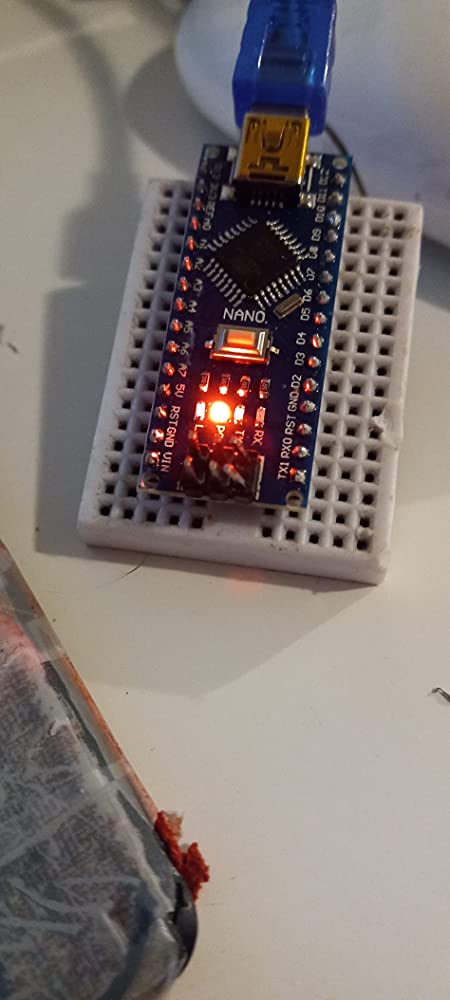

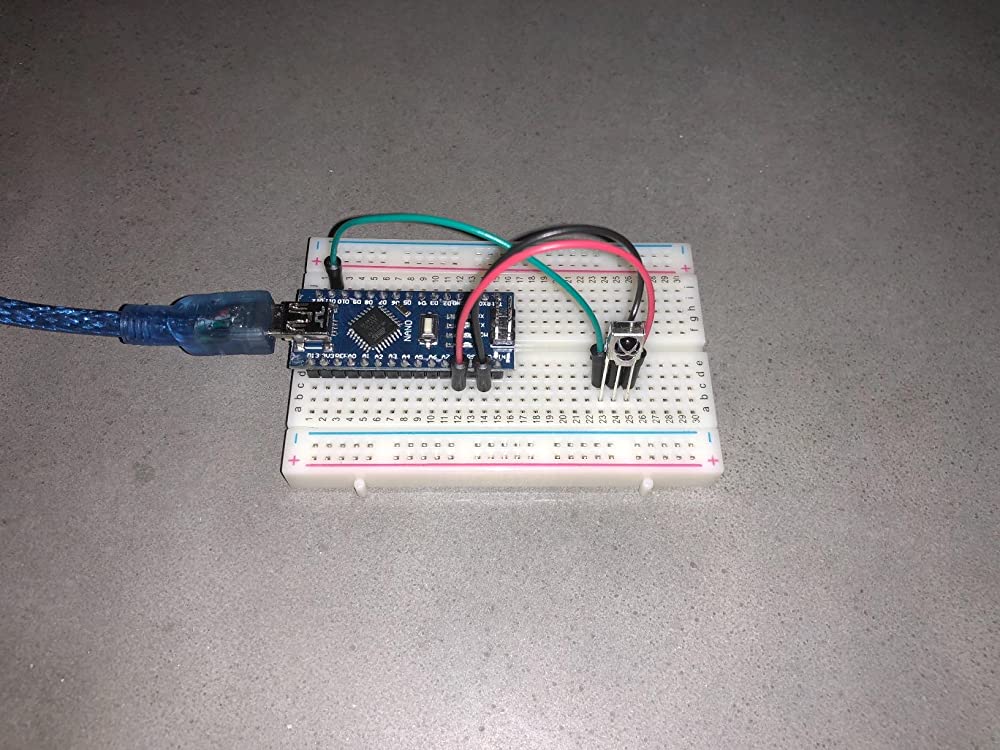

Uploaded the blink sketch, but have yet to check the pins.
