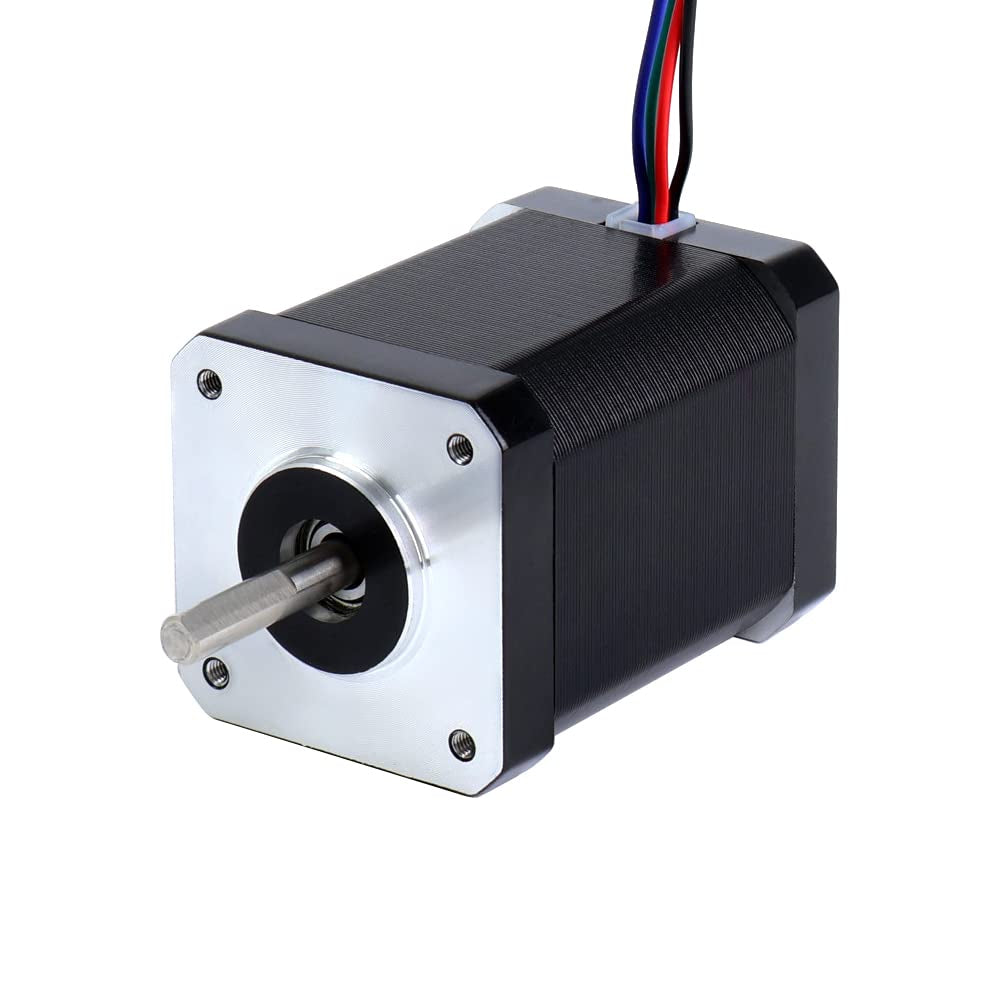

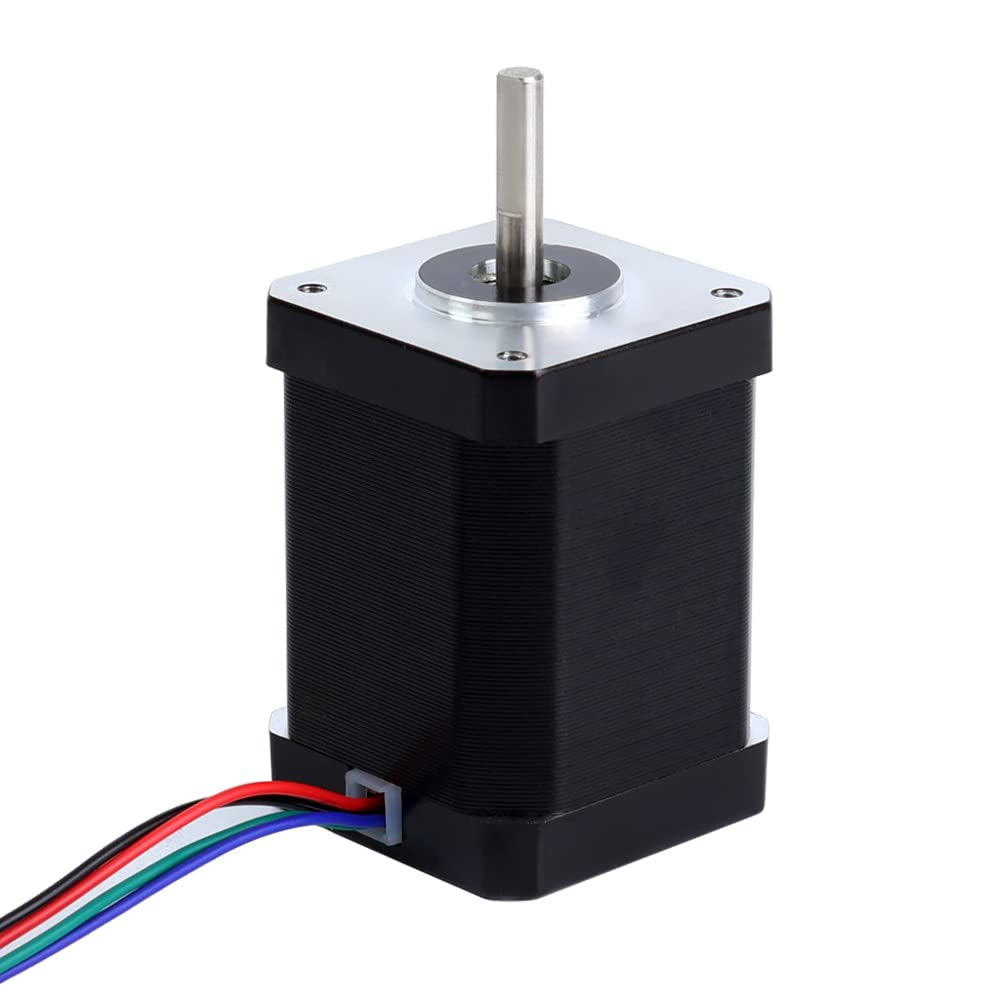

NEMA 17 5.5kgcm 4 wire bipolar Stepper Motor
- Product SKU: KG733
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
Stepper Motor
Stepper MotorThe stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA17 5.5kgcm 4-wire bipolar Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver. Thus, the motor's position can be commanded to move and hold at one of these steps, as long as the motor is carefully sized to the application for torque and speed. Nema17 is the motor of choice for RepRap's/3D Printers/Desktop CNC routers. It is also a suitable motor for various robotics applications.
We are engaged in supplying and wholesaling a quality approved collection of Stepper Motors which is highly acknowledged and accepted for long service life and high reliability. These offered motors are fabricated by using best grade raw materials and a strict QC is maintained.
Features:
Supreme finishSmooth surface
Long-lasting life
Low cost for control achieved
High torque at startup and low speeds
Ruggedness
Simplicity of construction
Can operate in an open loop control system
Low maintenance
Less likely to stall or slip
Will work in any environment
Can be used in robotics on a wide scale.
High reliability
The rotation angle of the motor is proportional to the input pulse.
The motor has full torque at a standstill (if the windings are energized) Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is non-cumulative from one step to the next.
Excellent response to starting/stopping/reversing.
Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
The motor's response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
Applications:
3D Printers: Provides precise movement for printing.CNC Machines: Controls axis movements in milling, engraving, and cutting.
Robotics: Drives robotic arms and other automation components.
Automation Systems: Used in various automated machinery and equipment.
Technical Details
- Step Angle: 1.8 deg
- Step Angle Accuracy : +/- 5%
- Resistance Accuracy : +/- 10%
- Inductance Accuracy : +/- 20%
- Temprature Rise : 80 deg C Max
- Ambient Temerature : -10 deg C +50 deg C
- Insulation Resistance: 10 M Ohms Min. , 500VDC
- Dielectric Strength: 500 VAC for one minute
- Shaft Radial Play: 0.02 Max (450 g-load)
- Shaft Axial Play: 0.08 Max (450 g-load)
- Current A - 1.5
- Resistance (ohms) - 2.8
- Inductance (mH) - 5.5
- Holding Torque N.cm - 55
- Detent Torque N.cm - 2.6
- No. of Leads - 4 (bipolar)
Drawing
Physical Attributes
- L (mm): 48
- Weight (gm): 350
Package Includes
- 1 x Nema17 5.5 kg-cm Stepper Motor
