1 Road/Channel Relay Module 12V
- Product SKU: KG125
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
- Order within
Specification
Description
Reliable Control with One Channel: 12V Relay Module
Section 1: Versatile Relay Control
Experience versatile relay control with the One Channel 12V Relay Module. This module is designed to provide reliable switching capabilities for your electronic circuits. Whether you need to control high-voltage devices, automate electrical systems, or create interactive projects, this relay module offers the flexibility and convenience you need to effectively manage your circuits.Single Channel Relay
Benefit from the single channel relay feature of the 12V Relay Module. It provides a single switching channel, allowing you to control the flow of current to connected devices or circuits. This single channel capability makes it ideal for applications that require simple on/off control, providing a reliable solution for various electronic projects.
12V Power Supply
The 12V Relay Module operates on a 12V power supply, making it compatible with standard power sources. With its 12V input voltage requirement, this module can be easily integrated into your existing power systems or battery-operated projects. Its compatibility with common power sources ensures seamless integration and reliable operation.
Section 2: Easy Integration and Convenient Features
Straightforward Wiring and SetupThe One Channel 12V Relay Module offers straightforward wiring and setup. With clearly labeled connection points and a user-friendly design, this module simplifies integration into your circuits. Whether you're a beginner or an experienced electronics enthusiast, you can quickly and effortlessly incorporate this relay module, saving time and effort during the setup phase.
LED Indicator
Experience the convenience of the LED indicator on the 12V Relay Module. It provides a visual indication of the relay's status, allowing you to easily determine whether the relay is energized or de-energized. This LED indicator enhances usability and enables quick troubleshooting, ensuring efficient operation of your circuits.
Section 3: Reliable Performance and Safety
Stable and Reliable SwitchingRely on the One Channel 12V Relay Module for stable and reliable switching. It is built with high-quality components and designed to provide consistent and precise switching of electrical signals. This relay module ensures reliable operation, allowing you to control the flow of current with confidence, minimizing the risk of signal disruptions or voltage fluctuations.
Built-in Protection Features
The 12V Relay Module incorporates built-in protection features to safeguard your circuits and the module itself. It includes protection mechanisms such as transient suppression diodes and current-limiting resistors. These features help protect against voltage spikes and electrical noise, ensuring the longevity and reliability of your relay module and connected devices.
Technical Details
- Channel : 1
- Trigger Voltage (VDC) : 12
- Switching Voltage (VAC) : 250@10A
- Switching Voltage (VDC) : 30@10A
Physical Attributes
- Length × Width × Height(mm) : 53 × 18 × 18.5
- Weight (gm) : 16
Additional Details
- Equipped with high-current relay 10A@250VAC / 10A@30VDC
- High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
- A freewheeling diode to protect your microcontroller
- Input Signal Pin connected to Burg stick for easy accessibility
- LED status indicators to indicate the relay ON/OFF status
- Mounting holes provided
- Signal input with a high-level signal, the common and often start conduction;
- The relay can directly control all kinds of equipment and load;
- One often opened a normally closed contact;
- Blue KF301 terminal line more convenient.
Package Includes
- 1 x 1 Road/Channel Relay Module 12V
Customer Reviews

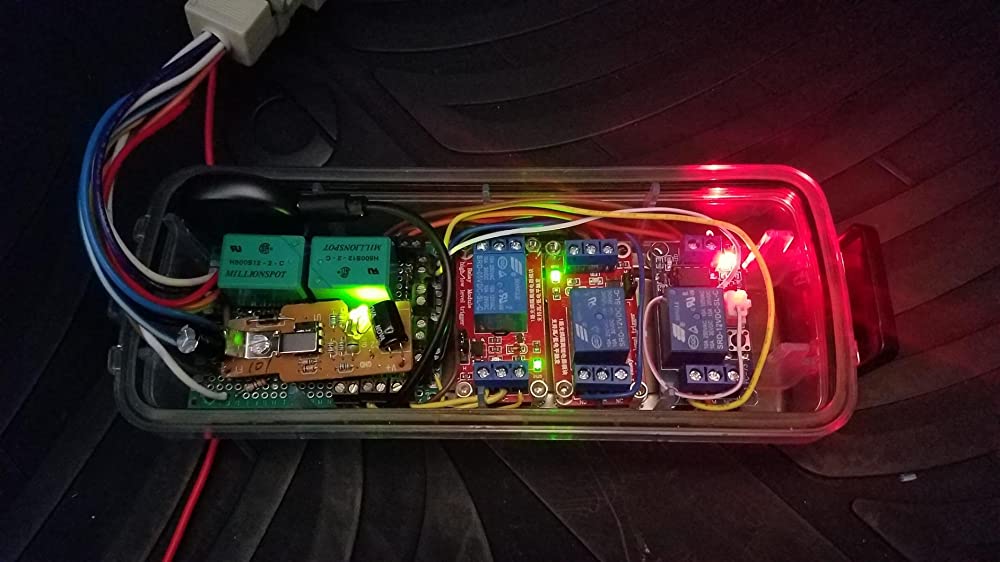

I used this in an automotive application (second module from the end in the picture) - it works great & reliably!
