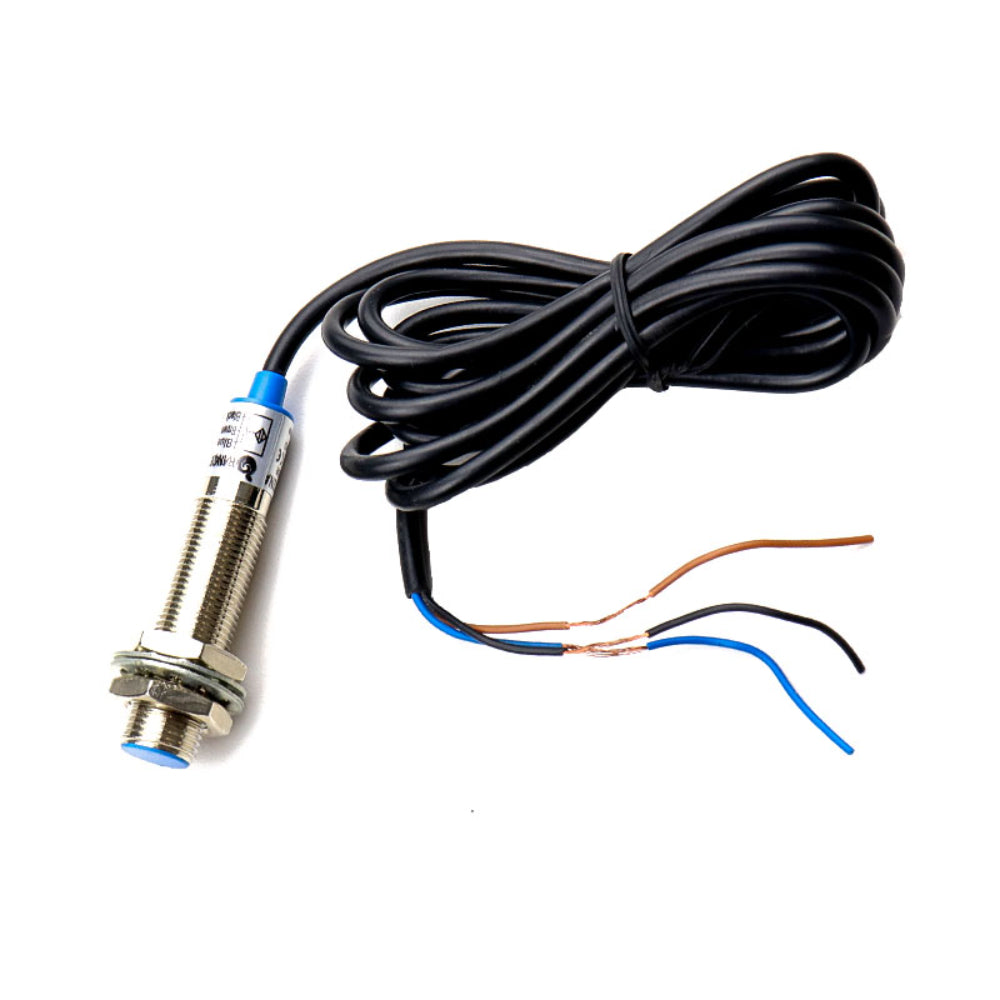

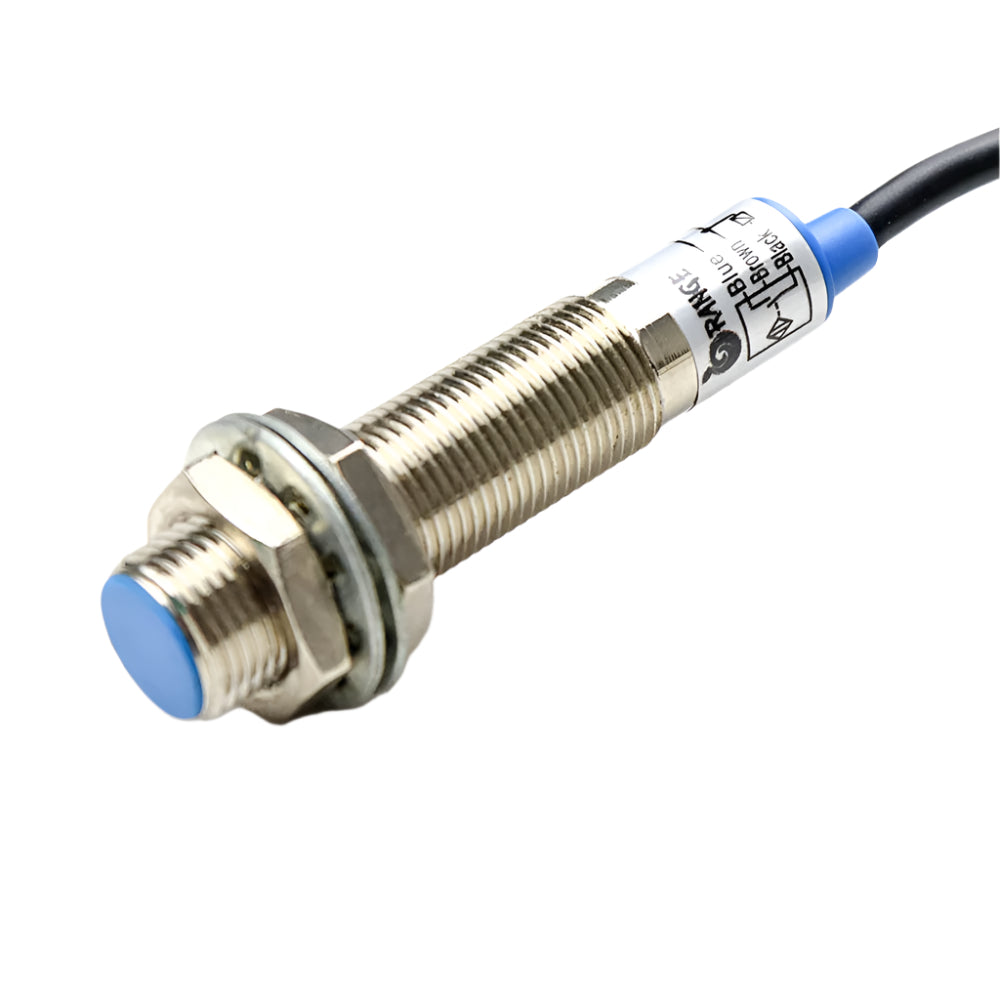

This M12 indicates a cylinder type whose diameter is 12mm and the length of that cylinder is 57mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 2mm. The sensor has 3 wire NO (Normally open) type output with RED LED indicator.
The Inductive Proximity Sensor application:
Mine metallurgy.
Plastics, textile and Chemical Industry.
Light industry, tobacco, electric power, railway, and war industry.
-22%
2mm NPN Inductive Proximity Sensor M12 DC6~36V (unshielded)(Normally Open)
Available:In Stock
- Product SKU: KG967
₹ 269
₹ 349
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
2mm NPN Inductive Proximity Sensor M12 DC6~36V (unshielded)(Normally Open)
2mm NPN Inductive Proximity Sensor RM12 DC6~36V (Shielded) is a brand new inductive proximity sensor that detects a metal object. Flush-style sensors actually have a shield that restricts the magnetic field so that it only radiates out of the face of the sensor.This M12 indicates a cylinder type whose diameter is 12mm and the length of that cylinder is 57mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 2mm. The sensor has 3 wire NO (Normally open) type output with RED LED indicator.
The Inductive Proximity Sensor application:
Mine metallurgy.
Plastics, textile and Chemical Industry.
Light industry, tobacco, electric power, railway, and war industry.
Technical Details
- Model: RM12~3002 NA
- Inductive Proximity Sensor
- Operating Voltage: 6-36 VDC
- Detection Distance: 2mm
- Outer Thread Size: M12
- Output Type: NPN Normally Open (3-Wire)
- Installation: Flush (Shielded)
- Max Output Current: 200mA
- Setting Distance: 0 ~ 1.4mm
- Insulation Resistance: 50MΩ
- Storage Temperature: -30 to 80°C
- Cable: Ø3.5, 3-Wire, 2m
- Weight: 56g
Feature
- IP67 protection (IEC standard)
- Compact design
- High precision repeatability
- Diversified exterior
- Strong anti-interference
- Multiple output forms
- High on-off frequency
- Wide voltage range
- Dust, vibration, water & oil proof
- Short-circuit & reverse polarity protection
- Long service life
Applications :
- Industrial Automation: Detects metal objects in conveyor belts, assembly lines, and automated machinery.
- Precision Metal Detection: Ideal for identifying small ferrous and non-ferrous metal objects in manufacturing processes.
- Robotics: Enables precise positioning and movement control in robotic arms and automation systems.
- CNC Machines: Detects metal tools and workpieces in milling, lathe, and grinding machines.
- Automotive Manufacturing: Used in vehicle assembly lines to ensure proper alignment and part detection.
- Security & Access Control: Integrated into automated gates, doors, and access control systems for contactless sensing.
- Smart Warehousing: Helps in inventory tracking by detecting metallic storage bins and automated equipment.
- Medical & Laboratory Equipment: Used in specialized applications for detecting metal components in precision devices.
Physical Attributes
- Cable Dimensions : Ø3.5, 3-Wire, 2 Meter
- Weight (gm): 56
Package Includes
- 1 x 2mm NPN Inductive Proximity Sensor M12 DC6~36V (unshielded)(Normally Open)
