2mm PNP Inductive Proximity Sensor M12 DC6~36V (unshielded)(Normally Open)

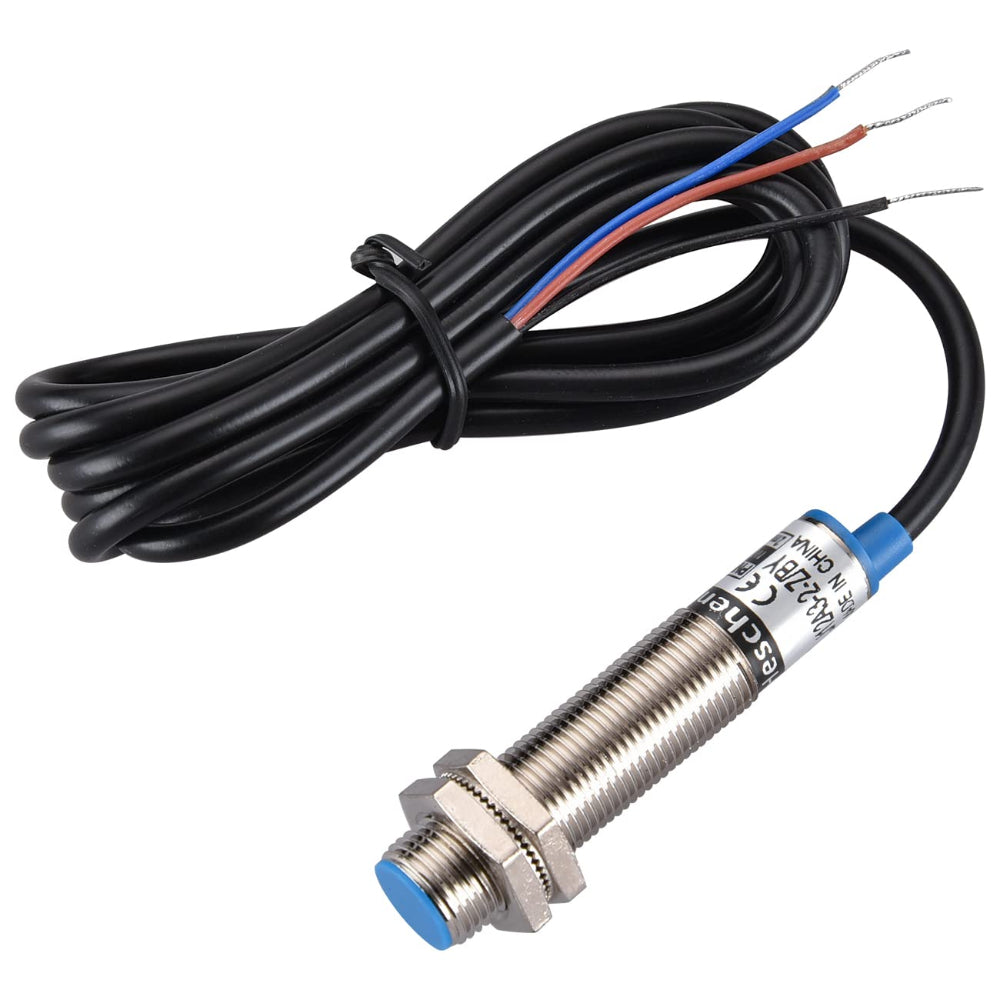

![M12 PNP proximity sensor 2 mm front view]()

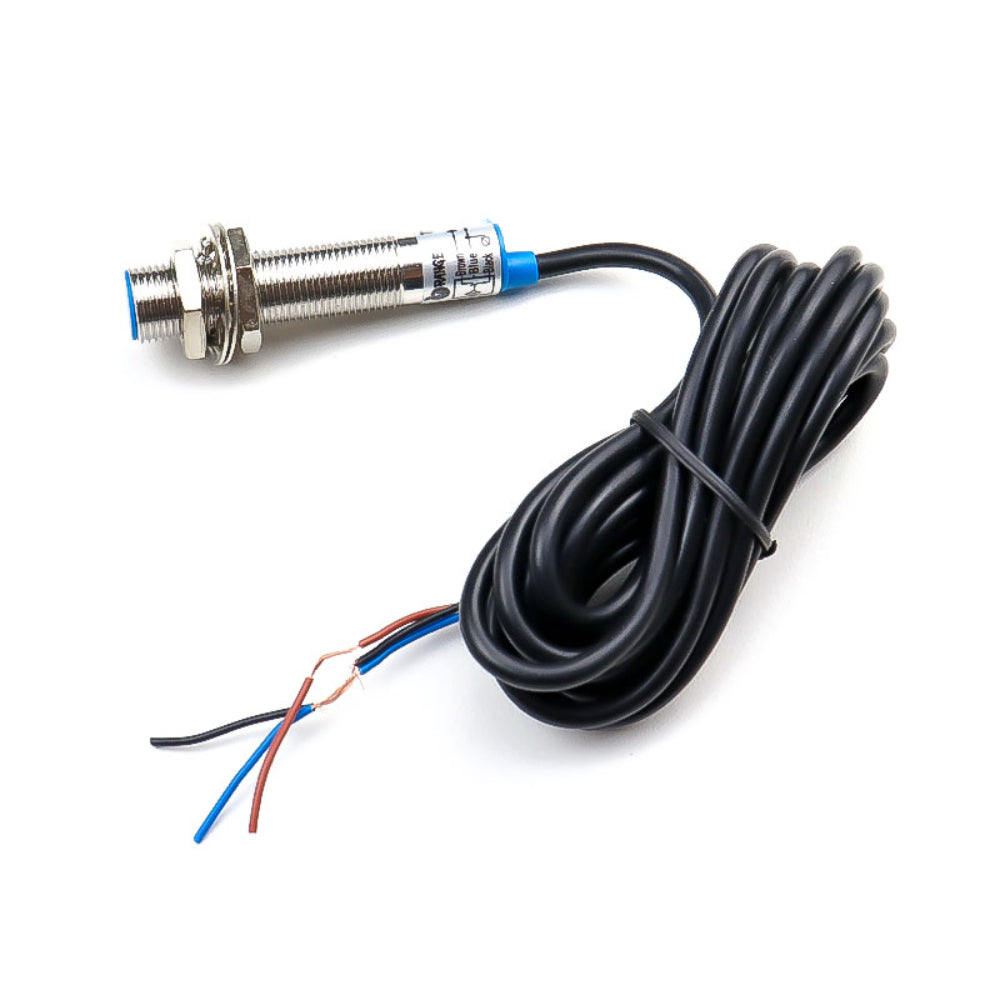

![Side view of 2 mm M12 PNP proximity sensor DC6-36V]()

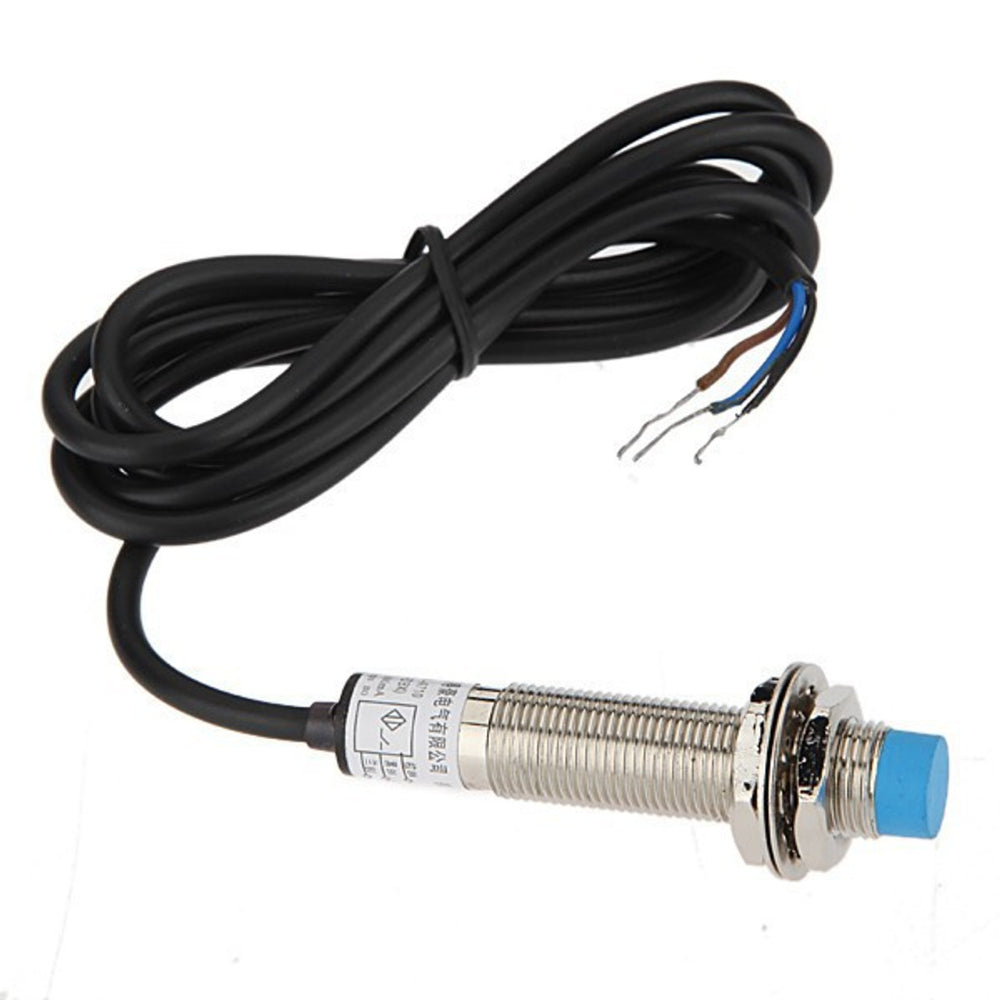

![Wiring diagram of 2 mm M12 PNP proximity sensor]()
![M12 PNP proximity sensor 2 mm front view]()
![Side view of 2 mm M12 PNP proximity sensor DC6-36V]()
![Wiring diagram of 2 mm M12 PNP proximity sensor]()
It is designed with 2 mm detection distance, N.O. three-wire output, and operates within DC 6–36 V. The LED indicator helps monitor detection status at a glance. Its unshielded M12 body offers easy installation even in compact mechanical designs.
-22%
2mm PNP Inductive Proximity Sensor M12 DC6~36V (unshielded)(Normally Open)
Available:In Stock
- Product SKU: KG968
₹ 269
₹ 349
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
2 mm PNP Inductive Proximity Sensor M12 DC6~36 V (unshielded) (Normally Open)
This compact M12 unit functions as a reliable pnp proximity sensor, ideal for quick and precise metal detection in automation. It works as an inductive prox sensor using a magnetic field for non-contact sensing. Thus, it belongs to advanced inductive sensor types built for robust performance under various industrial conditions.It is designed with 2 mm detection distance, N.O. three-wire output, and operates within DC 6–36 V. The LED indicator helps monitor detection status at a glance. Its unshielded M12 body offers easy installation even in compact mechanical designs.
Technical Details
- Operating Voltage (VDC): 6 to 36
- Detection Distance (mm): 2
- Outer Thread Size: M12
- Model: RM12~3002 PA
- Object Type: Inductive
- Output Type: pnp proximity sensor (PNP Normally Open, 3-Wire)
- Installation Type: Flush (Shielded)
- Max Output Current (mA): 200
- Setting Distance (mm): 0 ~ 1.4
- Insulation Resistance (MΩ): 50
- Storage Temperature (°C): –30 to 80
- Cable Dimensions: Ø3.5, 3-Wire, 2 Meter
- Weight (g): 55
Features
- IP67 protection (dust & water-resistant) for harsh industrial use
- Compact body ideal for tight spaces
- High precision and repeatable detection — perfect when using as a proximity detection sensor
- Wide voltage tolerance and stable output under varied conditions
- Strong anti-interference and reliable switching performance
- Multiple output forms and high on/off frequency
- Protected against short-circuit and reversed connection
- Durable long-life design — as expected from good inductive prox sensor models
Applications :
- Industrial Automation: Detect small metallic parts on conveyor belts using this pnp proximity sensor.
- Precision Metal Detection: Ideal for identifying tiny ferrous or non-ferrous metal components — a use case for a robust proximity detection sensor.
- Robotics & CNC Machines: Enables accurate metal part detection in automated robotics and machining applications.
- Automotive Manufacturing: Useful for part detection and alignment operations during vehicle assembly.
- Security & Access Control: Works for metal detection in gates, doors, or metal-object sensing for safety systems.
- Warehousing & Equipment Handling: Detect metallic bins or equipment automatically to streamline inventory management.
Physical Attributes
- Cable Dimensions: Ø3.5, 3-Wire, 2 Meter
- Weight (g): 55
Package Includes
- 1 × 2 mm PNP Inductive Proximity Sensor M12 DC6~36 V (unshielded) (Normally Open)
