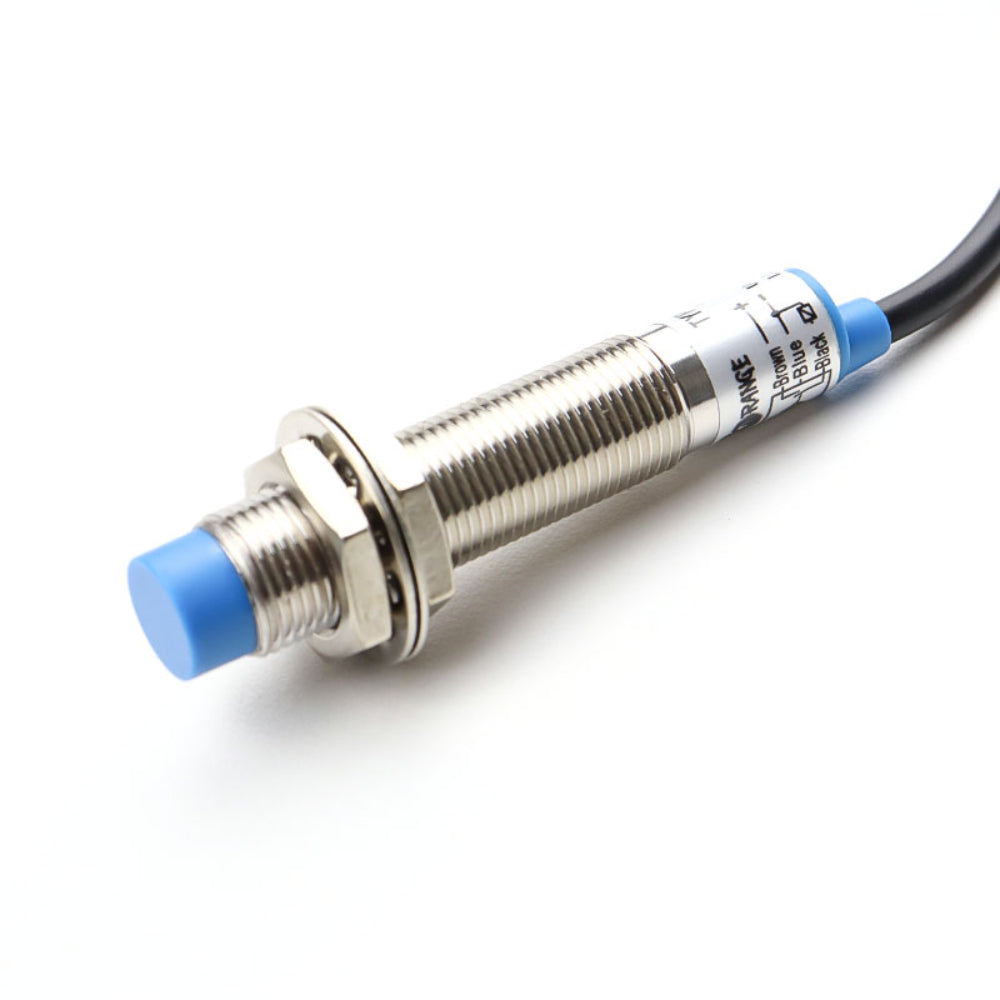

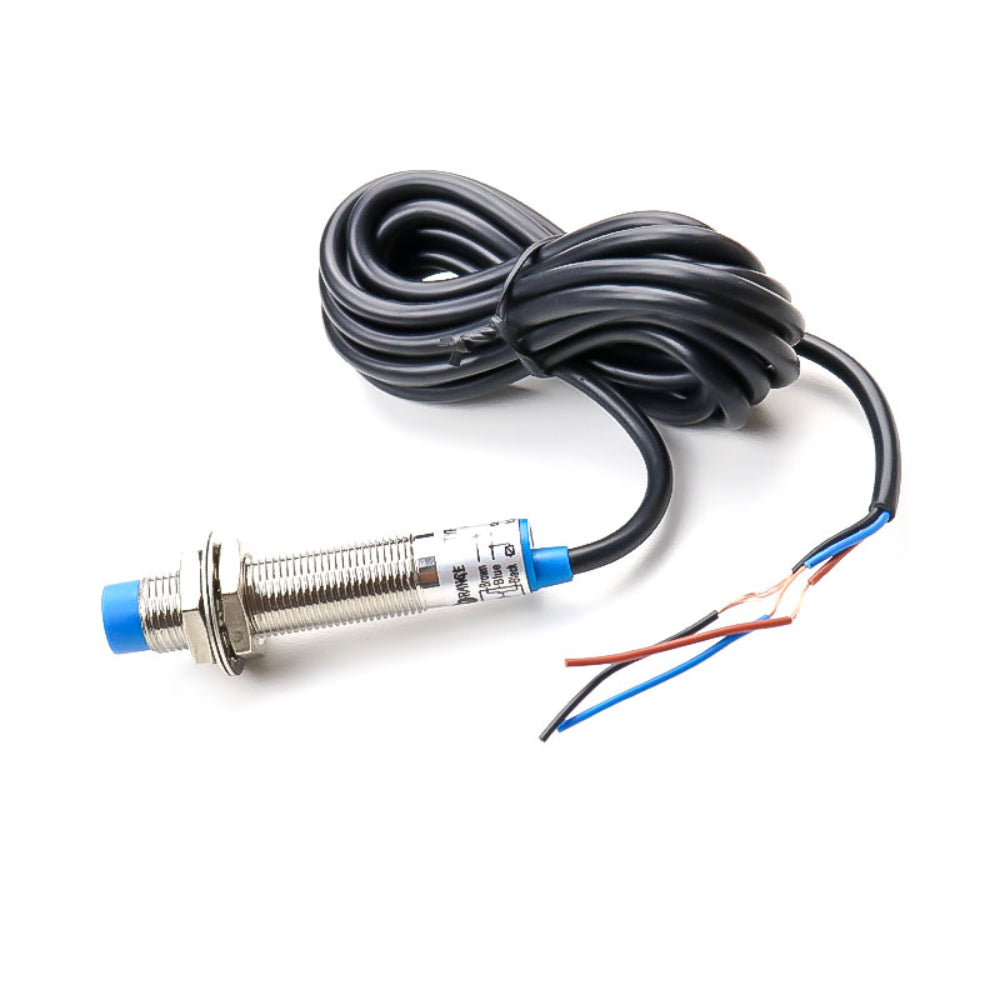

4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)
![4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)_1]()
![4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)]()
![4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)_1]()
![4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)]()
Sensing Distance: 4mm (This is the maximum distance at which the sensor can detect a metallic object.)
Output Type: PNP (This indicates the type of output signal used by the sensor. PNP sensors switch the positive side of the circuit when activated.)
Operating Voltage: DC 6~36V (This is the range of voltage levels that the sensor can operate with.)
Housing Size: M12 (This refers to the diameter of the sensor's threaded housing, which is M12 in this case.)
Shielding: Unshielded (This means the sensor is unshielded, which may make it more susceptible to interference from external sources.)
Output State: Normally Open (NO) - This means that the sensor's output circuit is normally open (non-conductive) when it's not detecting a metallic object. When it detects an object within its sensing range, the circuit closes (becomes conductive).
-20%
4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)
Available:In Stock
- Product SKU: KG970
₹ 239
₹ 299
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
The Inductive proximity sensor is designed to detect the presence or absence of metallic objects without physical contact.Details of 4mm PNP Inductive Proximity Sensor:
Type: Inductive Proximity Sensor.Sensing Distance: 4mm (This is the maximum distance at which the sensor can detect a metallic object.)
Output Type: PNP (This indicates the type of output signal used by the sensor. PNP sensors switch the positive side of the circuit when activated.)
Operating Voltage: DC 6~36V (This is the range of voltage levels that the sensor can operate with.)
Housing Size: M12 (This refers to the diameter of the sensor's threaded housing, which is M12 in this case.)
Shielding: Unshielded (This means the sensor is unshielded, which may make it more susceptible to interference from external sources.)
Output State: Normally Open (NO) - This means that the sensor's output circuit is normally open (non-conductive) when it's not detecting a metallic object. When it detects an object within its sensing range, the circuit closes (becomes conductive).
This type of sensor is commonly used:
In industrial automation applications for tasks like detecting the presence or absence of metal objects on a production line or conveyor belt. PNP sensors are often preferred in certain applications because they can be easier to integrate into some control systems.Technical Details
- Model : RM12
- Operating Voltage (VDC) : 6 ~ 36
- Detection Distance (mm) : 4
- Outer Thread Size : M12
- Object Type : Inductive
- Output Type : PNP Normally Open Three-line
- Installation Type : Non-Flush (Unshielded)
- Max Output Current (mA) : 200
- Setting Distance (mm) : 0 ~ 2.4
- Insulation Resistance (MΩ) : 50
- Operating Temperature (°C) : -25 to 70
- Storage condition (℃) : -30 to 80
The Inductive Proximity Sensor application
- Mine metallurgy.
- Plastics, textile, and Chemical Industry.
- Light industry, tobacco, electric power, railway, and war industry.
Physical Attributes

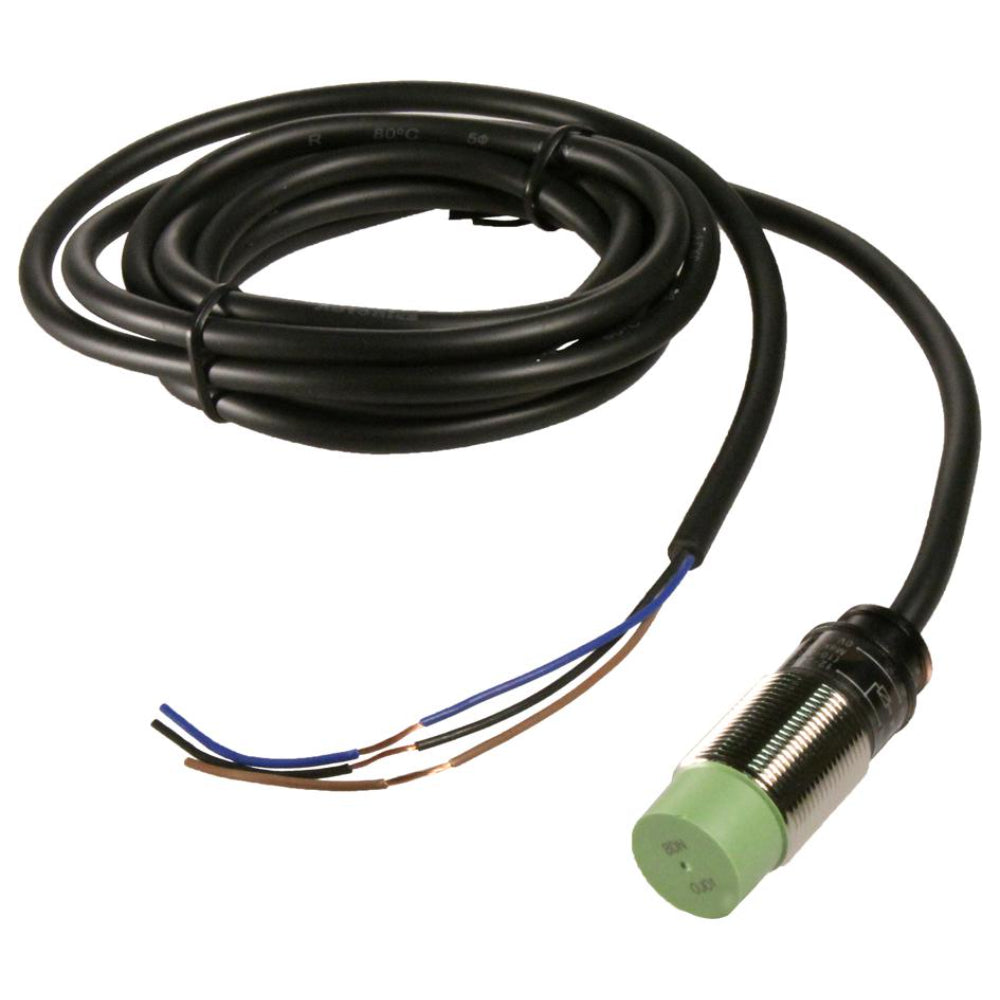

- Cable Diamensions : Ø4, 3-Wire, 2 Meter
- Weight (gm) : 60
Features
- IP67 protection structure (IEC standard).
- Compact volume.
- High precision of repeated location.
- Diversified exterior.
- Good performance of anti-interference.
- Many output forms.
- High on-off frequency.
- Wide voltage range.
- Dustproof, vibration proof, waterproof and oil proof.
- With short-circuit protection and inverted connecting protection.
- Long service life.
Product Video
Package Includes
- 1 x 4mm PNP Inductive Proximity Sensor M12 DC6~36V (Unshielded)(Normally Open)
