Original JHD 16X2 1602 JHD Original Character LCD Display
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

Original JHD 16X2 1602 JHD Original Character LCD Display

Available:In Stock
  • Product SKU: KLCD005
Wishlist
₹ 208.95 ₹ 313.95
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 999

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available
Options
Details
  • Display Color : White
  • Backlight : Blue
  • Display Color : Black
  • Backlight : Yellow-Green

  •   Need Volume Discounts? Deals are specially designed for you. Click here

      Need Customization? Provide us more details Click here

    Warehouse Details   21I-173 21E-133

    • Order within
    Secure

    Specification

    Description

    If you want to add some visual output to your Industrial/Electronics projects, you’ll need a display. If you need only a little to display, the 16 * 2 lcd display Parallel LCD Display is quite a good solution.

    Here are some details about the lcd 16x2 arduino Parallel LCD Display with White-Black:

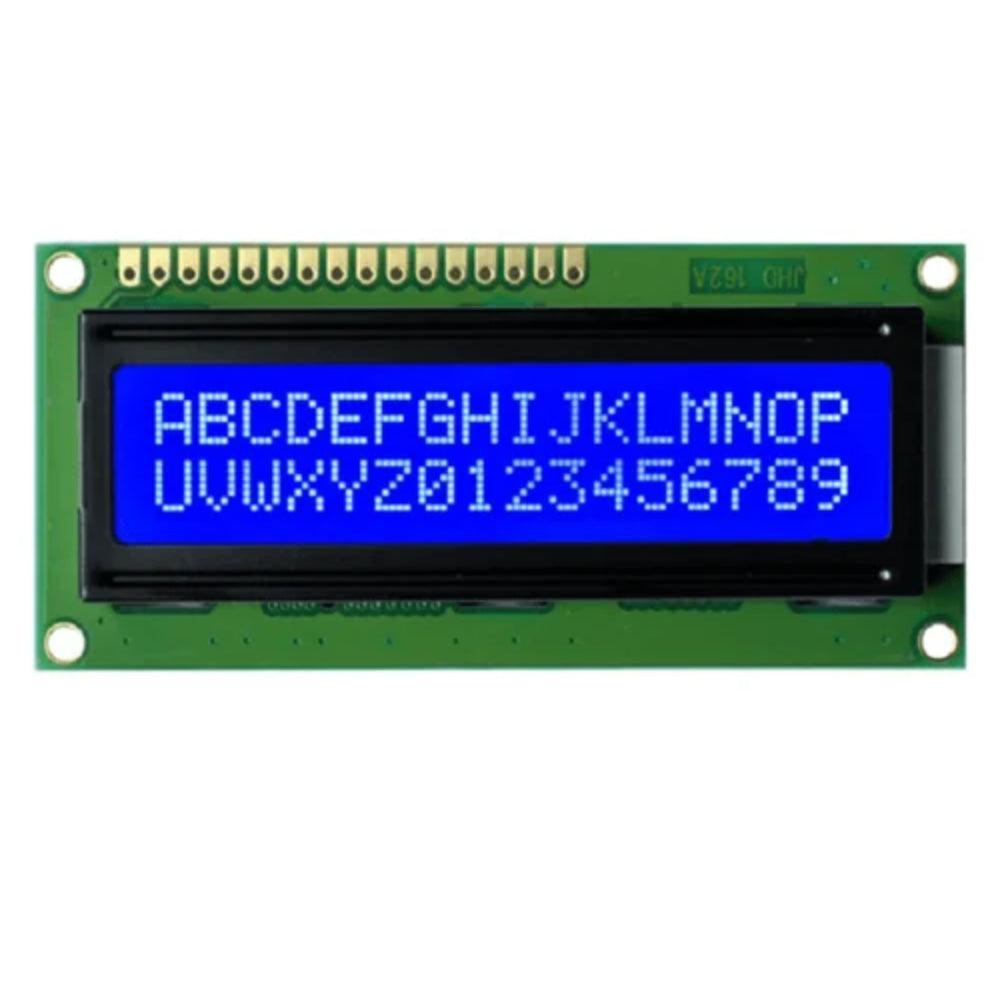

    This is an lcd 16x2 arduino Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 Black/White on RGB Liquid Crystal Display into your project. The display is 16 characters by a 2-line display that has a very clear and high contrast black/White text upon a Blue/Yellow-Green background/backlight.

    This is the great Blue/Yellow-Green backlight lcd 16x2 arduino. It is fantastic for Industrial/Electronics based projects. This LCD 16×2 Parallel LCD Display with Blue/Yellow-Green Backlight is very easy to interface with Arduino or Other Microcontrollers.
    The values shown on the display can be either simple text or numerical values read by the sensors, such as temperature or pressure.

    Note:This is a genuine JHD Display as there are many fake JHD Displays in the Market.

    Features of 16 * 2 lcd display:

    Display construction: 16 Characters * 2 Lines.
    Display mode: STN.
    Display Type: Positive, Transmissive.
    Backlight: LED/5.0V.
    Viewing direction: 6 o’clock.
    Operating temperature : 0 to 50°CC.
    Storage temperature: -10 to 60°C.
    Controller: SPLC780D or Equivalence.
    Driving voltage: Single power.
    Driving method: 1/16 duty, 1/5 bias.

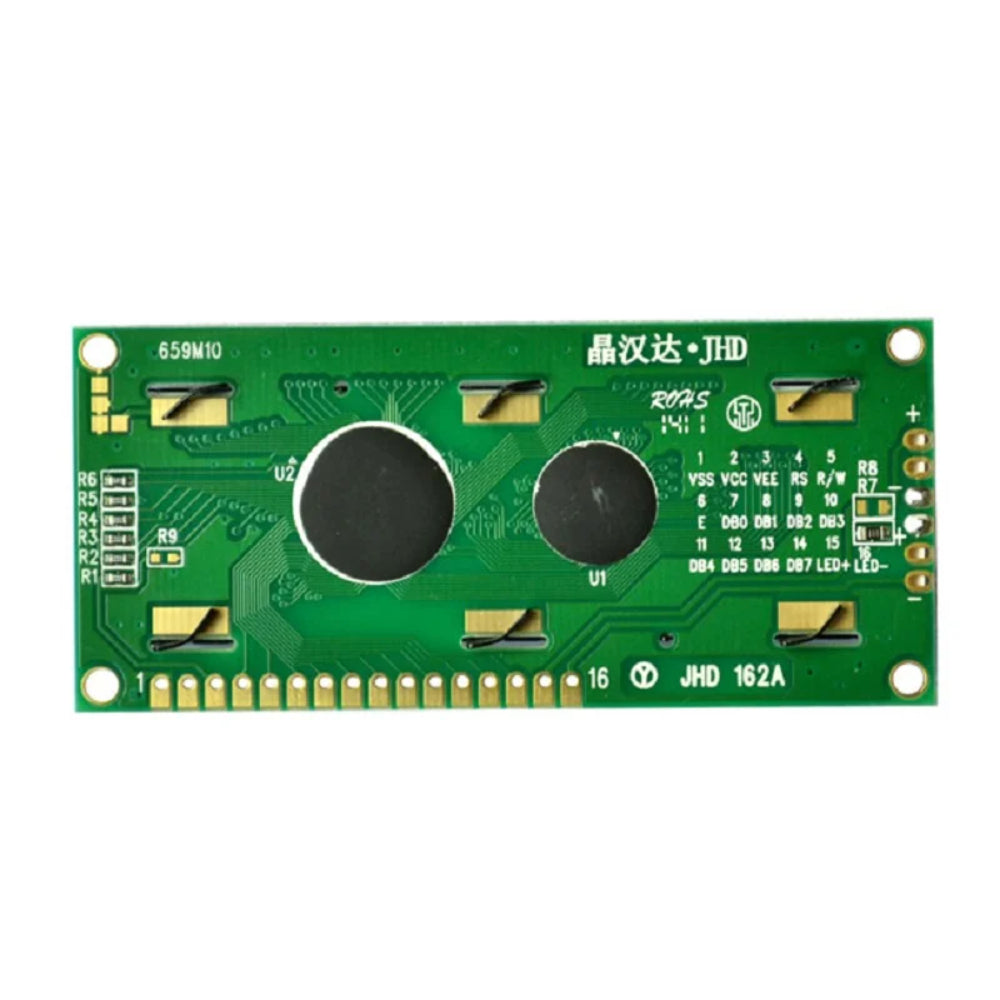

    Type: COB (Chip On Board).
    Number of data lines: 6800 4/8-bit parallel.
    Connector: Pin.

    Technical Details

    Original JHD 16×2 Character LCD Display

    Physical Attribute of 16 * 2 lcd display

    Original JHD 16×2 Character LCD Display

    Block Diagram

    Original JHD 16×2 Character LCD Display

    External Drawing

    Original JHD 16×2 Character LCD Display

    Package Includes

    • 1 x Original JHD 16x2 Character LCD Display
