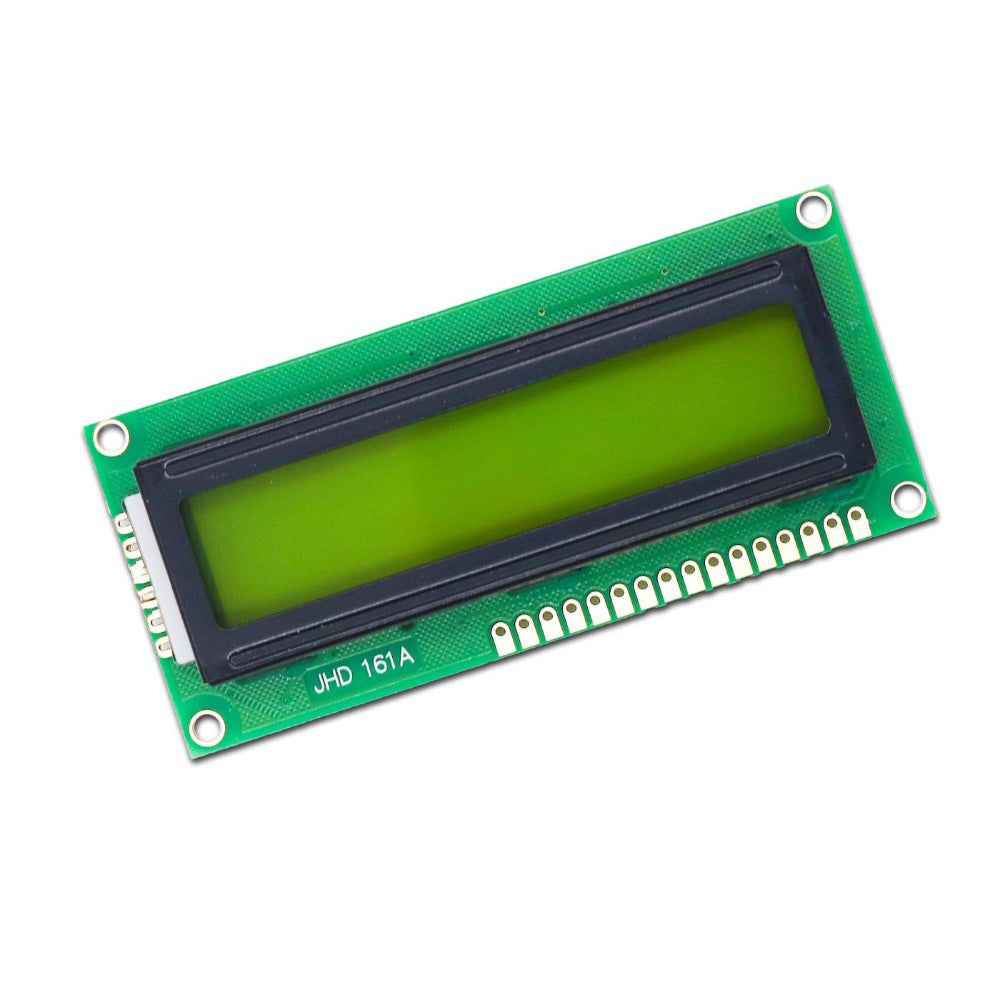

Original JHD 16x1 Character LCD Display With Green Backlight

Original JHD 16x1 Character LCD Display With Green Backlight_2

Original JHD 16x1 Character LCD Display With Green Backlight_3

Original JHD 16x1 Character LCD Display With Green Backlight

Available:In Stock

Product SKU: KLCD004

Wishlist

₹ 199 ~~₹ 299~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Model: JHD651 Y/YG
Display: 16×1 character
Outline: 80.0×36.0×14.5
VA: 64.5×14.5
Controller: SPLC780D
Character: 3.20×6.35
Driver: 1/16

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

Warehouse Details 21E-131

Specification

Description

The LCD 16×1 Parallel LCD Display is an ideal solution for adding a simple yet effective visual output to your Arduino projects, especially when you need a compact display. This 16×1 White on RGB LCD Display features a clear and high-contrast display with black text on a Green background, providing excellent visibility. It is designed with a Green backlight that ensures better readability and a clean, modern look. The display is easy to interface with Arduino or other microcontrollers, making it a versatile addition to any project. The display can show simple text or numerical values, such as sensor readings (temperature, pressure) or even system cycle counts, making it suitable for a wide range of applications.

Features:

Display Size: 16 characters wide, 1 row, offering clear and concise output for simple data.

High Contrast: White text on a Green background for excellent readability and visual appeal.

Adjustable Backlight: Single LED backlight included, which can be dimmed using a resistor or PWM for customized brightness.

Minimal Pin Usage: Can be fully controlled using only 6 digital lines, compatible with both analog and digital pins.

Technical Details

Model Type: Original JHD LCD
Display: 16×1 Character
Backlight Color: Green
VA: 64.5×14.5
Controller: SPLC780D
Character: 3.20×6.35
Driver: 1 to 16
LCD: STN Green Negative
Length (mm): 80
Width (mm): 36
Height (mm): 14.5
Weight (g): 32

Applications:

Ideal for displaying simple text, system messages, or sensor data in Arduino-based projects
Perfect for projects that require a compact display for real-time monitoring, such as temperature or humidity readings
Suitable for use in embedded systems, providing user interfaces or status updates for automation projects
Great for educational projects, allowing students to learn and experiment with displays in electronics
Used in process control systems to show the status of processes or cycles in real-time
Ideal for displaying user inputs, such as text or numeric values, in small-scale devices or gadgets
