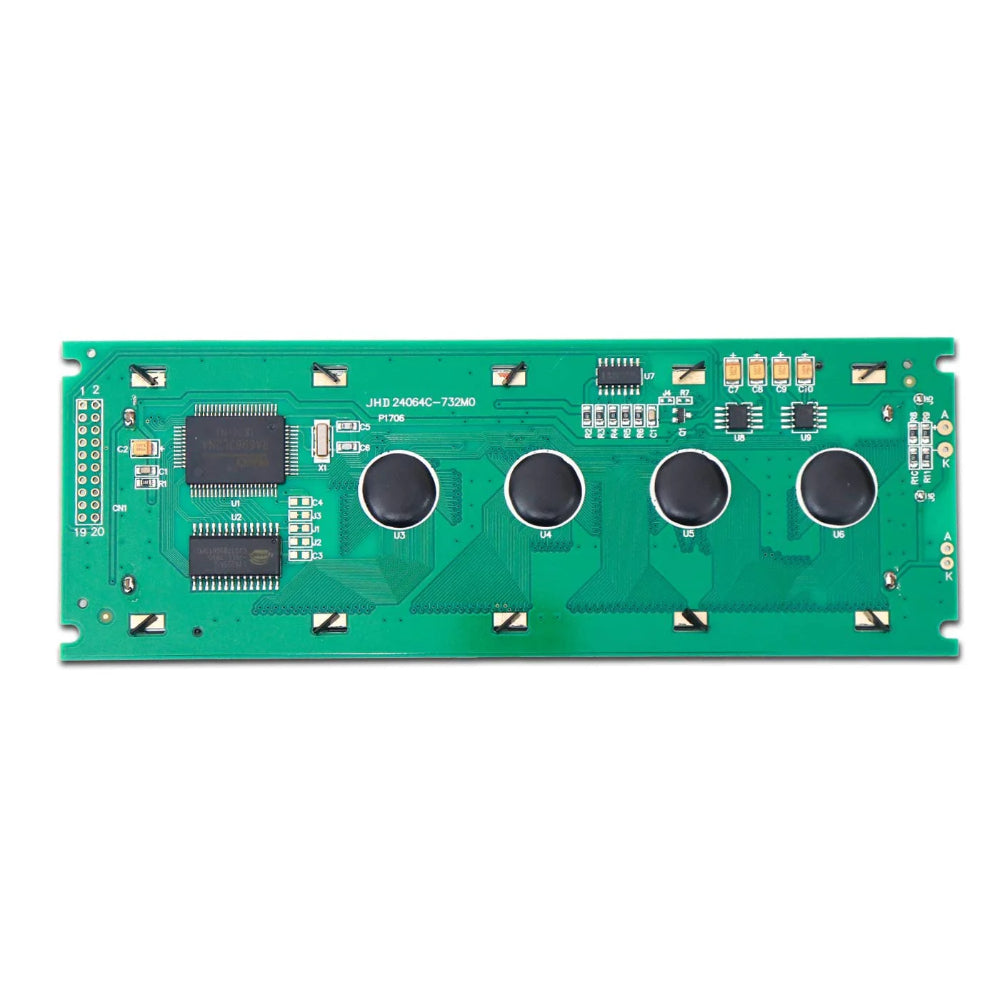

240×64 24064 JHD Original Characters Blue -White/ Yellow-Green graphics module


240×64 24064 JHD Original Characters Blue -White/ Yellow-Green graphics module
Available:In Stock
- Product SKU: KLCD024
₹ 2,800
₹ 3,058
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details

- Order within

Specification
Description
A Liquid Crystal Display (LCD) screen is an electronic display module and has a wide range of applications. A 240x64 LCD display is a graphics module and is very commonly used in various devices and circuits. A 240x64 LCD means it can display 240 characters per line and there are 64 such lines. In this LCD each character is displayed in a 5x8 pixel matrix.Features
- Display construction : 240 * 64 DOTS
- Display mode : STN
- Display type : Negative Transmissive
- Backlight : LED/5.0V
- Viewing direction : 6 o’clock
- Operating temperature : -20 to 70 ℃
- Storage temperature : -30 to 80℃
- Driving voltage : Single power
- Driving method : 1/64 duty, 1/9 bias
- Type : COB (Chip On Board)
- Number of data line : 8-bit parallel
- Connector : Pin
- Drive IC : T6963C or Equivalence
Technical Details

Physical Attribute

External Drawing

Package Includes
- 1 x Original JHD 240×64 24064 Characters Graphics module
