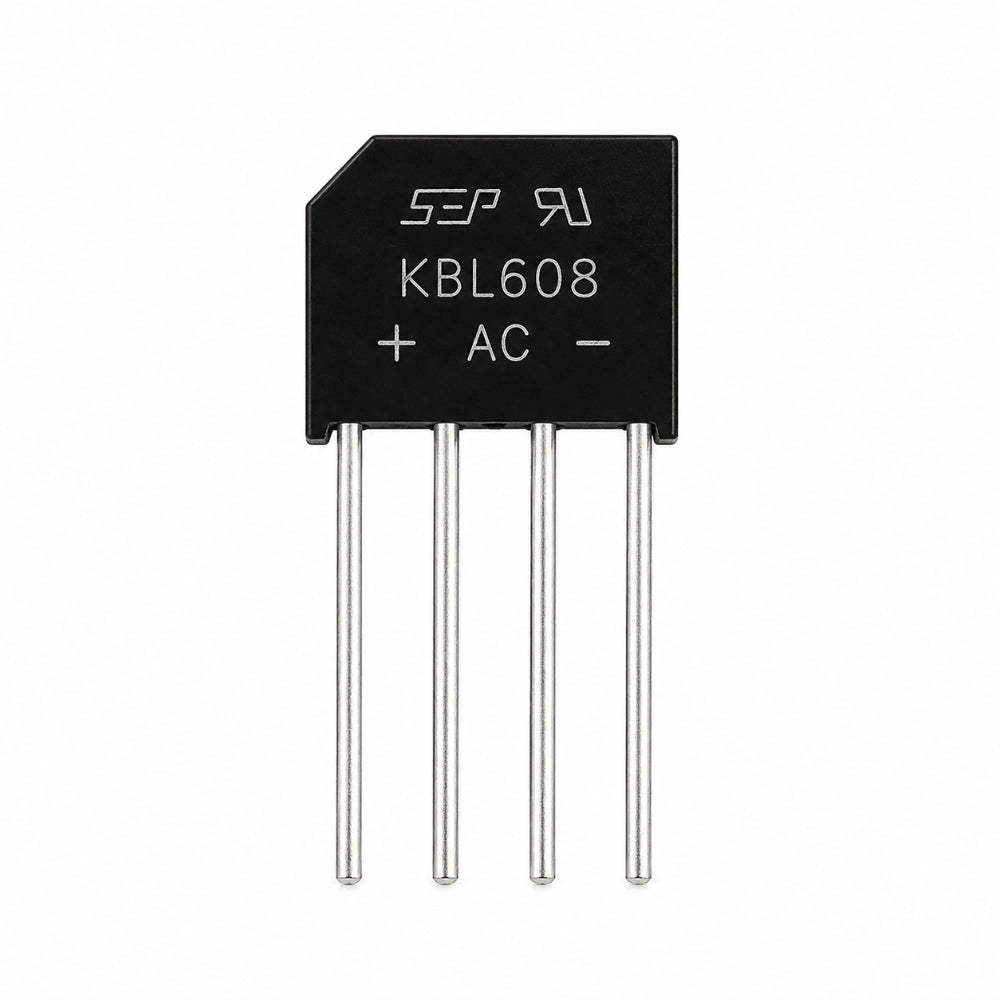

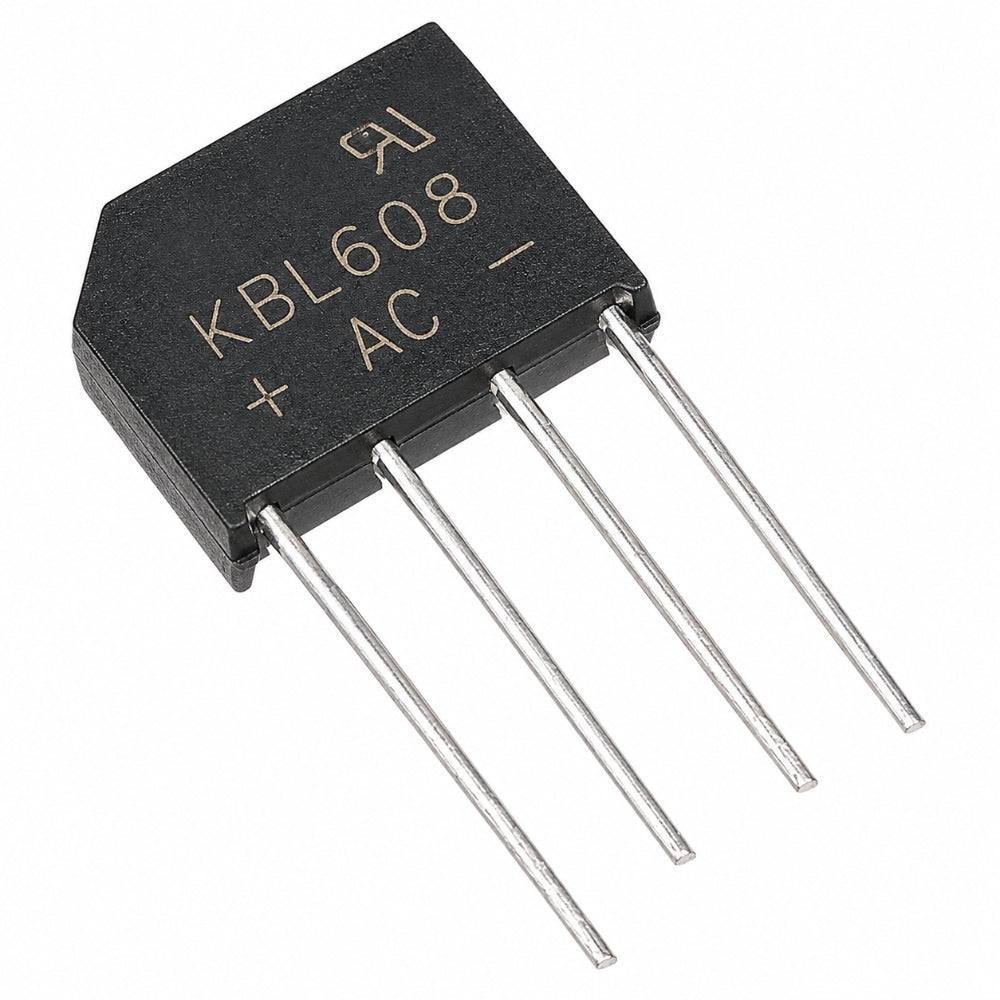

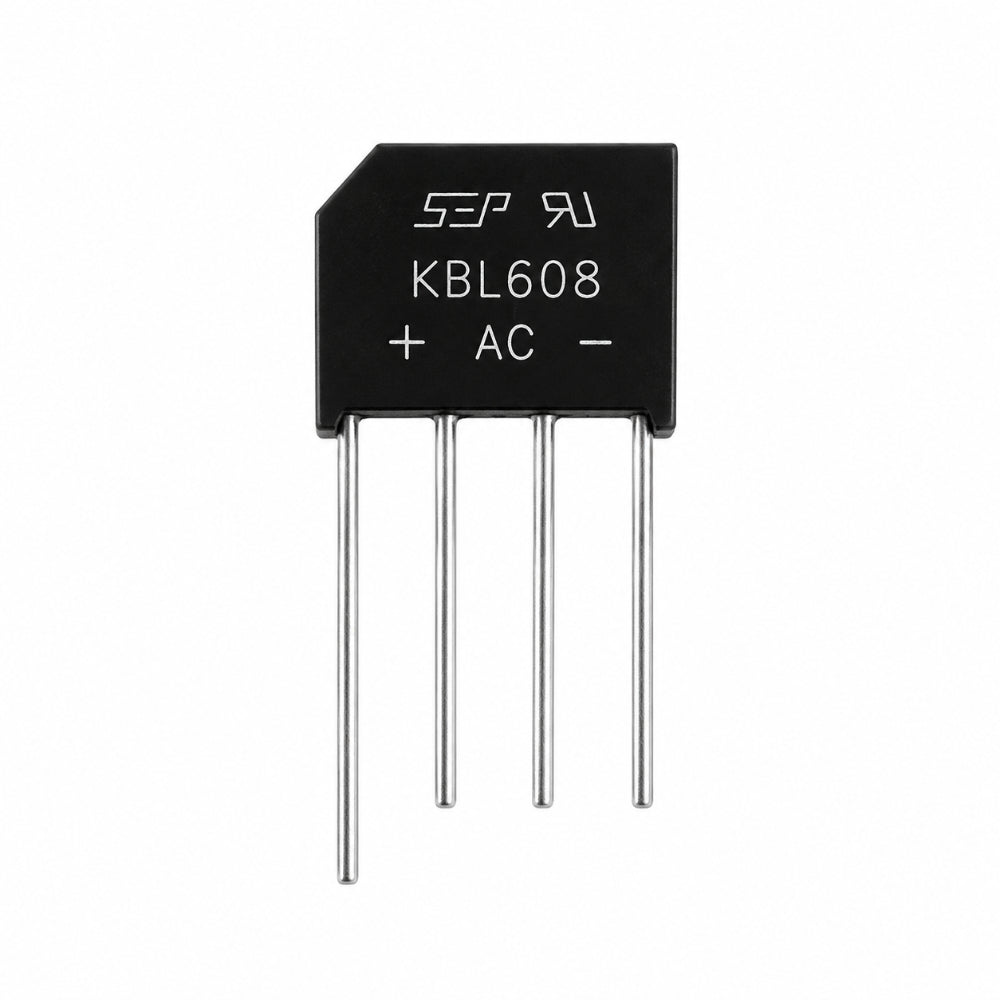

KBL608 6A 800V Rectifier Bridge

KBL608 6A 800V Bridge Rectifier Diode – MDD

Technical Details

• Part Number: KBL608
• Product Type: Bridge Rectifier
• Package / Case: KBL
• Reverse Voltage: 800V
• Maximum RMS Voltage: 560V
• Maximum DC Blocking Voltage: 800V
• Rectified Output Current: 6A
• Forward Voltage: 1V @ 3A
• Forward Voltage: 1.1V @ 6A
• Peak Forward Surge Current: 170A
• Reverse Leakage Current: 10uA @ 800V
• Typical Junction Capacitance: 55pF
• Typical Thermal Resistance: 1.8°C/W
• Operating Junction Temperature Range: -55°C to +150°C
• Storage Temperature Range: -55°C to +150°C
• Compliance: RoHS

Features

• 6A current rating
• 800V voltage rating
• 170A surge overload rating
• Ideal for PCB mounting
• Reliable molded plastic construction
• Low reverse leakage current
• Solder-plated terminals
• Polarity marked on body
• UL 94V-0 flammability rated plastic
• RoHS compliant component

Applications

• AC to DC rectification
• Power supply circuits
• SMPS power sections
• Battery charger circuits
• Adapter circuits
• Industrial control circuits
• Consumer electronics
• PCB rectifier assemblies

Physical Attributes

• Mounting Type: Through Hole / PCB Mount
• Terminals: Solder Plated
• Polarity: Symbol Marked on Body
• Mounting Position: Any
• Length: 19mm
• Height: 39mm
• Width: 6mm
• Weight: 4g

Package Includes

• 1 × KBL608 6A 800V Bridge Rectifier Diode

Note: Images are for reference only. Actual product appearance may vary depending on manufacturer lot and availability.
