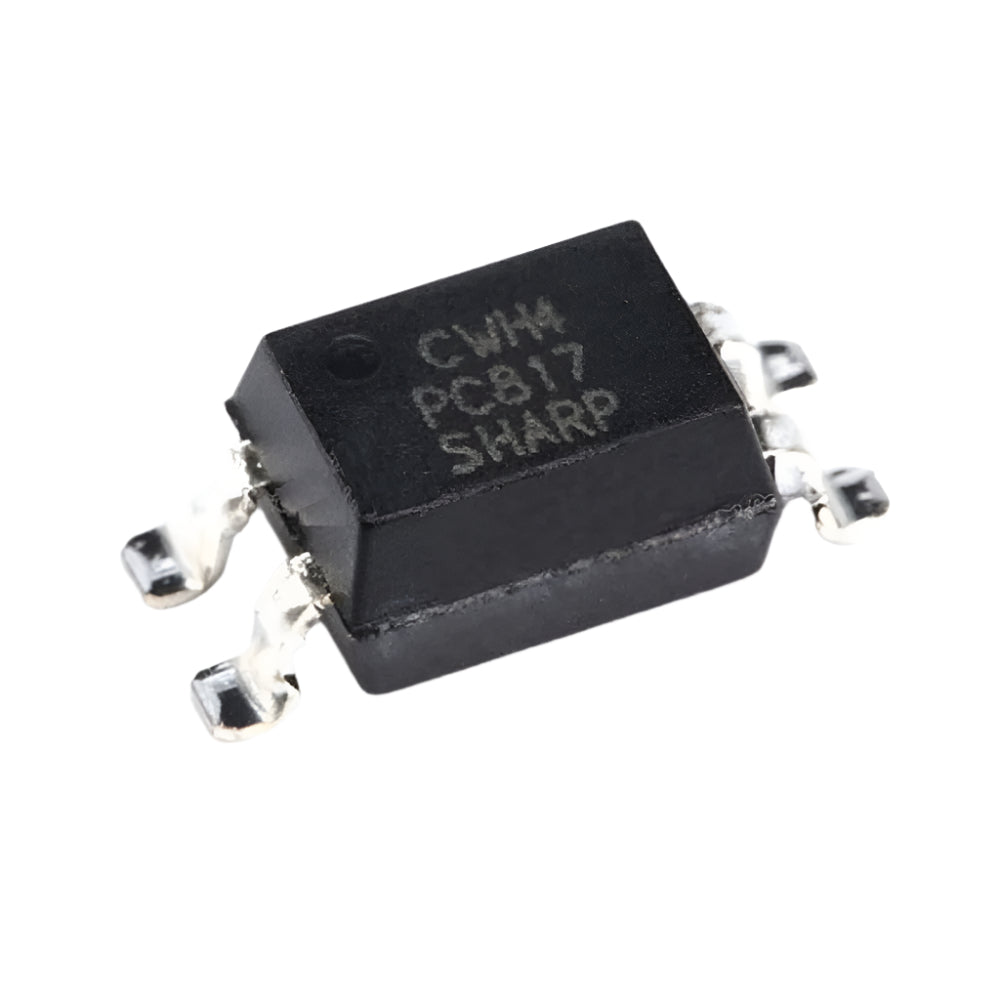

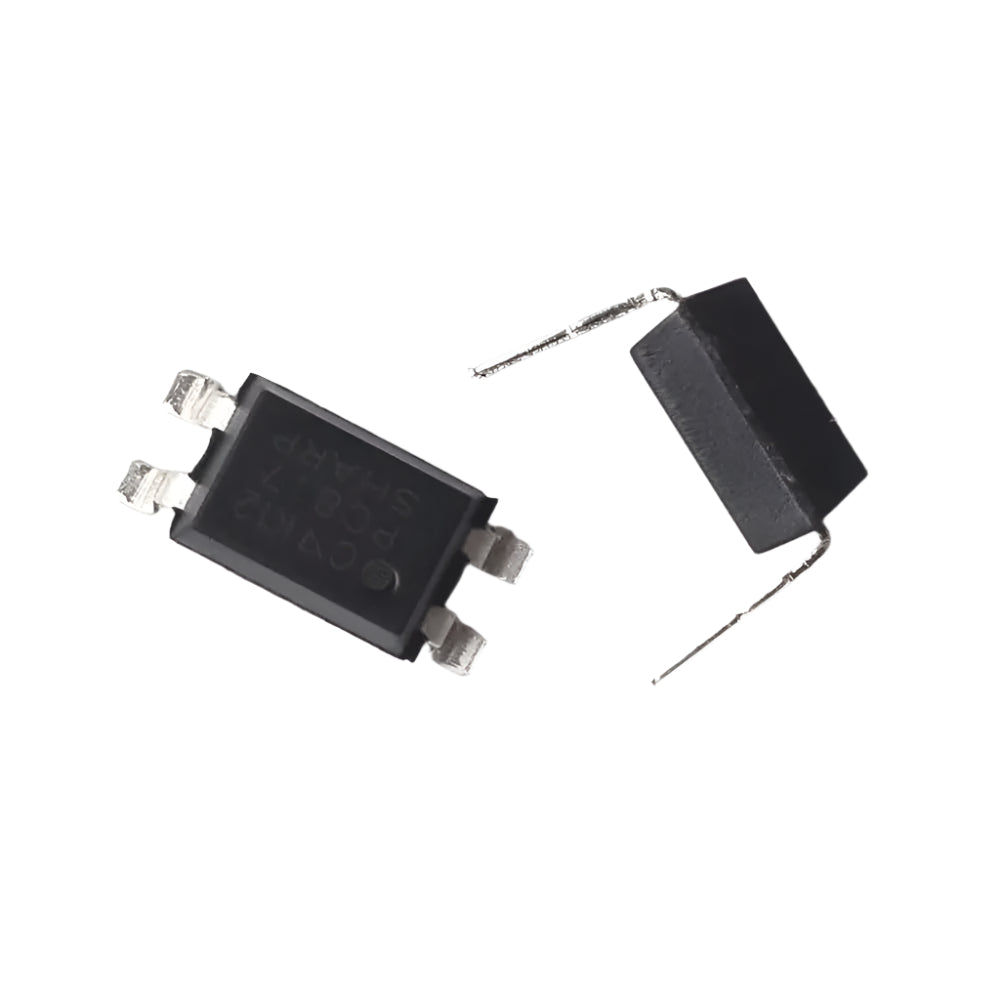

PC817C SOP-4 SMD Optocoupler | Brand New Original

The PC817C SOP-4 SMD Optocoupler is a high-quality, brand new, and original component designed for reliable electrical isolation between input and output circuits. Featuring a compact SOP-4 surface mount package, it uses an infrared LED and phototransistor for fast signal transmission with excellent noise immunity. Ideal for applications in switching power supplies, microcontroller interfaces, industrial automation, and communication systems, the PC817C ensures safe and efficient signal isolation in compact electronic designs.

Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Part Number: PC817C
  • Package: SOP-4 Surface Mount Device
  • Type: Phototransistor Output Optocoupler
  • Input: Infrared LED
  • Output: Phototransistor
  • Isolation Voltage: 5,000 Vrms
  • Current Transfer Ratio (CTR): 50% to 600% (IF = 5 mA, VCE = 5V)
  • Input Forward Voltage (VF): 1.2V (typical)
  • Collector-Emitter Voltage (VCEO): 80V
  • Emitter-Collector Voltage (VECO): 6V
  • Collector Current (IC): 50 mA max
  • Operating Temperature Range: -55°C to +110°C
  • Response Time: ~3 µs (typical rise and fall time)
  • Power Dissipation: 200 mW
  • RoHS Compliant

Features

  • Compact SOP-4 surface mount package
  • High isolation voltage up to 5000 Vrms
  • Wide current transfer ratio (CTR) range: 50% to 600%
  • Fast response time (~3 µs) for efficient switching
  • Low input forward voltage (typical 1.2V)
  • High collector-emitter voltage rating (80V)
  • Wide operating temperature range (-55°C to +110°C)
  • RoHS compliant and environmentally friendly

Applications :

  • Switching power supplies (SMPS) for isolation
  • Microcontroller signal isolation and protection
  • Industrial automation systems
  • Programmable Logic Controllers (PLC)
  • Communication and networking equipment

Physical Attributes

  • Weight (g): 2
  • Length: 2.92mm
  • Width: 1.3mm
  • Height: 1.1mm

Package Includes

  • 1 x PC817C SOP-4 SMD Optocoupler | Brand New Original
