PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
GP2Y1010AU0F Dust Smoke Sensor
gp2y1010au0f arduino
optical dust sensor

PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor

Available:In Stock
  • Product SKU: KG017
₹ 525 ₹ 660.45
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 999

  • Original, High Quality
  • KitsGuru Warranty
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   11E-130

  • Order within



gp2y1010au0f arduino Dust Sensor is an optical dust sensor designed to detect the concentration of airborne particles, such as dust and smoke, in the surrounding environment. It is commonly used in air quality monitoring systems, air purifiers, HVAC (Heating, Ventilation, and Air Conditioning) systems, and various industrial applications where monitoring particulate matter is essential.

Here are some key features and details about the gp2y1010au0f arduino Dust Sensor:

Principle of Operation: The gp2y1010au0f arduino sensor utilizes an infrared LED light source and a photodetector to measure the scattering of light caused by particles in the air. As airborne particles pass through the sensor's detection area, they scatter the light, and the sensor detects the intensity of the scattered light to determine the particle concentration.

Sensing Range: The sensor is capable of detecting particles with sizes in the range of 0.5 micrometers to 2.5 micrometers. It is particularly sensitive to particles in this size range, which includes many common indoor and outdoor pollutants.

Analog Output: The gp2y1010au0f arduino provides an analog output voltage that is proportional to the concentration of particles detected. This analog signal can be interfaced with microcontrollers or other control devices for data processing and display.

Compact Size: The sensor is compact and lightweight, making it suitable for integration into various devices and systems.

Applications of gp2y1010au0f arduino Dust Smoke Particle Sensor :

Low Power Consumption: The gp2y1010au0f arduino operates on low power, making it energy-efficient for battery-powered applications.

Dust Protection: The sensor is equipped with a dust-preventing structure, helping to reduce the accumulation of dust particles inside the sensor and maintain its performance over time.

Easy Integration: The sensor is relatively easy to integrate into electronic projects, requiring minimal external components for operation.

Air quality is becoming increasingly important in both indoor and outdoor environments, and the gp2y1010au0f arduino Dust Sensor offers a cost-effective solution for monitoring particulate matter levels. By incorporating this sensor into air quality monitoring systems, users can gather data on airborne particle concentrations and take appropriate actions to improve indoor air quality or address pollution issues.

Technical Details

  • Max. Operating Current (mA): 20
  • Sensitivity (dBm) : 0.5V/(0.1mg/m3)
  • Minimum Detection Level of Particles: 0.8 M
  • Clean Air Voltage: 0.9V typical
  • Operating Temperature (°C): -10 to 60

Physical Attributes

  • Length × Width × Height(mm) : 51 x 34 x 18
  • Weight (gm): 20

Integration with Arduino

gp2y1010au0f arduino Dust Sensor

Sample Code

Product Video


Package Includes

  • 1 x PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor

Customer Reviews

Based on 5 reviews
ashsish kumar
Great results

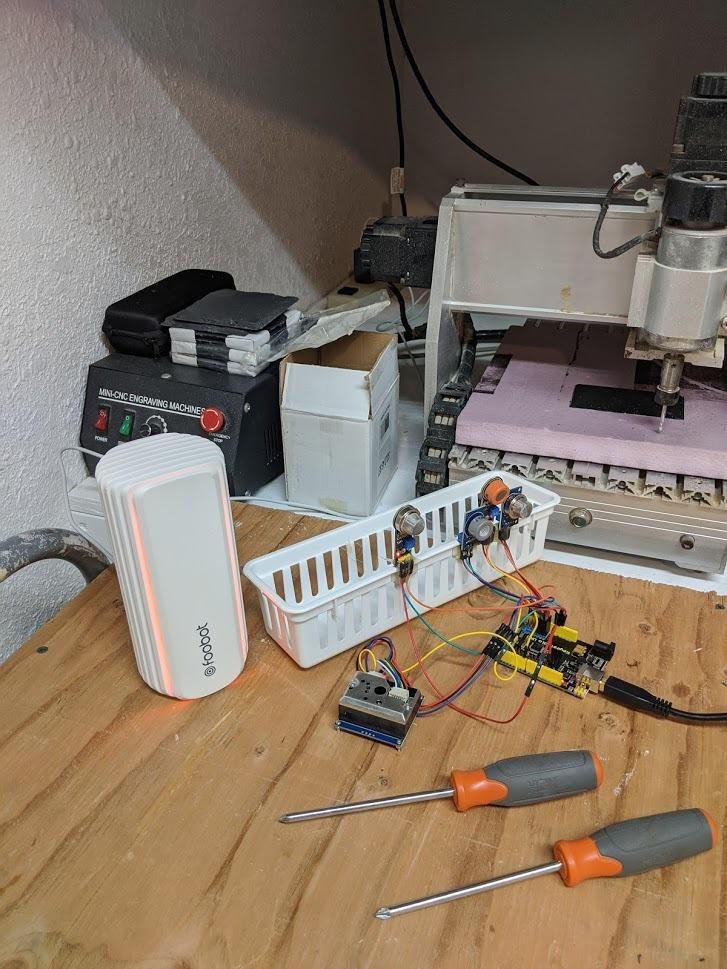

I'm doing a project to measure the air quality of my workshop and this sensor was one of the 20 I used. This is by far the best Arduino air sensor and its readings were in line with the Foobot sitting next to it. I believe that this sensor is inside many commercial products. It's the real deal.

Pretty neat

Cool little sensor that I'm hoping to use to determine if our HEPA filter actually does anything useful. Easy to hookup to Arduino and an ESP8266.

Five Stars

Excellent dust sensor, it works great. The documentation in web page helps a lot.

jag mohan
Five Stars

Awesome product works as expected. met my needs and Expectations

md mustafa
Great tech support

Received as advertised. Great technical support!
