RDS51150-12V 150kg Robot Digital Servo - 180 Degree

The RDS51150-12V is a high-torque 12V robot digital servo designed for demanding robotic positioning and mechanical motion-control applications. It operates from 10V to 12.6V and delivers up to 150 kg-cm stall torque at 12.6V. Its 357 gear ratio, double-bearing construction, and 3-pole motor provide a robust drive arrangement for applications requiring very high output torque.

At 10V, the servo provides a no-load speed of 0.24 sec/60° with 125 kg-cm stall torque; at 12V it reaches 0.21 sec/60° with 142 kg-cm stall torque; and at 12.6V it reaches 0.19 sec/60° with 150 kg-cm stall torque. Position control uses a PWM interface with a 500-2500 µsec pulse-width range, 1500 µsec neutral position, 3 µsec dead-band width, and 50-330 Hz operating-frequency range.

Technical Details

  • Model: RDS51150-12V
  • Product Type: 12V 150kg Robot Digital Servo
  • Variant: Red
  • Angle Variant: 180 Degree
  • Operating Voltage Range: 10-12.6V
  • Gear Ratio: 357
  • Bearing: Double Bearing
  • Motor: 3-Pole
  • Connector Wire: 300 ± 5 mm
  • Waterproof Performance: No
  • Control System: PWM (Pulse width modification)
  • Pulse-Width Range: 500-2500 µsec
  • Neutral Position: 1500 µsec
  • Running Degree: 180°
  • Dead-Band Width: 3 µsec
  • Operating Frequency: 50-330 Hz
  • Rotating Direction: Counterclockwise when pulse width increases from 500 to 2500 µsec

Features

  • Up to 150 kg-cm stall torque at 12.6V
  • 0.19 sec/60° no-load speed at 12.6V
  • 10-12.6V operating-voltage range
  • Digital PWM position control
  • 500-2500 µsec control pulse range
  • 180° running-angle variant
  • Double-bearing mechanical construction
  • 357 gear-ratio specification
  • 3 µsec dead-band width
  • 50-330 Hz operating-frequency range
  • 300 ± 5 mm three-wire connection lead

Dimension Drawing

Environmental Conditions

  • Storage Temperature Range: -30°C to 80°C
  • Operating Temperature Range: -15°C to 70°C
  • Operating Voltage Range: 10-12.6V

Electrical Specifications

  • At 10V - Idle Current (at stopped): 4 mA
  • At 10V - Operating Speed (at no load): 0.24 sec/60°
  • At 10V - Stall Torque (at locked): 125 kg-cm
  • At 10V - Stall Current (at locked): 7.4 A
  • At 12V - Idle Current (at stopped): 5 mA
  • At 12V - Operating Speed (at no load): 0.21 sec/60°
  • At 12V - Stall Torque (at locked): 142 kg-cm
  • At 12V - Stall Current (at locked): 8.0 A
  • At 12.6V - Idle Current (at stopped): 6 mA
  • At 12.6V - Operating Speed (at no load): 0.19 sec/60°
  • At 12.6V - Stall Torque (at locked): 150 kg-cm
  • At 12.6V - Stall Current (at locked): 8.3 A

Control Specifications

  • Control System: PWM (Pulse width modification)
  • Pulse-Width Range: 500-2500 µsec
  • Neutral Position: 1500 µsec
  • Running Degree: 180°
  • Dead-Band Width: 3 µsec
  • Operating Frequency: 50-330 Hz
  • Rotating Direction: Counterclockwise when pulse width increases from 500 to 2500 µsec

Connector and PWM Wiring

  • Connector Type Shown: JR 3-Pin, 2.54 mm Pitch
  • Wire-Color Option 1: Brown = Negative (-), Red = Positive (+), Orange = Signal (S)
  • Wire-Color Option 2: Black = Negative (-), Red = Positive (+), White = Signal (S)
  • Control Interface: PWM
  • Control-Signal Level in Illustration: 3.3-5V
  • PWM Period Illustration: 3.0-30 ms, Default 20 ms

Connector and PWM Wiring

PWM Position Reference

  • Pulse-Width Control Range: 0.5-2.5 ms (500-2500 µsec)
  • Neutral Pulse: 1.5 ms (1500 µsec)
  • 180° Control Reference: 0.5 ms = 0°, 1.5 ms = 90°, 2.5 ms = 180°

Applications :

  • High-torque robot servo systems
  • 180° angular positioning mechanisms
  • PWM-controlled robotics projects
  • Heavy mechanical linkage positioning
  • Robotic joints and motion systems
  • DIY automation mechanisms

Physical Attributes

  • Size: 65 x 30 x 48 mm
  • Weight: 256 g
  • Gear Ratio: 357
  • Bearing: Double Bearing
  • Connector Wire Length: 300 ± 5 mm
  • Motor: 3-Pole
  • Waterproof Performance: No

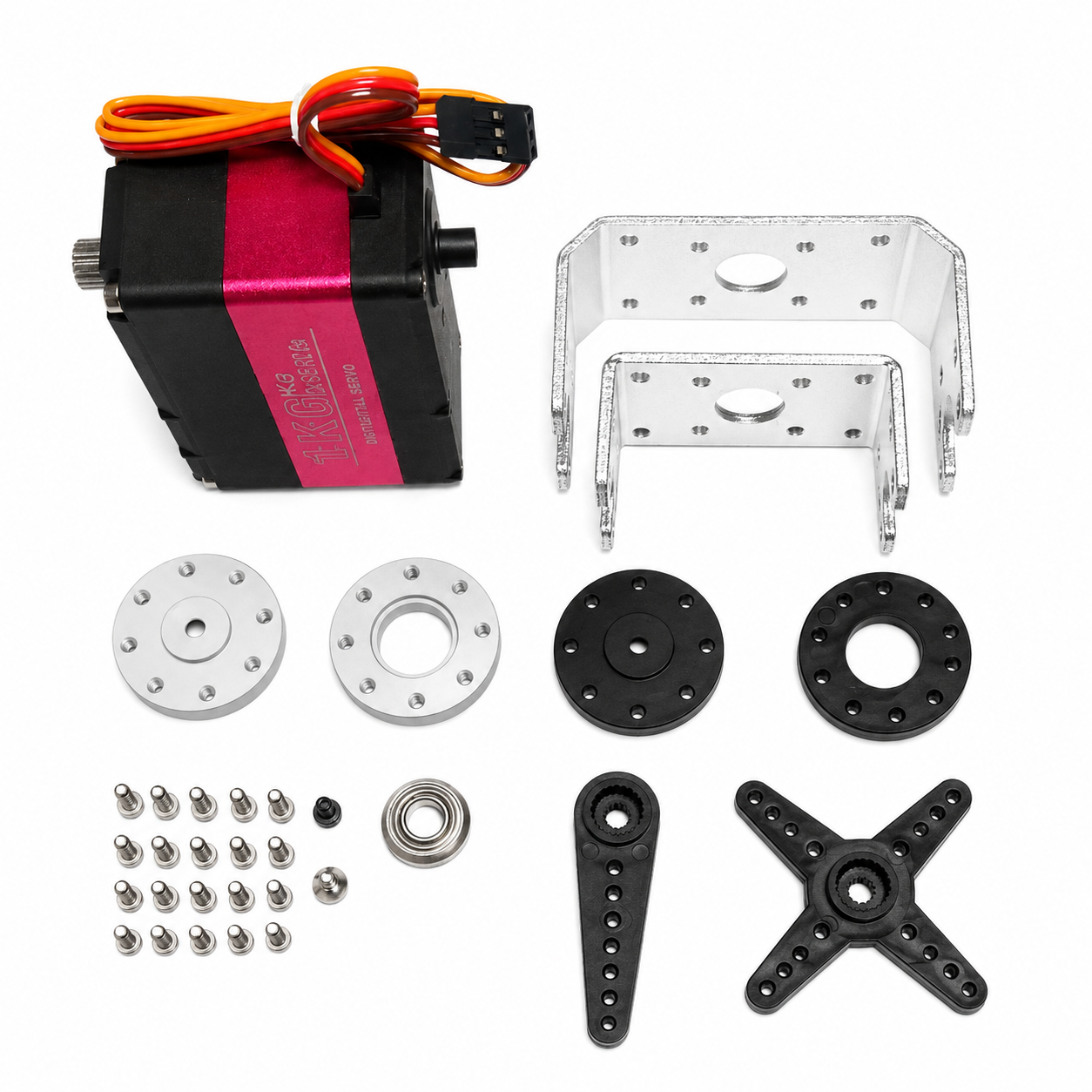

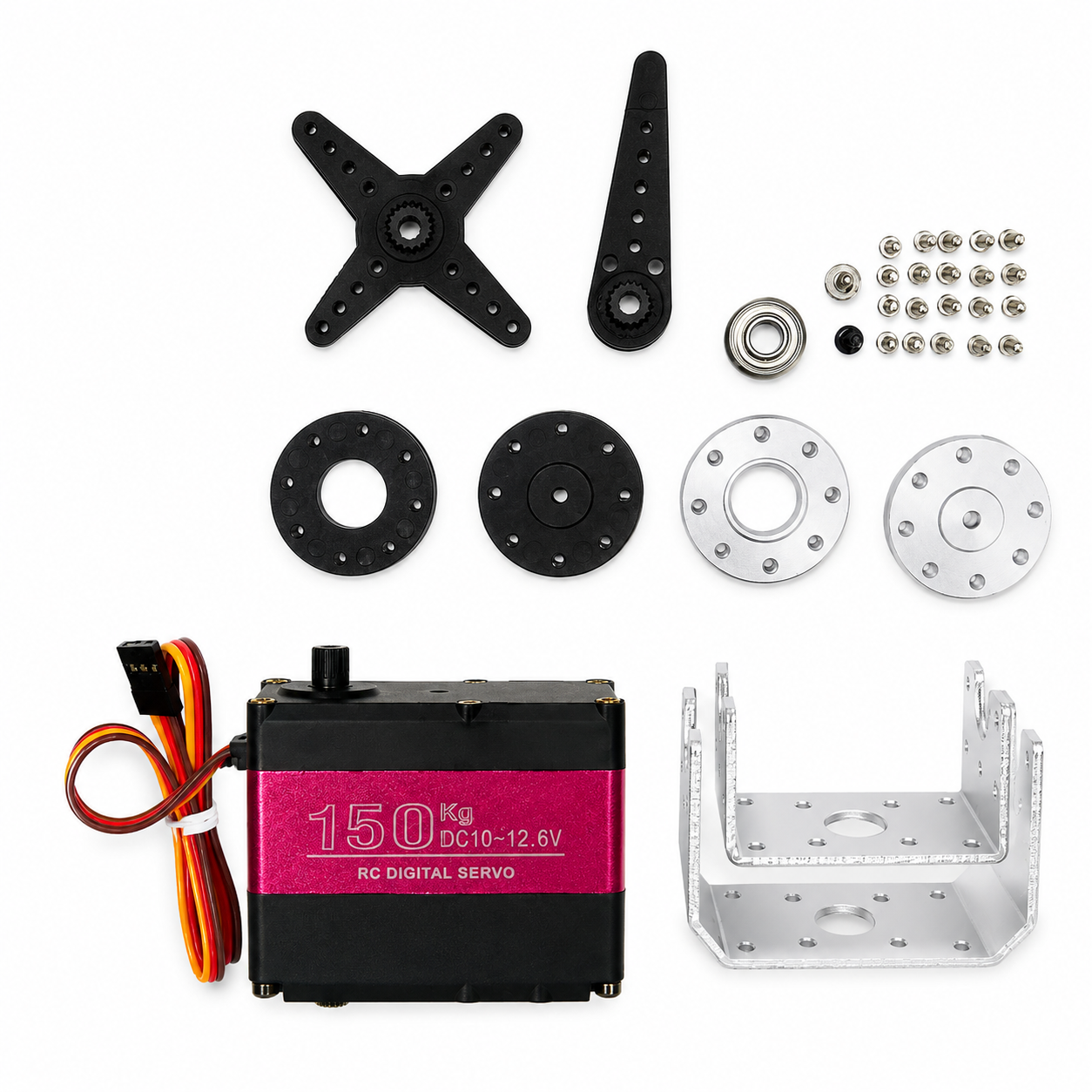

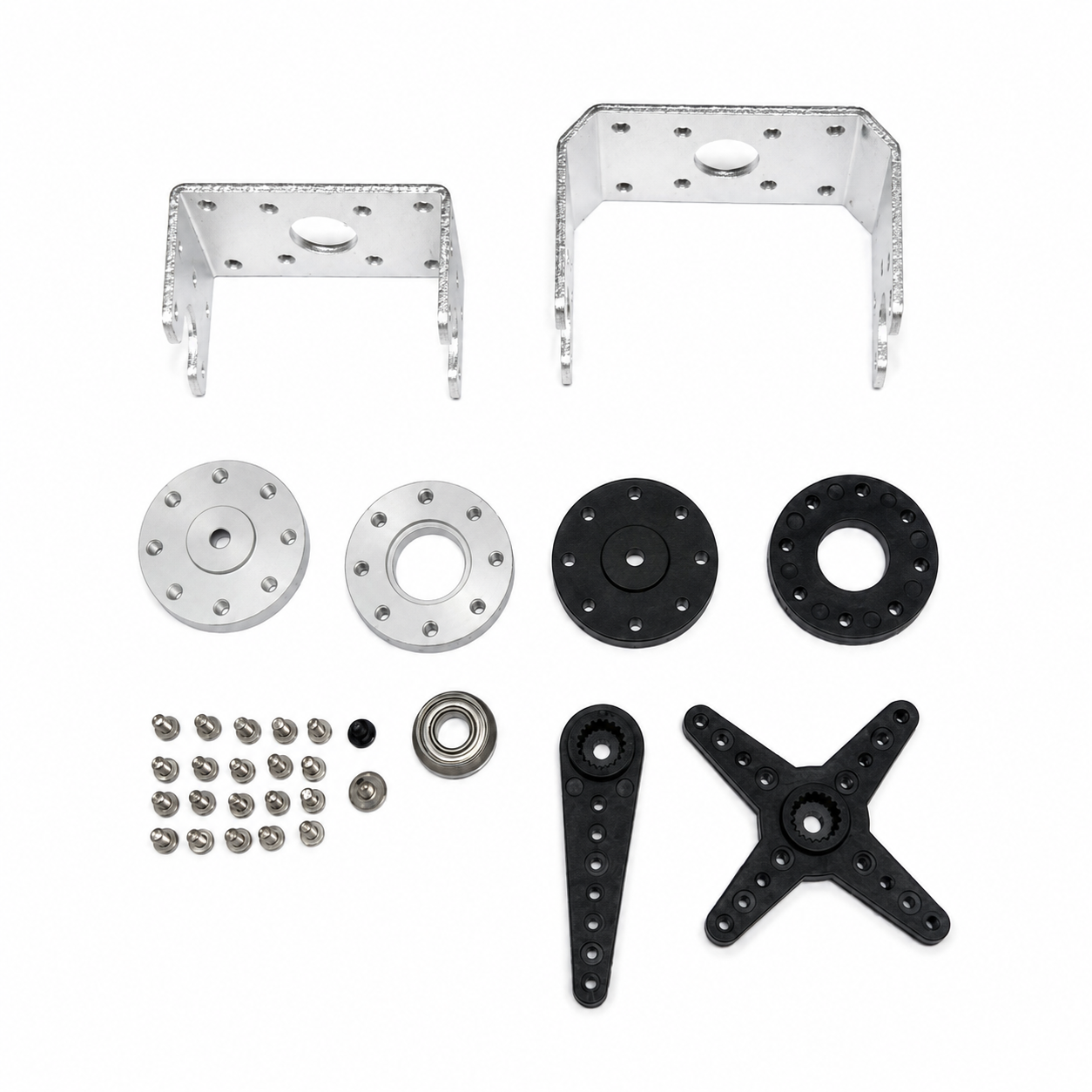

Package Includes

  • 1 x Servo Motor
  • 1 x Large U-Shaped Metal Mounting Bracket
  • 1 x Small U-Shaped Metal Mounting Bracket
  • 2 x Silver Round Adapter Discs
  • 2 x Black Round Adapter Discs
  • 1 x Ball Bearing
  • 1 x Straight Plastic Servo Horn
  • 1 x Cross Plastic Servo Horn
  • 1 x Mounting Hardware Set
