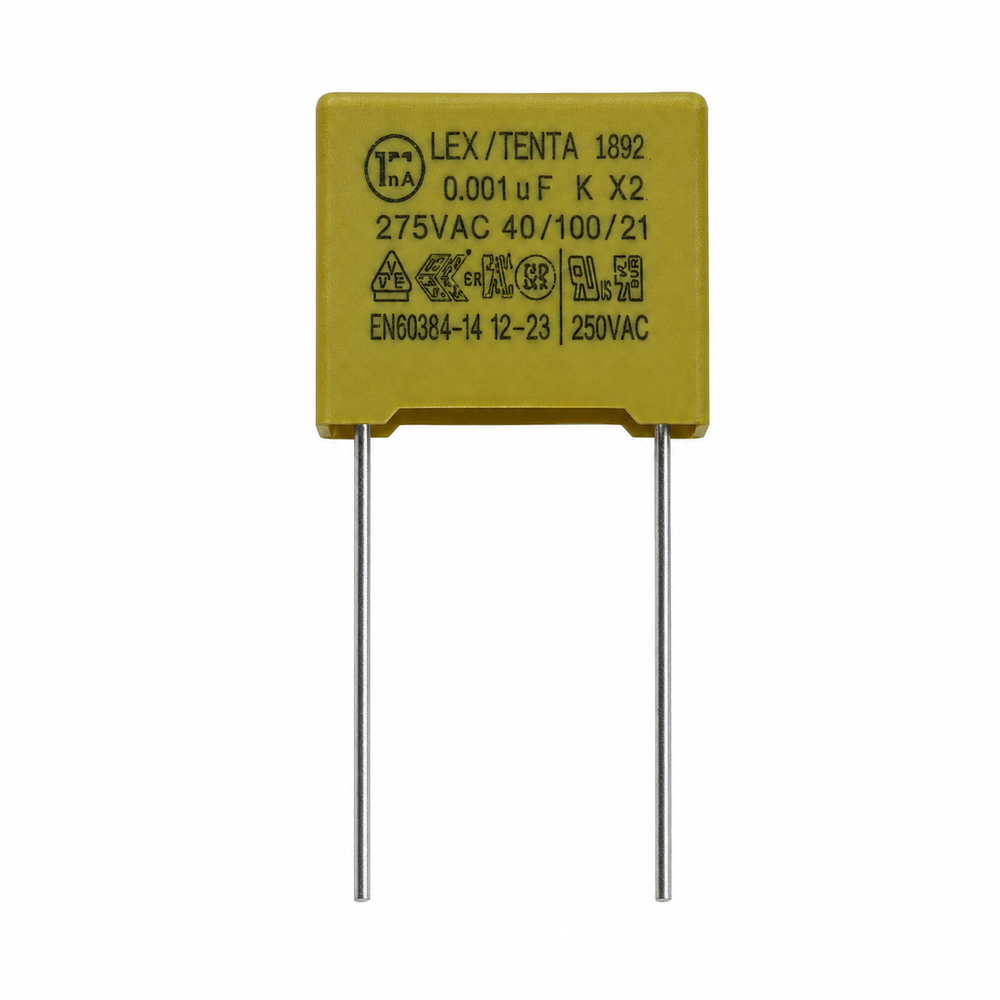

Safety Capacitor X2 0.001µF (1nF) 275VAC Metallized Polypropylene Film Capacitor

Safety Capacitor X2 0.001µF (1nF) 275VAC Metallized Polypropylene Film Capacitor

The Safety Capacitor X2 0.001µF (1nF) 275VAC Metallized Polypropylene Film Capacitor is a premium metallized polypropylene film capacitor designed for X2 across-the-line EMI suppression applications. It provides excellent self-healing performance, high insulation resistance, and reliable operation in AC mains filtering circuits.

Features

• X2 safety-certified capacitor
• Metallized polypropylene film dielectric
• Self-healing construction
• Low dielectric loss
• High surge withstand capability
• Through-hole radial package

Technical Details

• Capacitance: 0.001µF (1nF)
• Rated Voltage: 275VAC
• Safety Class: X2
• Dielectric: Metallized Polypropylene Film
• Tolerance: ±10% (Typical)
• Lead Pitch: 10 mm
• Operating Temperature: −40°C to +110°C

Physical Attributes

• Body Shape: Rectangular, radial leads
• Lead Pitch: 10 mm
• Lead Length: 16 mm
• Mounting Type: Through-hole
• Weight: 1 g

Applications

• EMI/RFI suppression
• SMPS
• Power line filtering
• Home appliances
• Industrial electronics

Package Includes

• 1 × Safety Capacitor X2 0.001µF (1nF) 275VAC Metallized Polypropylene Film Capacitor
