Safety Capacitor X2 0.033ยตF (33nF) 275VAC 333K Metallized Polypropylene Film Capacitor 10mm Pitch
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-33%

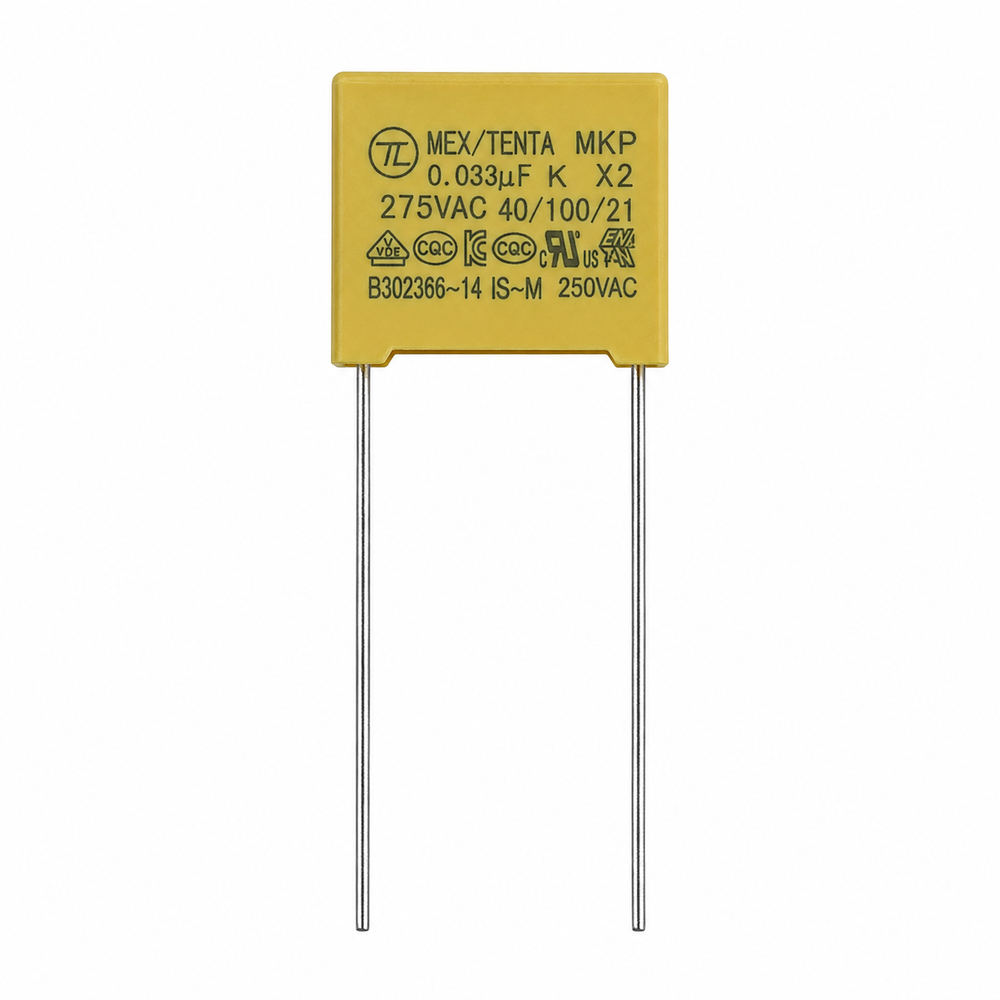

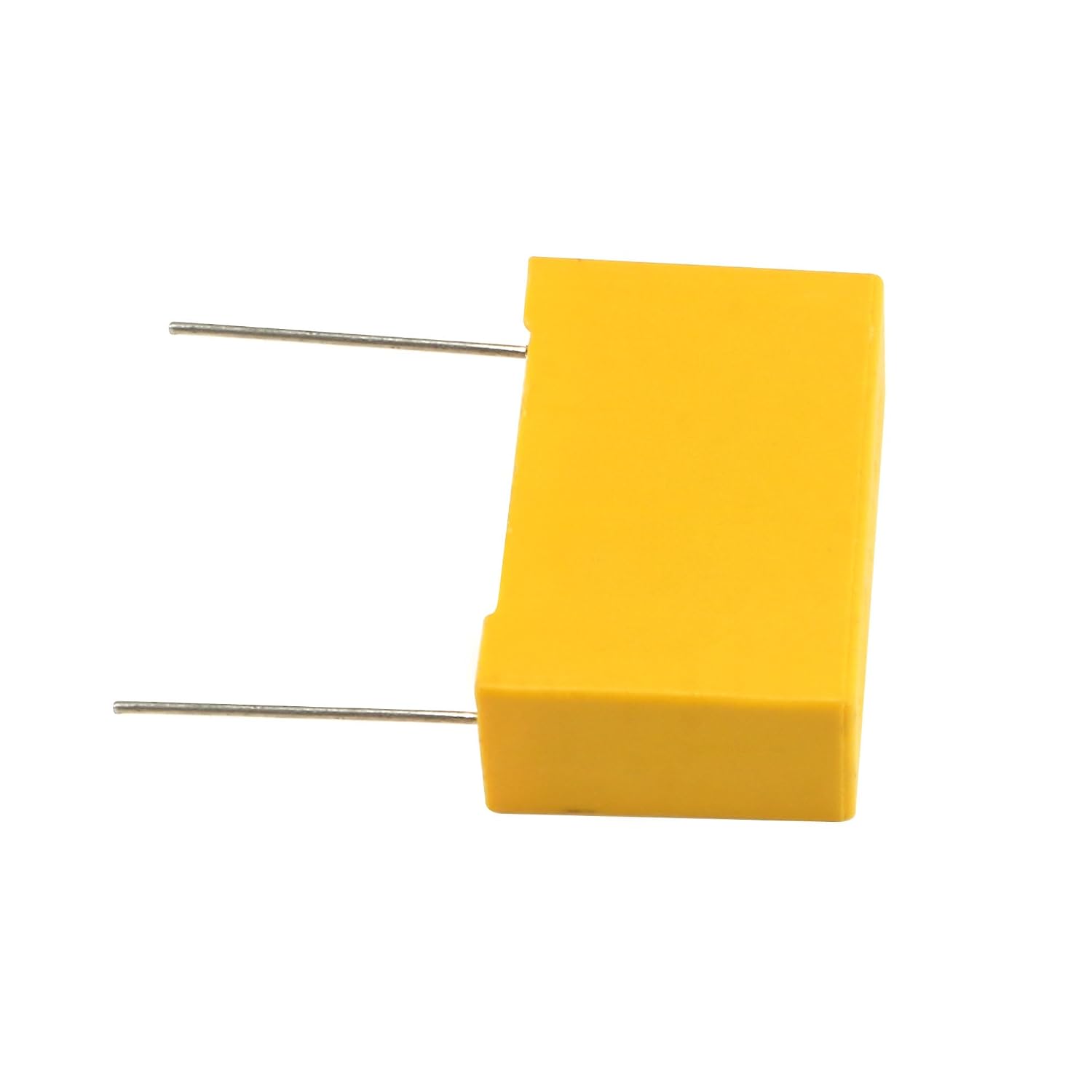

333K front view
capacitor pin gap
0.033uF close detail
333K front view
capacitor pin gap
0.033uF close detail

Safety Capacitor X2 0.033ยตF (33nF) 275VAC 333K Metallized Polypropylene Film Capacitor 10mm Pitch

Available:In Stock
  • Product SKU: CAPAC139
Wishlist
โ‚น 10 โ‚น 15
Available offers
Best Rates

on Express Shipping โ€“ Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 0.033ยตF X2 safety capacitor
  • Rated for 275VAC operation
  • Metallized polypropylene film construction
  • 10mm lead pitch design
  • Suitable for EMI suppression
  • Designed for AC circuits
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
How Fast We Ship
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

๐Ÿ  Warehouse Details:
23 E - 128 E
Secure

Specification

Description

Safety Capacitor X2 0.033ยตF (33nF) 275VAC 333K Metallized Polypropylene Film Capacitor 10mm Pitch

The Safety Capacitor X2 0.033ยตF (33nF) 275VAC 333K is a high-quality metallized polypropylene film capacitor specifically designed for X2 across-the-line EMI suppression applications. With a capacitance value of 0.033ยตF (33nF) and a 275VAC safety rating, it provides excellent electrical stability, high insulation resistance, and outstanding self-healing performance. It is widely used in AC mains filtering, switch-mode power supplies, LED drivers, household appliances, and industrial electronic equipment to suppress electrical interference and improve system reliability.

Features

  • X2 safety-certified capacitor for AC mains applications
  • Metallized polypropylene film dielectric
  • Excellent self-healing properties for long service life
  • High insulation resistance and low dielectric loss
  • Superior surge voltage withstand capability
  • 10mm lead pitch radial through-hole package
  • Stable capacitance over a wide temperature range
  • Compact, lightweight, and highly reliable construction

Technical Details

  • Capacitance: 0.033ยตF (33nF)
  • Capacitance Code: 333K
  • Rated Voltage: 275VAC
  • Safety Class: X2
  • Tolerance: ยฑ10% (K)
  • Dielectric: Metallized Polypropylene Film
  • Lead Pitch: 10 mm
  • Operating Temperature: โˆ’40ยฐC to +110ยฐC
  • Mounting Type: Through-hole

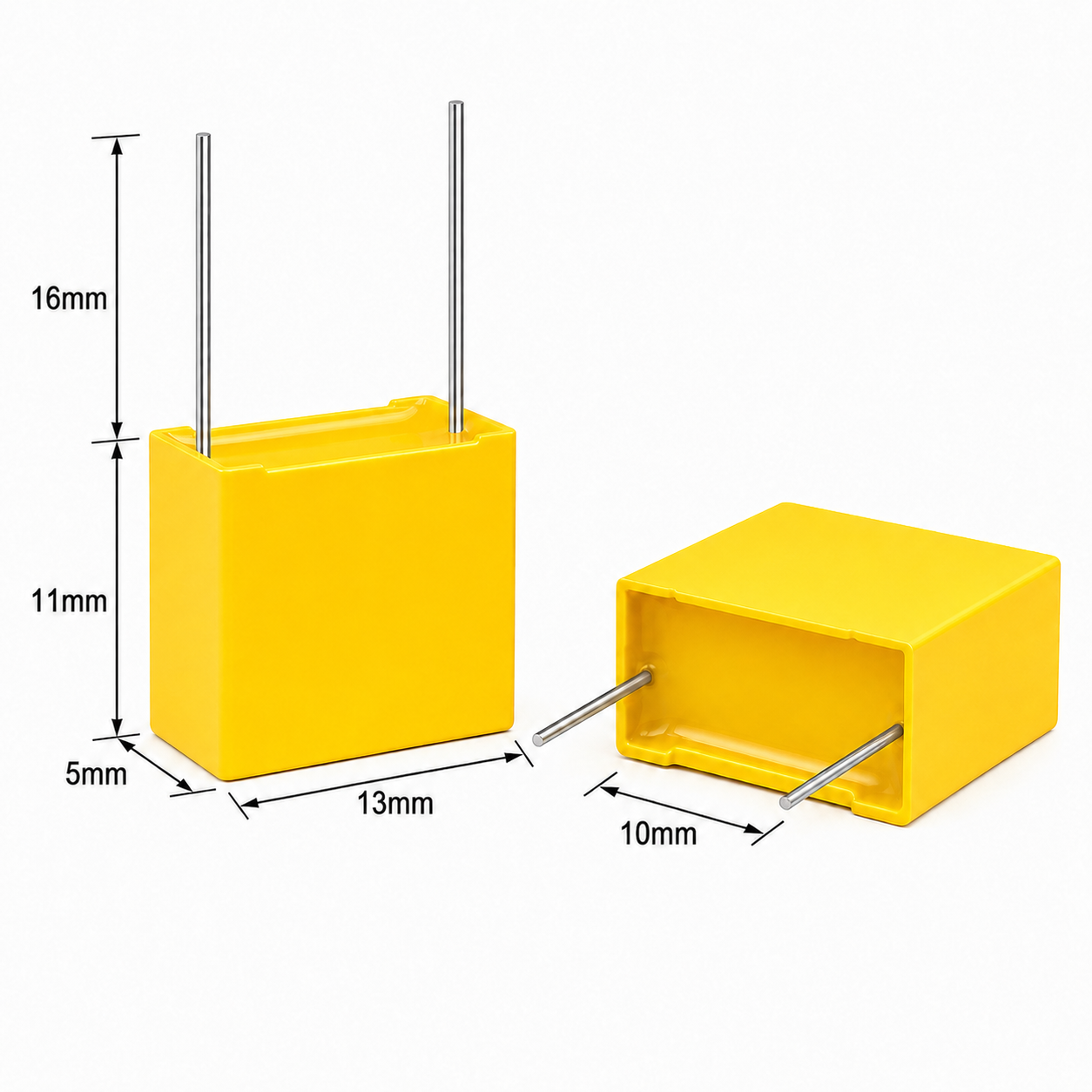

Physical Attributes

  • Body Shape: Rectangular, radial leads
  • Body Length: 13 mm
  • Body Height: 11 mm
  • Body Thickness: 5 mm
  • Lead Pitch: 10 mm
  • Lead Length: 16 mm
  • Mounting Type: Through-hole
  • Weight: 1 g

Applications

  • EMI/RFI suppression across AC mains
  • Switch-mode power supplies (SMPS)
  • Power line interference filtering
  • LED drivers and lighting equipment
  • Home appliances and consumer electronics
  • Industrial control systems
  • Power distribution circuits
  • General AC-powered electronic equipment

Package Includes

  • 1 ร— Safety Capacitor X2 0.033ยตF (33nF) 275VAC 333K Metallized Polypropylene Film Capacitor 10mm Pitch
