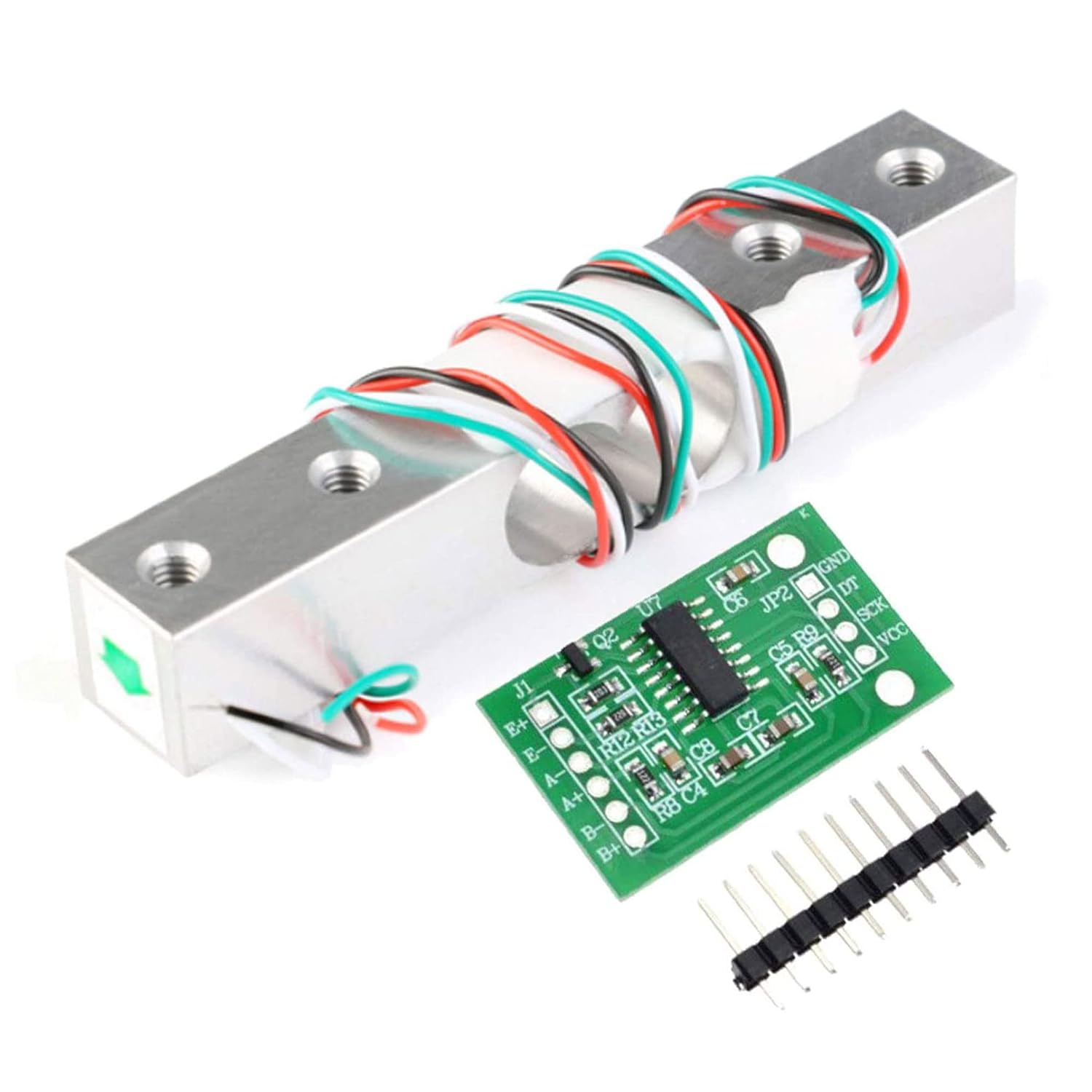

10KG Small Range Weighing Pressure Sensor with HX711AD Weighing Module
Available:Out of Stock
- Product SKU: KG1073
₹ 135
₹ 159
Specification
Description

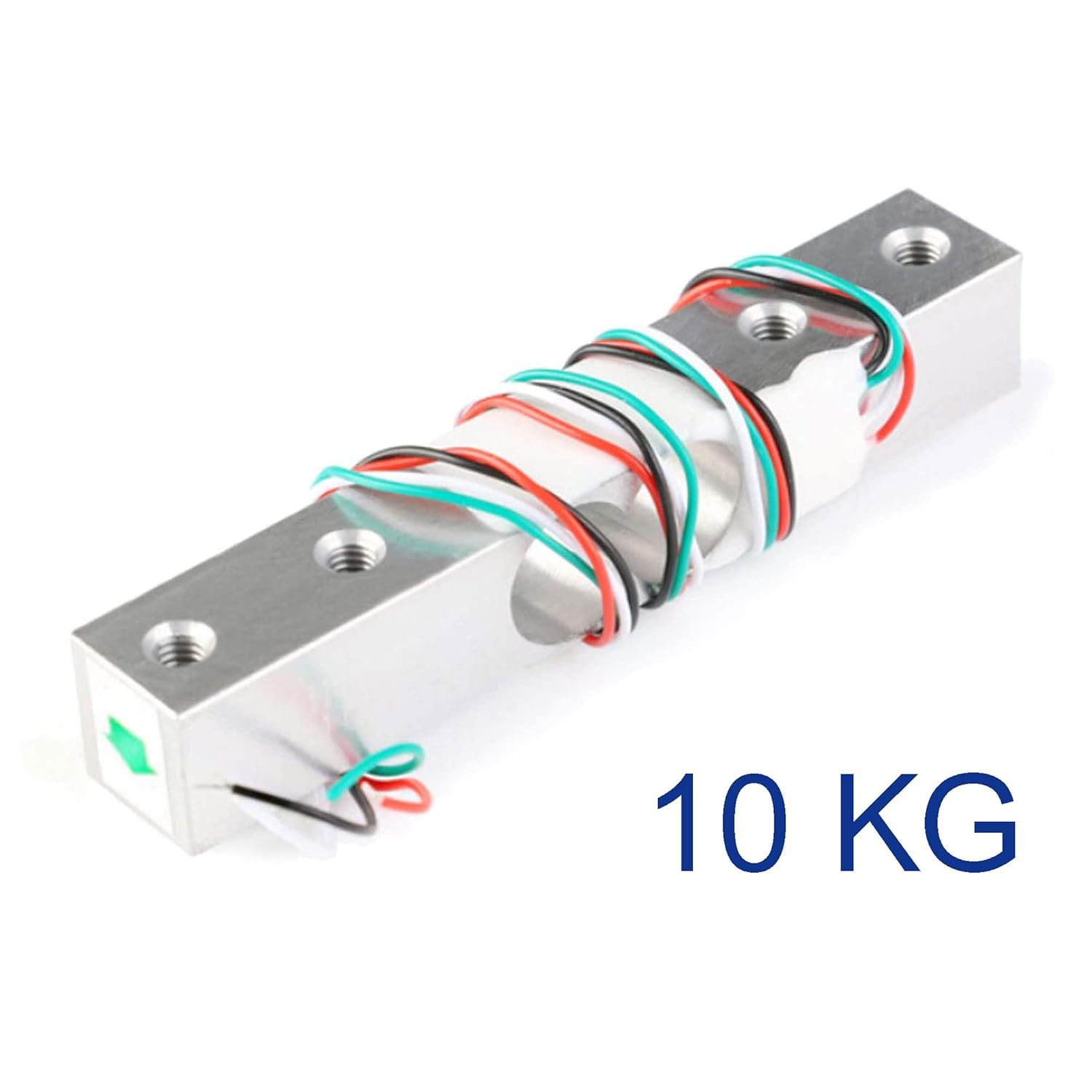

The 10KG small range weighing pressure sensor is a strain gauge-based load cell designed for precise weight measurements up to 10 kilograms. It works in conjunction with the HX711AD weighing module, a high-precision 24-bit analog-to-digital converter (ADC) specifically tailored for weight scales and industrial control applications, providing accurate and stable digital weight measurements.Key Features of the 10KG Load Cell:
Capacity: Measures weights up to 10 kilograms.High Precision: Utilizes strain gauge technology for accurate weight measurement.
Robust Construction: Typically constructed from durable materials like aluminum or steel.
Compact Size: Small form factor suitable for integration into various designs.
Four-Wire Configuration: Includes excitation and signal wires for connection to the HX711AD module.

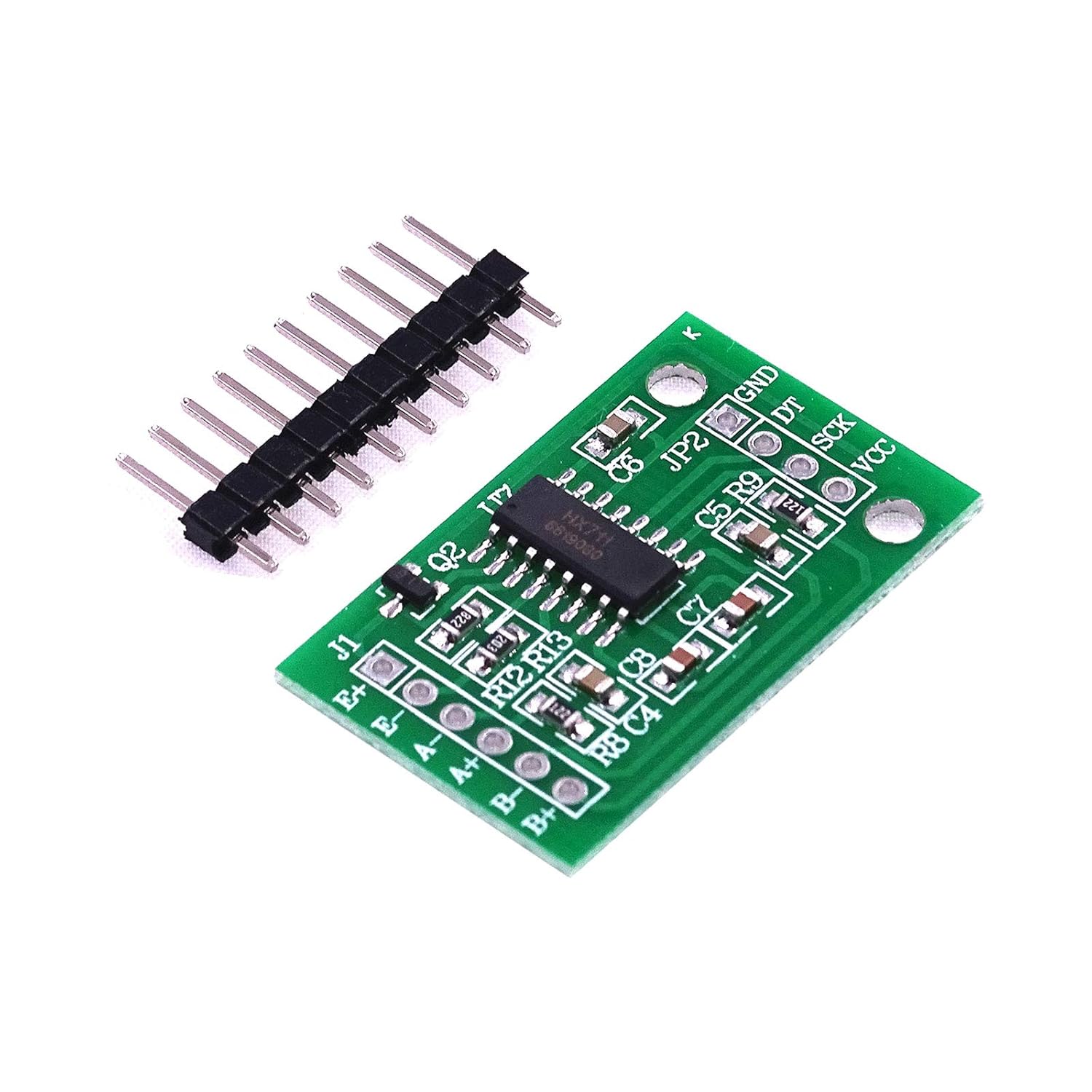

Key Features of the HX711AD Weighing Module:
High Resolution: 24-bit ADC for precise weight measurements.Low Noise: Designed to minimize noise and provide stable readings.
Two Channels: Can interface with two load cells simultaneously.
Programmable Gain: Gains of 32, 64, and 128, suitable for various applications.
Easy Integration: Simple interfacing with microcontrollers via serial clock (SCK) and data (DT) pins.
Applications:
Kitchen Scales: Accurate measurement of ingredients for cooking and baking.Industrial Scales: Weighing small components and materials in industrial settings.
Postal Scales: Measuring weights of packages and letters.
Health and Fitness: Weighing scales for tracking body weight.
DIY Projects: Various hobbyist and educational projects requiring weight measurement.
Technical Details
- Force variation output: Voltage signal
- Operating voltage range: 2.6 to 5.5V
- Operating temperature range: -20 to + 85 ℃
- Power consumption (including power supply circuit): Typical operating
- current: 1.7mA, shutdown current: 1μA
- Output data rate: 10Hz or 80Hz optional
- Chip FootPrint: SOP-16 16-pin
Application
- Platform scales
- Electronic weighing machines
- Belt scales
Physical Attributes
- Dimensions(mm) 12.7 x 12.7 x 80
Package Includes
- 1 x 10KG Small Range Weighing Pressure Sensor with HX711AD Weighing Module
