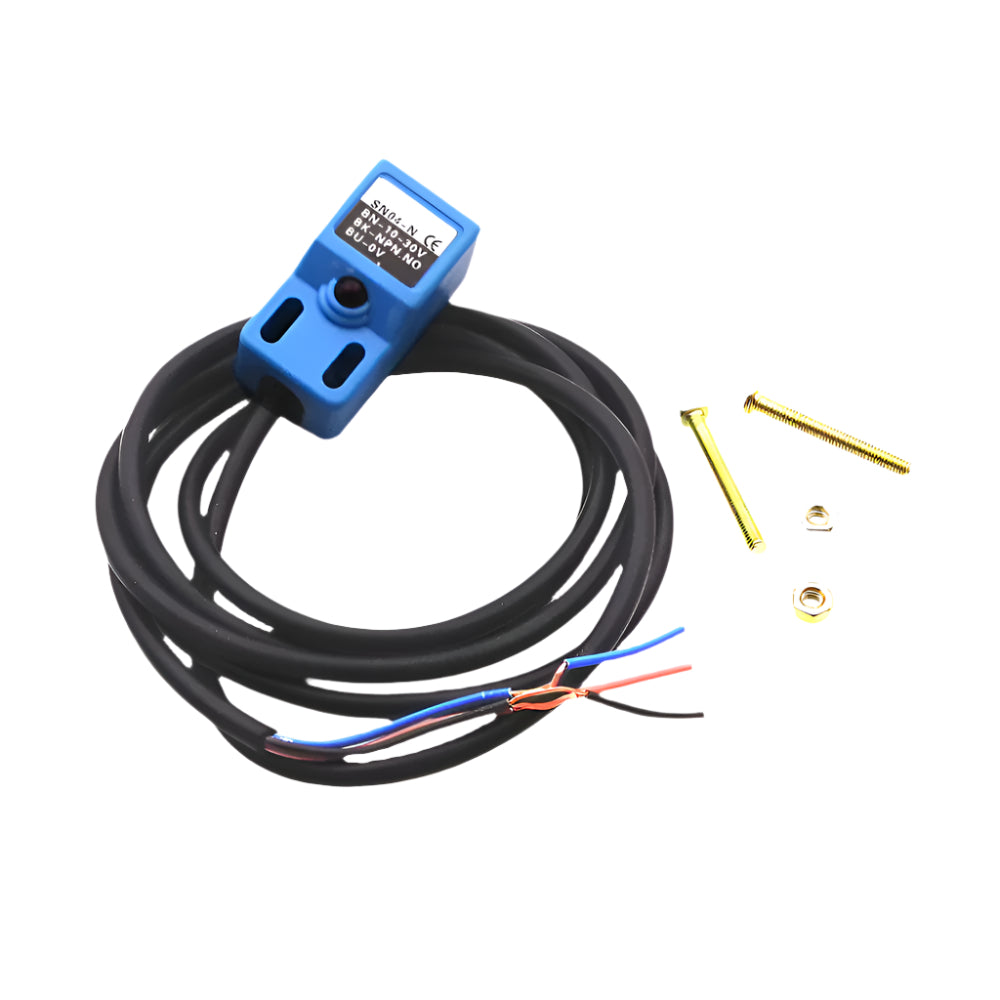

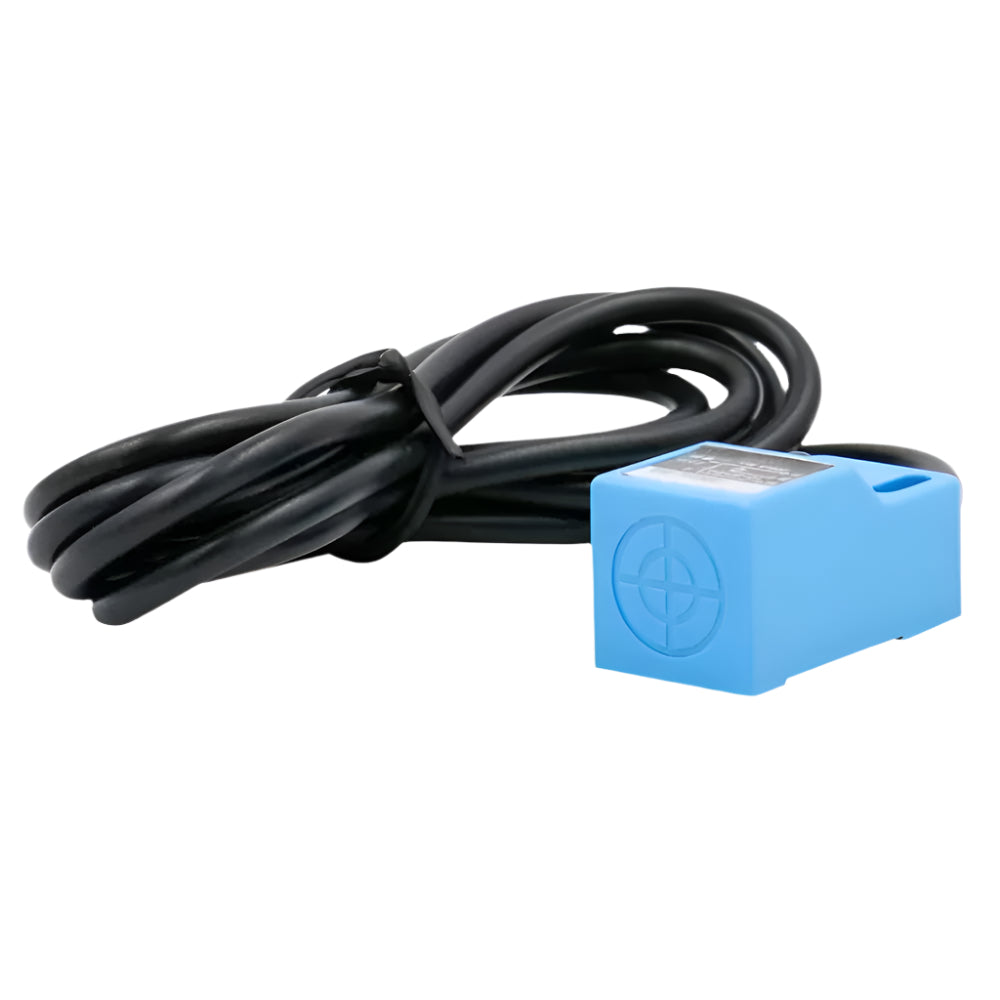

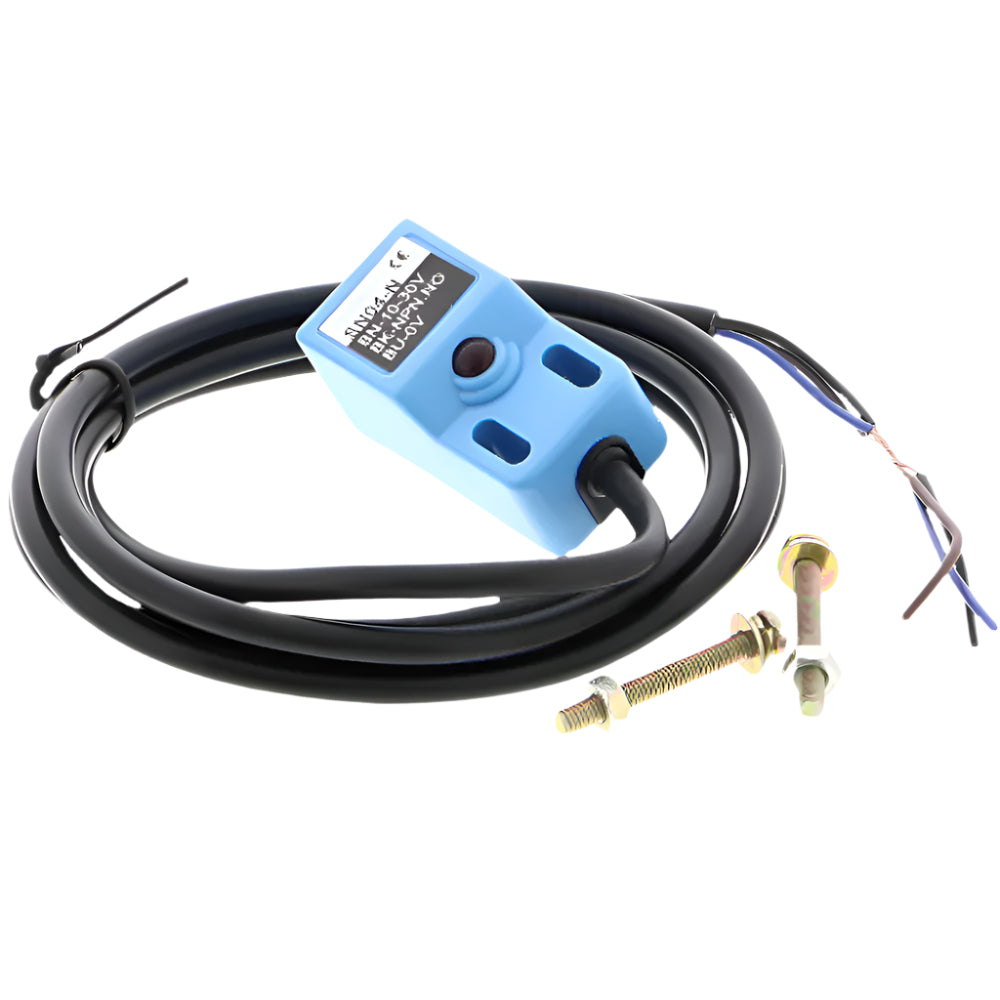

SN04-N NPN DC 6-36V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Open)
![SN04-N NPN DC 6-36V]()
![5mm detection distance NPN proximity sensor]()
![SN04-N NPN proximity sensor wiring connections]()
![SN04-N NPN DC 6-36V]()
![5mm detection distance NPN proximity sensor]()
![SN04-N NPN proximity sensor wiring connections]()
This sensor detects metallic objects without physical contact, which helps reduce mechanical wear and improves reliability in continuous operation. Its compact body and simple 3-wire connection make it easy to install in automation systems, conveyor mechanisms, CNC machines, robotic setups, and other metal object detection applications.
-27%
SN04-N NPN DC 6-36V, 5mm Distance Detector Proximity Sensor Switch Module (Normally Open)
Available:In Stock
- Product SKU: KG978
₹ 129
₹ 179
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
SN04-N NPN DC 6-36V Inductive Proximity Sensor
The SN04-N NPN DC 6-36V Inductive Proximity Sensor is a non-contact metal detection sensor designed for industrial automation, counting systems, position detection, limit sensing, and DIY electronics projects. It operates on a wide 6-36V DC input range and provides an NPN output, making it suitable for use with PLCs, relay circuits, control panels, and compatible microcontroller interface circuits.This sensor detects metallic objects without physical contact, which helps reduce mechanical wear and improves reliability in continuous operation. Its compact body and simple 3-wire connection make it easy to install in automation systems, conveyor mechanisms, CNC machines, robotic setups, and other metal object detection applications.
Features
- Non-contact inductive sensing for detecting metallic objects.
- Works with a wide DC supply voltage range of 6-36V.
- NPN output type suitable for industrial control circuits.
- Compact and durable design for automation applications.
- Simple 3-wire connection for easy installation.
- Suitable for object detection, position sensing, and limit detection.
- Reliable operation with no mechanical contact required.
- Useful for PLC, relay, and compatible controller-based projects.
Applications
- Industrial automation systems
- Metal object detection
- Position and limit sensing
- Conveyor and counting systems
- CNC machines and control panels
- Robotics and DIY electronics projects
- PLC-based automation circuits
- Machine safety and detection systems
- Note:Image is for illustration purposes only. The actual product may vary slightly in appearance.
Technical Details
- Model: SN04-N
- Sensor Type: Inductive Proximity Sensor
- Output Type: NPN
- Operating Voltage: DC 6-36V
- Detection Object: Metallic objects
- Detection Method: Non-contact inductive sensing
- Wiring Type: 3-wire
- Brown Wire: Positive Supply
- Blue Wire: Negative Supply / Ground
- Black Wire: Output Signal
- Body Type: Rectangular proximity sensor body
- Mounting Type: Screw mounting

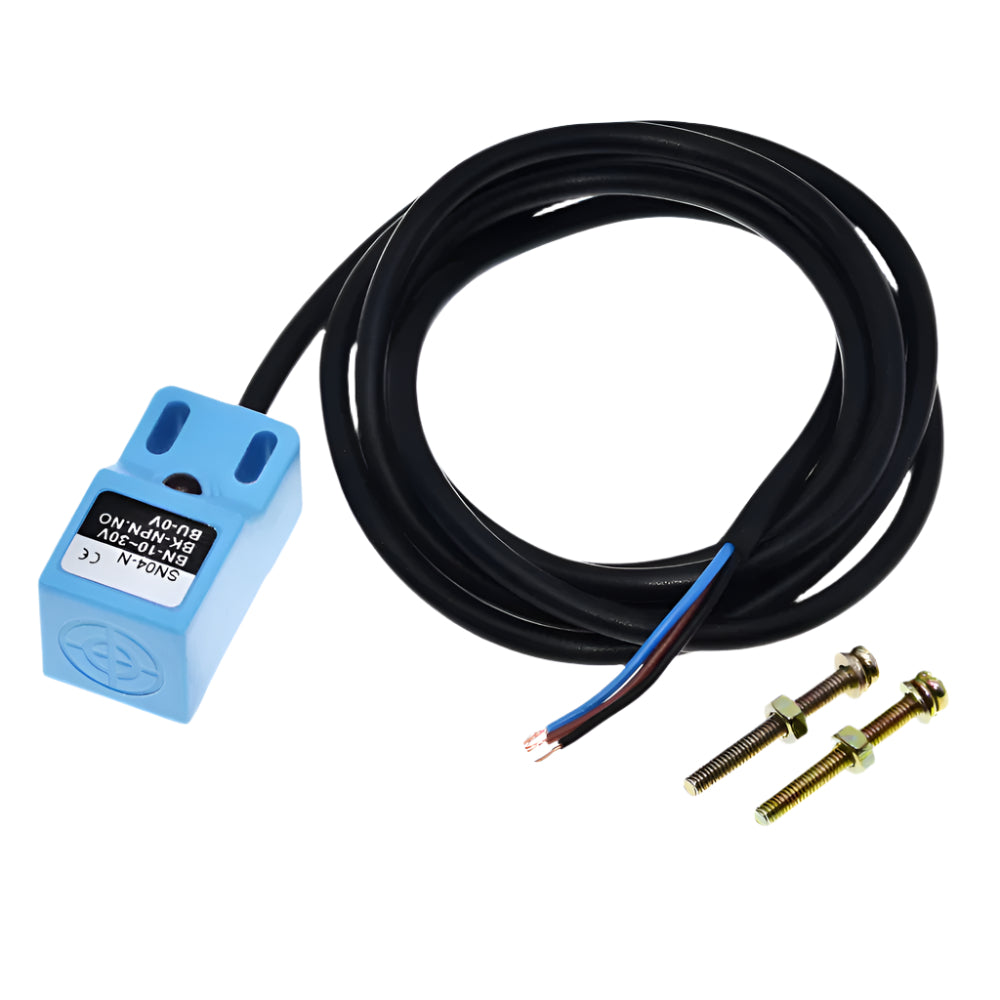

Wiring Details
- Brown Wire: Connect to +6V to +36V DC supply.
- Blue Wire: Connect to 0V / GND.
- Black Wire: NPN output signal wire.
- For NPN output, the black output wire switches towards ground when the sensor detects a metallic object.
Physical Attributes
- Body Shape: Rectangular
- Material: Plastic housing
- Weight:41g
- Dimensions: Standard SN04 series body size
Package Includes
- 1 x SN04-N NPN DC 6-36V Inductive Proximity Sensor
Note: Images are for reference only. Actual product appearance may vary depending on manufacturer lot and availability.
