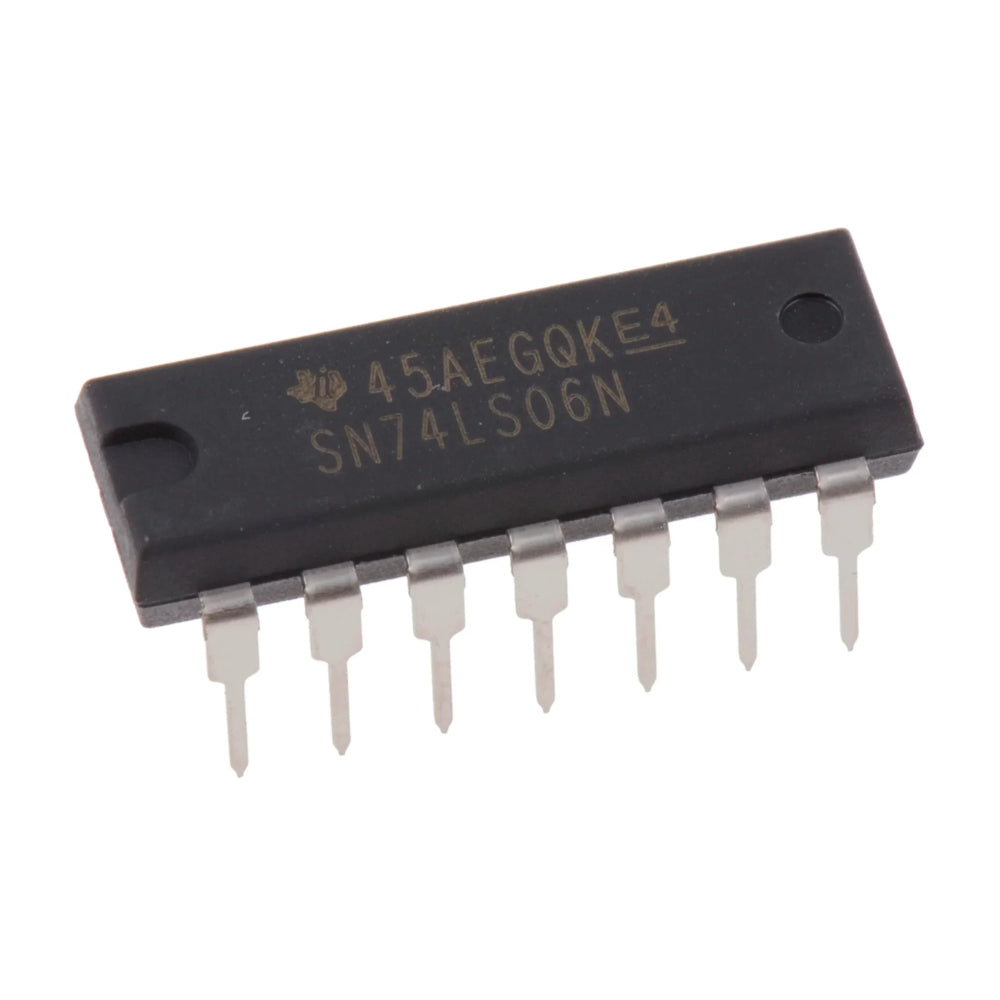

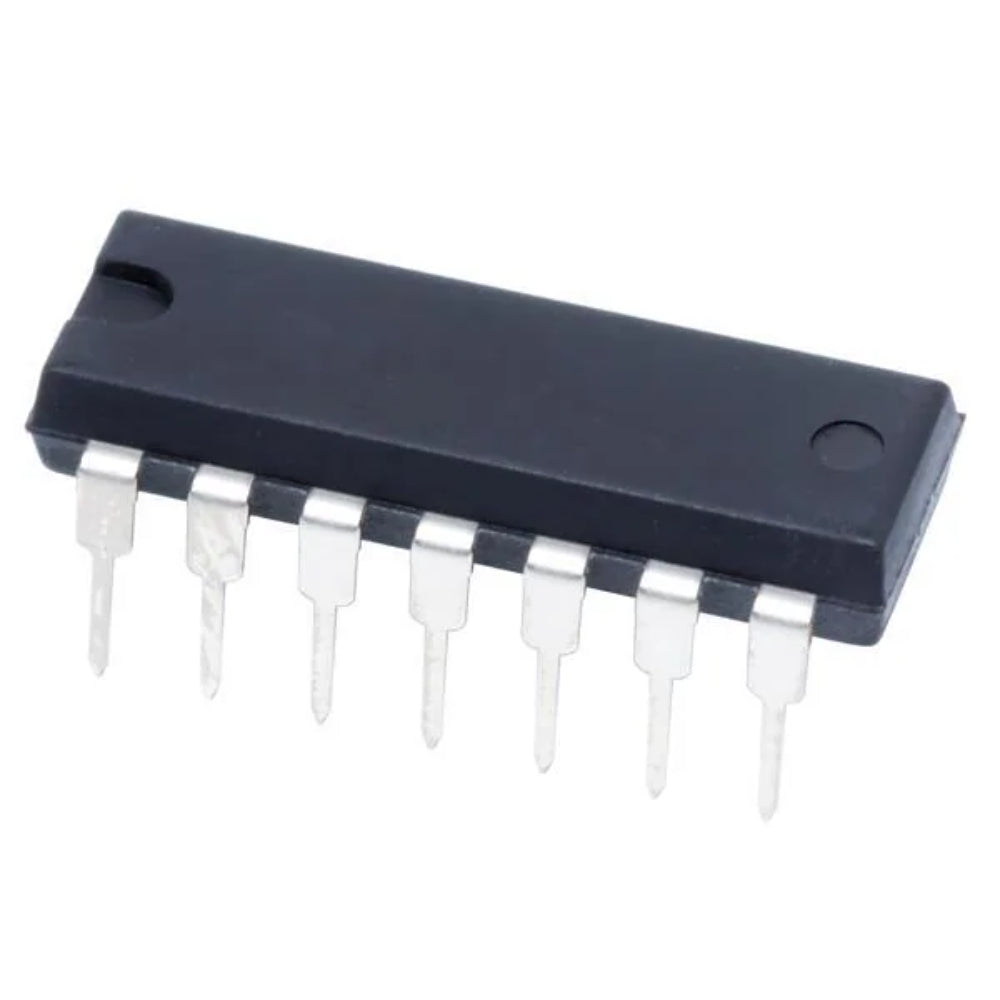

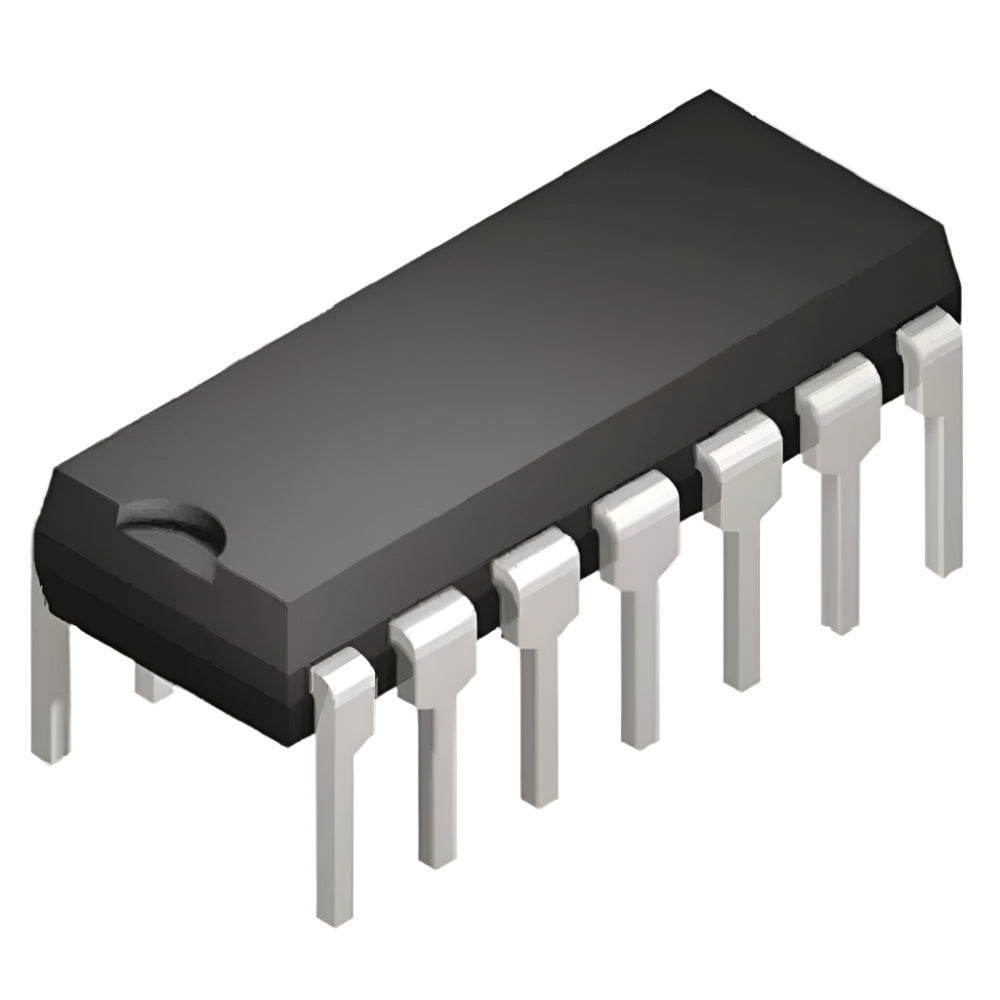

SN74LS06N Hex Inverter Buffer IC with Open-Collector High-Voltage Outputs DIP-14
![SN74LS06N Hex Inverter Buffer IC with Open-Collector High-Voltage Outputs DIP-14]()
![SN74LS06N Hex Inverter Buffer IC with Open-Collector High-Voltage Outputs DIP-14_1]()
![SN74LS06N Hex Inverter Buffer IC with Open-Collector High-Voltage Outputs DIP-14_2]()
![SN74LS06N Hex Inverter Buffer IC with Open-Collector High-Voltage Outputs DIP-14]()
![SN74LS06N Hex Inverter Buffer IC with Open-Collector High-Voltage Outputs DIP-14_1]()
![SN74LS06N Hex Inverter Buffer IC with Open-Collector High-Voltage Outputs DIP-14_2]()
Encased in a standard DIP-14 through-hole package, the SN74LS06N is ideal for level shifting, buffer isolation, and interfacing between low-voltage logic and high-voltage outputs in various control and driver applications.
-47%
SN74LS06N Hex Inverter Buffer IC with Open-Collector High-Voltage Outputs DIP-14
Available:In Stock
- Product SKU: INTEG238
₹ 47
₹ 89
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
SN74LS06N Hex Inverter Buffer IC with Open-Collector High-Voltage Outputs – DIP-14
The SN74LS06N is a hex inverter buffer IC from the 74LS logic family featuring open-collector, high-voltage outputs. Each of the six inverters in this IC can interface with TTL logic levels while driving external loads up to 30V, such as relays, motors, or high-voltage LEDs, using an external pull-up resistor.Encased in a standard DIP-14 through-hole package, the SN74LS06N is ideal for level shifting, buffer isolation, and interfacing between low-voltage logic and high-voltage outputs in various control and driver applications.
Technical Details
- IC Name: SN74LS06N
- Function: Hex Inverter Buffer with Open-Collector Outputs
- Logic Family: 74LS (Low Power Schottky TTL)
- Number of Inverters: 6
- Output Type: Open-collector (supports output up to 30V)
- Supply Voltage: 4.75V to 5.25V
- Input HIGH Voltage: ≥ 2.0V
- Input LOW Voltage: ≤ 0.8V
- Output LOW Voltage: ≤ 0.4V @ 16mA
- Max Output Sink Current: 40mA
- Output Voltage Tolerance: Up to 30V (open-collector with external pull-up)
- Propagation Delay: ~10ns (typical)
- Operating Temperature: 0°C to +70°C
- Package: DIP-14 (Dual Inline Package)
Features
- Six independent inverter buffers
- Open-collector outputs support up to 30V pull-up
- TTL logic compatible inputs
- Drives high-voltage loads such as relays and lamps
- Low power consumption (LS-TTL)
- Standard DIP-14 for easy prototyping
- Ideal for level shifting and interfacing logic to power components
Applications
- Driving high-voltage LEDs or relays
- Interfacing TTL logic with 12V/24V systems
- Level shifting between logic and power devices
- Signal inversion and isolation
- High-side switching with external pull-up
- Motor and solenoid control systems
Physical Attributes
- Package Type: DIP-14 (Through-hole)
- Pin Count: 14
- Dimensions: ~19.3mm x 6.4mm x 4.5mm (L x W x H)
- Mounting Type: Through-hole
- Weight: ~1g
Package Includes
- 1 x SN74LS06N Hex Inverter Buffer IC – DIP-14 Package
