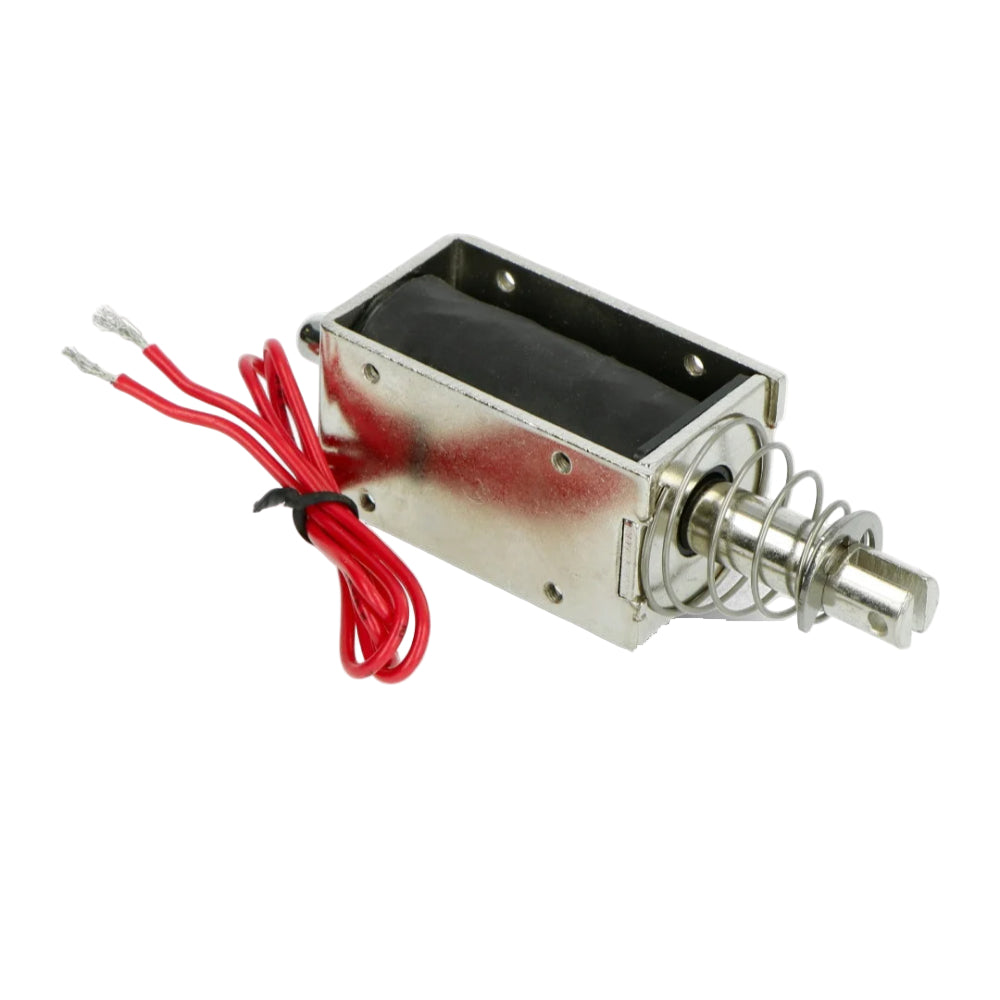

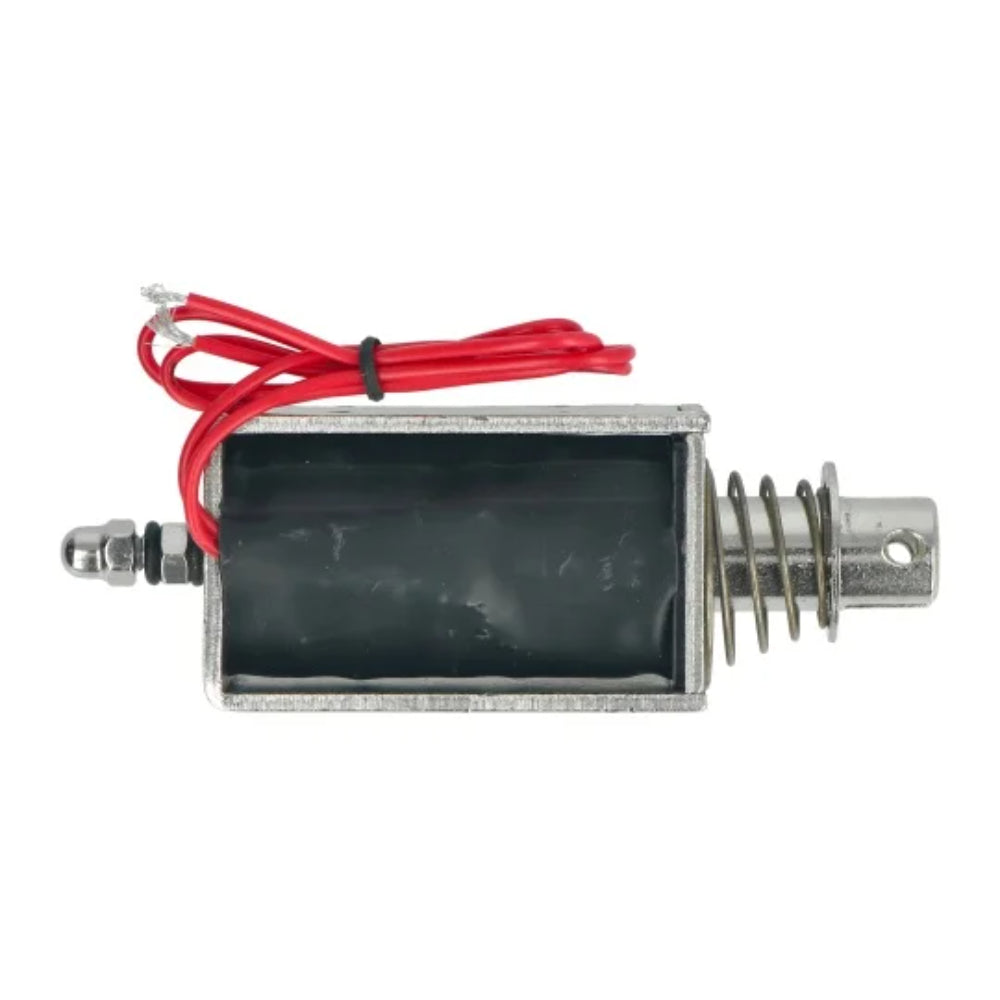

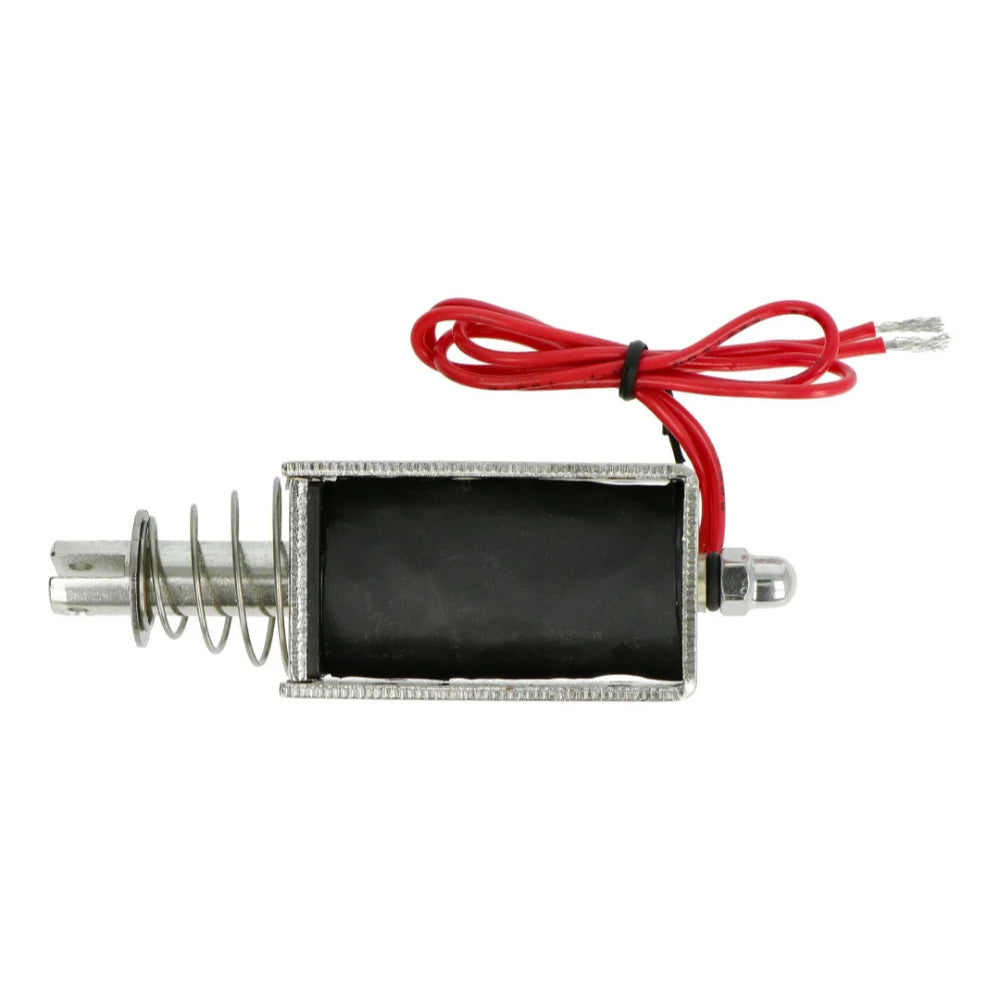

DC12V Force 1N - 20N 15.6W Solenoid Pull Push long stroke 10mm Electromagnet Industrial Grade
- Product SKU: LGSO053
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details


Specification
Description
The DC 12V Solenoid Electromagnet is engineered for industrial-grade applications requiring reliable and precise actuation. It features a push-pull operation mode with adjustable holding force and a compact stroke length. Designed to operate efficiently at 12V DC, this solenoid offers versatility for various tasks, including automation, clamping, and locking systems.
Applications:
Automation Systems: Suitable for use in machinery, conveyor systems, and other automated equipment requiring precise actuation.Clamping Mechanisms: Ideal for applications needing reliable push-pull force for holding or releasing components.
Locking Systems: Effective in locking mechanisms where adjustable force is needed to secure or release locks.
Industrial Equipment: Useful in various industrial tools and devices where compact and powerful actuation is required.
Features:
Adjustable Holding Force: Provides a range of 1 to 20 N, allowing for adaptable force settings based on application needs.Push-Pull Operation: Functions in a push-pull mode (normally closed), offering flexibility in both pushing and pulling actions.
Compact Stroke Length: Features a 10 mm stroke length, suitable for applications requiring limited but precise movement.
Energy Efficient: Operates with a power consumption of 15.6 watts at 12V DC, providing a balance between performance and energy use.
Mounting Flexibility: Equipped with 4 x M3 mounting holes for versatile and secure installation.
Advantages:
Versatile Force Range: Adjustable holding force from 1 to 20 N makes it suitable for a wide range of tasks and applications.Efficient Power Use: Consumes 15.6W of power, offering effective operation with energy efficiency.
Compact Design: The 10 mm stroke length and compact size are ideal for applications with limited space.
Reliable Performance: Designed for industrial-grade use, ensuring durability and consistent performance.
Easy Installation: The 4 x M3 mounting holes allow for straightforward and secure attachment to various surfaces.
Disadvantages:
Current Requirement: Requires 1.3A current at 12V DC, which may necessitate specific power supplies or adjustments.Limited Stroke Length: The 10 mm stroke may not be adequate for applications needing longer movement.
Heat Generation: Prolonged use can lead to heat buildup, which may affect the solenoid's performance and lifespan.
Mounting Hole Size: The 4 x M3 mounting holes may require specific fittings or adaptors for certain installations.
Specifications
- Rated Operating Voltage: 12V DC
- Current Draw: 1.3A
- Power Consumption: 15.6W
- Operation Mode: Push-Pull (Normally Closed)
- Holding Force Range: 1 - 20 N
- Stroke Length: 10 mm
- Mounting Holes: 4 x M3
Dimensions:
Product Video
Package Includes
- 1 x DC12V Force 1N - 20N 15.6W Solenoid Pull Push long stroke 10mm Electromagnet Industrial Grade
