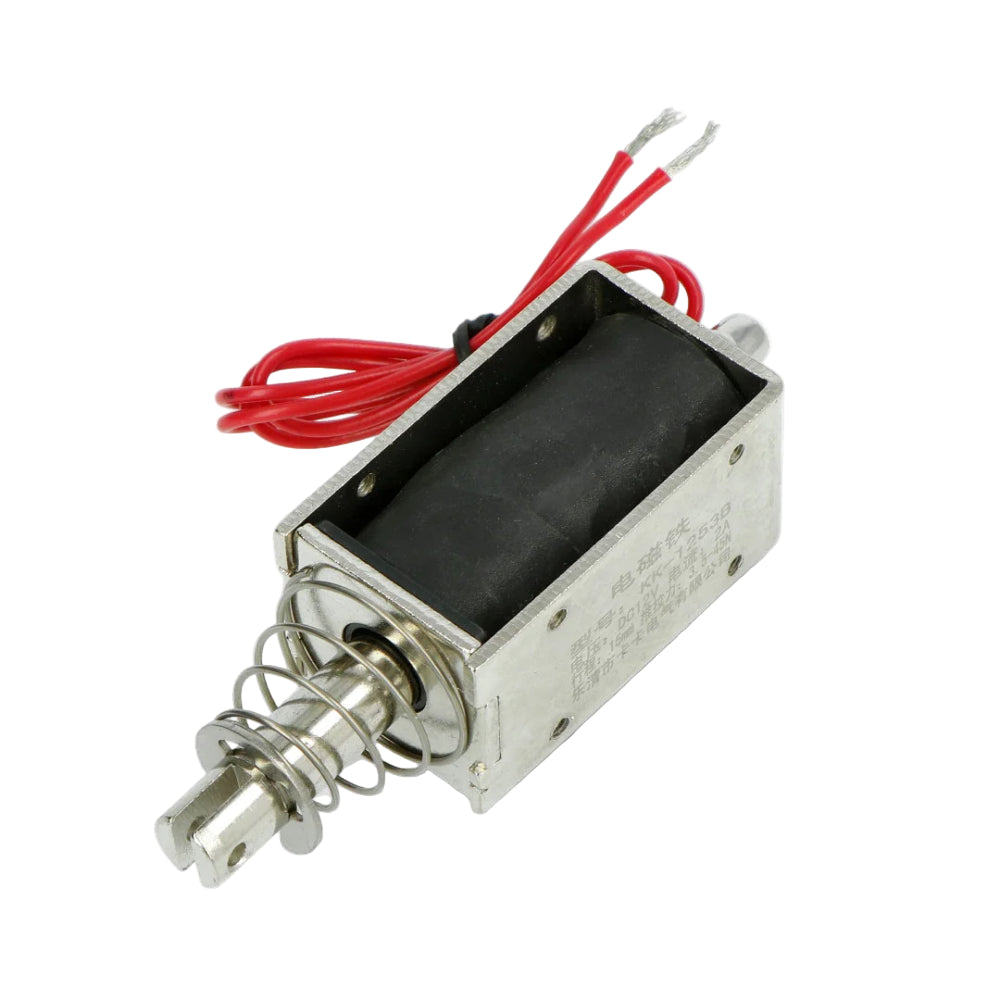

Front view of DC 12V electric solenoid 3.5–45N long stroke

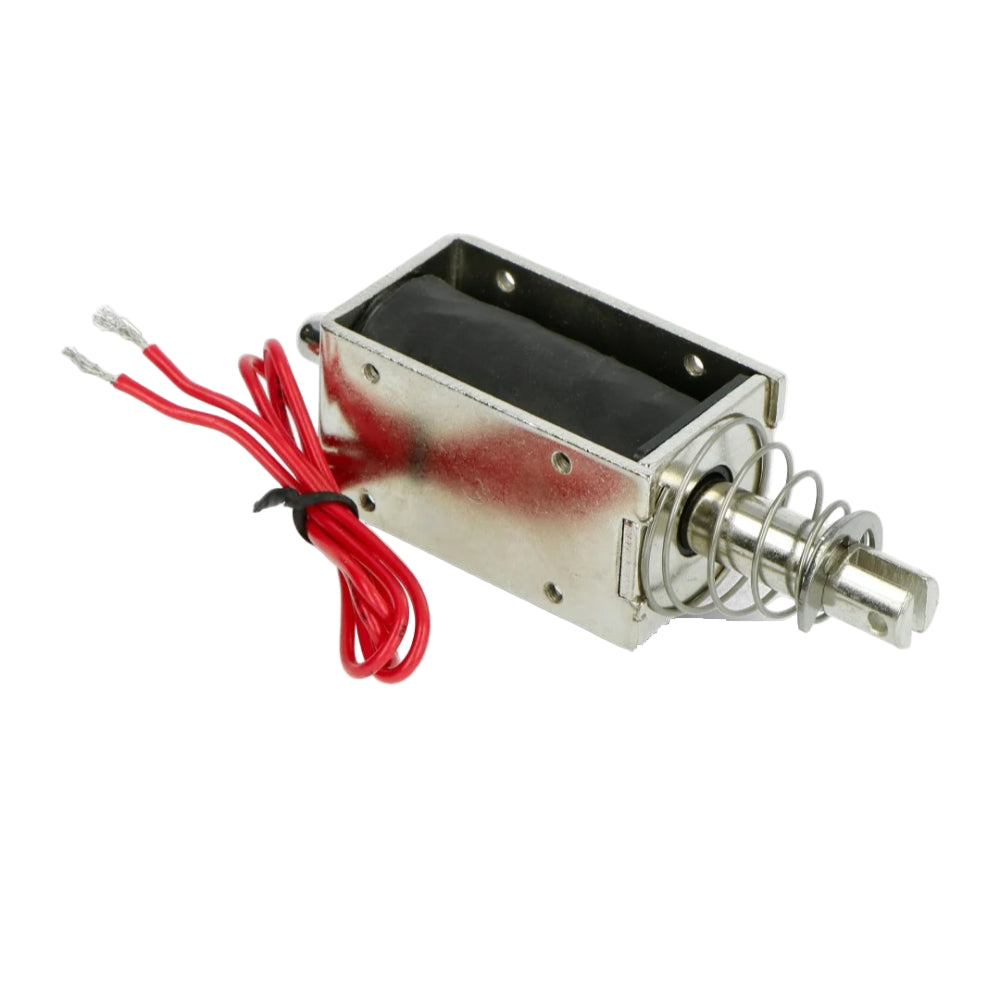

Side view of 15mm stroke electric solenoid for automation

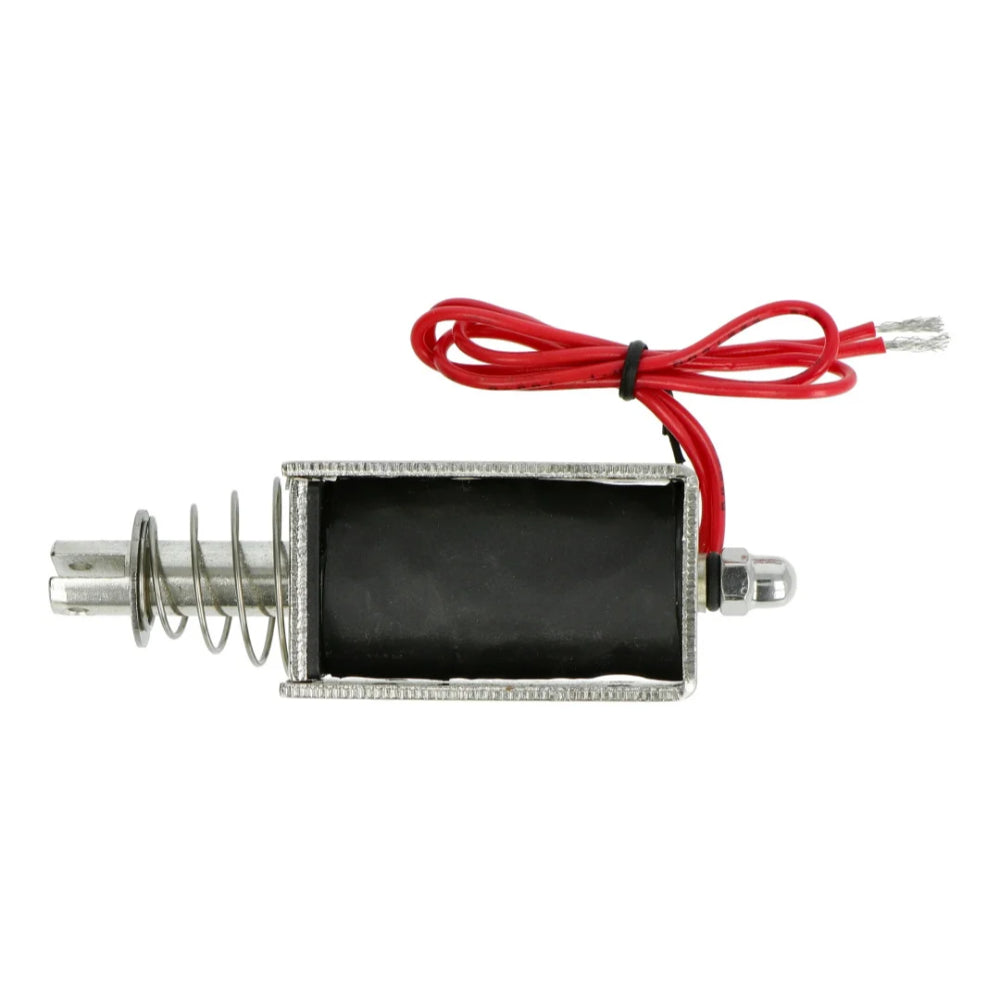

Dimension drawing of DC 12V 3.5–45N push pull solenoid

DC 12V Force 3.5N - 45N 36W Solenoid Pull Push long stroke 15mm Electromagnet Industrial Grade

Available:Out of Stock

Product SKU: LGSO054

Wishlist

₹ 1,049 ~~₹ 1,399~~

Pre-order

Specification

Description

DC 12V Force 3.5N - 45N 36W Solenoid Pull Push Long Stroke 15mm Electromagnet

The DC 12V Solenoid Electromagnet is a high-performance electric solenoid designed for demanding industrial applications where reliable and powerful actuation is needed. Its push-pull mechanism allows for versatile use, providing a wide range of holding forces and an extended stroke length, and this electromagnet is also suitable for integration with remote control push pull solenoid systems.

Operating efficiently at 12V DC, this solenoid delivers consistent linear motion, making it ideal for automation, clamping, and locking tasks in industrial settings. In many designs the electromagnet is used as a compact actuator, and the same electric solenoid can support precise on-off positioning when the application requires fast response.

Applications

Automation Systems: Perfect for machinery, conveyor systems, and other automation equipment where this electric solenoid provides reliable actuation.
Clamping Mechanisms: Ideal for applications needing strong push-pull force and easy integration with a remote control push pull solenoid arrangement.
Locking Systems: Suitable for locking mechanisms where adjustable and powerful force from a remote control push pull solenoid helps secure or release locks.
Industrial Equipment: Useful for various tools and devices needing robust and extended stroke actuation in demanding environments.

Features

Wide Holding Force Range: Adjustable force between 3.5 and 45 N, allowing for flexible application; this electromagnet is tuned for industrial performance.
Extended Stroke Length: Provides a 15 mm stroke length for greater movement capability.
Push-Pull Operation: Operates in a push-pull mode (normally closed) for versatile actuation in both directions.
High Power Efficiency: Consumes 36W of power and draws 3A current, balancing performance and energy efficiency.
Mounting Flexibility: Comes with 4 x M4 mounting holes for easy and secure installation.

Advantages

Adjustable Force: Versatile force range suitable for a variety of applications and needs with a compact electric solenoid package.
Extended Stroke Capability: The 15 mm stroke length accommodates applications requiring longer movement.
Efficient Power Usage: Effective balance of performance and energy consumption with 36W power usage.
Industrial Durability: Built for robust use, ensuring reliability and longevity in demanding environments where remote control actuation may be required.
Versatile Mounting: Simple installation with 4 x M4 mounting holes.

Disadvantages

Current Requirement: Needs 3A current at 12V DC, which may require specific power supplies or system modifications for this electric solenoid.
Heat Generation: Prolonged use may cause heat buildup, potentially impacting performance and lifespan.
Mounting Hole Size: The 4 x M4 mounting holes might need specific fittings or adaptors for certain installations.
Stroke Length Limitations: The 15 mm stroke may not be sufficient for applications needing a longer range of movement.
