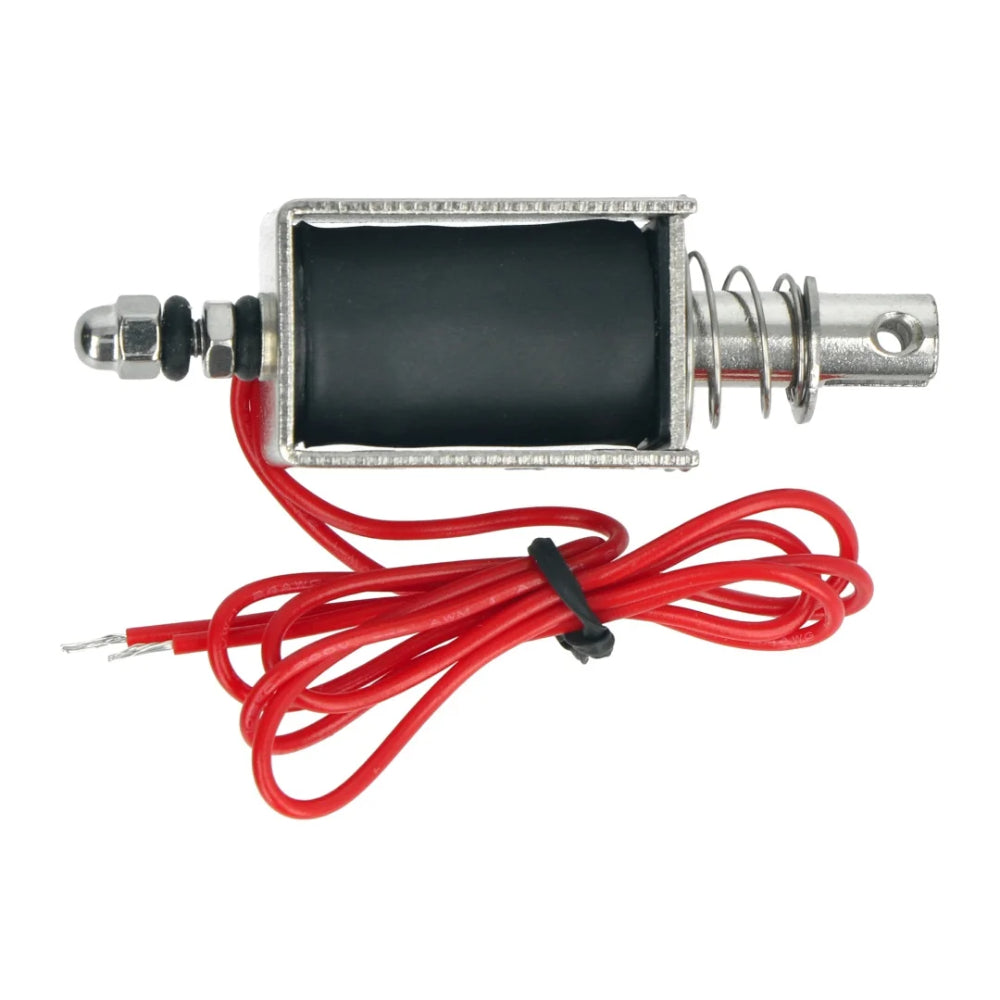

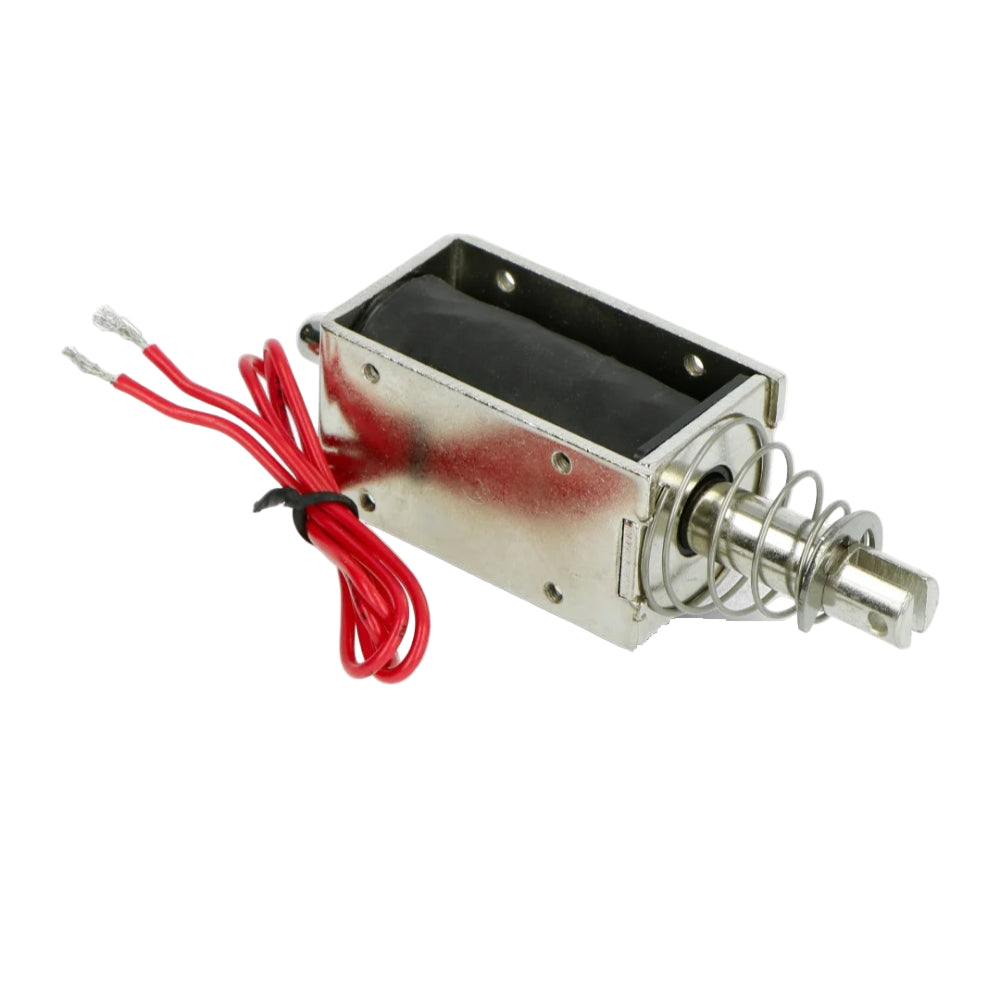

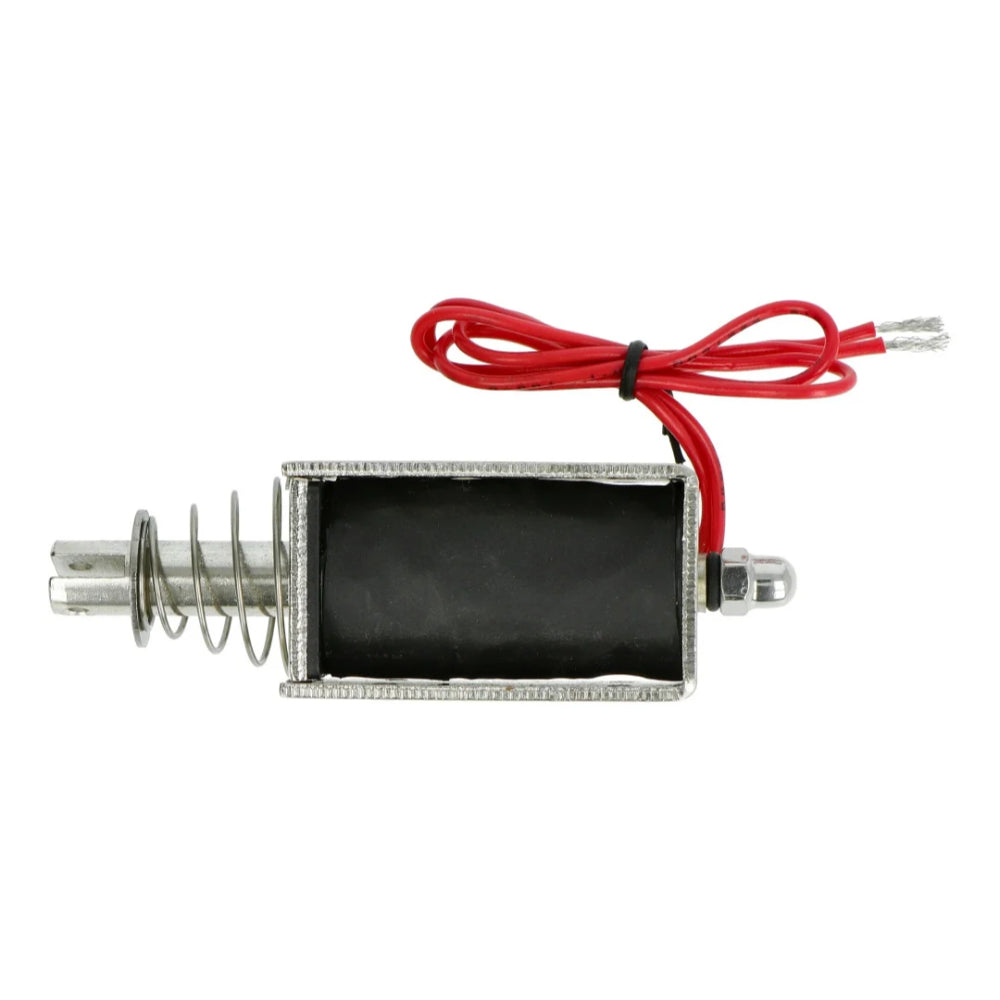

DC 12V Force 3.5N - 65N 36W Solenoid Pull Push long stroke 20mm Electromagnet Industrial Grade

DC 12V Force 3.5N - 65N 36W Solenoid Pull Push Long Stroke 20mm Electromagnet

Applications

• Automation Systems: Ideal for machinery, conveyor belts, and automated setups requiring dependable actuation from a solenoid.
• Clamping Mechanisms: Suitable when a strong push-pull force is needed to secure or release components precisely.
• Locking Systems: Effective for locking/unlocking mechanisms requiring adjustable and powerful force.
• Industrial Equipment: Useful for various tools needing robust and extended movement in demanding environments.

Features

• Wide Holding Force Range: 3.5 to 65 N — adaptable to different force requirements, because the electromagnet is made up of a sturdy metal core and coil.
• Extended Stroke Length: 20 mm stroke for broader movement and better flexibility.
• Push-Pull Operation: Normally closed mode allows bidirectional actuation for versatile use.
• Efficient Power Usage: 36W power consumption with 3A current draw — strong performance with stable energy use.
• Mounting Flexibility: 4 × M3 mounting holes for simple and secure installation.
• Robust Design: Industrial-grade build for long-term durability even under continuous operation.

Advantages

• Adjustable Force: Broad force range supports a variety of operational needs with a single solenoid unit.
• Extended Stroke Capability: 20 mm stroke length suits applications requiring larger movement.
• Efficient Performance: Balanced power draw and force output — excellent for industrial settings.
• Industrial Strength: Built for rugged use, ensuring longevity and reliability under heavy-duty cycles.
• Versatile Mounting: Easy installation using standard mounting holes, making integration straightforward.

Disadvantages

• Power Requirement: Needs 3A at 12V DC — application may require reliable power supply to support this solenoid.
• Heat Generation: Continuous use can lead to heating, which should be managed in long-duration applications.
• Mounting Hole Size: Requires compatible M3 fittings, so ensure mounting hardware matches size.
• Stroke Limitations: Although 20 mm stroke is substantial, very long-range motion applications may need different actuators.

Specifications

• Rated Operating Voltage: 12V DC
• Current Draw: 3A
• Power Consumption: 36W
• Operation Mode: Push-Pull (Normally Closed)
• Holding Force Range: 3.5 – 65 N
• Stroke Length: 20 mm
• Mounting Holes: 4 × M3

Dimensions

Package Includes

• 1 x DC 12V Force 3.5N – 65N 36W Solenoid Pull Push Long Stroke 20mm Electromagnet Industrial Grade
