TCS34725 RGB Color Recognition Sensor Module IIC Supports STM32

TCS34725 RGB Color Recognition Sensor Module IIC Supports STM32

This module is a color sensor based on AMSfs TCS32725 color light digitizer as the core. The TCS32725 is one of the latest color sensors available. Communicates with I2C Interface to a microcontroller - Arduino, ESP, Raspberry Pi, or generic MCU and directly outputs 4 Channel color data of the object - R, G, B, Clear Light. Just Point the sensor to the object and start reading the object's color. All the raw data sensing, filtering & processing is handled by by onboard sensor.
The sensor provides a digital output of red, green, blue (RGB), and clear light sensing values.
The integrated infrared blocking filter can minimize the infrared spectral components of the incident light and can accurately perform color measurement.
It has high sensitivity, wide dynamic range, and infrared blocking filter Minimize the effects of IR and UV spectral components to produce accurate color measurements.
And with ambient light intensity detection and shieldable interrupt Communication via an I2C interface.

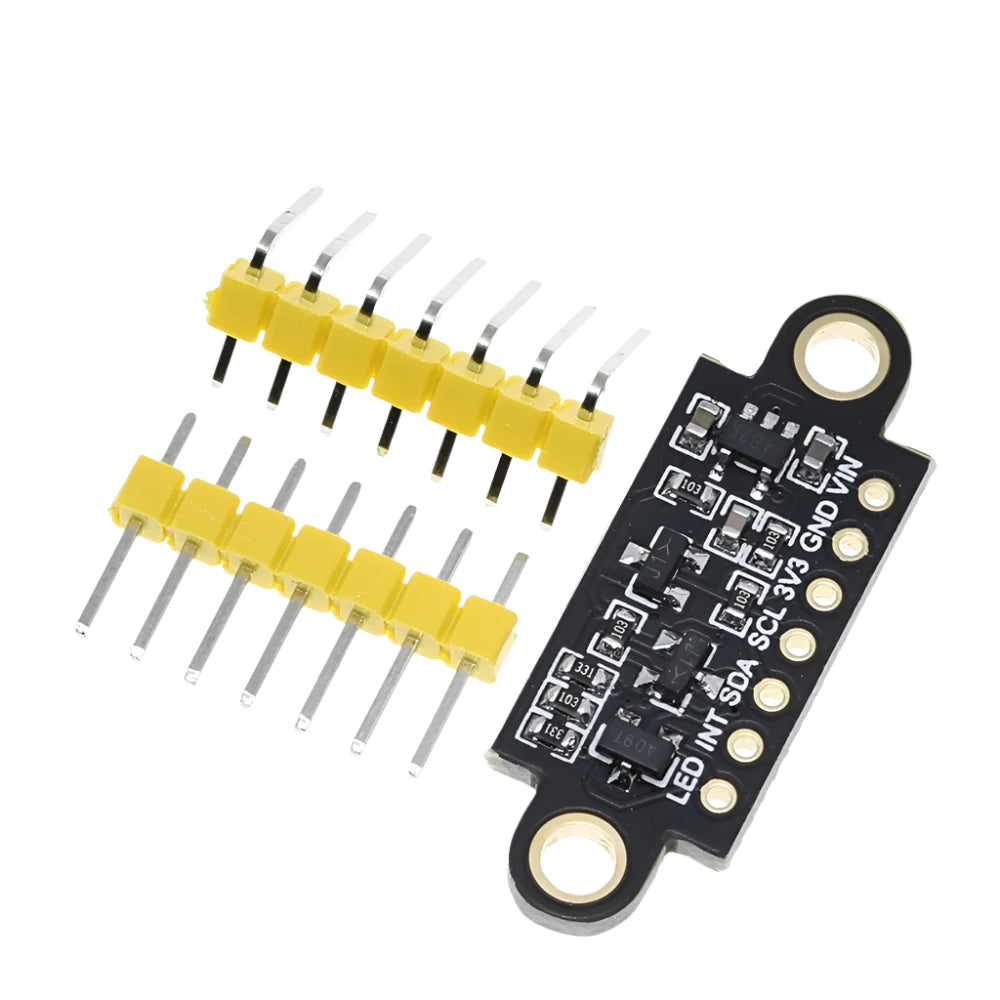

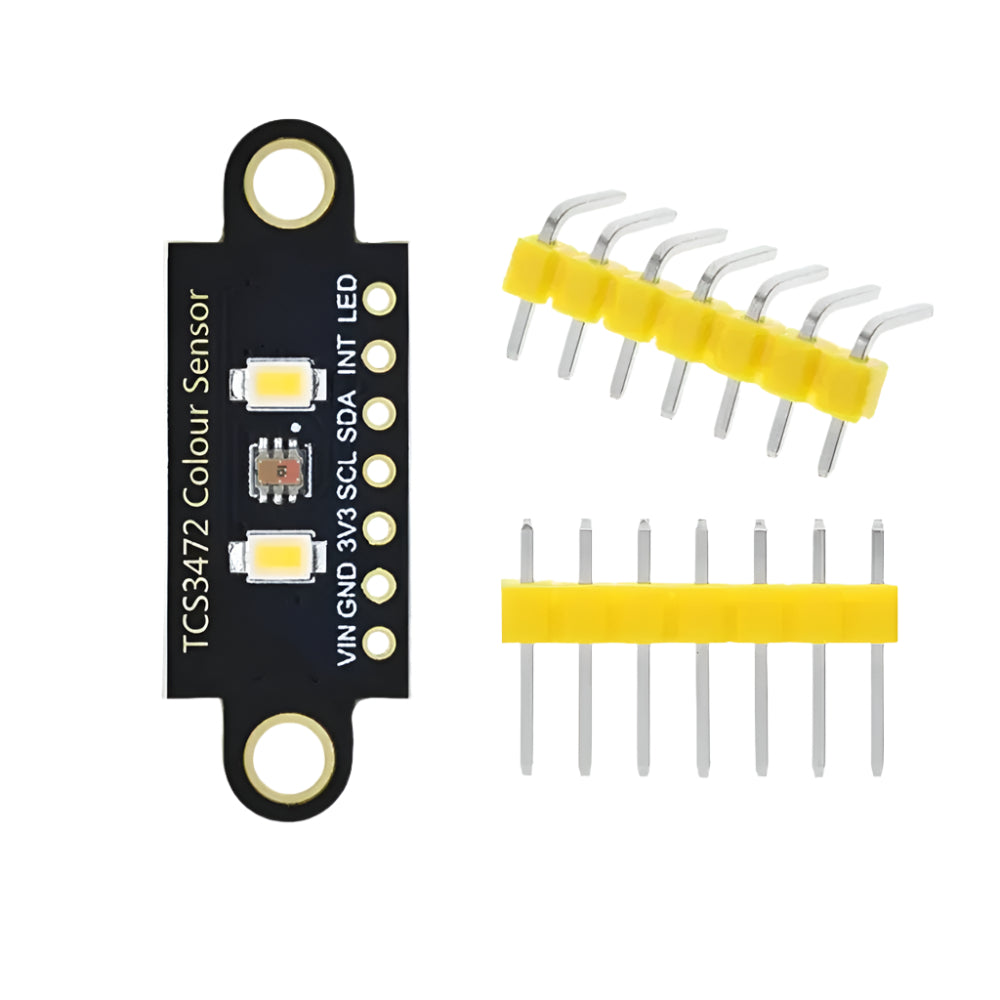

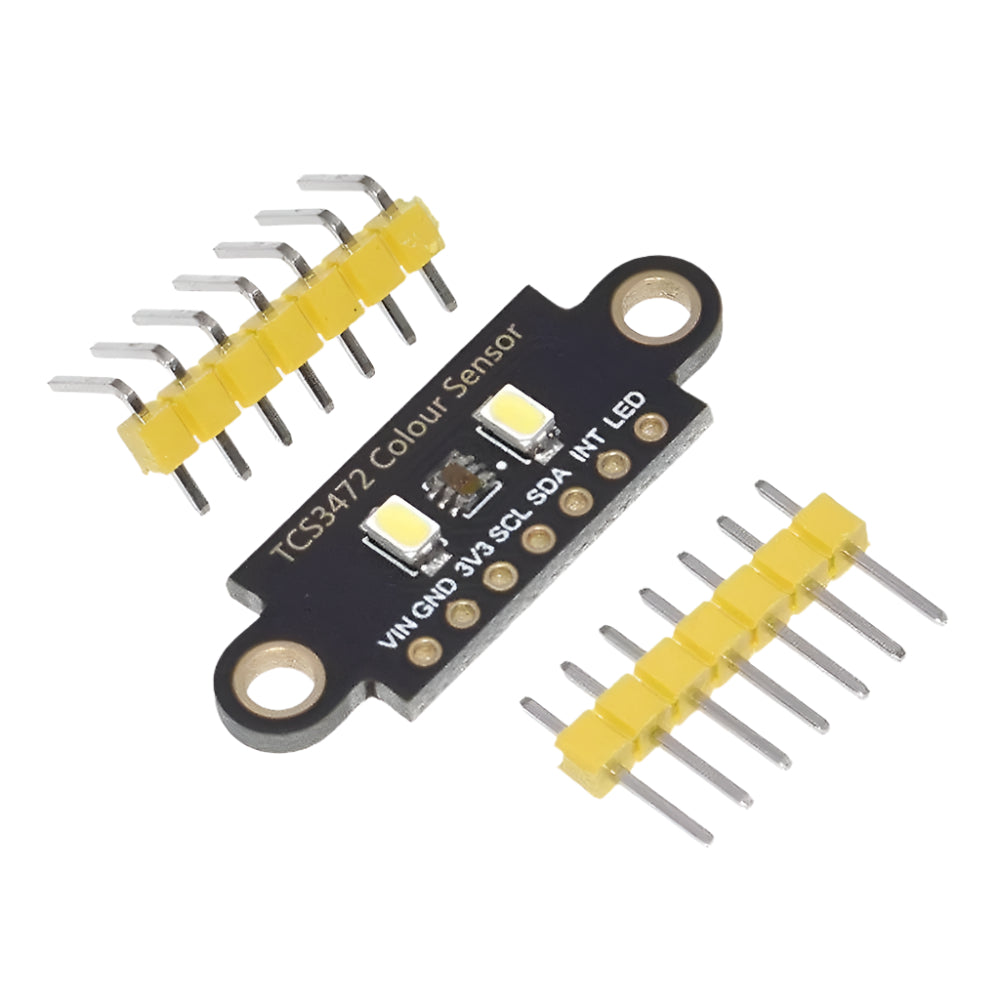

This design is based on the double-hole version to provide users with more options for installation size and environment. Among them, the double-hole version is arranged with 2 LED lights to fill the object This design provides Ardunio and STM32 Demo Code.

Technical Details
