TEA5767 FM Stereo Radio Module – Programmable & Low-power (70~108MHz)
![TEA5767 FM Stereo Radio Module – Programmable & Low-power (70~108MHz)]()
![TEA5767 FM Stereo Radio Module – Programmable & Low-power (70~108MHz)_1]()
![TEA5767 FM Stereo Radio Module – Programmable & Low-power (70~108MHz)_4]()
![TEA5767 FM Stereo Radio Module – Programmable & Low-power (70~108MHz)]()
![TEA5767 FM Stereo Radio Module – Programmable & Low-power (70~108MHz)_1]()
![TEA5767 FM Stereo Radio Module – Programmable & Low-power (70~108MHz)_4]()
Crystal reference frequency oscillator.
Easy to interface and as it communicates using I2C communication protocol
Portable Audio Devices: Integrate into MP3 players or portable speakers for FM functionality.
Educational Tools: Teach programming, electronics, and communication principles.
Automotive Systems: Use in car entertainment systems for FM reception.
Home Automation: Add radio features to home audio systems or smart devices.
Defferent board sent ![User picture]()
Great product
-21%
TEA5767 FM Stereo Radio Module – Programmable & Low-power (70~108MHz)
Available:In Stock
- Product SKU: KG214
₹ 195
₹ 249
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
If you want to use a stereo FM Radio in your car or any other vehicle but do not want to spend more on buying the products available in the market and you are a DIY enthusiast then this FM Radio Module is for you. IT is made using TEA5767 FM Radio IC. Which is a single-chip electronically tuned FM Radio for low voltage applications like embedded systems controllers like Arduino and other 3.3V development boards. This TEA5767 FM Stereo Radio Module has an Intermediate frequency selectivity feature and an FM Demodulator feature embedded in itself. It is very easy to interface and as it communicates using I2C communication protocol so it is very easy to interface with other development boards and with adding some minimal additional systems you can actually use it as a stand-alone system. As it supports 88MHz to 108MHz so it can be easily turned into Indian, Japanese, European, and US FM stations.
Features:
High sensitivity with integrated low-noise RF input amplifier.Crystal reference frequency oscillator.
Easy to interface and as it communicates using I2C communication protocol
Applications:
DIY FM Radio Projects: Build custom FM radios for personal or educational purposes.Portable Audio Devices: Integrate into MP3 players or portable speakers for FM functionality.
Educational Tools: Teach programming, electronics, and communication principles.
Automotive Systems: Use in car entertainment systems for FM reception.
Home Automation: Add radio features to home audio systems or smart devices.
Technical Details
- High Sensitivity due to integrated low noise input amplifier
- RF AGC (Automatic Gain Control) circuit
- Standby Mode, Soft Mute
- Adjustment free stereo decoder
- Phase-Locked Loop synthesizer turning system
- Internal FM IF selectivity, LC Tuner Oscillator with low cost fixed chip inductors
- The fully integrated FM demodulator
- 3V Operating Voltage
- Interface I2C
- Frequency Range: 76MHz ~ 108MHz
Physical Attributes
- Length × Width × Height(mm) : 11.2 × 11.2 × 2
- Weight (gm) : 2
Package Includes
- 1 x TEA5767 FM Stereo Radio Module – Programmable & Low-power (70~108MHz)
Customer Reviews
Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P

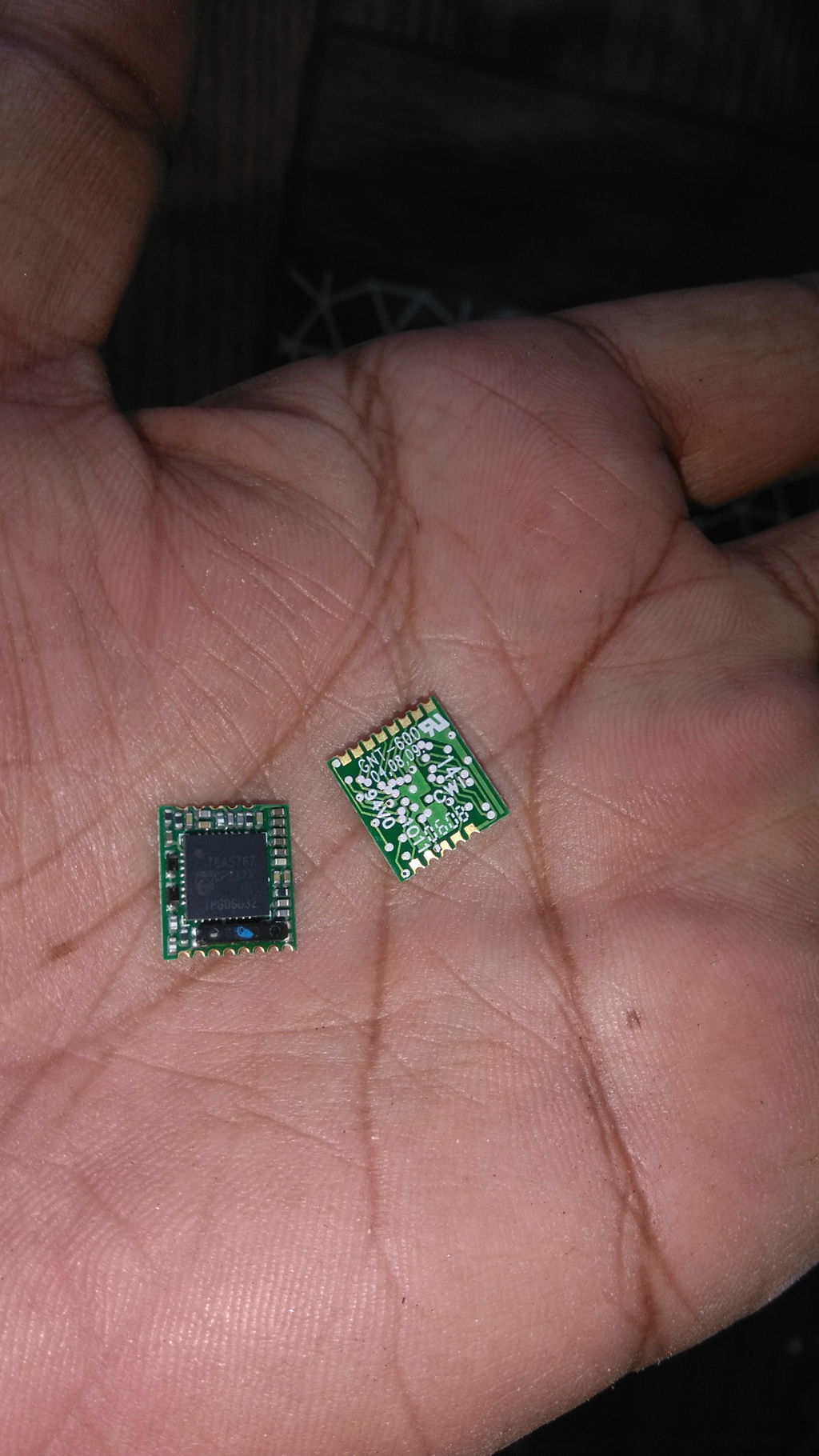

Tea5767 board received but this board is completely different one side 5 pins and one side 8 Unknown pin datasheet not available. I ordered tea5767 rrd102 but seller sent dnt-600 board.
n
Great product
