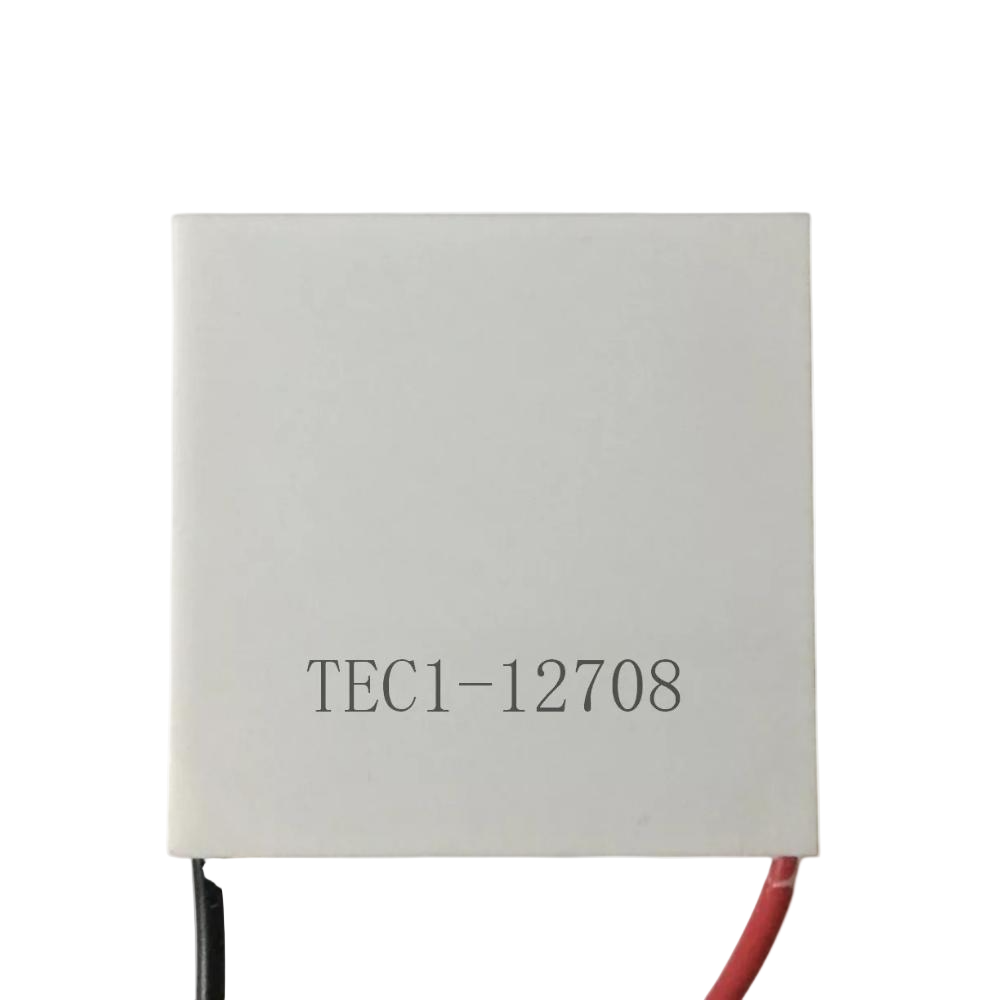

TEC1- 12708 Thermoelectric Peltier
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-28%
TEC1- 12708 Thermoelectric Peltier
TEC1- 12708 Thermoelectric Peltier
TEC1- 12708 Thermoelectric Peltier

TEC1- 12708 Thermoelectric Peltier

Available:Out of Stock
  • Product SKU: KG807
Wishlist
₹ 299 ₹ 419
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

Utilized in high-end consumer, commercial, and military-grade applications for extreme performance and maximum energy efficiency, TEC1 Peltier Modules provide unmatched temperature differentials (DTmax) in cooling or heating applications.

TEC1-12708 Peltier Modules measure 40x40x3.5mm and offer 68˚C Delta T max (DTmax) at a maximum operating temperature of 138˚C.

Capable of performing to exacting specifications, cooling or heating with precision in extreme environments, TEC1 Peltier Modules from electron.com have rapidly become an industry standard for numerous exacting thermoelectrics.

Tested TEC1-12708 Applications
When coupled with an appropriate heat sink and power source, TEC1 Peltier Modules are suitable for the following applications…
  • Liquid Component Cooling – Ideal for performance PC applications, TEC1 Peltier Modules are tested to cool CPUs and GPUs to extreme temperatures when used in conjunction with 12v PSU rails and optimized CPU heat sinks.
  • Food and Beverage Refrigeration – Precision temperature management allows for use in temperature sensitive food and beverage refrigeration applications requiring exacting cooling (or heating).
  • Commercial Portable Cooling – Approved for use in commercial transport, TEC1 Peltier Modules can be applied to manage DTmax temperatures of up to 68˚C.
  • Temperature Stabilization – Stabilize volatile temperatures with ease and superior energy efficiency when paired with a precision Peltier control module.
  • Precision Temperature Control – For research laboratories, universities, or any precision temperature control situation with a range of up to 68˚C, TEC1 Peltiers provide unparalleled control.
  • Medical and Photonic Systems – Trusted in thousands of medical and photonic systems applications, TEC1 Peltier Modules offer premier precision temperature control - even in extreme temperature differentials - few coolers can match.


  • Bi2Te3 thermoelectric construction helps TEC1 series Peltier Modules transfer energy with extreme efficiency, high density element packing allows for the use of shorter elements, creating a compact profile other Peltier Modules cannot achieve, and exacting standards of manufacture guarantee strict adherence to research-grade temperature standards.

    For maximum heat pumping capacity, accuracy, and energy efficiency in any application - for home electronics, medical, or military - trust TEC 1 Peltier Modules, one of the only Thermoelectric Cooling Solutions made to exacting precision standards.

    Operating Tips

    • Do not exceed Imax or Vmax when operating a module.
    • Please carry out moisture protection options (sealing) in final application use.
    • Life expectancy: 200,000 hours
    • Failure rate based on longtime testing: 0.2%.
    Important Note!! Heat side requires heat sink all the time. “ Do not run this device with a power supply more than a few seconds without a heatsink mounted to the device! ”

    Technical Details

    • Model : TEC1- 12708
    • Product Type : Thermoelectric Cooler
    • Operates from 0~15.4V DC and 0~15A
    • Operates Temperature: -40 to 90
    • Cooling power: 142W (cooling power will be reduced if the temperature of cooling surface is too high)
    • Life Cycle : 200,000 hours

    Physical Attributes

    • L x W (mm): 40 x 40
    • Power Cord length : 25cm

    Features

    • Small module.
    • Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
    • Quality tested cooling cells.
    • Solid-state, vibration-free, noise-free.
    • Simple to install and operate.
    • Should use with a heat sink.

    Product Video

    Documentation

    Package Includes

    • 1 x TEC1- 12708 Thermoelectric Peltier
