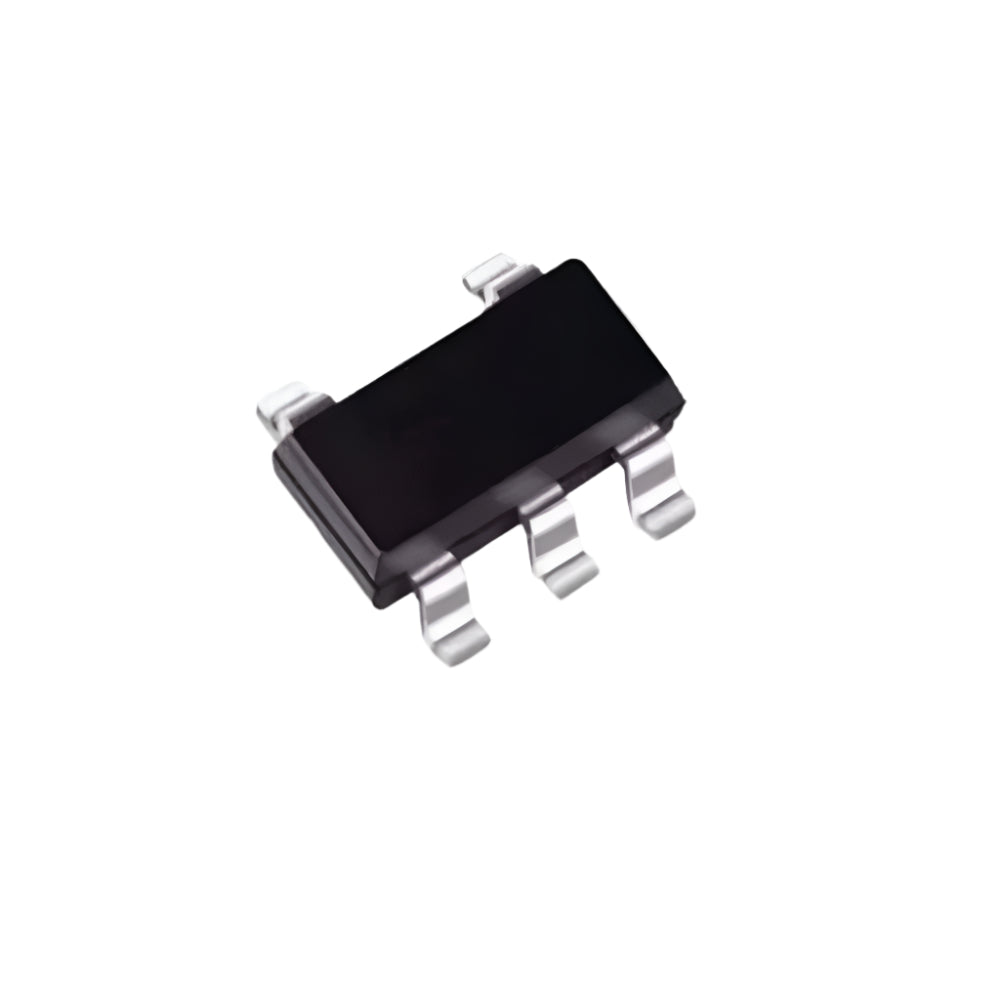

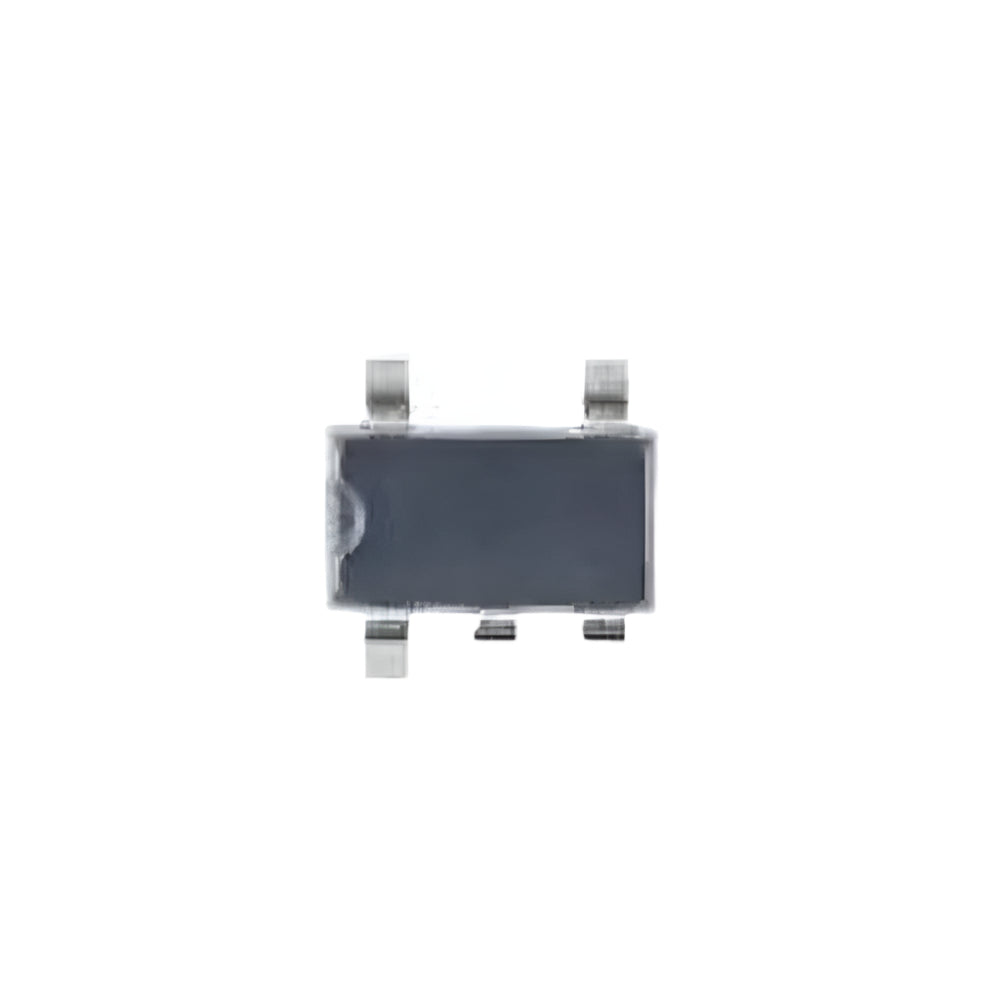

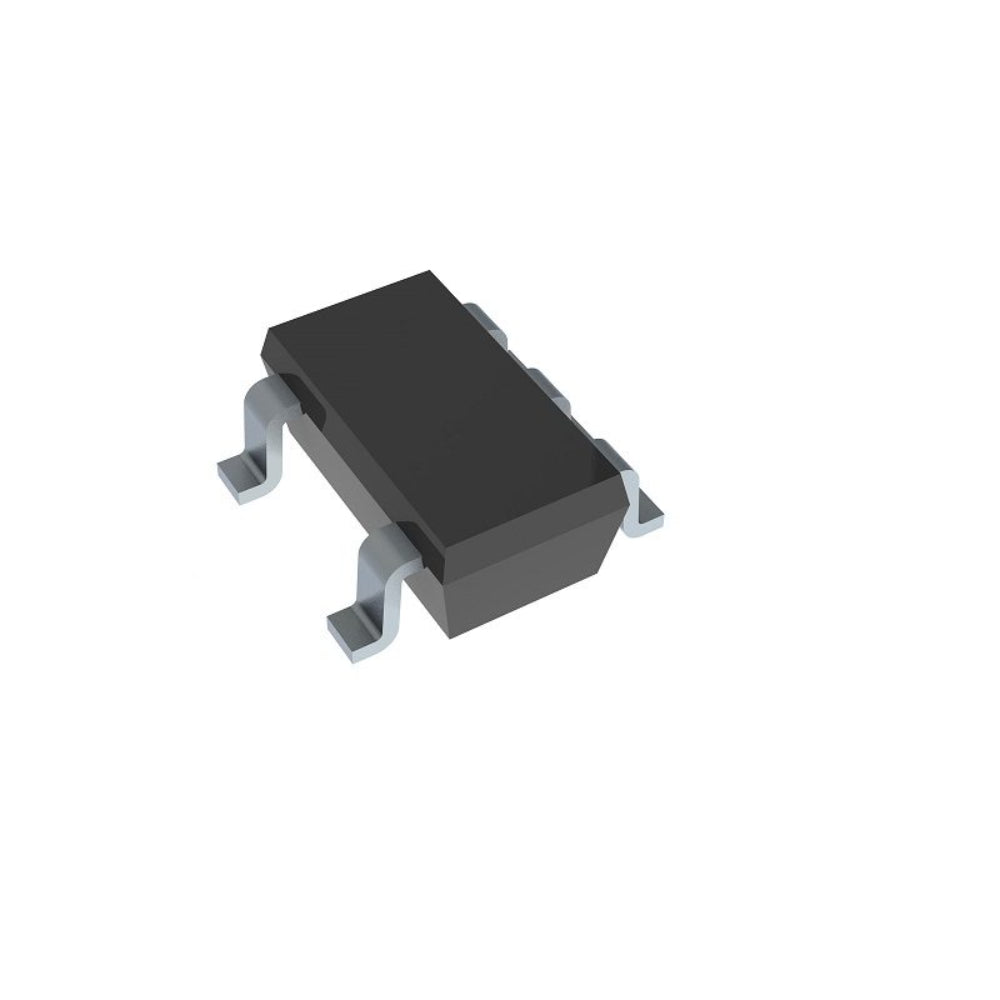

TP4054 Li-ion Battery Charger IC – SOT23-5 Package, Single Cell, Low Power

Available:In Stock

Product SKU: INTEG343

Wishlist

₹ 19 ~~₹ 29~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Single-cell Li-ion charger
4.2V charge voltage
Programmable up to 800mA
Low power, SOT23-5 package
Auto recharge & termination

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

36 H - 170 I

Specification

Description

TP4054 Li-ion Battery Charger IC – SOT23-5 Package, Single Cell, Low Power:

The TP4054 is a complete, single-cell Li-ion battery charger IC designed for space-constrained and low-power applications. Housed in a compact SOT23-5 package, it operates with minimal external components and provides a constant-current/constant-voltage (CC/CV) charging profile optimized for lithium-ion battery safety and performance.

Technical Details

Input Voltage Range: 4.0V to 8.0V
Charge Voltage: 4.2V (±1%)
Charge Current: Programmable up to 800mA
Charging Method: Constant-Current / Constant-Voltage (CC/CV)
Package: SOT23-5
Quiescent Current: <100μA
Standby Current: <2μA
Thermal Regulation: Reduces charge current to limit die temperature
Automatic Recharge: When battery voltage drops below 4.05V
Charge Termination: Automatically terminates when charge current drops to 1/10 of programmed value

Features

Complete single-cell Li-ion battery charger
No external MOSFET or blocking diode required
Low standby current for power-efficient systems
High accuracy voltage regulation (±1%)
Thermal feedback to optimize charge cycle and protect the IC
Automatic recharge and charge termination
LED status output for charge indication
Compact SOT23-5 package ideal for space-constrained designs

Applications

Wearable Devices – Ideal for smartwatches, fitness trackers, and health monitors due to low power consumption and compact size

Portable Electronics – Suitable for MP3 players, digital cameras, and handheld gadgets requiring efficient Li-ion charging

IoT and Wireless Sensor Nodes – Powers small battery-operated modules with reliable charging and minimal footprint.
