Specification

Description

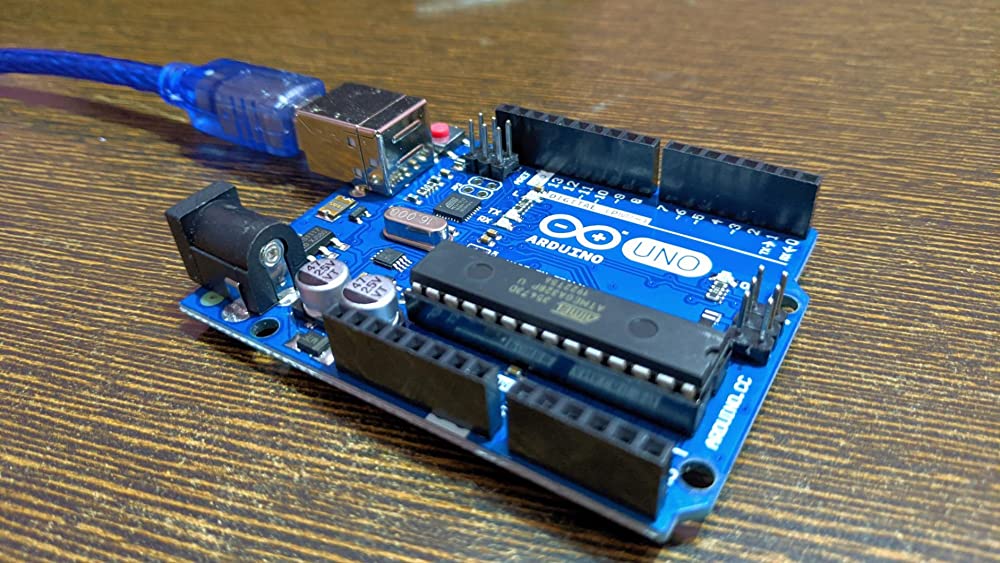

A basic Arduino kit with all the components included eliminates the time our customers to find and buy Arduino and its basic accessories. This is Uno R3 compatible with Arduino + Cable for Uno R3. This UNO R3 Development Micro Controller contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

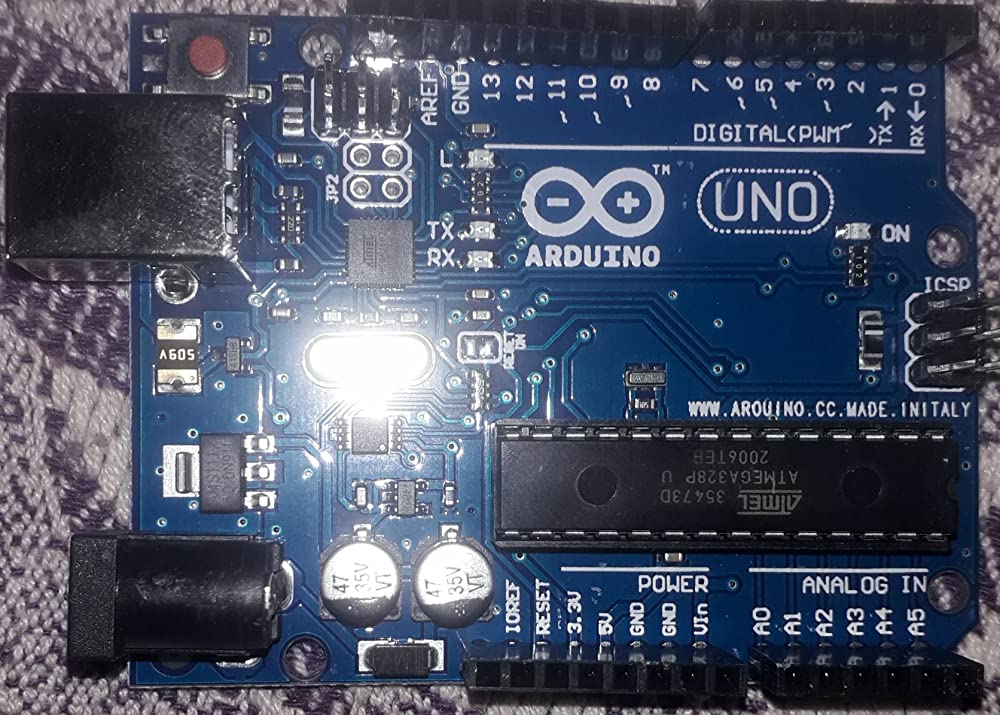

The Uno R3 Arduino without Cable is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs); 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button.

The pack includes good quality USB-A to USB-B type Arduino connecting cable and also a strong Transparent Acrylic Case for keeping your Arduino safe. It is a Plug-N-Play provision. Let’s start coding now!!!!

Pinout Diagram

Pin Configuration

  • ATmega328 Microcontroller : It is a single chip Microcontroller of the ATmel family. The processor core inside it is of 8-bit. It is a low-cost, low powered, and a simple microcontroller. The Arduino UNO and Nano models are based on the ATmega328 Microcontroller.
  • Voltage Regulator : The voltage regulator converts the input voltage to 5V. The primary function of voltage regulator is to regulate the voltage level in the Arduino board. For any changes in the input voltage of the regulator, the output voltage is constant and steady.
  • GND - Ground pins. The ground pins are used to ground the circuit.
  • TXD and RXD : TXD and RXD pins are used for serial communication. The TXD is used for transmitting the data, and RXD is used for receiving the data. It also represents the successful flow of data.
  • USB Interface : The USB Interface is used to plug-in the USB cable. It allows the board to connect to the computer. It is essential for the programming of the Arduino UNO board.
  • RESET : It is used to add a Reset button to the connection.
  • SCK : It stands for Serial Clock. These are the clock pulses, which are used to synchronize the transmission of data.
  • MISO : It stands for Master Input/ Slave Output. The save line in the MISO pin is used to send the data to the master.
  • VCC : It is the modulated DC supply voltage, which is used to regulate the IC's used in the connection. It is also called as the primary voltage for IC's present on the Arduino board. The Vcc voltage value can be negative or positive with respect to the GND pin.
  • Crystal Oscillator : The Crystal oscillator has a frequency of 16MHz, which makes the Arduino UNO a powerful board.
  • ICSP : It stands for In-Circuit Serial Programming. The users can program the Arduino board's firmware using the ICSP pins.
    The program or firmware with the advanced functionalities is received by microcontroller with the help of the ICSP header.
  • The ICSP header consists of 6 pins.

    The structure of the ICSP header is shown below:

    It is the top view of the ICSP header.
  • SDA : It stands for Serial Data. It is a line used by the slave and master to send and receive data. It is called as a data line, while SCL is called as a clock line.
  • SCL : It stands for Serial Clock. It is defined as the line that carries the clock data. It is used to synchronize the transfer of data between the two devices. The Serial Clock is generated by the device and it is called as master.
  • SPI : It stands for Serial Peripheral Interface. It is popularly used by the microcontrollers to communicate with one or more peripheral devices quickly. It uses conductors for data receiving, data sending, synchronization, and device selection (for communication).
  • MOSI : It stands for Master Output/ Slave Input.
    The MOSI and SCK are driven by the Master.
  • SS : It stands for Slave Select. It is the Slave Select line, which is used by the master. It acts as the enable line.
  • I2C : It is the two-wire serial communication protocol. It stands for Inter Integrated Circuits. The I2C is a serial communication protocol that uses SCL (Serial Clock) and SDA (Serial Data) to receive and send data between two devices.
    3.3V and 5V are the operating voltages of the board.

Technical Details

  • Model Type : Arduino Uno R3
  • Microcontroller Chip: ATmega328
  • Operating Voltage (VDC) : 5
  • Input Voltage(Recommended) : 7-12V
  • Input Voltage (limit) : 6-20V
  • Analog I/O Pins: 6
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • PWM Digital I/O Pins: 6
  • DC Current for 3.3V Pin (mA) : 50
  • DC Current per I/O Pin (mA) : 40
  • Clock Speed: 16 MHz
  • SRAM: 2
  • EEPROM: 1 KB (ATmega328)
  • Flash Memory: 32 KB
  • On-Board LEDs: On/Off, L (PIN 13), TX, RX

Physical Attributes

  • Length * Width * Height (mm) : 75 x 54 x 12
  • Weight (gm) : 27

Applications :

  • Arduino Uno is used in Do-it-Yourself projects prototyping.
  • In developing projects based on code-based control.
  • Development of Automation System.
  • Designing basic circuit designs.

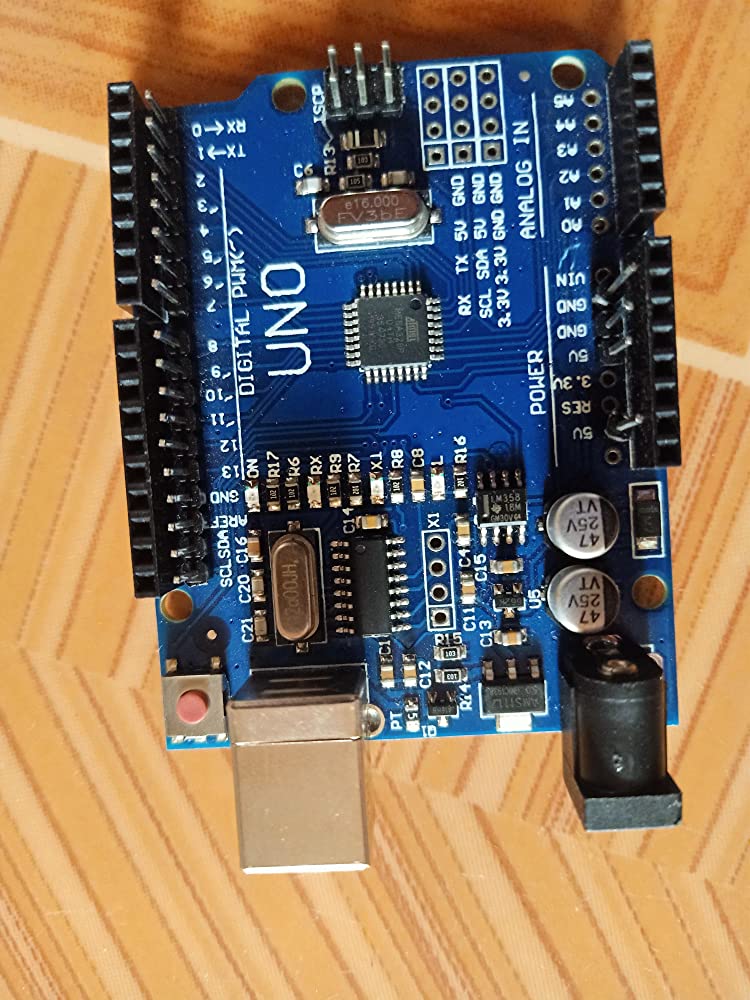

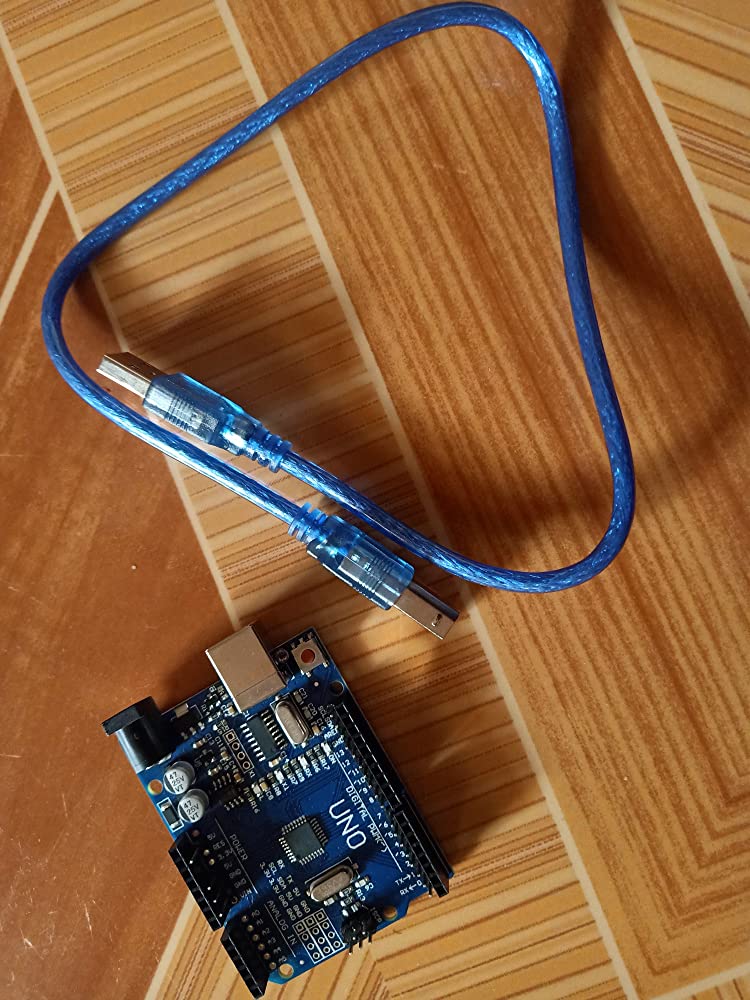

UNO R3 CH340G

  • Model Type: UNO Rev R3
  • Microcontroller Chip: ATmega328
  • Color: Blue
  • Input Voltage(Recommended): 7-12V
  • Input Voltage (limit): 6-20V
  • Operating Voltage: 5
  • Analog I/O Pins: 6
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • PWM Digital I/O Pins: 6
  • DC Current per I/O Pin: DC Current per I/O Pin: 40 mA; DC Current for 3.3V Pin: 50 mA
  • Clock Speed: 16 MHz
  • EEPROM: 1 KB (ATmega328)
  • Flash Memory: 32 KB (ATmega328) of which 0.5 KB is used by the bootloader
  • PWM Output Pins: 6
  • SRAM: 2 KB (ATmega328)
  • Power Supply Option: DC Jack or USB
  • Operating Temperature (°C): -40 to +90
  • Dimensions in mm (LxWxH): 75 x 54 x 12
  • Weight (gm): 26

Cable for UNO Arduino:

  • Length 1 foot
  • Hot Pluggable.
  • Fully compatible with the PC.
  • Molded strain relief and PVC overmolding to ensure a lifetime of error-free data transmissions.
  • Aluminum under-mold shield helps meet FCC requirements on KMI/RFI interference.
  • Foil and braid shield complies with fully rated cable specifications reducing EMI/FRI interference.
  • For Error-Free High-Performance Transmission.

Product Video

Documentation

Let’s start coding now!!!!

Customer Reviews

Based on 30 reviews
87%
(26)
10%
(3)
3%
(1)
0%
(0)
0%
(0)

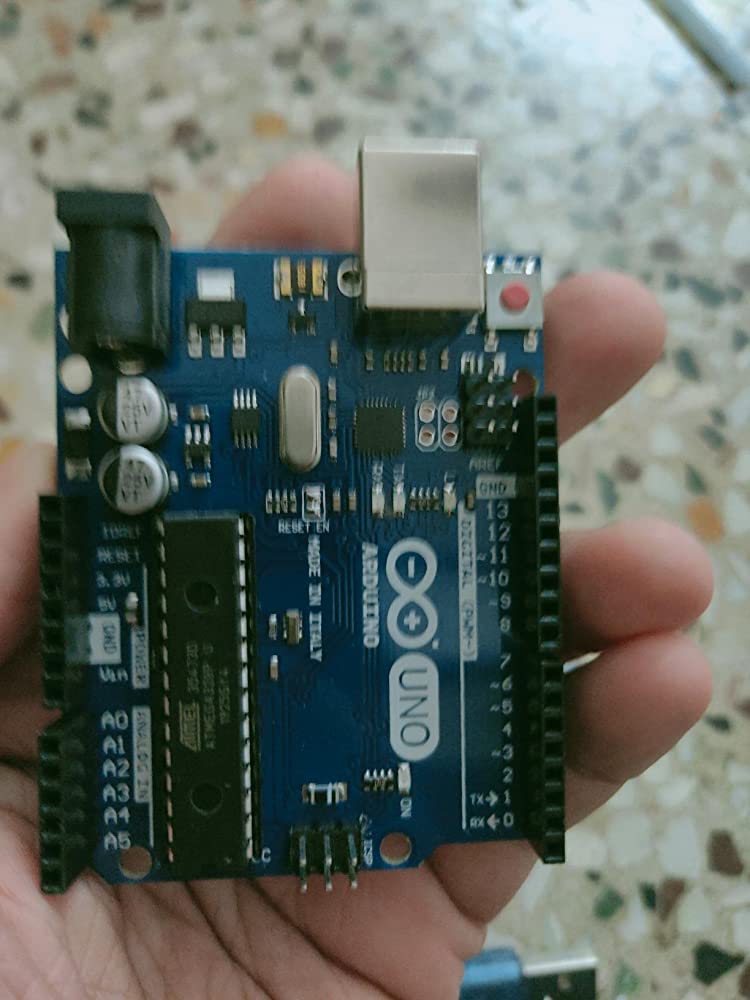

r
rahul
Value for money

Working excellent without any problem with com ports

s
salima
Wow

Wow so good

y
yash mittal
Buy it...

Very nice and perfect product 👌👌👌👍👍

n
niraj
It's good and working If board is perfect

The board is working perfectly.The male pins in board are not pre attached if you want , you have to make an effort for it .So , as all things are working properly.Thank you

J
J Benton
Good product

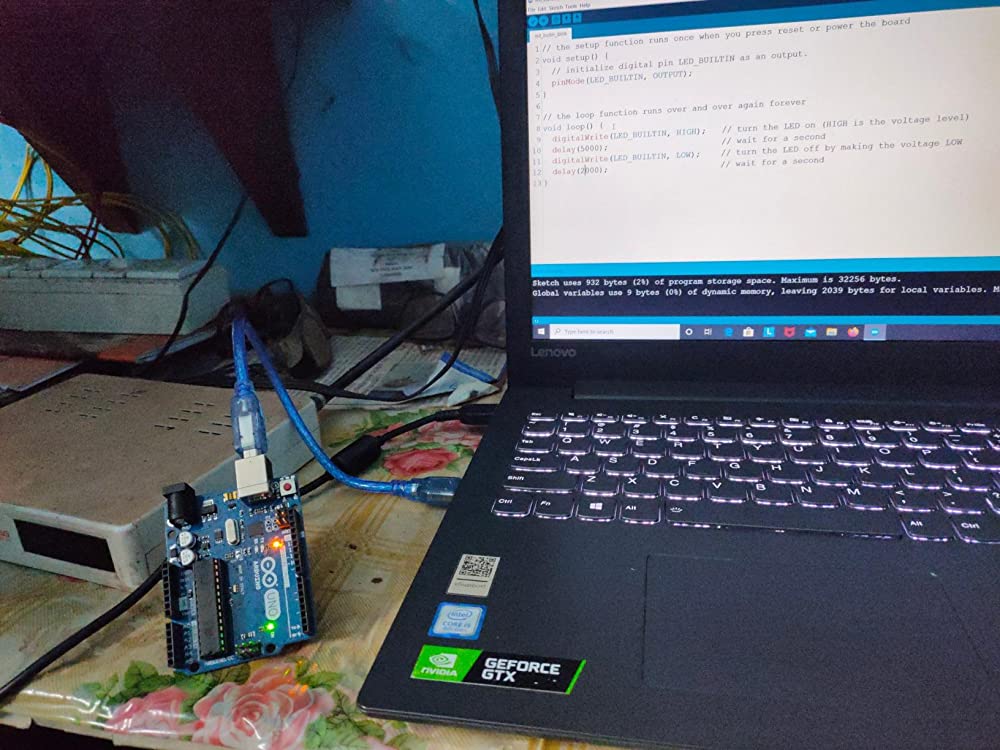

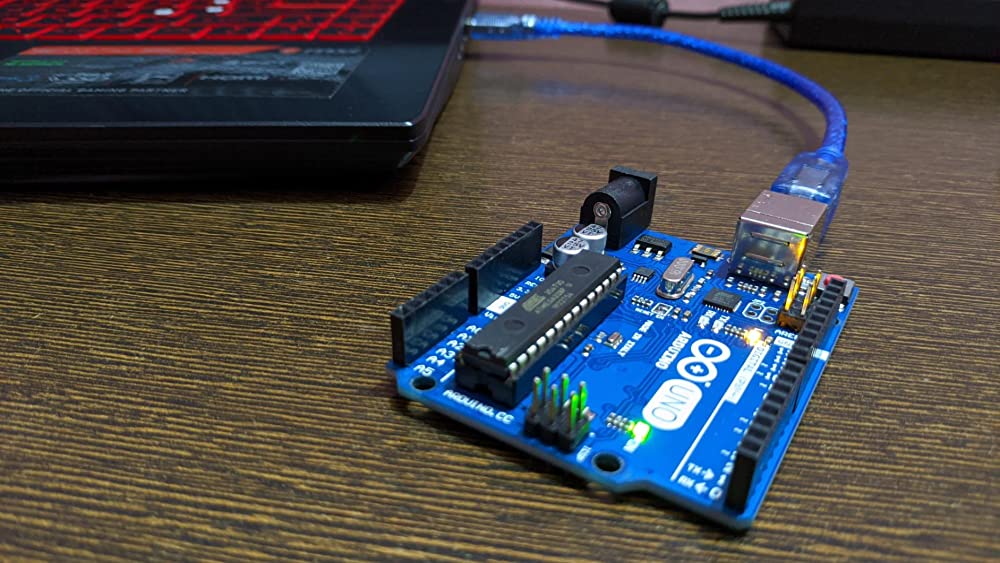

Good product delivered by Cloudtail India. Working good. Tried blink program and worked fine. No need to install additional drivers.
