The US-015 Ultrasonic Distance Sensor Module is a versatile device designed for precise distance measurement using ultrasonic technology. This module is widely used in various applications, including robotics, security systems, and automation.

US-015 Ultrasonic Sensor is accurate than the HCSR04 sensor for distance measurement and object detection. It offers excellent range accuracy up to (1mm) and fairly stable readings. It requires two digital I/O pins (an output pin and an input pin) to interface with it.

Accurate Distance Measurement

The US-015 Ultrasonic Distance Sensor Module Experience accurate distance measurement with the US-015 Ultrasonic Distance Sensor Module. This module utilizes ultrasonic waves to calculate distances with high precision, providing reliable and consistent measurements. Its advanced sensing technology makes it suitable for a wide range of distance-sensing applications.

Compact and Easy-to-Use Design

The US-015 module features a compact and user-friendly design, making it easy to integrate and use in various projects. Its simple interface allows for straightforward connectivity with microcontrollers and development boards, facilitating quick implementation in electronic systems.

Applications in Robotics and Automation

The US-015 Ultrasonic Distance Sensor Module finds extensive applications in robotics and automation systems. Its ability to accurately measure distances enables obstacle avoidance, object detection, and automated control in various industrial and consumer applications.

Technical Details

  • Working Voltage: 5VDC
  • Output Signal: Electric frequency signal, high-level 5V, low-level 0V.
  • Working Temperature : 0-70C
  • Static Current: Less than 3mA
  • Sensor angle: Not more than 15 degrees.
  • Detection distance: 2cm~400cm.
  • Precision: 0.3cm + 1%

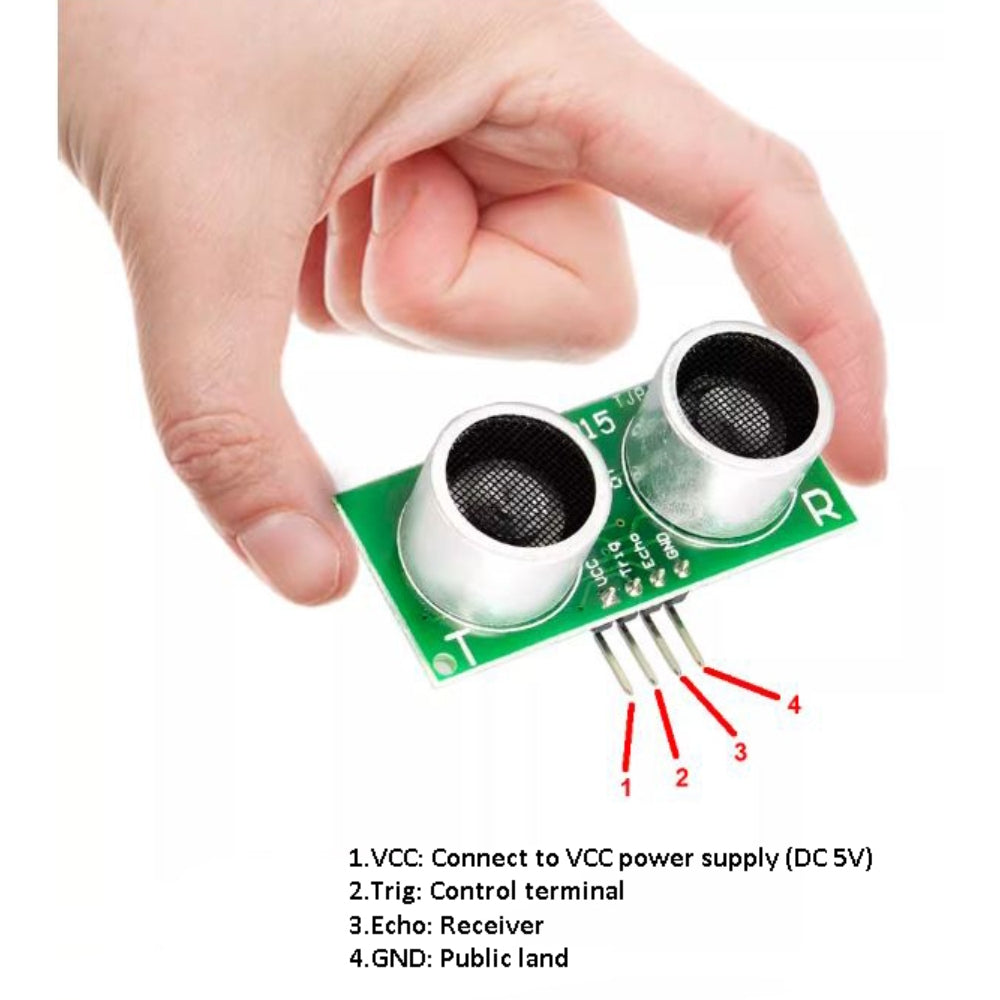

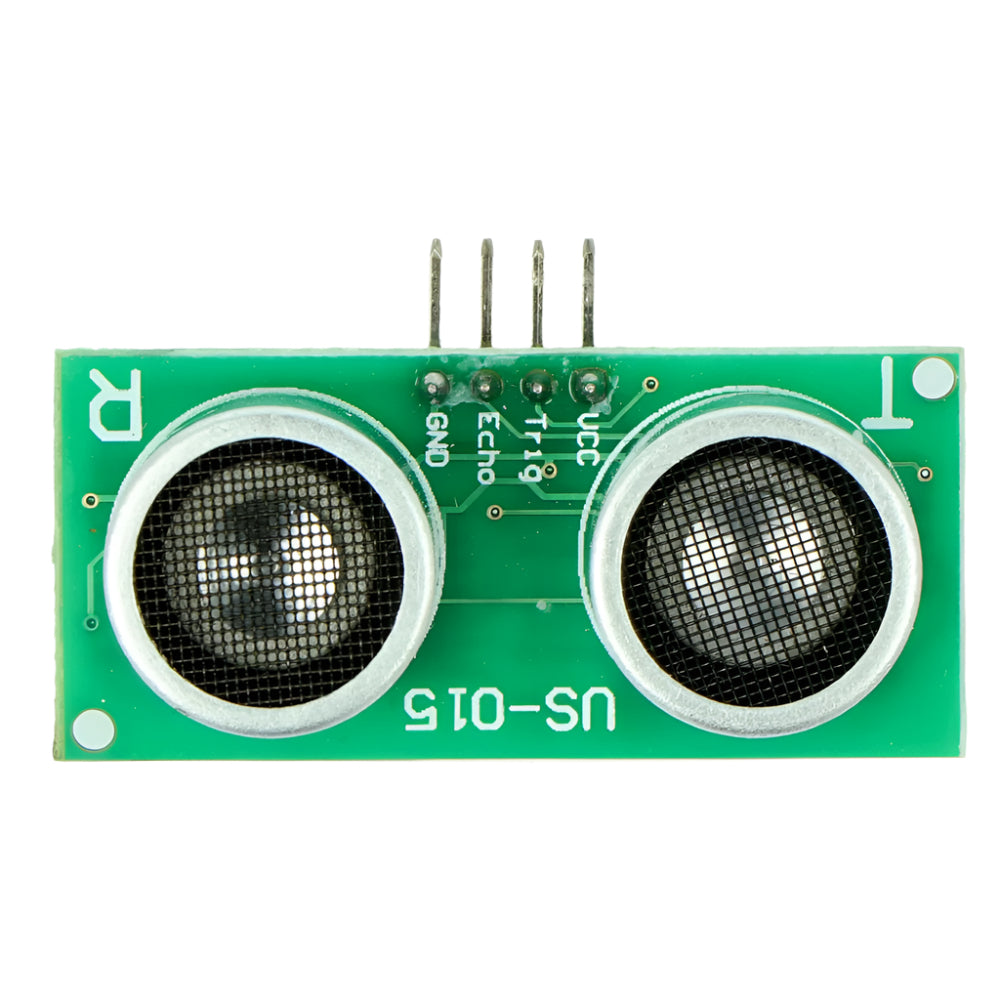

  • Mode of connection: VCC / trig(T) / echo(R) / GND

Physical Attributes

  • Sensor Cover Dia. (mm) : 16
  • L x W X H mm:  44 X 25 X 16
  • Weight (gm): 9

Features

  • More accurate than HCSR04.
  • It has a large measuring range.
  • It detects distances is from 2 cm to 400 cm.
  • The static power consumption is less than 3mA.

Product Video

Documentation

Package Includes

  • 1 x US-015 Ultrasonic Distance Sensor Module
