JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader
- Product SKU: KG090
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description

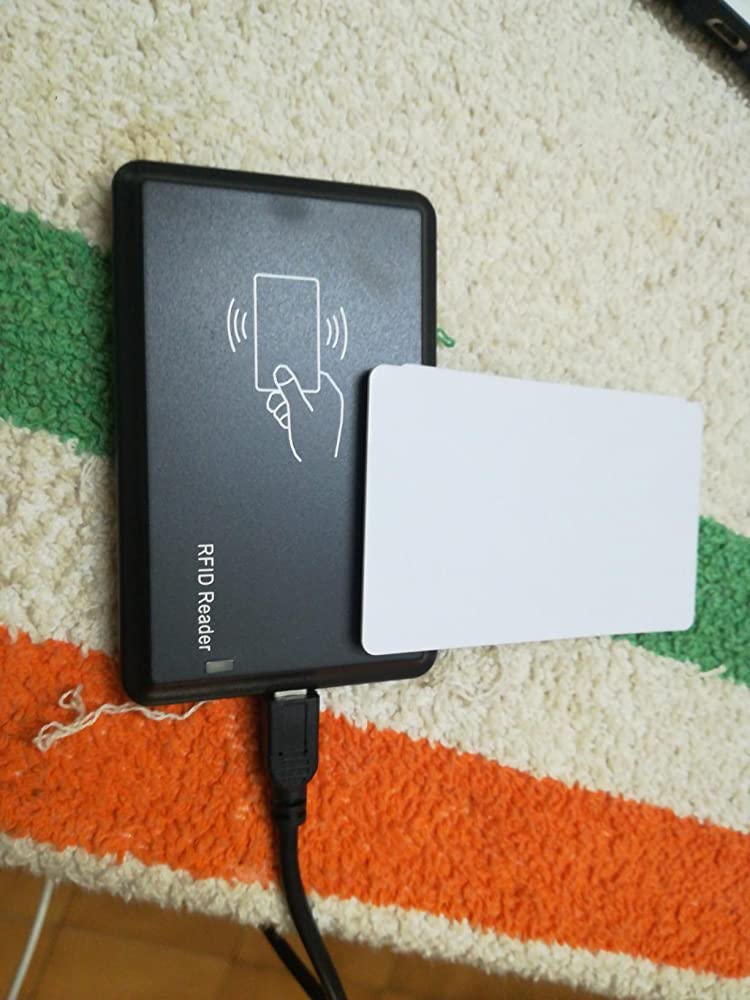

JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader
This is a JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader.This RFID card reader can read the RFID card serial number and output to your computer according to the specified format, then management software derives many more functions.
The JT308 series RFID card reader is a simple, fast-read card. Belongs to standard HID devices, does not need to install the driver, and can be read in any number, this function is suitable for extended functionality in existing software without any modification to the original software.
Installation Instructions
1st Step: Connect the USB cable with the card reader to the computer USB port.
2nd Step: The reader will ‘drip’ sound and flash about that power successfully, and then half a second after the ‘drip’ sound and flash about that device self-test successfully, without Installing any drivers, windows will automatically recognize it.
3rd Step: Open one EXCEL or WORLD, the card number would be input by self.
Technical Details
- Model Type: RFID Reader
- Operating Frequency (MHz): 0.125
- Reading Distance (cm): 5 to 8
- Operating Temperature (°C): -10 to 60
- Input Supply Voltage (VDC): 5
- Material: Plastic
- Cable Length (m): 1.5
- Width (mm): 61
- Height (mm): 12
- Weight (g): 74
Features
- Support μEM4001, 4100, or its compatible RFID, ID card
- Read the first 10 digits of the RFID/Proximity card
- Support Windows 95/98/2000/XP/7/8
- Plug and Play
- Reliable working condition
- Powered directly from USB, there is no need for external power supply
- Diagnostic Power LED
- Built-in operating buzzer
- Easy usage
- Compact design
Applications :
- Product: JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader
- Frequency: 125KHz
- Type: USB Proximity Sensor
- Application: Ideal for access control systems, attendance tracking, and RFID identification.
Physical Attributes : Smart RFID ID Card Reader
- Material: Plastic
- Cable Length (m): 1.5
- Width (mm): 61
- Height (mm): 12
- Weight (g): 74
Package Includes
- 1 x USB interface RFID card reader
- 1 x mini USB cable
