Specification

Description

The USB to RS485 TTL Serial Converter Adapter FT232 is USB2.0 standard, backward compatible, in line with the standard RS485. It has direction control with the use of automatic data flow control, auto distinguish and control data transfer direction with Baud rate of 300-9216000bps and automatically detecting the serial signal data rate.

The Dual-function adapter module supports the multipoint, each converter allows the RS485 interface device to connect 32 and comes with TVS tube Interface Protection and also with USB self-recovery protection. The 4 jumpers connect the USB interface to the RS485 interface. If the jumpers are removed, the USB interface may be used as a TTL Level Serial port.

This USB to RS485 TTL Serial Converter provides two-way serial communications signal conversion between the RS485 to and from a personal computer USB port using a virtual serial COM port. Self-powered from USB it uses FT232RL+75176 and can have up to 32 devices on the bus.

Features

  • Load capacity: support multipoint, each converter allows RS485 interface device to connect 32
  • Interface Protection: TVS tube protection, USB self-recovery protection
  • Support Windows98/ME/2000/XP/WIN7/Vista, Linux, Mac
  • Self-powered from USB.
  • It can be up to 32 devices on the bus.

Technical Details

  • Color: Black
  • Screw Terminal : 3
  • Baud Rate(bps) : 300 to 9216000
  • Operating Temperature (°C) : -40 to 90

Physical Attributes

  • Length × Width × Height(mm) : 30 × 14 × 6
  • Weight (gm) : 3

Applications

  • Surveillance Cameras
  • Video capture device
  • Fingerprint attendance machine
  • PBX
  • CNC machine

Documentation

Package Includes

  • 1 x USB to TTL/RS485 Converter Adapter Module FT232RL Dual-function dual protection

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
s
shivam jain
Good product

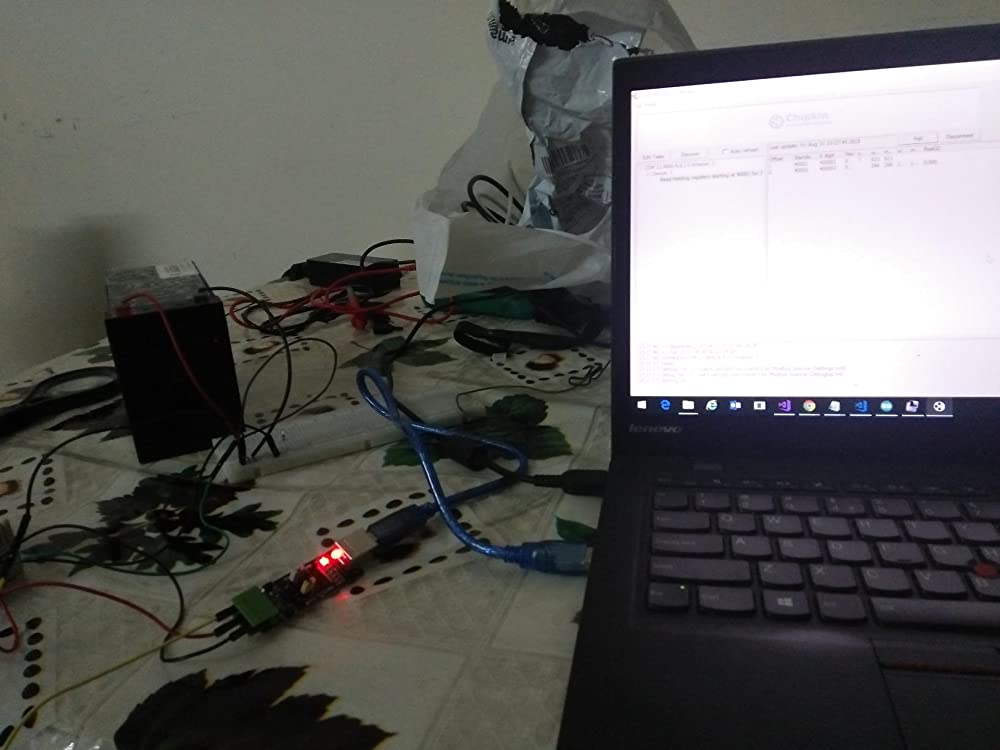

This product is good. I tested it with modbus temperature sensor and was running CAS modbus scanner in my laptop. Things worked perfectly. Going to integrate with a MCU unfortunately no docs available for that. But overall I am satisfied with this product. Please note you cab remove cap at A B and GND end to make pin visible.

b
bhajanlal
Reliable product

Very efficient sellers, got a immediate replacement for a defective one i first received

s
satpal
Worth buying

Good product worked as specified

b
bharma
Great Convertor works as expected

Yes it works with SECURE energy meters
