W1209 Digital thermostat Temperature Control Switch 12V DC With Waterproof NTC Sensor
- Product SKU: KG079
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description

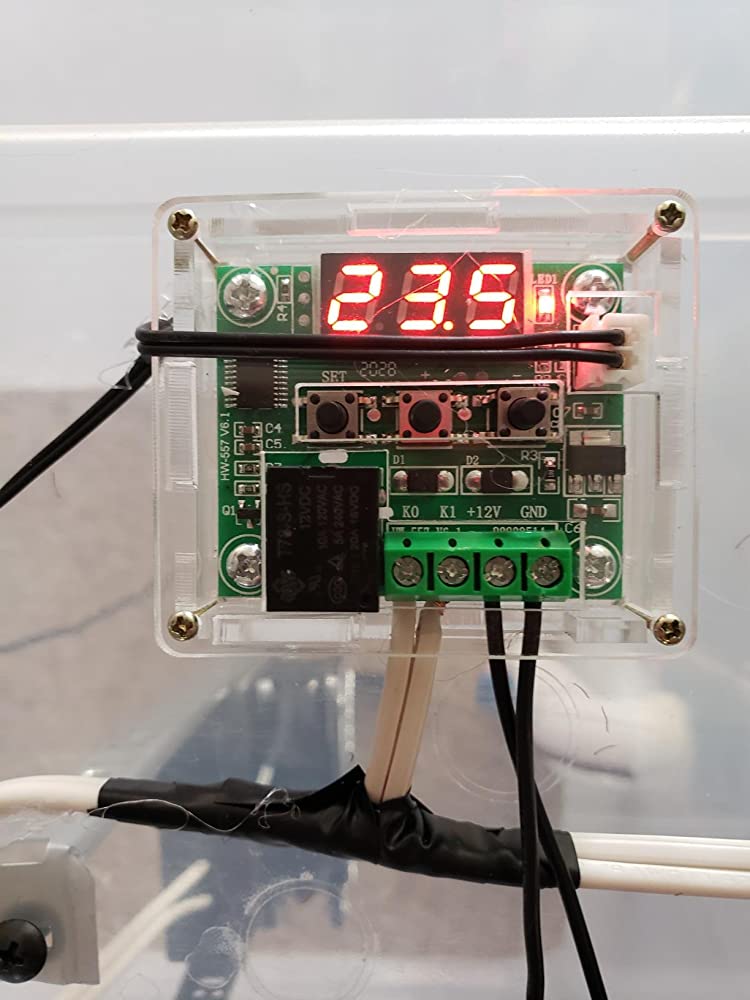

The W1209 is a low-cost digital temperature control module commonly used for various applications like controlling temperature in small enclosures, aquariums, incubators, and more. It comes with a built-in microcontroller and a digital display. The module is often used as a simple thermostat to control a heating or cooling element based on the temperature sensed by an NTC (Negative Temperature Coefficient) thermistor sensor.Components and their features
Digital Display
The module usually has a digital display (7-segment LED) that shows the current temperature. It might also display other information such as the relay status, etcTemperature Sensor (NTC Thermistor):
The module includes a waterproof NTC thermistor sensor. An NTC thermistor is a type of resistor whose resistance decreases as its temperature increases. The sensor is typically attached to the module with a cable and can be placed in the environment where you want to measure the temperature.Control Relay
The module is equipped with a relay that can be configured to turn on or off based on the temperature readings. This relay can be connected to a heating or cooling device (like a heater or a fan) to maintain the desired temperature.Buttons and Settings
There are usually buttons on the module for setting the desired temperature and configuring other parameters like hysteresis (the temperature difference between turning the relay on and off) and temperature unit (Celsius ).Power Supply
The module typically operates on a 12V DC power supply. This makes it compatible with a wide range of power sources.Functionality
You can set a target temperature using the buttons on the module. The relay will activate when the sensed temperature crosses a certain threshold, either above or below the set temperature, depending on the heating or cooling configuration. Once the temperature stabilizes within the desired range, the relay will switch off.Physical Attributes
- Dimensions (mm) L x W x H: 48 x 40 x 15
- Weight (gm): 21
Technical Details
- Model: W1209
- 7 Segment Display Color: Red
- Control Range(°C) : -50 to +110
- Control Precision(°C) : 0.1
- Measuring Input: NTC10K Sensor
- High-Temperature Alarm(°C) : -50 to +110
- Input Voltage (V): 12
- Output Type: Relay Output 29A (max)
- Return Difference Setting(°C) : 0.1 to 30
- Delay Starting(min) : 0 to 10
- Temperature Calibration(°C) : -10 to 10
Product Video
Documentation
Package Includes
- 1 x W1209 Digital thermostat Temperature Control Switch 12V DC With Waterproof NTC Sensor
