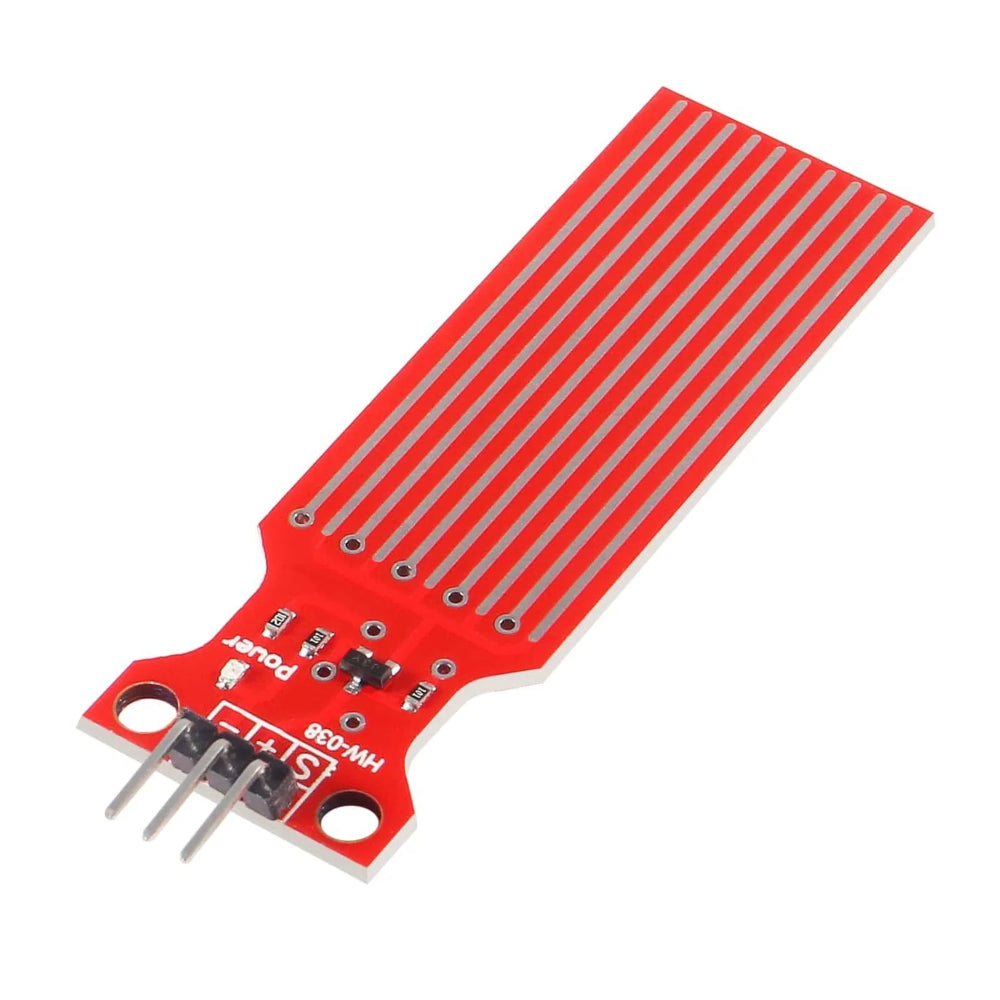

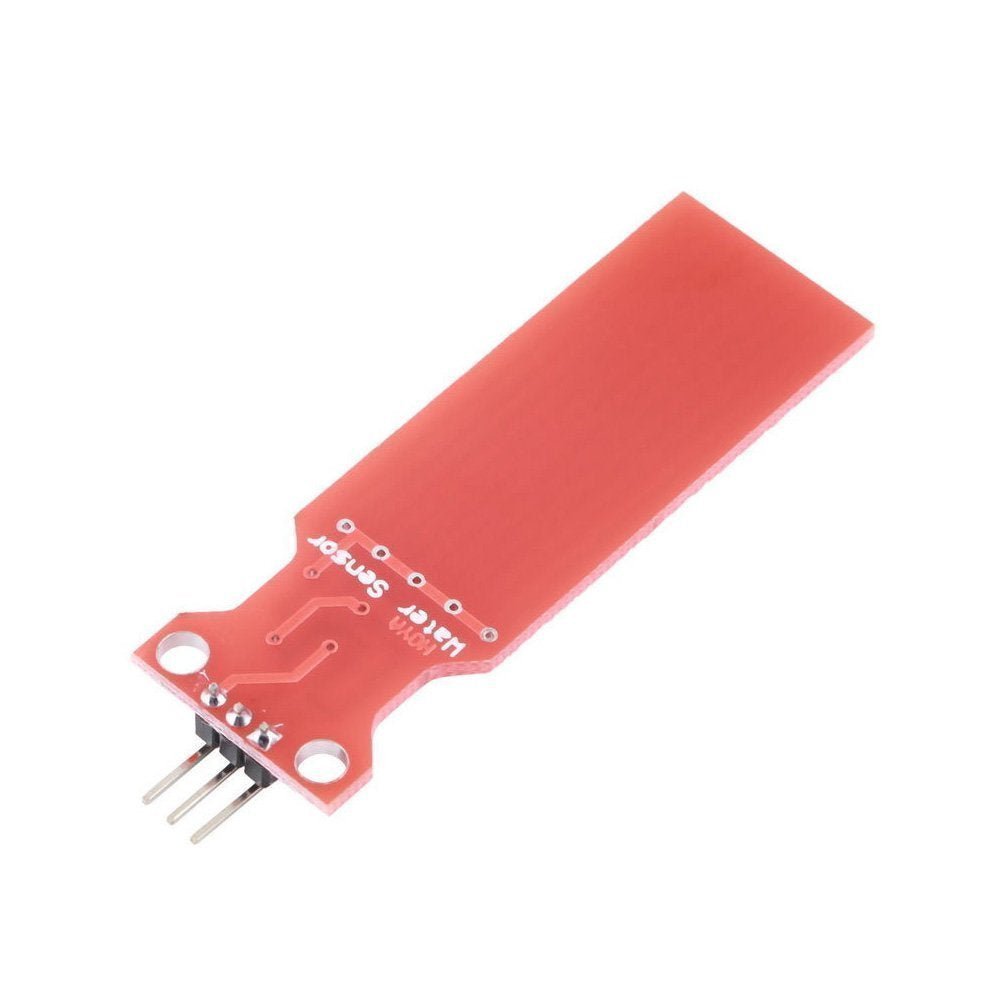

Water Level Depth Detection Sensor for Arduino

The Water Level Depth Detection Sensor is a simple, low-cost, and highly effective module designed to detect water levels and liquid drops. It operates on DC 3–5V with a current consumption of less than 20mA, making it perfect for battery-powered and embedded applications. With a detection area of 40×16 mm, the sensor converts the presence of water into an analog output signal, which can be easily read by an Arduino or other microcontrollers.

This module is ideal for water tank level monitoring, automatic plant watering systems, and rain detection projects. Its series of exposed conductive parallel traces allow precise water level detection, making it useful for DIY projects, IoT applications, and home automation.

Features

  • Wide operating voltage: 3–5V DC
  • Low power consumption: ≤20mA
  • Analog output proportional to water level
  • Compact detection area of 40×16 mm
  • Compatible with Arduino and other microcontrollers
  • Onboard power indicator LED
  • Easy to integrate into DIY and automation projects

Technical Details

  • Model Type: Water Level Sensor
  • Operating Voltage: 3–5V DC
  • Max. Operating Current: 20 mA
  • Detection Range: 40 × 16 mm
  • Operating Temperature: -10 to 30 °C
  • Operating Humidity: 10% – 90% RH (non-condensing)
  • Length: 60 mm
  • Width: 20 mm
  • Height: 1.5 mm
  • Weight: 4 g
  • Output: Analog Signal

Applications

  • Water tank level monitoring
  • Automatic plant irrigation systems
  • Rain detection and weather monitoring
  • Leak detection in smart homes
  • DIY electronics and IoT projects

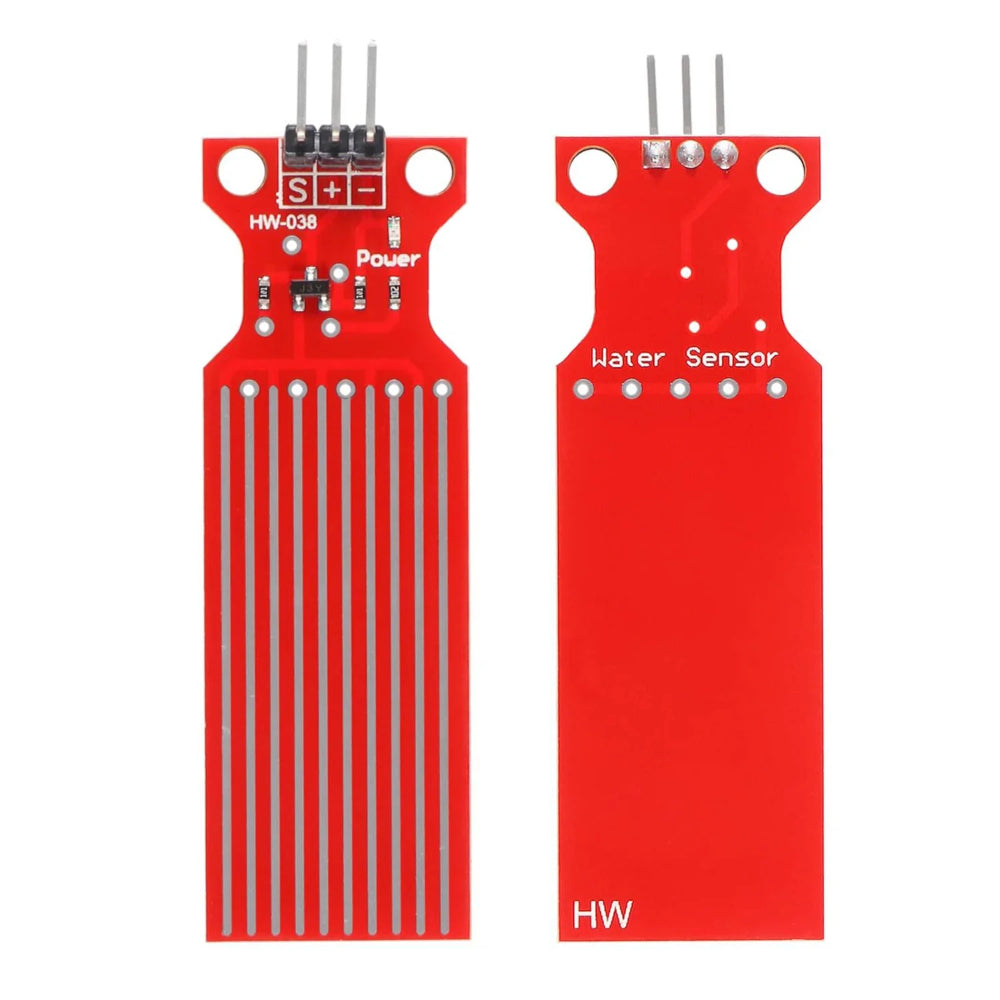

Physical Attributes

  • Length: 60 mm
  • Width: 20 mm
  • Height: 1.5 mm
  • Detection Area: 40 × 16 mm
  • Weight: 4 g
  • PCB Material: FR-4, Red color

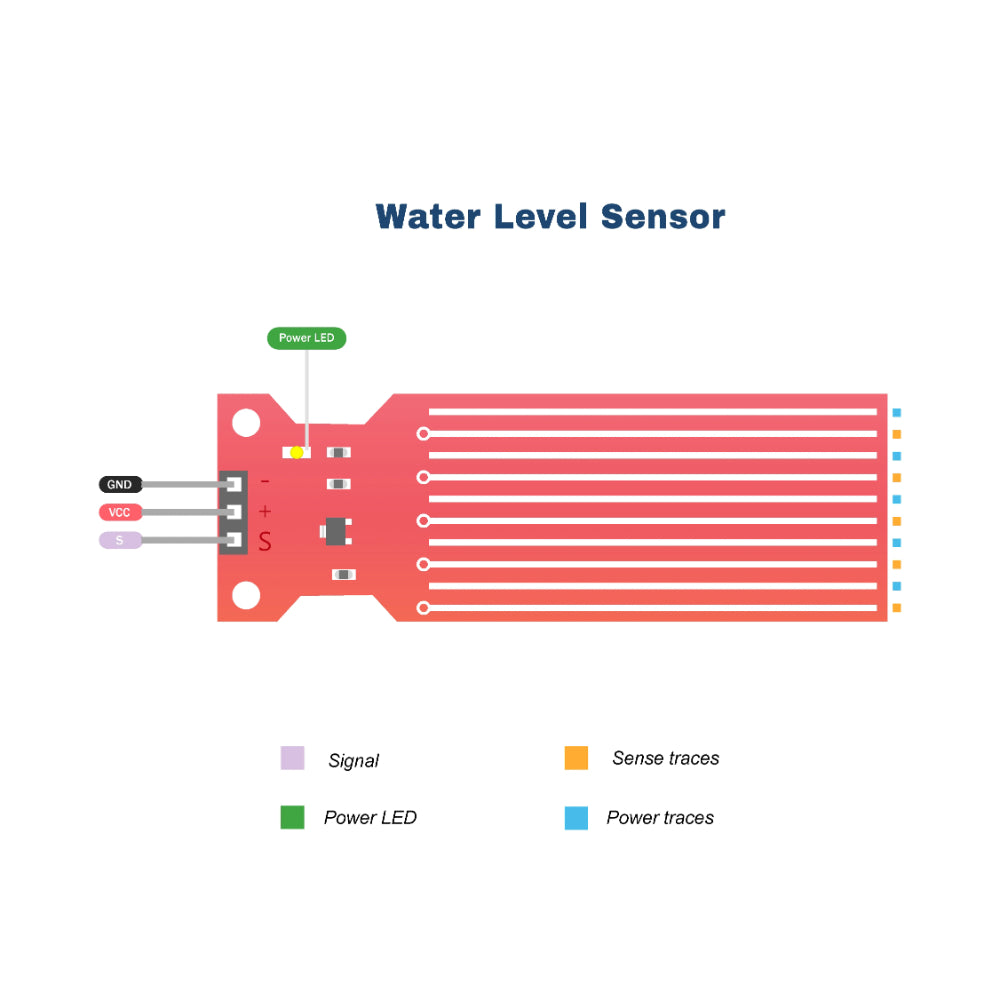

  • Connector: 3-pin header (VCC, GND, Signal)
  • Indicator: Onboard Power LED

Package Includes

  • 1 × Water Level Depth Detection Sensor Module
