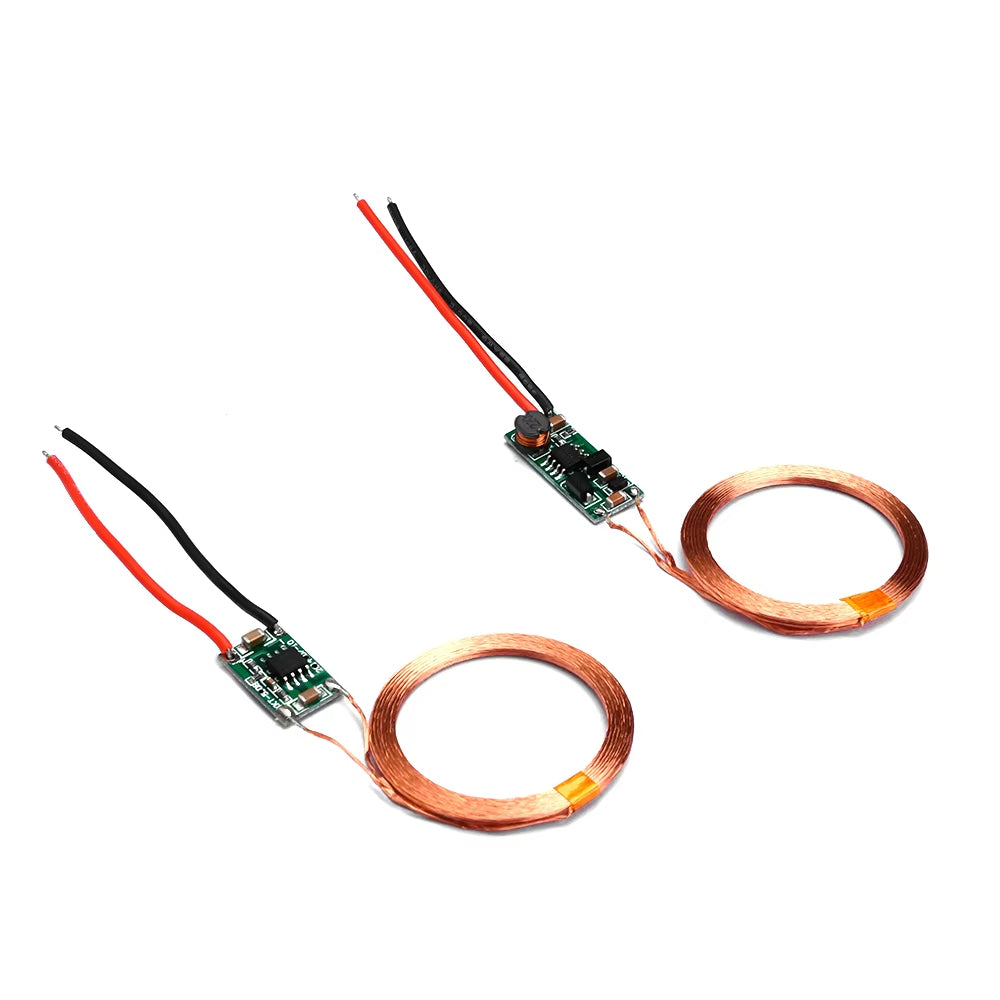

5V 2A Wireless Power Supply Transmitter Receiver Charging Coil Module
2A: This represents the current rating of the wireless power supply. It can deliver up to 2 amperes of current to the receiving device. This is also a common current rating for many smartphone chargers.
Wireless Power Supply: This is the device or module that provides power wirelessly to charge compatible devices. It typically includes a coil that generates an electromagnetic field to transfer power.
Transmitter: The transmitter is the part of the wireless charging system that sends power to the receiver. It generates the electromagnetic field used for wireless power transfer.
Receiver: The receiver is the part of the wireless charging system that captures and converts the electromagnetic energy from the transmitter into electrical energy to charge the device.
Charging Coil Module: This is likely the coil or coils used in the transmitter and receiver for wireless power transfer. Coils are essential components in wireless charging systems, as they facilitate the transfer of energy through electromagnetic induction.
5V 2A Wireless Power Supply Transmitter Receiver Charging Coil Module
Available:In Stock
- Product SKU: KG373
₹ 649
₹ 1,039
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
These modules are commonly used in wireless charging applications for devices such as smartphones, smartwatches, and other electronic gadgets.Here's a brief explanation of the components you mentioned:
5V: This indicates the voltage at which the wireless power supply operates. In this case, it operates at 5 volts, which is a common voltage for USB charging.2A: This represents the current rating of the wireless power supply. It can deliver up to 2 amperes of current to the receiving device. This is also a common current rating for many smartphone chargers.
Wireless Power Supply: This is the device or module that provides power wirelessly to charge compatible devices. It typically includes a coil that generates an electromagnetic field to transfer power.
Transmitter: The transmitter is the part of the wireless charging system that sends power to the receiver. It generates the electromagnetic field used for wireless power transfer.
Receiver: The receiver is the part of the wireless charging system that captures and converts the electromagnetic energy from the transmitter into electrical energy to charge the device.
Charging Coil Module: This is likely the coil or coils used in the transmitter and receiver for wireless power transfer. Coils are essential components in wireless charging systems, as they facilitate the transfer of energy through electromagnetic induction.
To use this module:
You would typically connect the transmitter to a power source (such as a USB charger or power adapter) and place the receiver coil on or inside the device you want to charge. When the receiver coil is within the range of the transmitter coil, it will receive power wirelessly and charge the device.Technical Details
- Input Voltage(limits): 5V DC
- Input Voltage: 5V.
- Output Voltage: 5V.
- Operating Current: 1.2-2 A.
- Transmitter Coil Inductance: 30uH
- Transmit-receive distance: 1-20mm
Physical Attributes
- Transmitter Length × Width × Height(mm) : 17 * 12 * 4
- Receiver Length × Width × Height(mm) : 24 * 10 * 3
- Coil Height: 2mm
- Receiver Coil Diameter: 41.6mm
- Transmitter Coil Diameter: 42.5mm
Circuit Diagram:
Product Video
Package Includes
- 1 x 5V 2A Wireless Power Supply Transmitter Receiver Charging Coil Module
