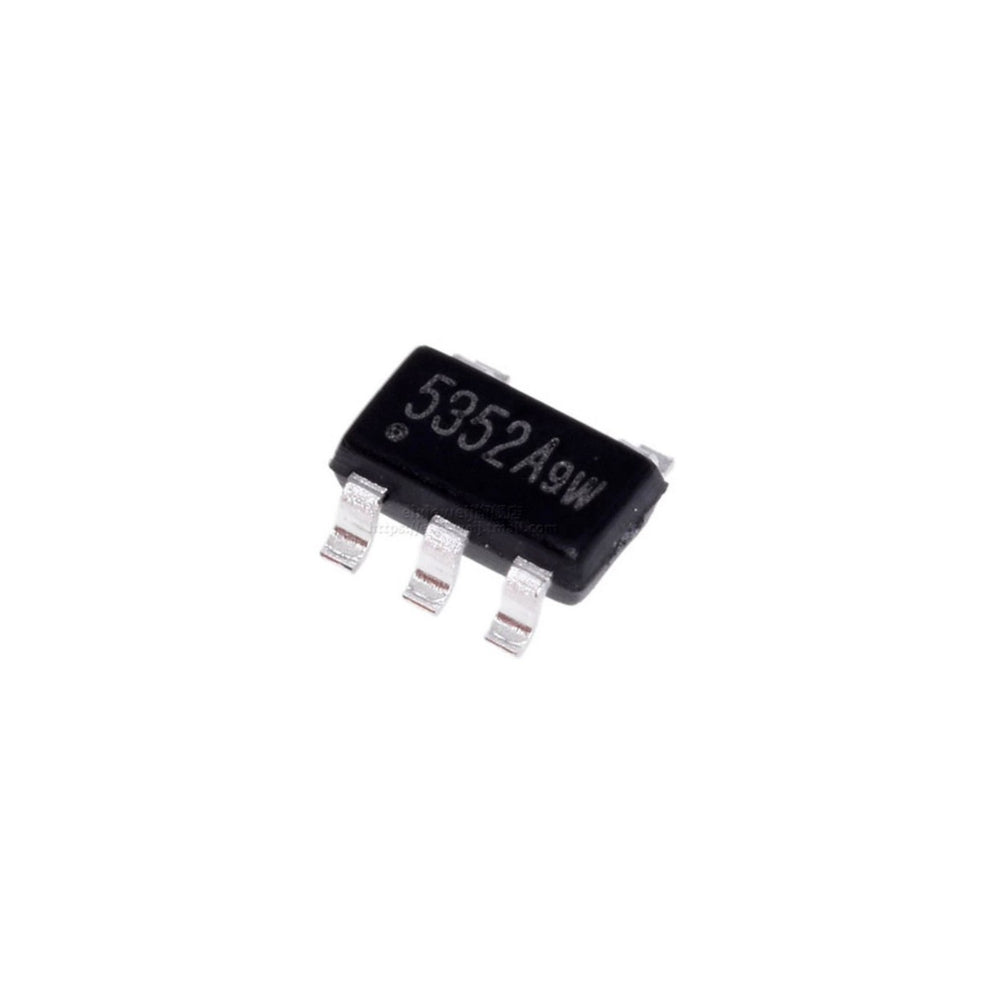

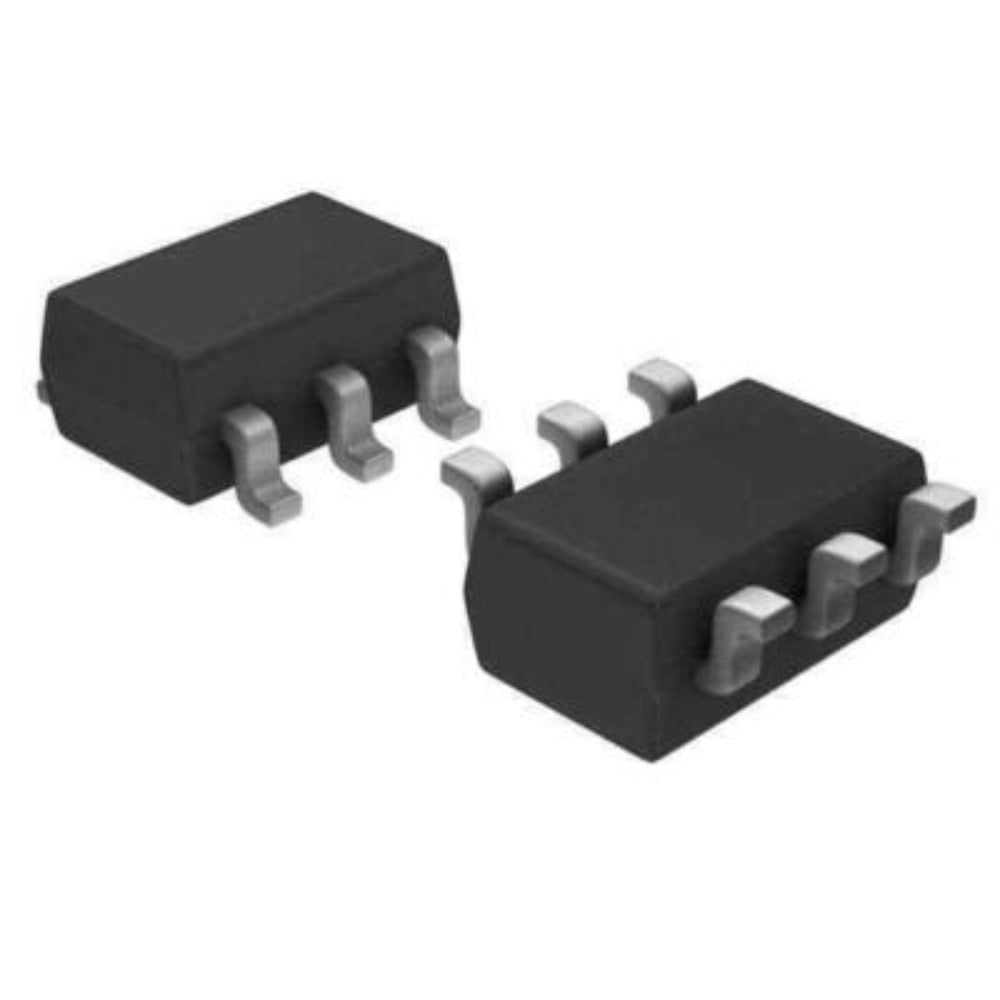

XB5352A 5V Low Dropout Regulator IC SOT23-5 Package
![XB5352A 5V Low Dropout Regulator IC SOT23-5 Package]()
![XB5352A 5V Low Dropout Regulator IC SOT23-5 Package]()
![XB5352A 5V Low Dropout Regulator IC SOT23-5 Package]()
![XB5352A 5V Low Dropout Regulator IC SOT23-5 Package]()
Featuring low dropout voltage, low quiescent current, and integrated thermal shutdown and overcurrent protection, the XB5352A ensures stable and safe operation across various load conditions.
Note: For best results, use 1µF low-ESR ceramic capacitors on both input and output.
-51%
XB5352A 5V Low Dropout Regulator IC SOT23-5 Package
Available:In Stock
- Product SKU: INTEG217
₹ 19
₹ 39
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
XB5352A Voltage Regulator IC – 5V Low Dropout Regulator (SOT-23-5)
The XB5352A is a high-efficiency, fixed-output low dropout (LDO) linear voltage regulator that provides a stable 5V output at up to 500mA current. It is designed for compact and power-sensitive applications and comes in a SOT-23-5 surface-mount package.Featuring low dropout voltage, low quiescent current, and integrated thermal shutdown and overcurrent protection, the XB5352A ensures stable and safe operation across various load conditions.
Note: For best results, use 1µF low-ESR ceramic capacitors on both input and output.
Technical Details
- IC Name: XB5352A
- Type: Fixed 5V Low Dropout Voltage Regulator
- Output Voltage: 5V ±2%
- Output Current: Up to 500mA
- Input Voltage Range: 5.5V to 12V
- Dropout Voltage: ~300mV @ 100mA, ~600mV @ 500mA
- Quiescent Current: ~45µA typical
- Line Regulation: ±0.2% typical
- Load Regulation: ±0.4% typical
- PSRR: ~70dB @ 1kHz
- Internal Thermal Shutdown
- Short Circuit and Overcurrent Protection
- Package: SOT-23-5
- Mounting Type: Surface Mount (SMT)
- Operating Temperature: -40°C to +85°C
Features
- Fixed 5V regulated output
- Delivers up to 500mA output current
- Low dropout and quiescent current
- Thermal shutdown and overcurrent protection
- High PSRR for noise-sensitive circuits
- Compact SOT-23-5 surface-mount design
- Stable with low ESR ceramic capacitors
Applications
- 5V logic and microcontroller systems
- Embedded and sensor power supply
- Wireless RF modules (e.g., LoRa, Zigbee)
- Portable and battery-powered devices
- Low-noise analog and digital circuits
Physical Attributes
- Package: SOT-23-5
- Pin Count: 5
- Dimensions: ~2.9mm x 1.6mm x 1.1mm (L x W x H)
- Mounting Type: Surface Mount (SMT)
- Weight: ~0.05g
Package Includes
- 1 x XB5352A 5V LDO Voltage Regulator IC (SOT-23-5 Package)
