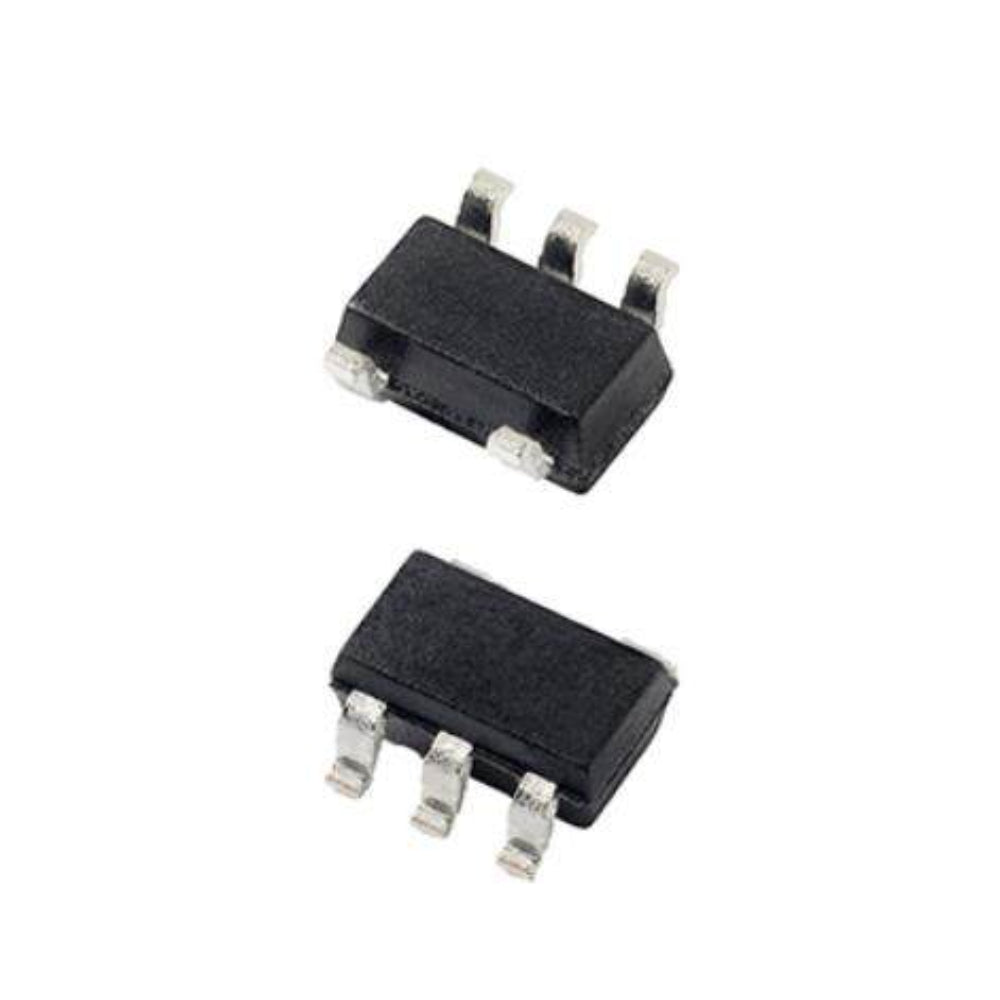

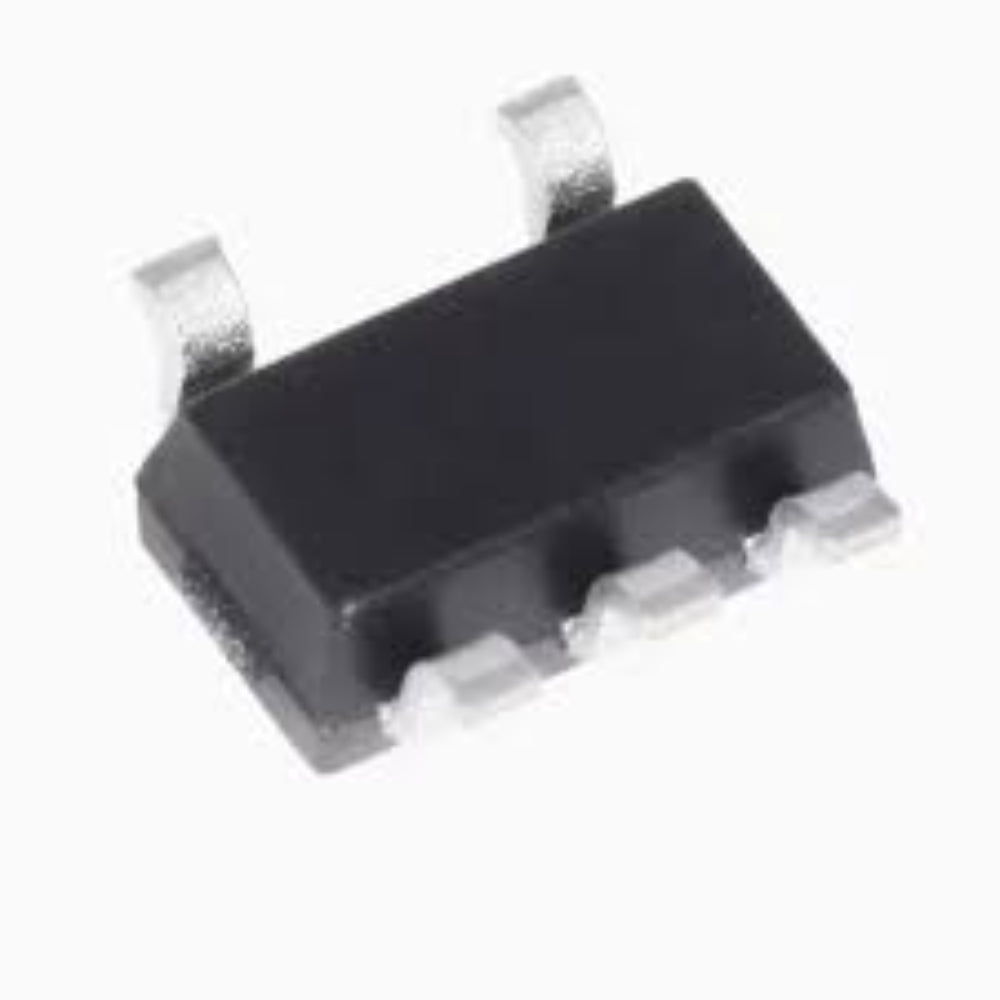

XB5353A 5V Low Dropout Regulator IC SOT23-5 Package
![XB5353A 5V Low Dropout Regulator IC SOT23-5 Package]()
![XB5353A 5V Low Dropout Regulator IC SOT23-5 Package]()
![XB5353A 5V Low Dropout Regulator IC SOT23-5 Package]()
![XB5353A 5V Low Dropout Regulator IC SOT23-5 Package]()
![XB5353A 5V Low Dropout Regulator IC SOT23-5 Package]()
![XB5353A 5V Low Dropout Regulator IC SOT23-5 Package]()
Packaged in a space-saving SOT-23-5 surface-mount package, the XB5353A features low dropout voltage, low quiescent current, and robust protection mechanisms including thermal shutdown and short-circuit protection.
Note: Use 1µF ceramic capacitors on both input and output for stable operation.
-37%
XB5353A 5V Low Dropout Regulator IC SOT23-5 Package
Available:In Stock
- Product SKU: INTEG218
₹ 49
₹ 79
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
XB5353A Voltage Regulator IC – 5V Low Dropout Regulator (SOT-23-5)
The XB5353A is a compact, high-efficiency low dropout (LDO) linear voltage regulator that delivers a stable 5V output with up to 500mA output current. It is optimized for low power consumption and reliable performance, especially in compact and portable electronics.Packaged in a space-saving SOT-23-5 surface-mount package, the XB5353A features low dropout voltage, low quiescent current, and robust protection mechanisms including thermal shutdown and short-circuit protection.
Note: Use 1µF ceramic capacitors on both input and output for stable operation.
Technical Details
- IC Name: XB5353A
- Type: Fixed 5V Low Dropout Voltage Regulator
- Output Voltage: 5V ±2%
- Output Current: Up to 500mA
- Input Voltage Range: 5.5V to 12V
- Dropout Voltage: ~300mV @ 100mA, ~600mV @ 500mA
- Quiescent Current: ~45µA typical
- Line Regulation: ±0.2% typical
- Load Regulation: ±0.4% typical
- PSRR: ~70dB @ 1kHz
- Internal Thermal Shutdown
- Short Circuit and Overcurrent Protection
- Package: SOT-23-5
- Mounting Type: Surface Mount (SMT)
- Operating Temperature: -40°C to +85°C
Features
- Fixed 5V regulated output
- Delivers up to 500mA output current
- Low dropout voltage and quiescent current
- Integrated thermal and overcurrent protection
- High PSRR for clean output
- Compact and lightweight SOT-23-5 package
- Stable with low ESR ceramic capacitors
Applications
- 5V logic and digital power supplies
- Microcontroller, sensor, and RF modules
- Battery-powered and portable embedded systems
- Wearable and IoT devices
- Noise-sensitive analog circuits
Physical Attributes
- Package: SOT-23-5
- Pin Count: 5
- Dimensions: ~2.9mm x 1.6mm x 1.1mm (L x W x H)
- Mounting Type: Surface Mount (SMT)
- Weight: ~0.05g
Package Includes
- 1 x XB5353A 5V LDO Voltage Regulator IC (SOT-23-5 Package)
