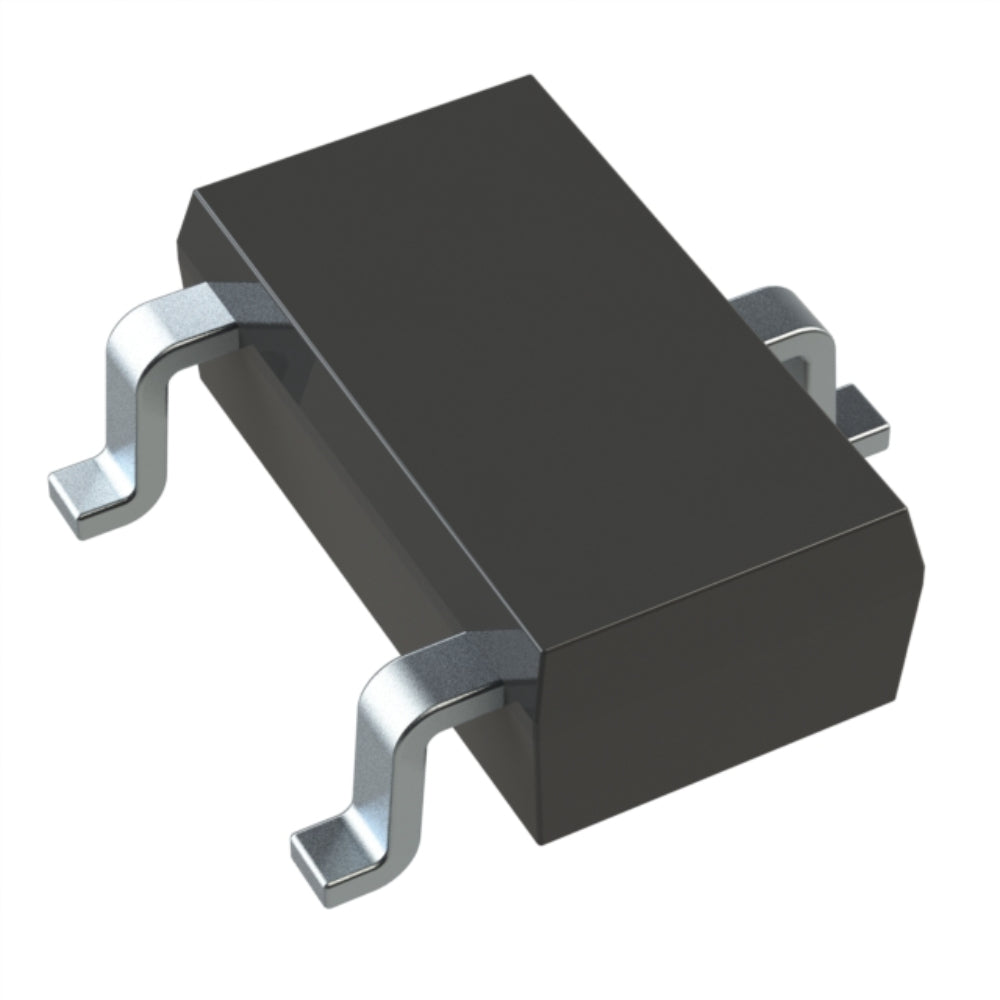

XC6206P362MR Low Dropout Regulator IC SMT SOT29 Package

The XC6206P362MR is a high-precision, low dropout (LDO) linear voltage regulator IC designed for low-power applications. It delivers a fixed output voltage of 3.6V and can supply up to 150mA of current. Packaged in a compact SOT29 SMT form factor, it is suitable for space-constrained and battery-powered devices.

This regulator offers excellent line and load regulation, low dropout voltage, and minimal quiescent current. It also includes thermal shutdown and overcurrent protection for safe and reliable operation. With support for low ESR ceramic capacitors and high PSRR, it ensures stable power for sensitive analog and digital components.

Commonly used in microcontroller boards, IoT modules, embedded systems, sensor nodes, and wireless applications.

Note: Package labeled as "SOT29" for catalog reference. Actual package is standard SOT-23-3 (3-pin SMT) as per manufacturer datasheet.

Technical Details

  • IC Name: XC6206P362MR
  • Function: Fixed 3.6V Low Dropout Voltage Regulator
  • Package: SOT29 (SMT)
  • Output Voltage: 3.6V ±2%
  • Output Current: Up to 150mA
  • Input Voltage Range: 2V to 6V
  • Dropout Voltage: Typically 250mV @ 100mA
  • Quiescent Current: ~8µA
  • High PSRR: ~70dB at 1kHz
  • Internal Thermal and Overcurrent Protection
  • Operating Temperature: -40°C to +85°C

Features

  • Fixed 3.6V output voltage
  • Output current up to 150mA
  • Low dropout voltage
  • Low quiescent current (~8µA)
  • High PSRR and clean output
  • Thermal and overcurrent protection
  • Compact SMT SOT29 package
  • Compatible with low ESR ceramic capacitors

Applications

  • Battery-powered electronics
  • Wearable devices and portable gadgets
  • Microcontroller and sensor modules
  • IoT and embedded systems
  • Wireless communication modules

Physical Attributes

  • Package: SOT29
  • Pin Count: 3
  • Mounting Type: Surface Mount (SMT)
  • Weight: ~0.25g

Package Includes

  • 1 x XC6206P362MR Low Dropout Regulator IC SMT SOT29 Package
