XH-M601 12V Battery Charging Control Board Automatic Charger Module

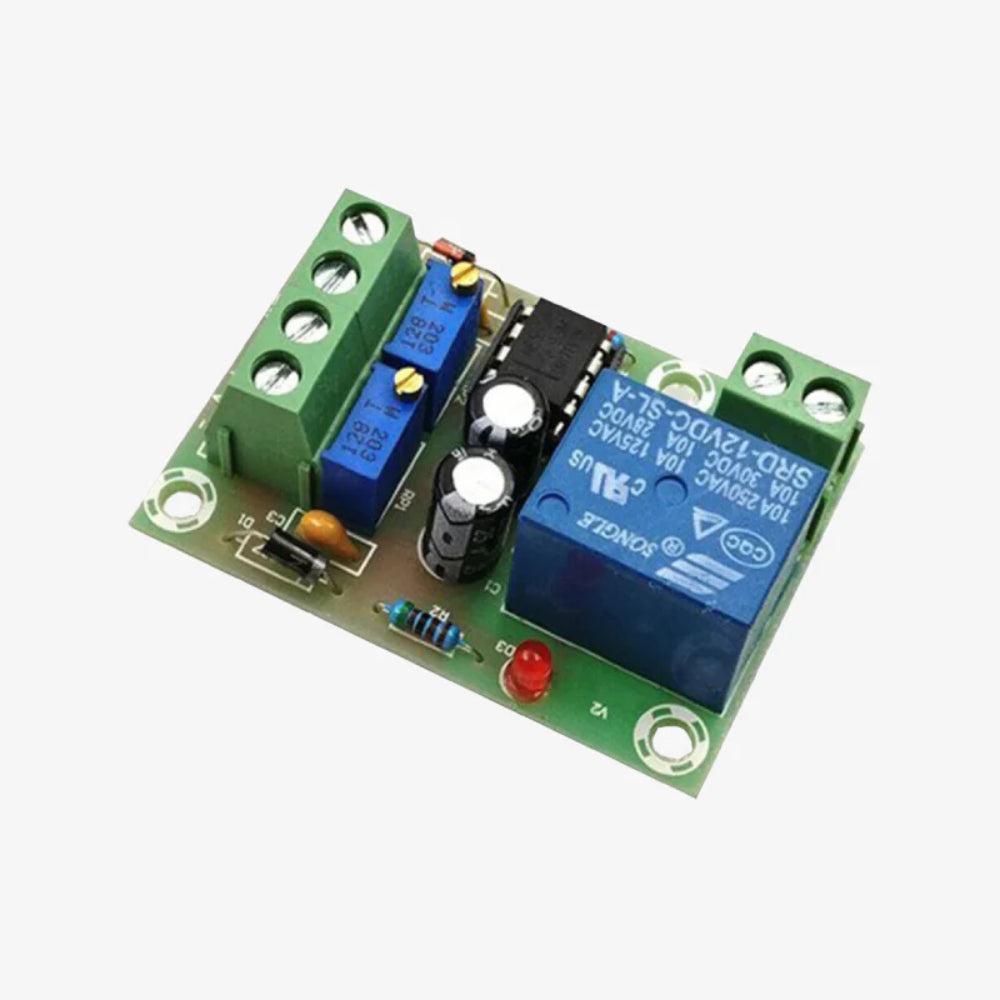

The XH-M601 12V Battery Charging Control Board is an intelligent automatic charger control module designed for 12V storage batteries. It helps manage the charging process by automatically starting charging when the battery voltage drops below the set level and disconnecting charging when the battery reaches the preset full-charge voltage. This makes it useful for maintaining battery health, reducing unnecessary power consumption, and improving charging safety.

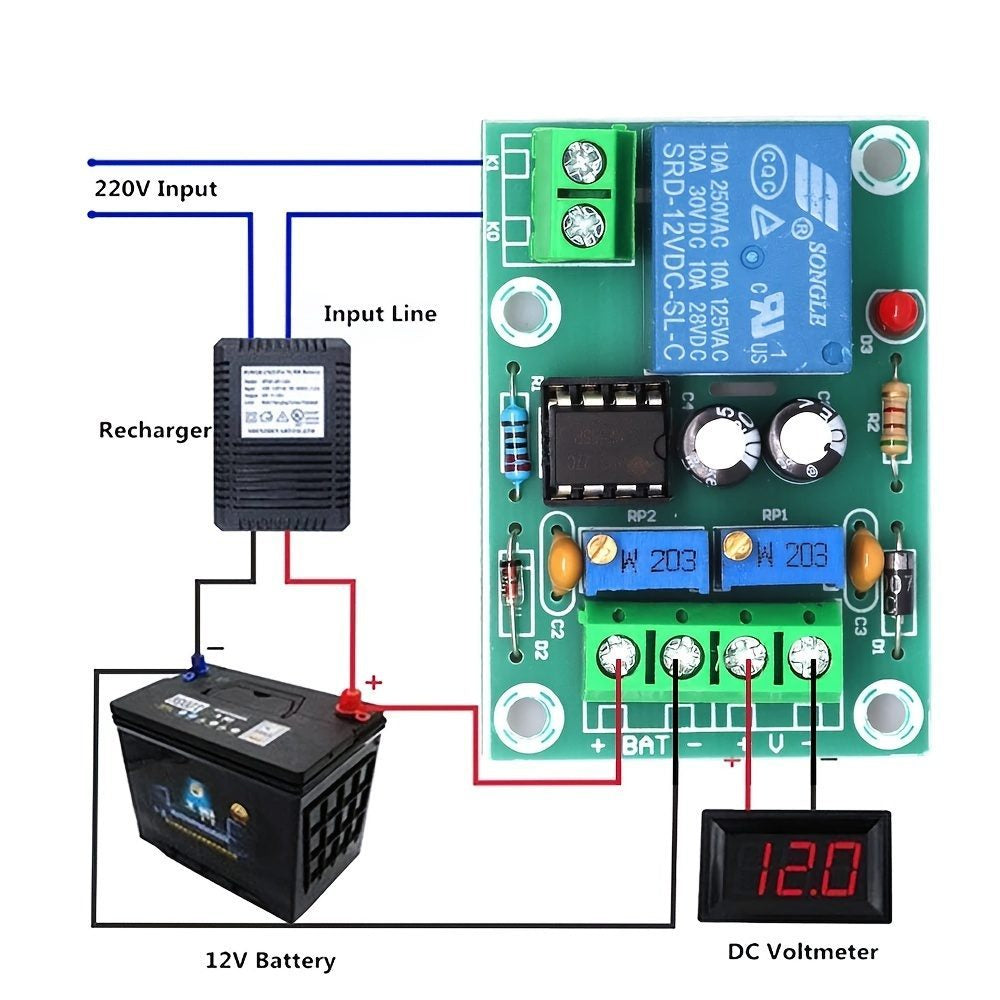

The module features adjustable start and stop charging voltage settings through onboard potentiometers, allowing flexible operation according to battery requirements. It supports DC voltage detection and works with a 13.8V to 14.8V power supply. With its easy installation, durable design, and automatic charging protection, the XH-M601 is suitable for battery chargers, backup power systems, DIY battery maintenance setups, and other 12V battery charging applications.

Features

  • Automatic charging control for 12V storage batteries
  • Adjustable start charging voltage setting
  • Adjustable disconnect charging voltage setting
  • Helps save electricity and extend battery life
  • Automatic power cut-off after full charge
  • Built-in charging protection function
  • Easy to install and use
  • Durable and reliable module design
  • DC voltage detection with onboard display support
  • Suitable for intelligent battery charging applications

Technical Details

  • Item Type: Battery Charging Control Board
  • Model: XH-M601
  • Charging Type: 12V Storage Battery
  • Output Voltage: 12V
  • Output Current: Variable
  • Battery Cell Composition: Multiple
  • Power Supply Voltage: 13.8V to 14.8V
  • Relay Operating Voltage: 12.4V
  • Relay Disconnect Voltage: 14.8V
  • Voltage Tolerance: ±0.1V
  • Voltage Detection Method: DC Voltmeter
  • Adjustment Method: Potentiometer

Applications

  • 12V battery charger systems
  • Battery maintenance and protection setups
  • Solar battery charging control projects
  • Backup power battery charging systems
  • DIY battery charging circuits
  • Automotive and workshop battery charging applications

Physical Attributes

  • Weight: 23g
  • Dimensions: 50*38*18 mm

Package Includes

  • 1 × XH-M601 12V Battery Charging Control Board Automatic Charger Module
