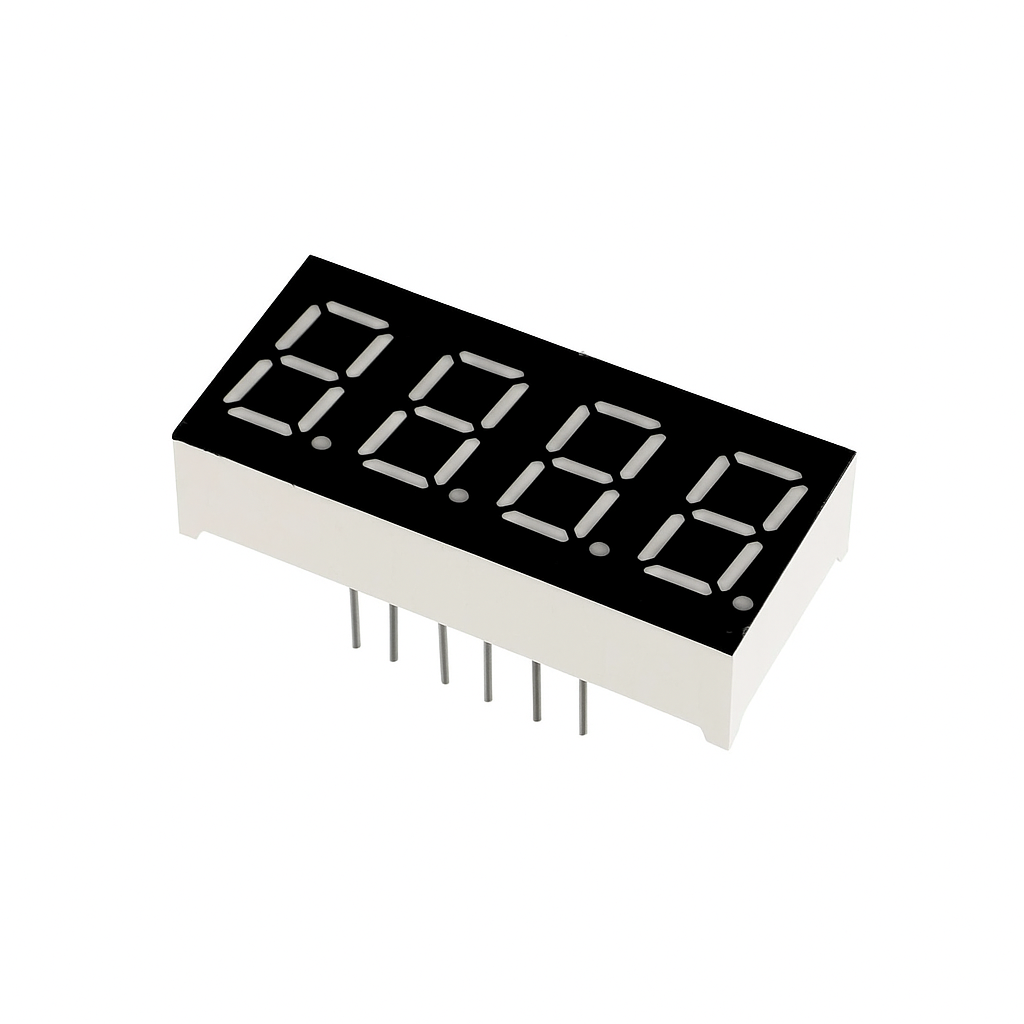

0.36 Inch 4-Digit Common Anode Red 7-Segment Display

Available:Out of Stock
  • Product SKU: DISPL018
Wishlist
₹ 28 ₹ 39
Pre-order
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

0.36 Inch 4-Digit Common Anode Red 7-Segment Display

The 0.36 Inch 4-Digit Common Anode Red 7-Segment Display is a compact, high-visibility module for numeric indication in electronic circuits. With bright red LED segments and a 0.36-inch digit height, it provides clear readability while saving panel space. The common anode configuration interfaces easily with popular driver ICs and microcontrollers, supporting multiplexed operation in both prototypes and production builds.

Built for reliability and low power consumption, it’s ideal for timers, counters, clocks, and measurement panels. A standardized pin layout simplifies wiring and PCB design, while the durable package suits compact enclosures.

Technical Details

  • Display Type: 4-Digit 7-Segment LED
  • Configuration: Common Anode
  • Digit Height: 0.36 inch (≈9.2 mm)
  • Color: Red
  • Segments per digit: 7 + decimal point (DP)
  • Forward Voltage (per segment): 1.8V – 2.2V (typical)
  • Forward Current (per segment): 10mA – 20mA
  • Peak Current (per segment): 30mA (max)
  • Recommended Drive: Multiplexed (four commons), duty ≈ 1/4
  • Operating Voltage: 5V (typical with series resistors/driver IC)
  • Operating Temperature: -25°C to +85°C
  • Pin Count: 12 (shared segments + 4 commons)

Features

  • Space-saving 0.36" digits with good readability
  • Uniform, bright red LED segments
  • Low power consumption and long service life
  • Easy MCU/driver interfacing (multiplexed)
  • Ideal for clocks, counters, timers, and panel meters

Applications

  • Electronic instruments requiring 4-digit numeric display
  • Digital clocks, counters, and measurement panels
  • Voltage/current meters and compact embedded UIs
  • General purpose DIY and educational electronics

Drawing


Pin Configuration

S.No. Pin No. Symbol Description
1 1 E Segment E (shared)
2 2 D Segment D (shared)
3 3 CA1 Common Anode (Digit 1)
4 4 C Segment C (shared)
5 5 DP Decimal Point (shared)
6 6 B Segment B (shared)
7 7 CA2 Common Anode (Digit 2)
8 8 A Segment A (shared)
9 9 F Segment F (shared)
10 10 CA3 Common Anode (Digit 3)
11 11 G Segment G (shared)
12 12 CA4 Common Anode (Digit 4)

Physical Attributes

  • Overall Size (L × W × H): ~30.00 × 14.00 × 7.20 mm
  • Digit Height: 9.2 mm (0.36")
  • Digit pitch: 7.50 mm between adjacent digits
  • Pin pitch (within a row): 2.54 mm
  • Row spacing (front–back): ~10.16 mm
  • Lead diameter: ≈0.45 mm
  • 6 pins per row (total 12 pins)
  • Weight: 3 gm (approx.)

Package Includes

  • 1 x 0.36 Inch 4-Digit Common Anode Red 7-Segment Display
