0.36 Inch 4-Digit Common Cathode Red 7-Segment Display
Available:In Stock
- Product SKU: DISPL017
₹ 28
₹ 39
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description

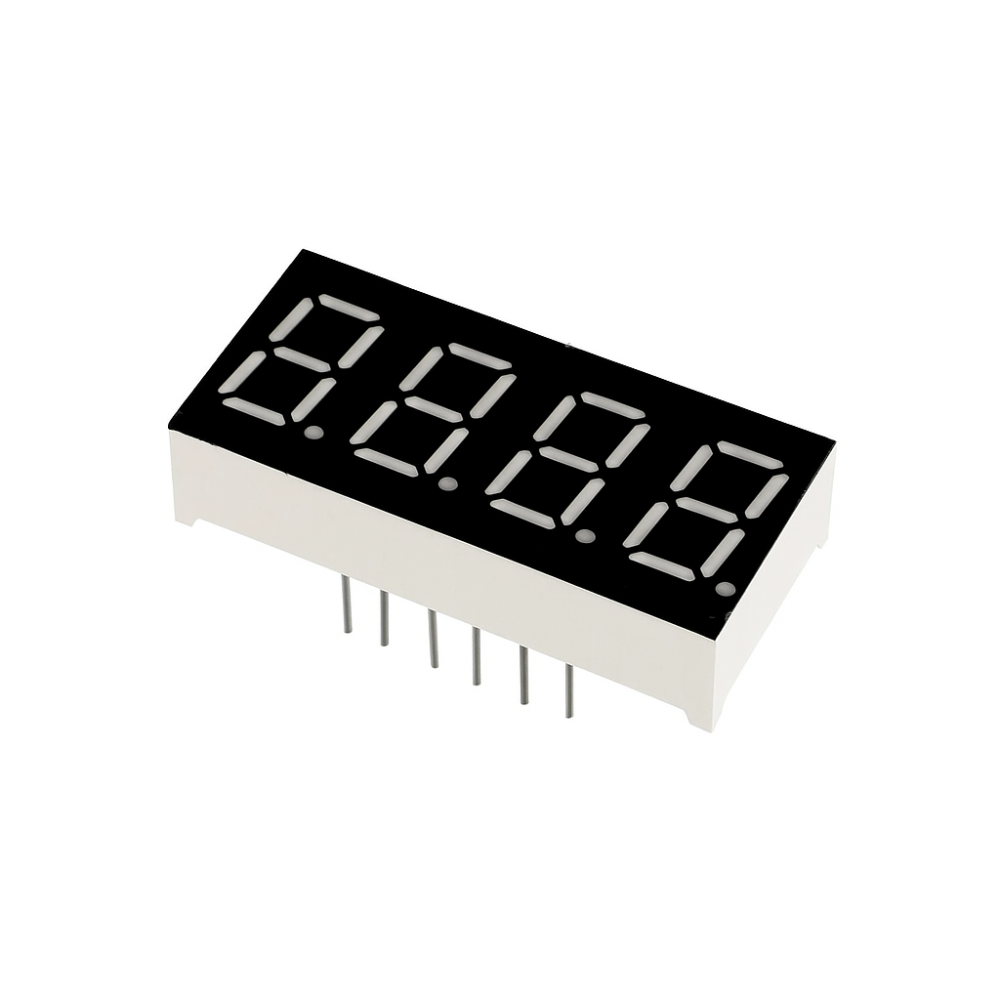

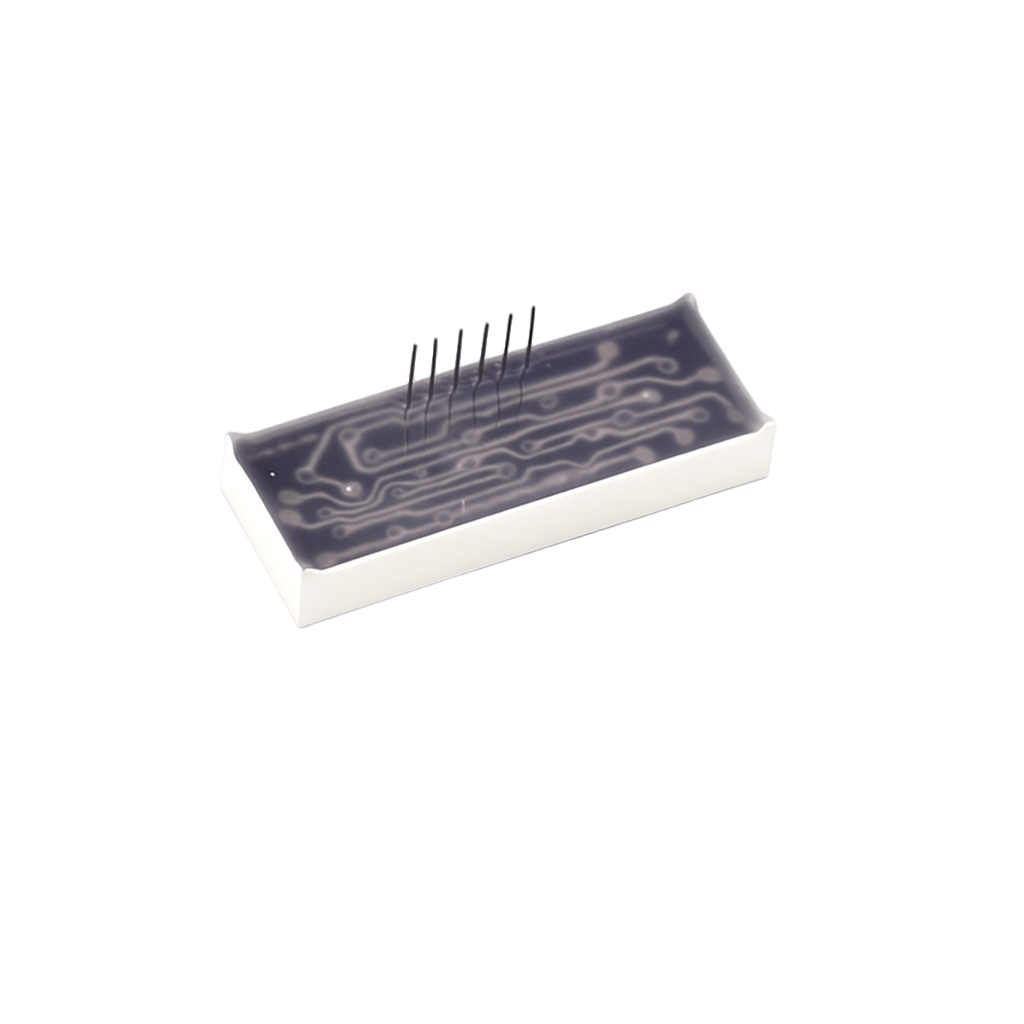

0.36 Inch 4-Digit Common Cathode Red 7-Segment Display
The 0.36 Inch 4-Digit Common Cathode Red 7-Segment Display is a compact, high-visibility module for numeric indication in electronic circuits. With bright red LED segments and a 0.36-inch digit height, it provides clear readability while saving panel space. The common cathode configuration interfaces easily with popular driver ICs and microcontrollers, supporting multiplexed operation in both prototypes and production builds.Built for reliability and low power consumption, it’s ideal for timers, counters, clocks, and measurement panels. A standardized pin layout simplifies wiring and PCB design, while the durable package suits compact enclosures.
Technical Details
- Display Type: 4-Digit 7-Segment LED
- Configuration: Common Cathode
- Digit Height: 0.36 inch (≈9.2 mm)
- Color: Red
- Segments per digit: 7 + decimal point (DP)
- Forward Voltage (per segment): 1.8V – 2.2V (typical)
- Forward Current (per segment): 10mA – 20mA
- Peak Current (per segment): 30mA (max)
- Recommended Drive: Multiplexed (four commons), duty ≈ 1/4
- Operating Voltage: 5V (typical with series resistors/driver IC)
- Operating Temperature: -25°C to +85°C
- Pin Count: 12 (shared segments + 4 commons)
Features
- Space-saving 0.36" digits with good readability
- Uniform, bright red LED segments
- Low power consumption and long service life
- Easy MCU/driver interfacing (multiplexed)
- Ideal for clocks, counters, timers, and panel meters
Applications
- Electronic instruments requiring 4-digit numeric display
- Digital clocks, counters, and measurement panels
- Voltage/current meters and compact embedded UIs
- General purpose DIY and educational electronics
Drawing
Pin Configuration
| S.No. | Pin No. | Symbol | Description |
|---|---|---|---|
| 1 | 1 | E | Segment E (shared) |
| 2 | 2 | D | Segment D (shared) |
| 3 | 3 | CC1 | Common Cathode (Digit 1) |
| 4 | 4 | C | Segment C (shared) |
| 5 | 5 | DP | Decimal Point (shared) |
| 6 | 6 | B | Segment B (shared) |
| 7 | 7 | CC2 | Common Cathode (Digit 2) |
| 8 | 8 | A | Segment A (shared) |
| 9 | 9 | F | Segment F (shared) |
| 10 | 10 | CC3 | Common Cathode (Digit 3) |
| 11 | 11 | G | Segment G (shared) |
| 12 | 12 | CC4 | Common Cathode (Digit 4) |
Physical Attributes
- Overall Size (L × W × H): 30.00 × 14.00 × 7.20 mm (approx.)
- Digit Height: 9.2 mm (0.36")
- Digit pitch: 7.50 mm between adjacent digits
- Pin pitch (within a row): 2.54 mm
- Row spacing (front–back): 10.16 mm
- Lead diameter: ≈0.45 mm
- 6 pins per row (total 12 pins)
- Weight: 3 gm
Package Includes
- 1 x 0.36 Inch 4-Digit Common Cathode Red 7-Segment Display
