Based on digital Class-D amplification technology, the TPA3116D2 offers high efficiency, low heat generation, and minimal power loss compared to traditional analog amplifiers. Its compact PCB design makes it easy to integrate into a wide range of audio applications while maintaining excellent sound clarity and low distortion.
-20%
TPA3116D2 Dual Channel Stereo Audio Amplifier Board 80W x 2
Available:In Stock
- Product SKU: KG1344
₹ 399
₹ 499
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

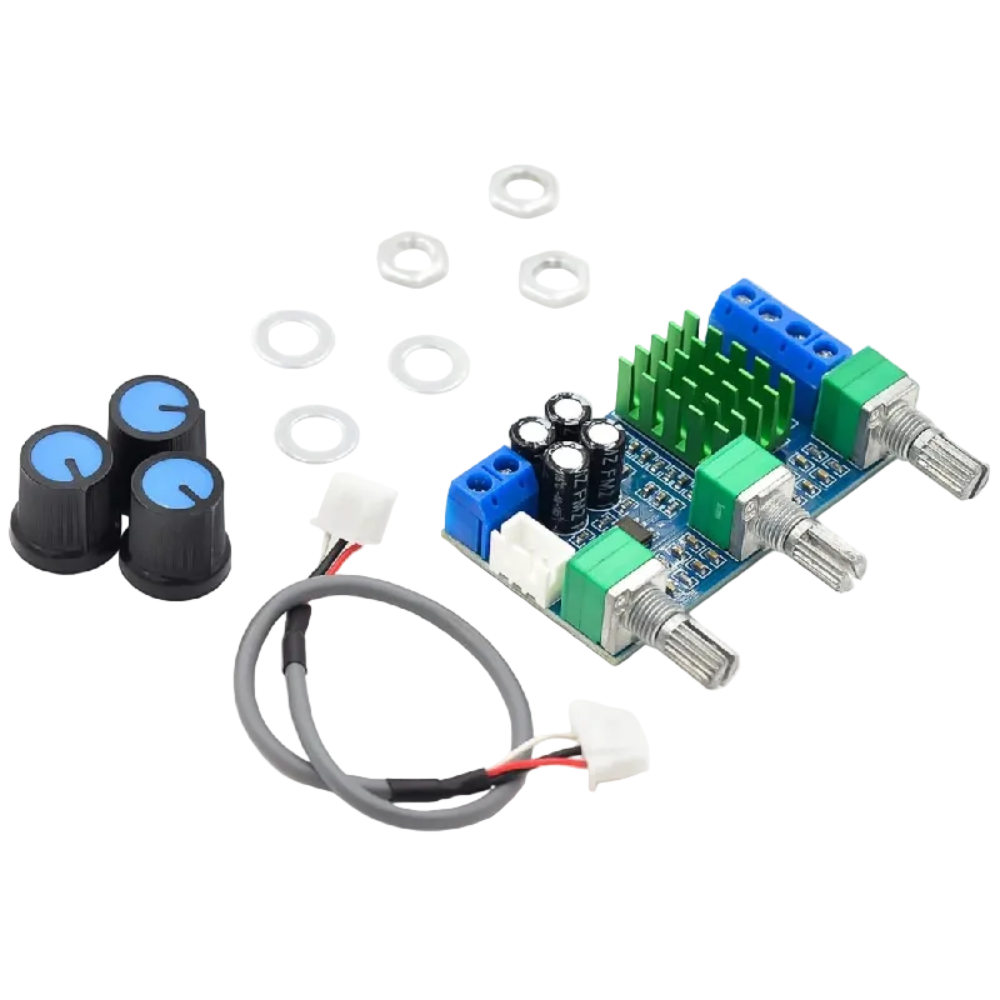

TPA3116D2 Audio Dual Channel Stereo Digital Amplifier Board – 80W × 2
The TPA3116D2 Audio Dual Channel Stereo Digital Amplifier Board is a high-performance and energy-efficient Class-D amplifier module designed to deliver powerful and clear stereo sound. With an output of 80W per channel, this board is ideal for high-quality audio amplification in home audio systems, DIY speaker projects, and custom sound solutions.Based on digital Class-D amplification technology, the TPA3116D2 offers high efficiency, low heat generation, and minimal power loss compared to traditional analog amplifiers. Its compact PCB design makes it easy to integrate into a wide range of audio applications while maintaining excellent sound clarity and low distortion.
Features
- Dual-channel stereo amplifier configuration
- High output power of 80W per channel (160W total)
- Class-D digital amplifier technology for high efficiency
- Clear and high-quality audio output with low distortion
- Wide DC input voltage support from 12V to 24V
- Low heat generation and reduced power dissipation
- Compact PCB design for easy integration
- Suitable for DIY and professional audio applications
Technical Specifications
- Amplifier Chip: TPA3116D2
- Number of Channels: 2 (Stereo)
- Output Power: 80W × 2 (160W total)
- Operating Voltage: DC 12V to 24V
- Input Current: Greater than 5 A
- Amplification Gain: 45 times
- Input Impedance: 1 KΩ
- Speaker Impedance: 4 to 8 Ω
- Amplifier Type: Class-D Digital Amplifier
Physical Dimensions
- PCB Size: 59.6 × 32 mm
- Length: 59.6 mm
- Width: 52 mm
- Height: 15 mm
- Weight: 41 g
- Wire Length: 30 cm aprox
Applications
- Home audio and stereo sound systems
- DIY speaker and subwoofer projects
- Bluetooth speaker amplifiers (with external module)
- Custom audio amplification systems
- Educational and electronics hobby projects
Usage Notes
- Use a stable DC power supply within the rated voltage range
- Ensure adequate current capability for high-power operation
- Provide proper ventilation or heat dissipation for continuous use
- Use compatible speakers with 4 to 8 ohm impedance
Package Includes
- 1 × TPA3116D2 Audio Dual Channel Stereo Digital Amplifier Board (80W × 2)
