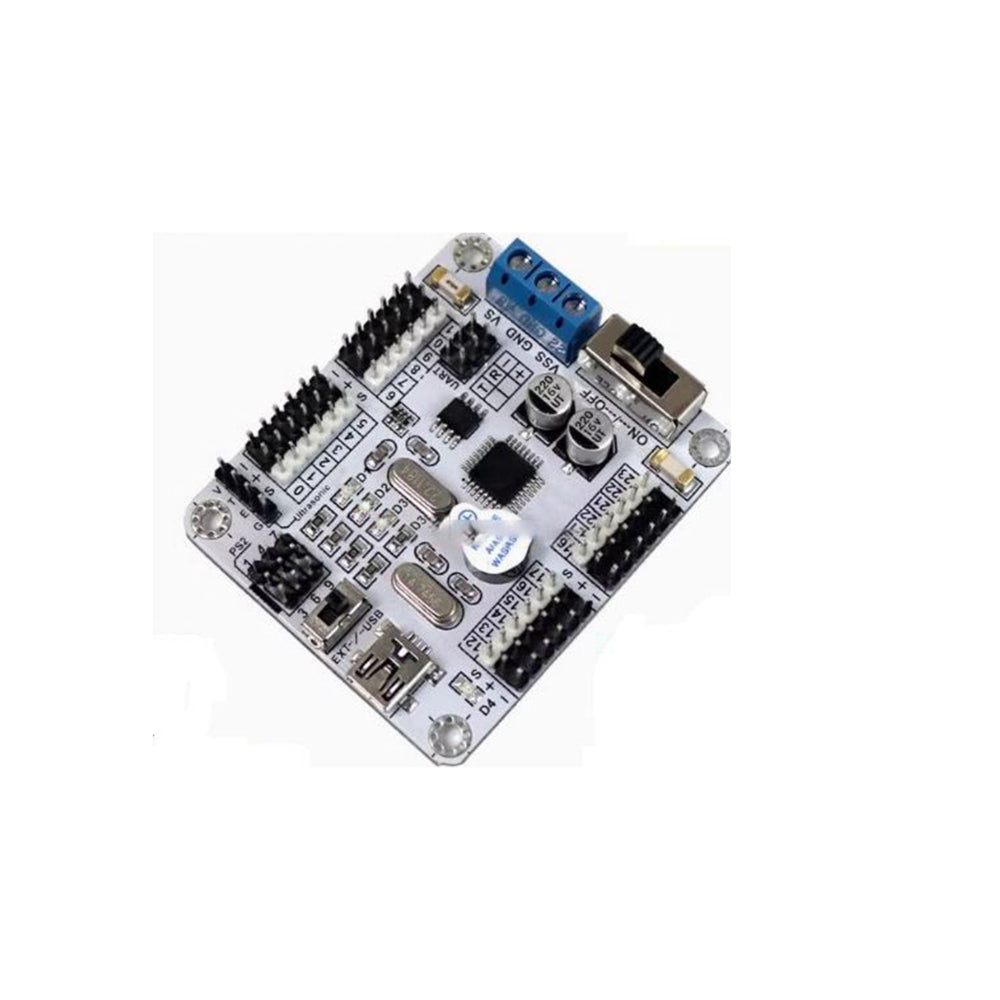

Front view of 24-Channel Servo Motor Controller Board

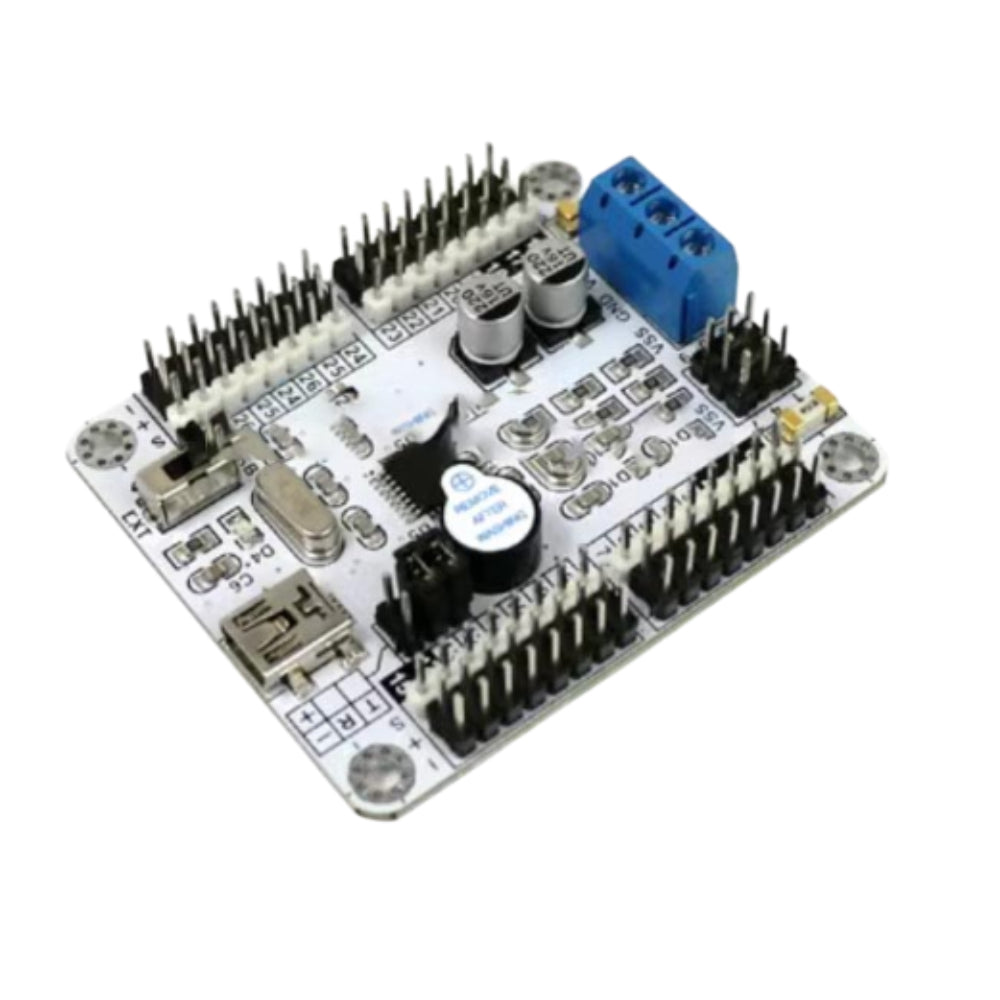

24-Channel Servo Controller Board showing USB and WiFi modules

Interface diagram of 24-Channel PWM servo controller board

24 Channel Servo Motor Controller Board, Support PS2 WIFI with USB Cable

Available:In Stock

Product SKU: LGRO160

Wishlist

₹ 3,999 ~~₹ 4,999~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Controls 24 servos
Mini USB connection
PS2 handle support
Low-voltage and over-current protection
Signal isolation protection
External MP3/Bluetooth support
9600 baud communication

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

33 K - 189

Specification

Description

24 Channel Digital Servo Controller

The 24 Channel Digital Servo Controller is designed for advanced servo control robot projects and works as a reliable robot motor controller, providing stable performance with a low-voltage alarm and a simplified wiring structure. It features a built-in power switch and a high-performance CPU, making it ideal for robotics and automation setups. With support for a wireless handle and 16M high-capacity memory, it can store up to 230 action groups—delivering smooth and coordinated servo operations. Additionally, it supports TTL serial communication and Bluetooth/MP3 modules for seamless system expansion.

All 24 servo interfaces include over-current protection to prevent damage from locked rotor conditions. Powered by an STM32 single-chip microcontroller with an ARM Cortex-M3 core, it ensures precise servo movement control with adjustable speed. To enhance ease of use, PC software enables online graphical debugging, allowing simultaneous operation of all 24 channels. Whether you are developing a robotic arm with servo motor mechanisms or a multi-axis machine, this controller will deliver the accuracy needed in every servo control robot build.

Technical Details

Weight: 54g
Dimensions: 52mm × 61.5mm
Mounting Hole Position: 44.5mm × 53.5mm
Communication Interface: Mini USB
Control Channels: 24
Remote Control Handle: Supports external
Bluetooth Module: Supports extension
MP3 Module: Supports extension
WIFI Module: Supports extension
Wireless Module: Supports extension
Ultrasonic Module: Supports extension
Angle Detection: Support
Power Switch: On-board
Voltage Alarm: Support
Secondary Development: Support
Serial Communication: Support
Local Storage: Support
Run Offline: Support

Features

Supports external PS remote control handle for calling actions
On-board angle sensor with detection mode and auto execution
Supports ultrasonic sensor for obstacle distance detection
Bluetooth, WiFi, and MP3 module expansion capability
Secondary development supported via reserved serial interface
Automatic low-voltage detection with alarm and action storage
Multi-stage voltage regulation and overload protection built-in
Includes electronic documentation and video tutorials

Interface Diagram

WiFi-enabled 24-channel PWM servo control board interface

Power Supply Connection

multi-servo-pwm-controller power supply wiring

Secondary Development

secondary development ports for servo motor controller board

Detailed Display:

24-channel servo controller detailed product display

Applications

Robotics: Drives multiple servos in complex systems like legs, drones, and a servo control robot framework.
Automation: Ensures precise positioning in automated machines requiring a strong robot motor controller base.
Modeling & Simulation: Ideal for animatronics, RC models, and movement simulation.
Prototyping: Perfect for testing multi-axis ideas such as a robotic arm with servo motor.
3D Printing: Controls additional extruders or moving parts.
STEM Education: Helps students learn servo systems and servo control robot fundamentals.
Industrial Use: Supports manufacturing where precision motion and a stable robot motor controller are required.
Entertainment: Used in animatronics, smart puppetry, and theme park robotics.
